Absorber Control ECU Communication Stop Mode
Absorber Control ECU Communication Stop Mode
Absorber Control ECU Communication Stop Mode

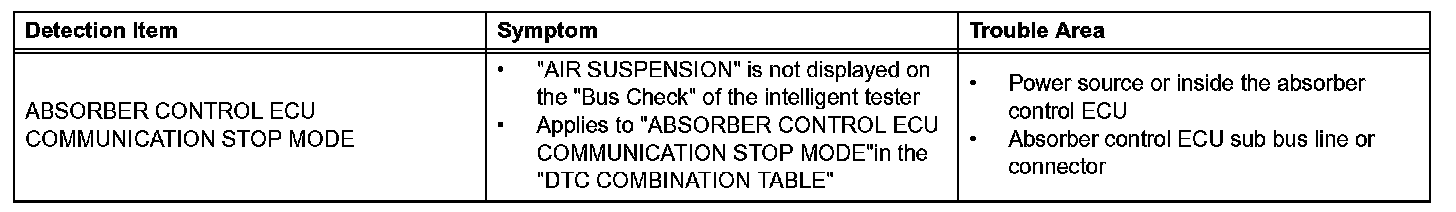

Detection Item:
DESCRIPTION

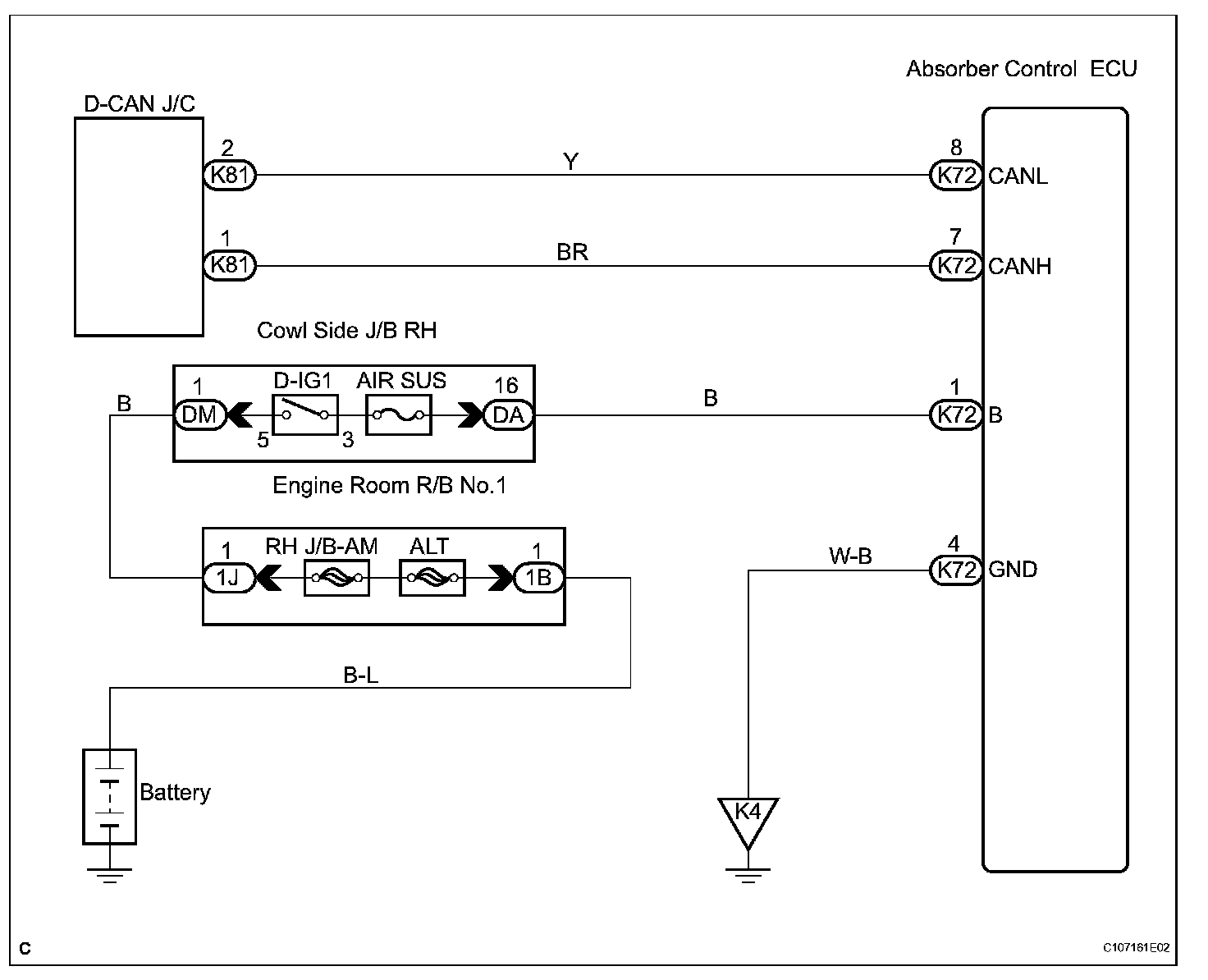

Wiring Diagram:

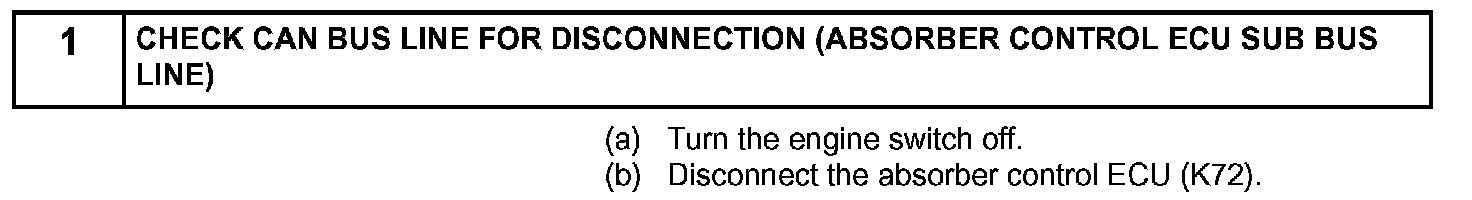

Step 1:

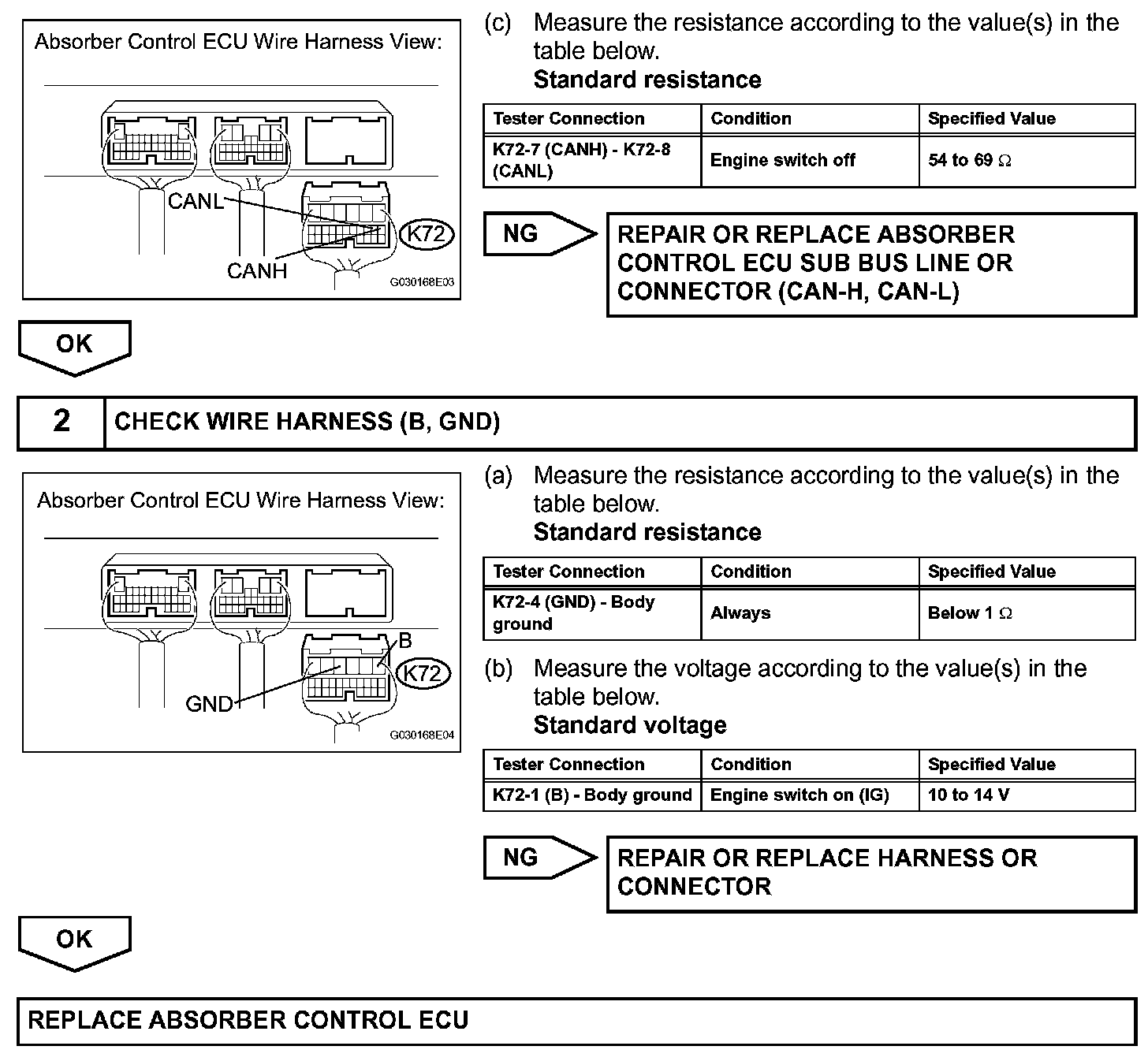

Step 1(continued)-2:
INSPECTION PROCEDURE
