Rear Axle Hub Bolt

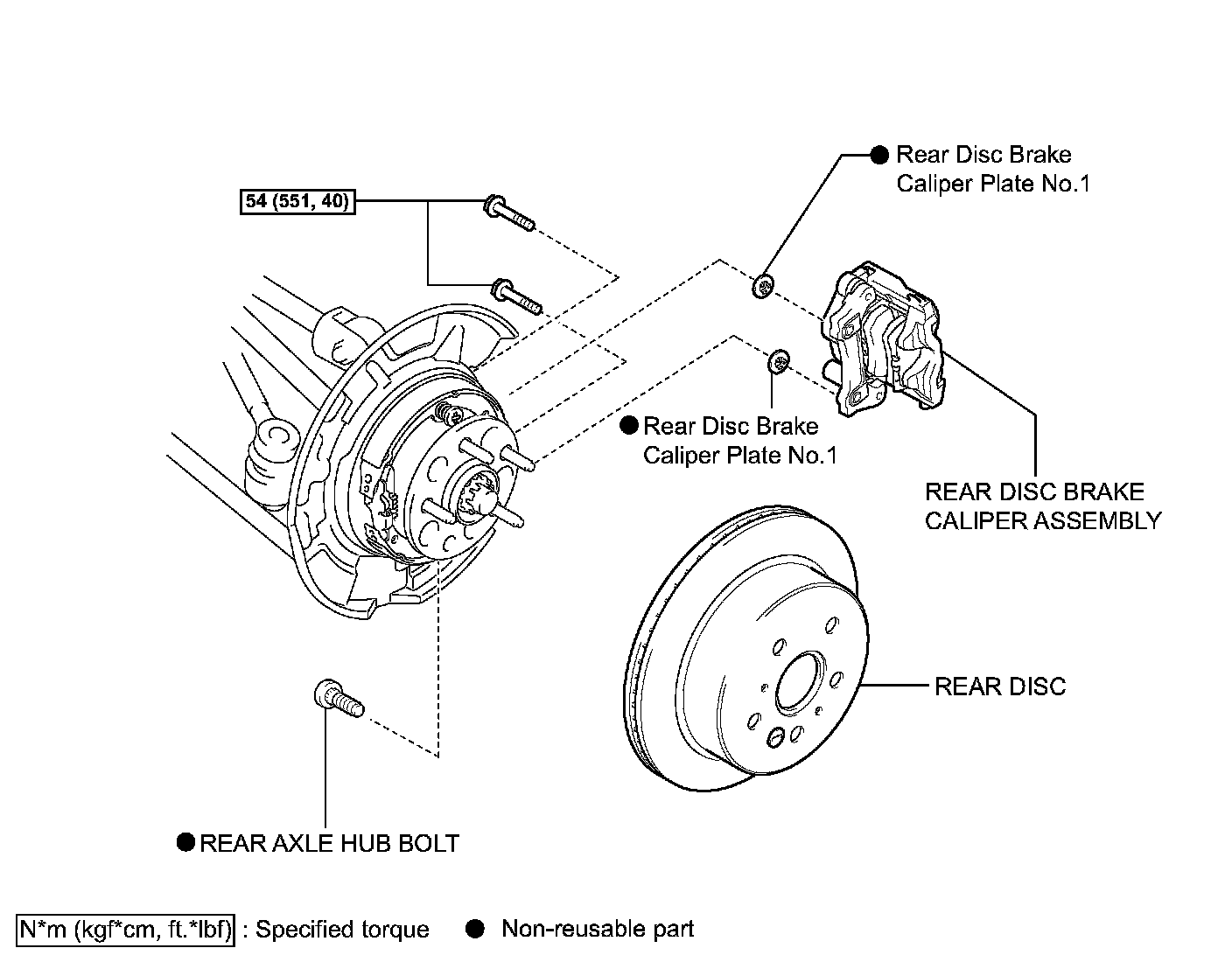

REAR AXLE HUB BOLTCOMPONENTS:
REPLACEMENT
1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
3. REMOVE REAR DISC
4. REMOVE REAR AXLE HUB BOLT

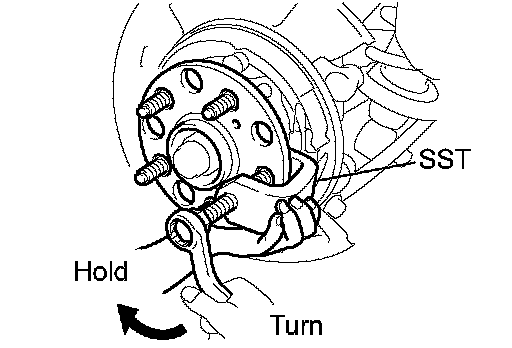

a. Using SST, and remove the rear axle hub bolt.
SST 09628-10011
NOTICE: Do not damage the threads of the hub bolts.
5. INSTALL REAR AXLE HUB BOLT
a. Install a washer and nut to a new bolt as shown in the illustration.
b. Using a screw driver or an equivalent to hold the hub & bearing assembly, install the rear axle hub bolt by tightening the nut.
NOTICE: Do not damage the threads of the hub bolts.
6. INSTALL REAR DISC
7. ADJUST PARKING BRAKE SHOE CLEARANCE
8. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
9. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
