Front Axle Hub Bolt

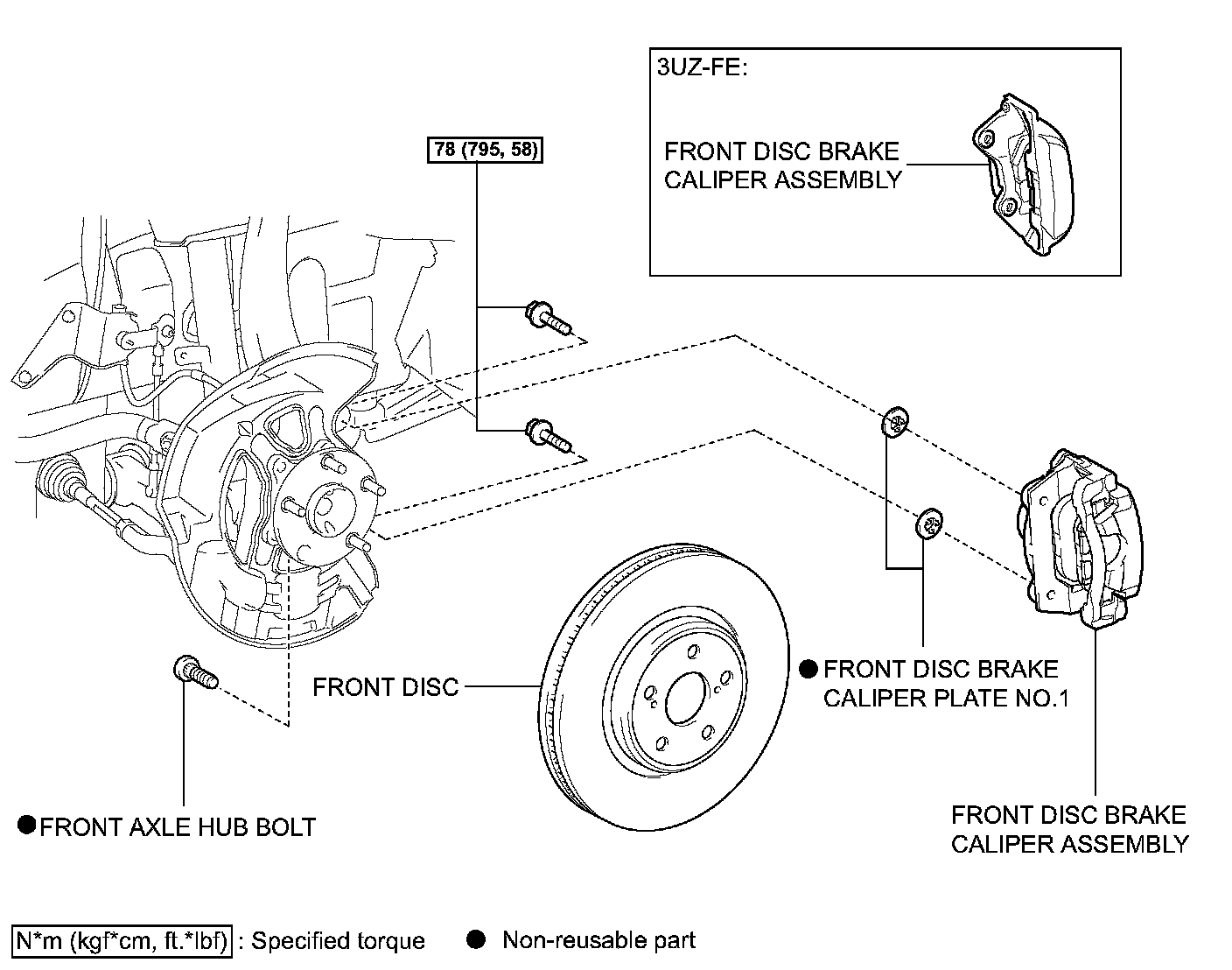

FRONT AXLE HUB BOLTCOMPONENTS:
REPLACEMENT
1. REMOVE FRONT WHEEL
2. REMOVE FRONT DISC BRAKE CALIPER ASSEMBLY
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE HUB BOLT

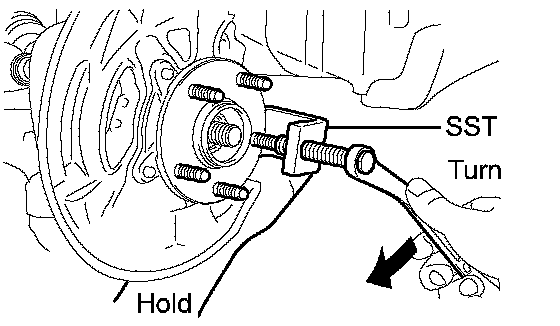

a. Using SST, remove the front axle hub bolt.
SST 09628-10011
NOTICE: Do not damage the threads of the hub bolts.
5. INSTALL FRONT AXLE HUB BOLT

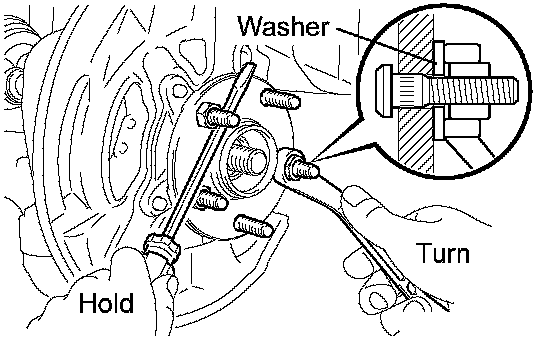

a. Install a washer and nut to a new bolt as shown in the illustration.
b. Using a screwdriver or an equivalent to hold the hub, turn the wheel nut to pull the hub bolt until the bottom surface of the hub bolt head touches the axle hub.
NOTICE: Do not damage the threads of the hub bolts.
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
