Tire Pressure Warning Reset Switch Circuit

Tire Pressure Warning Reset Switch Circuit

DESCRIPTION
Receiving the signal from the tire pressure warning reset switch, the tire pressure monitor ECU indicates the initialization of the pressure warning system.

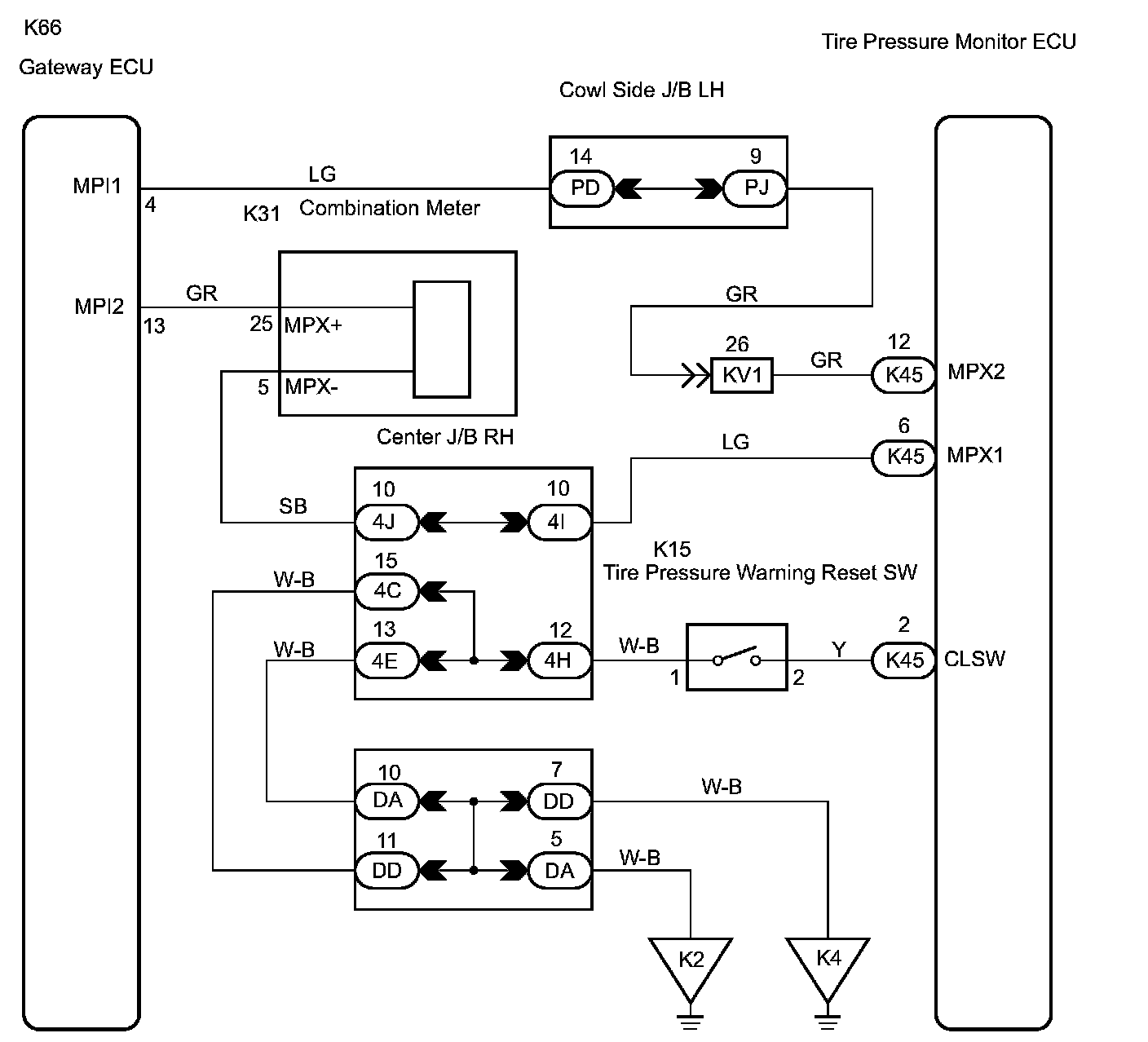

WIRING DIAGRAM:





NOTICE: It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and/or the tire pressure monitor ECU.

INSPECTION PROCEDURE

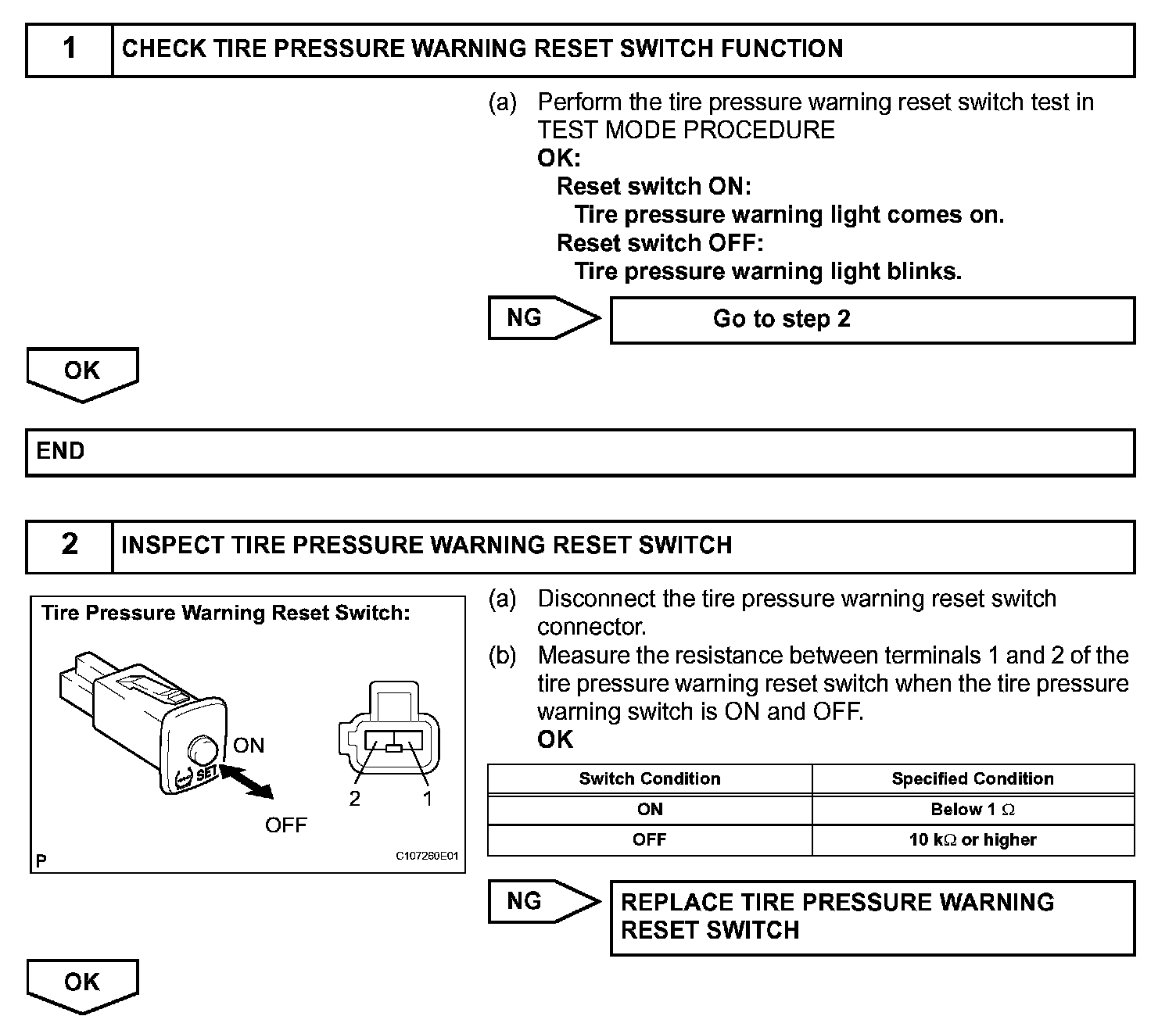

Steps 1-2:

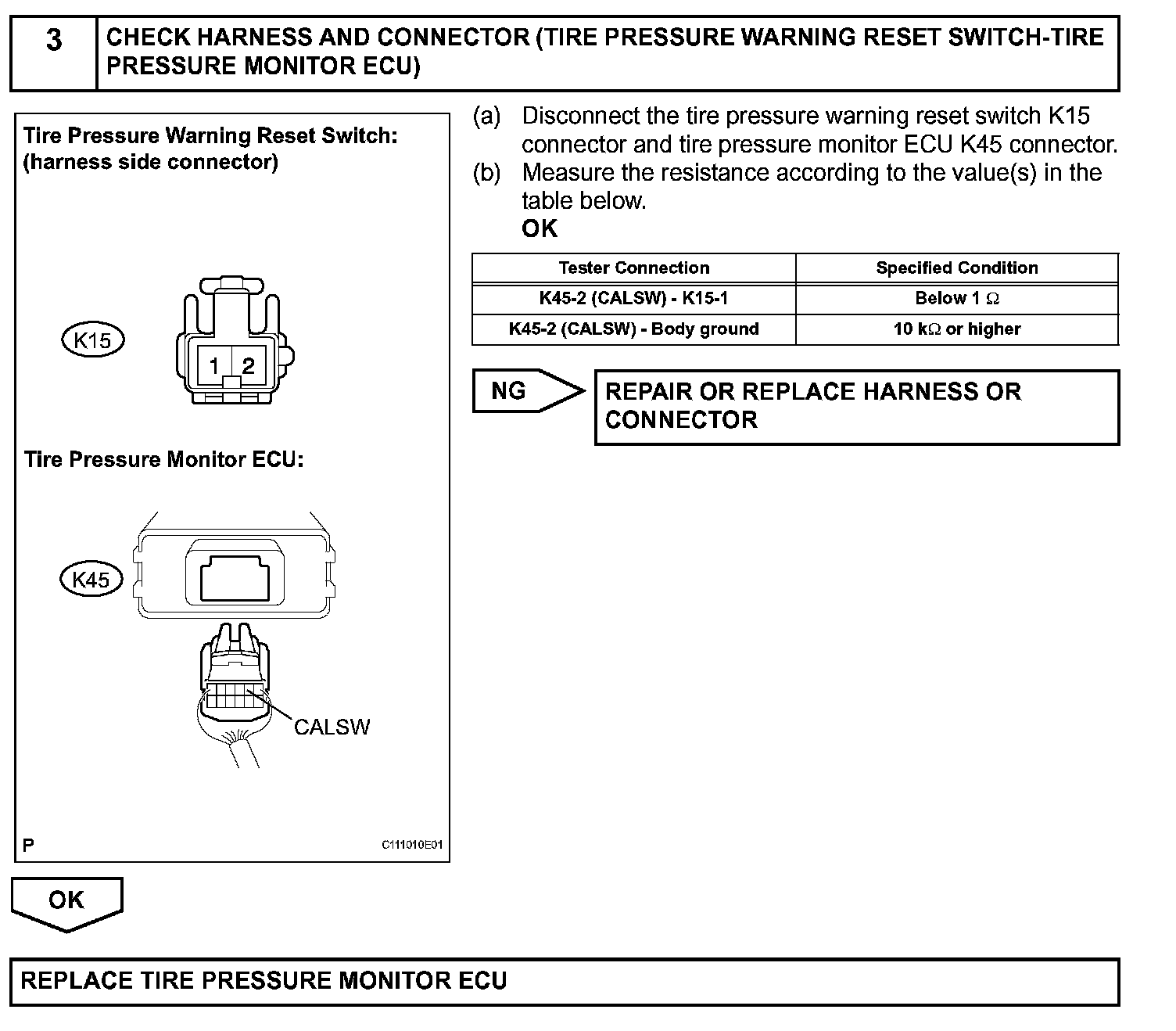

Step 3:
