W/ECB

BRAKE FLUID (w/ECB)

ON-VEHICLE INSPECTION

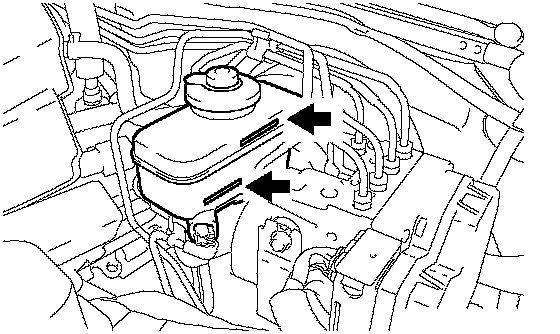

1. INSPECT FLUID LEVEL IN RESERVOIR
a. Check the fluid level. If the brake fluid level is between the MAX and MIN lines, the level is normal.
If brake fluid level is lowered, check for leakage and inspect the disc brake pad. If necessary, refill the reservoir with brake fluid after repair and replacement. When adding brake fluid, refer to step 8 CHECK BRAKE FLUID LEVEL.
Fluid: SAE J1703 or FMVSS No.116 DOT 3
