Pinout Values and Diagnostic Parameters

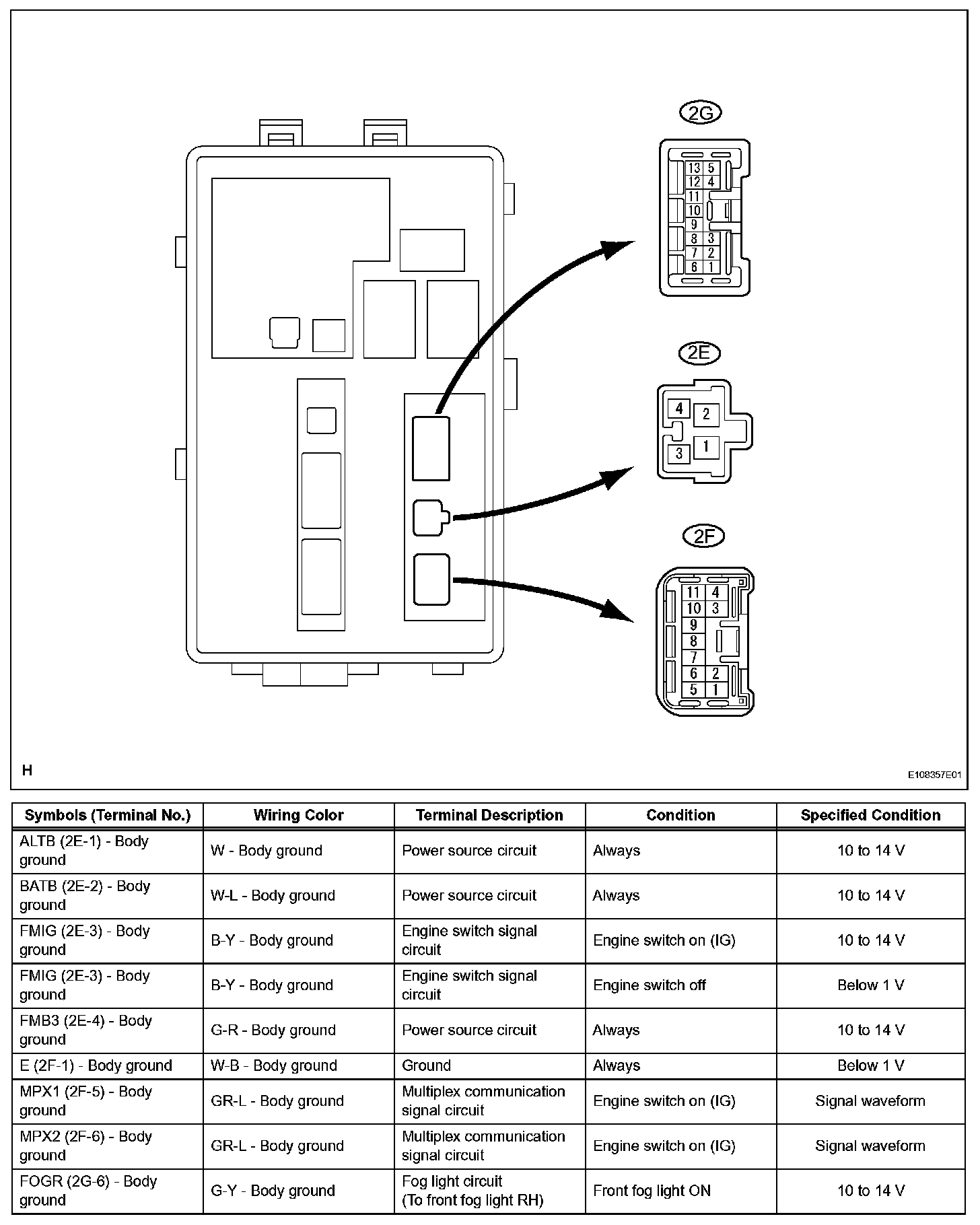

Terminals Of Control Module/Pinouts - Check Engine Room No. 2 Relay Block (Front Controller) (Part 1):

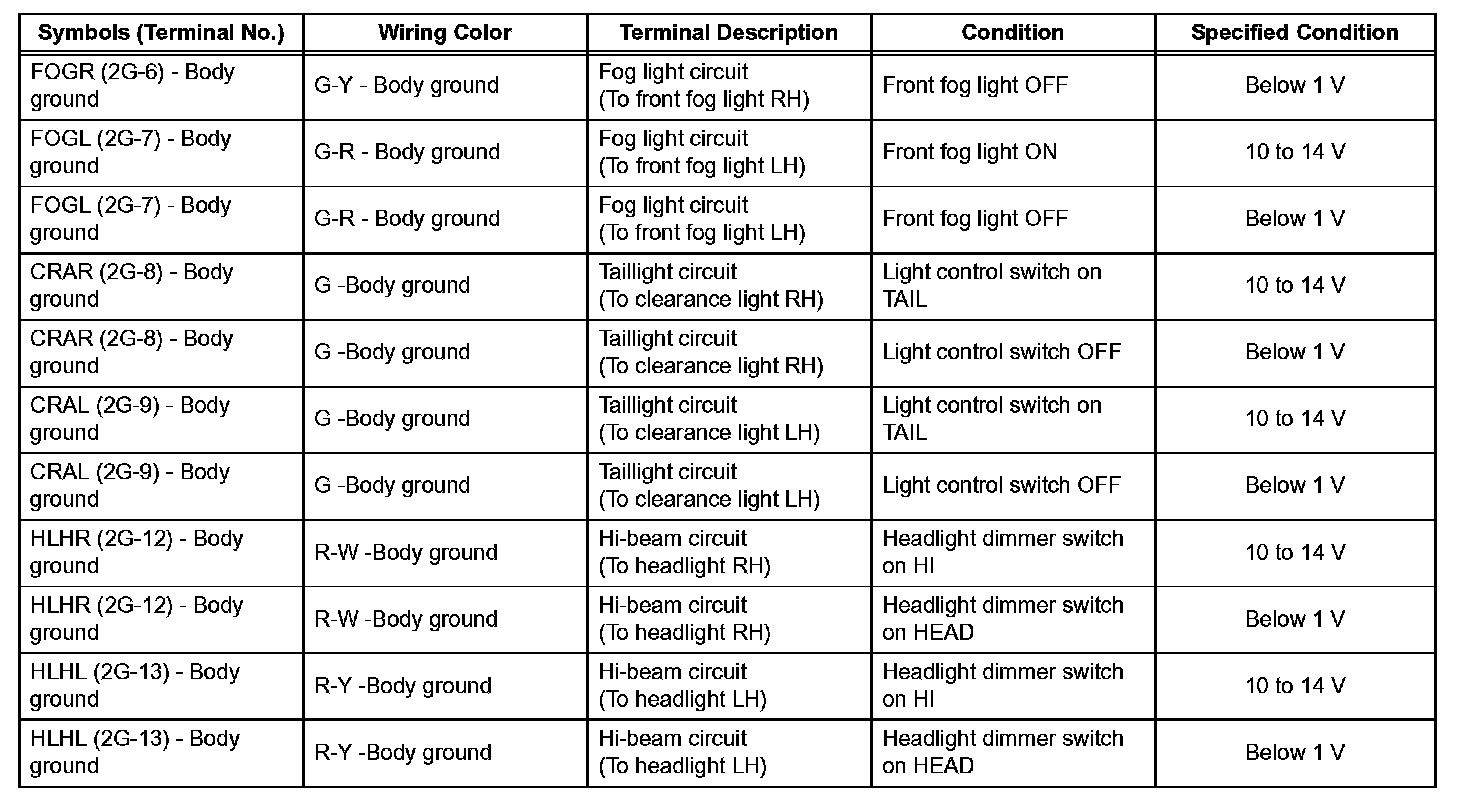

Terminals Of Control Module/Pinouts - Check Engine Room No. 2 Relay Block (Front Controller) (Part 2):

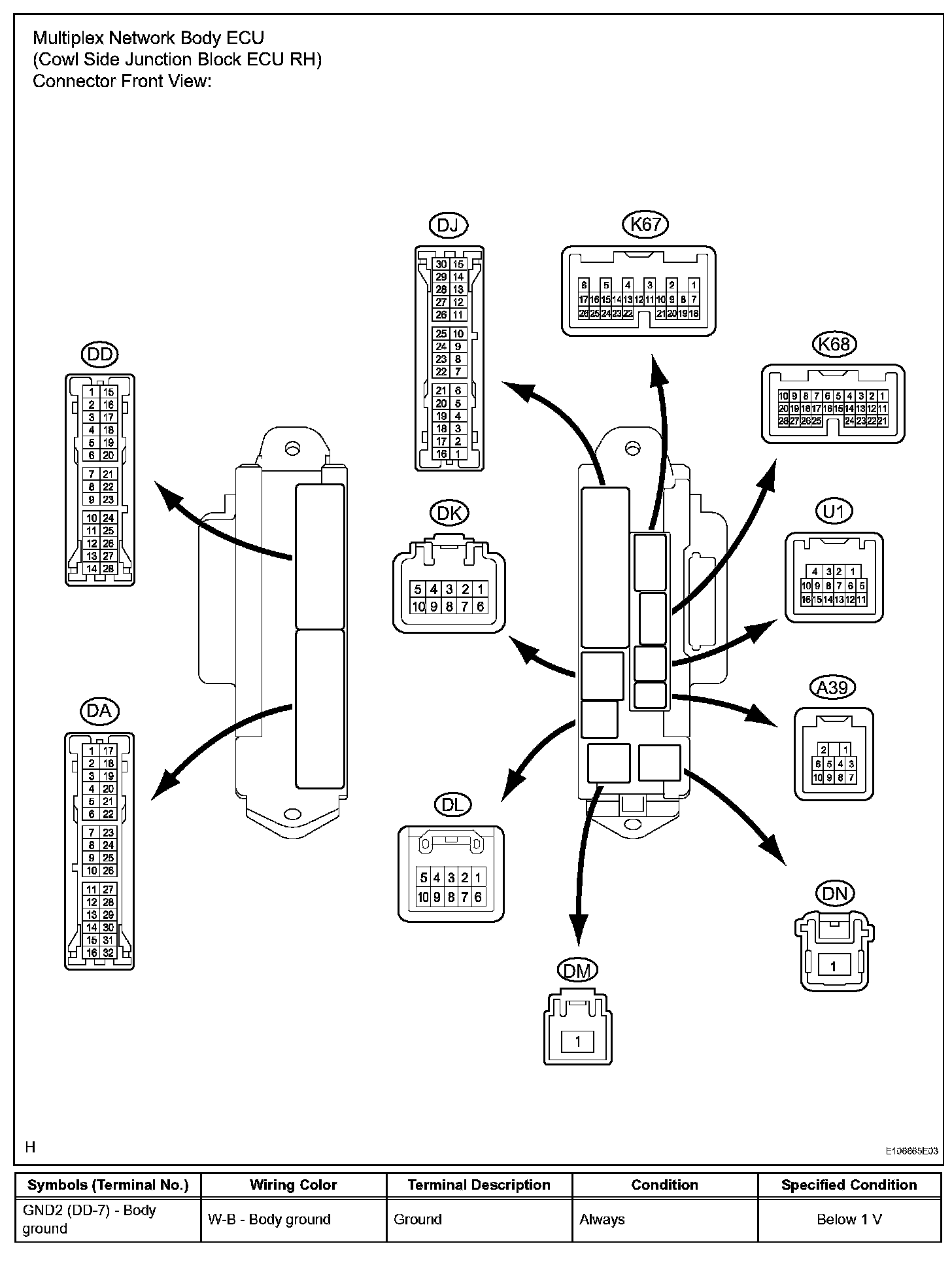

Terminals Of Control Module/Pinouts - Check Multiplex Network Body ECU (Cowl Side Junction Block ECU RH) (Part 1):

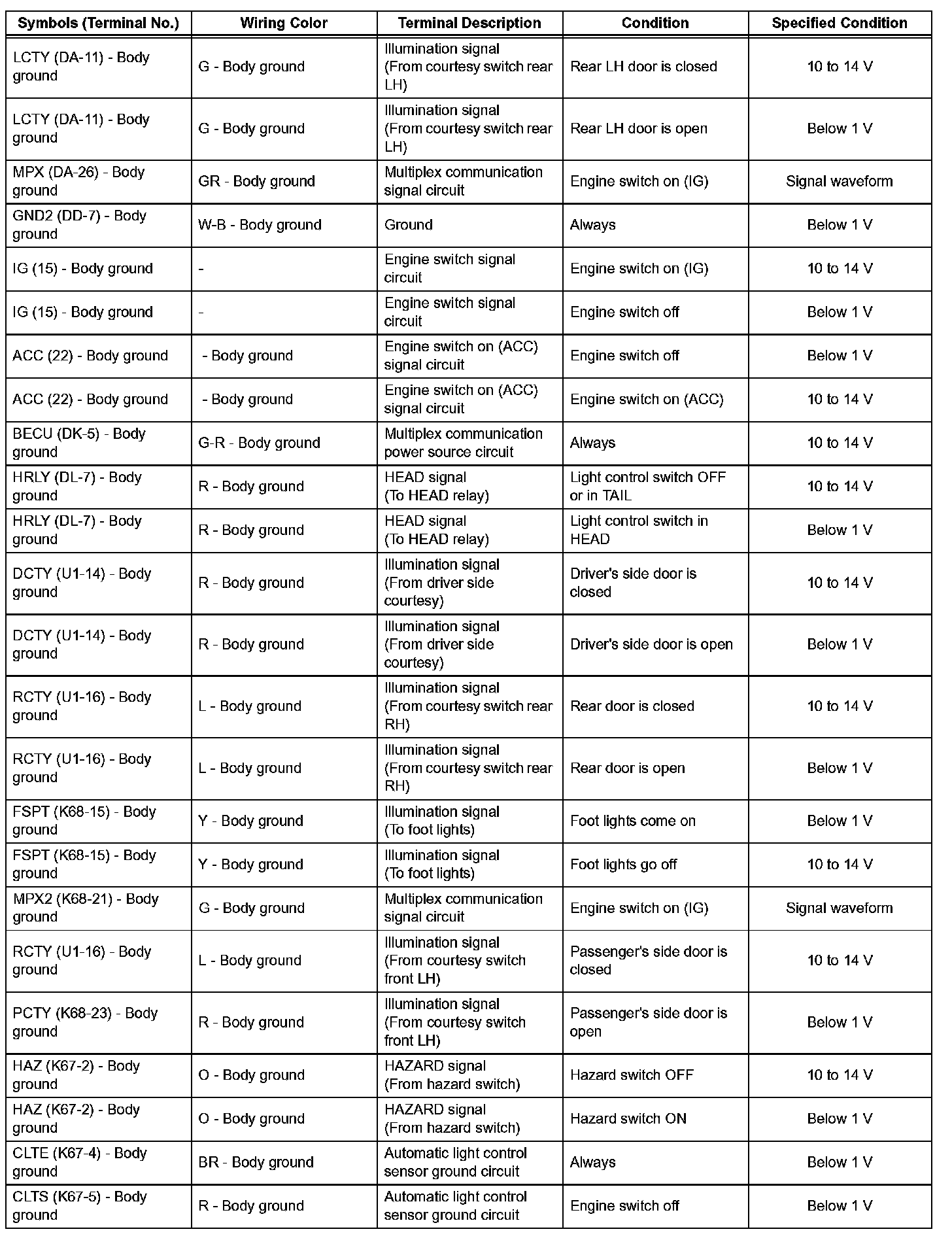

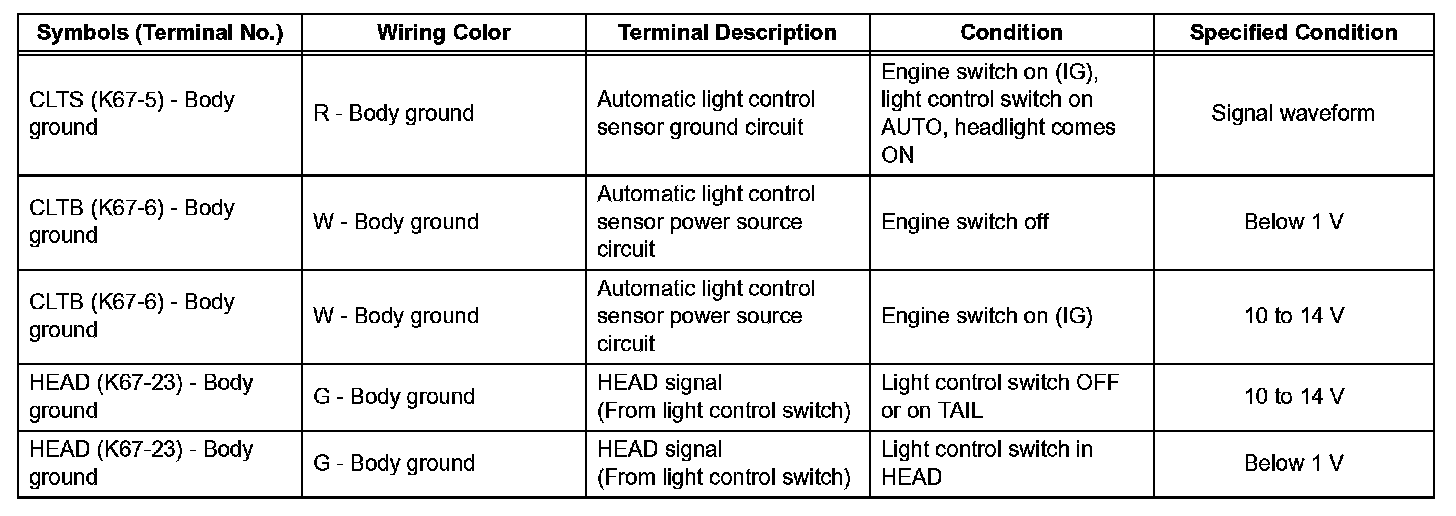

Terminals Of Control Module/Pinouts - Check Multiplex Network Body ECU (Cowl Side Junction Block ECU RH) (Part 2):

Terminals Of Control Module/Pinouts - Check Multiplex Network Body ECU (Cowl Side Junction Block ECU RH) (Part 3):

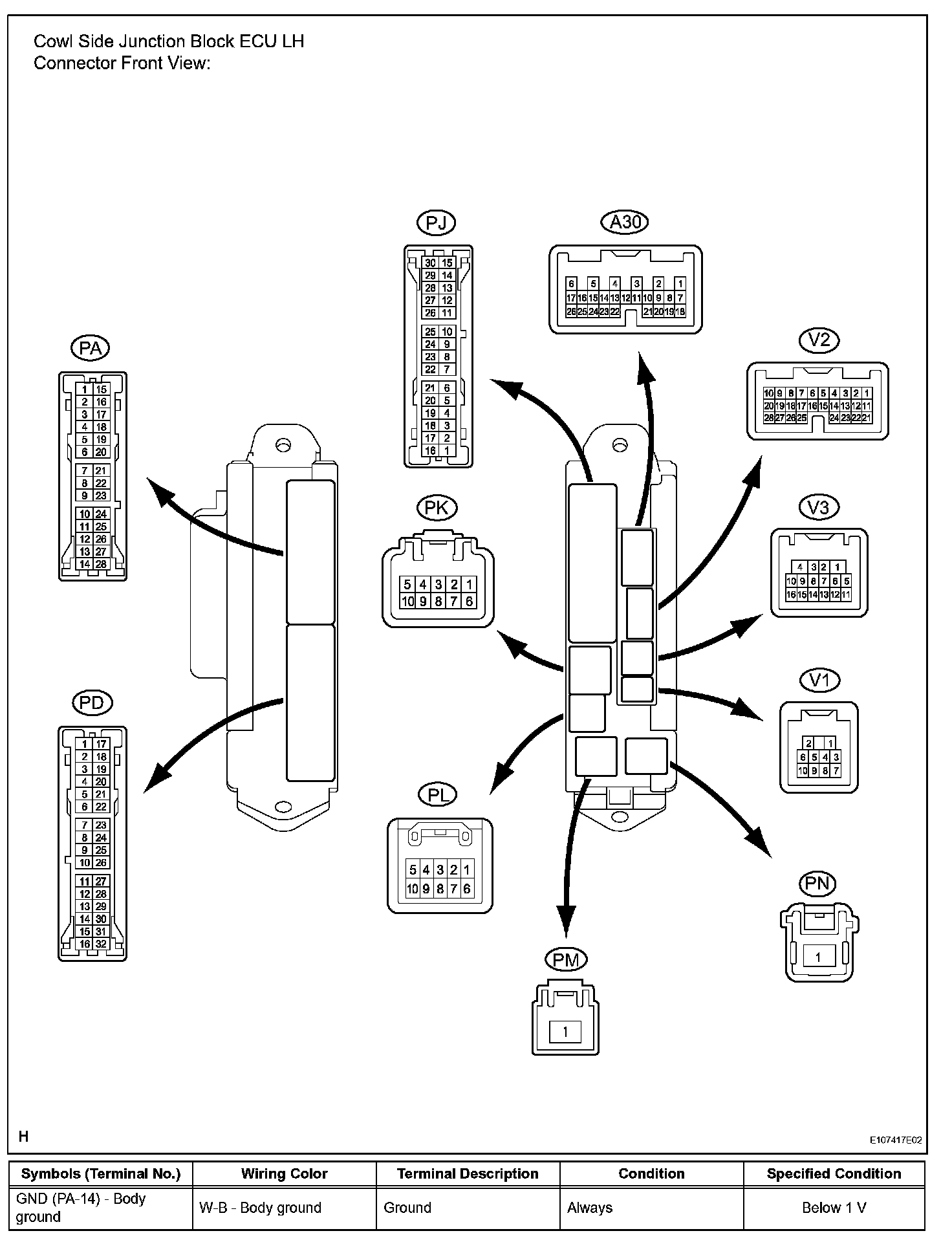

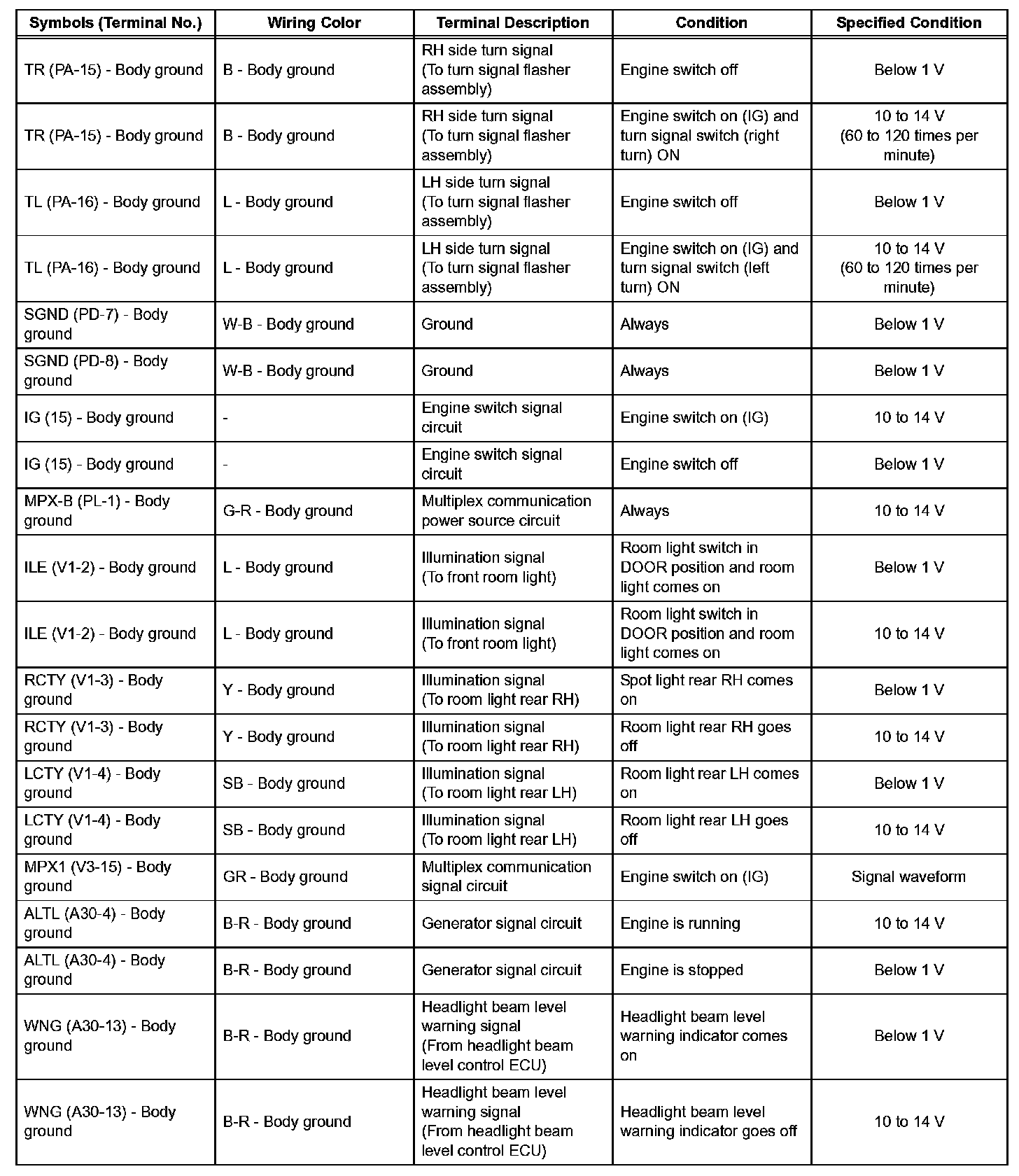

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block ECU LH (Part 1):

Terminals Of Control Module/Pinouts - Check Cowl Side Junction Block ECU LH (Part 2):

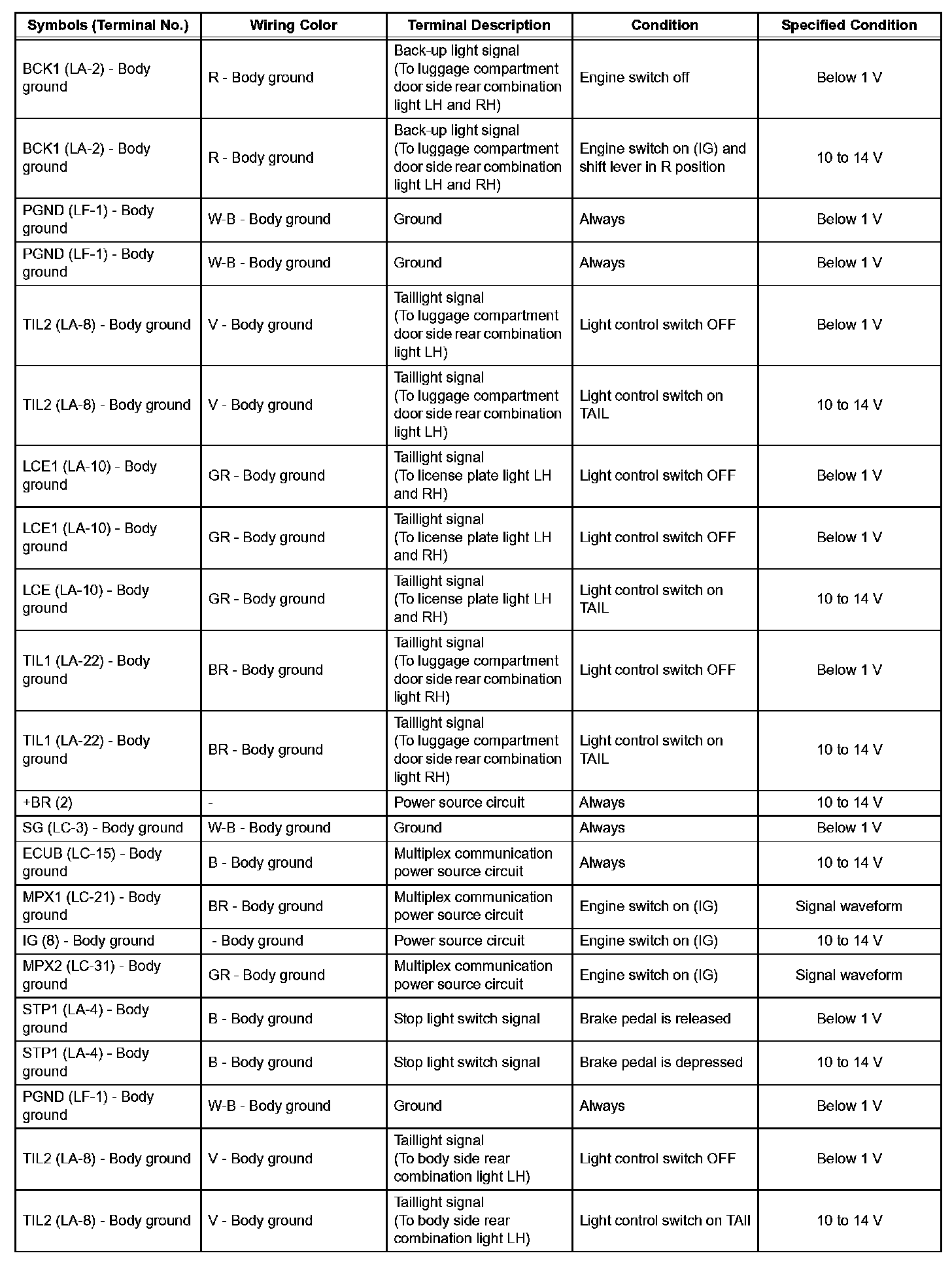

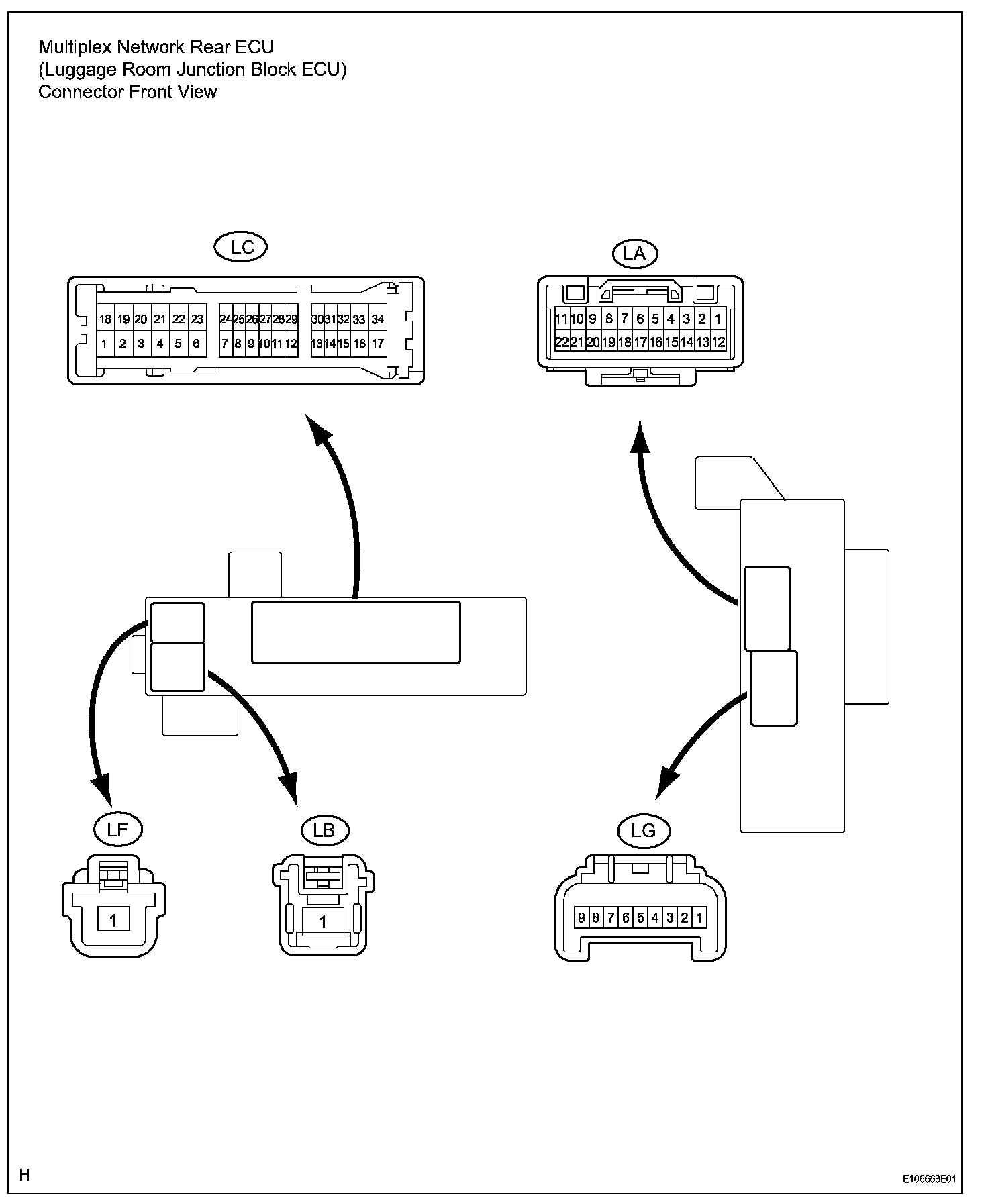

Terminals Of Control Module/Pinouts - Check Multiplex Network Rear ECU (Luggage Room Junction Block ECU) (Part 1):

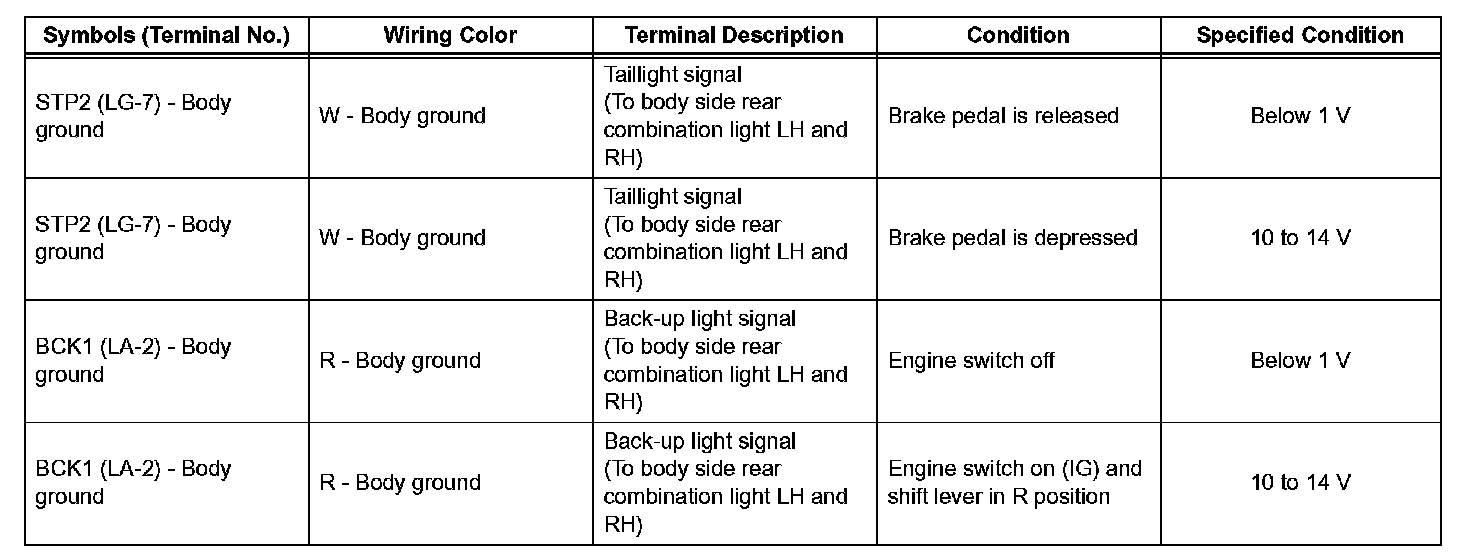

Terminals Of Control Module/Pinouts - Check Multiplex Network Rear ECU (Luggage Room Junction Block ECU) (Part 2):

Terminals Of Control Module/Pinouts - Check Multiplex Network Rear ECU (Luggage Room Junction Block ECU) (Part 3):

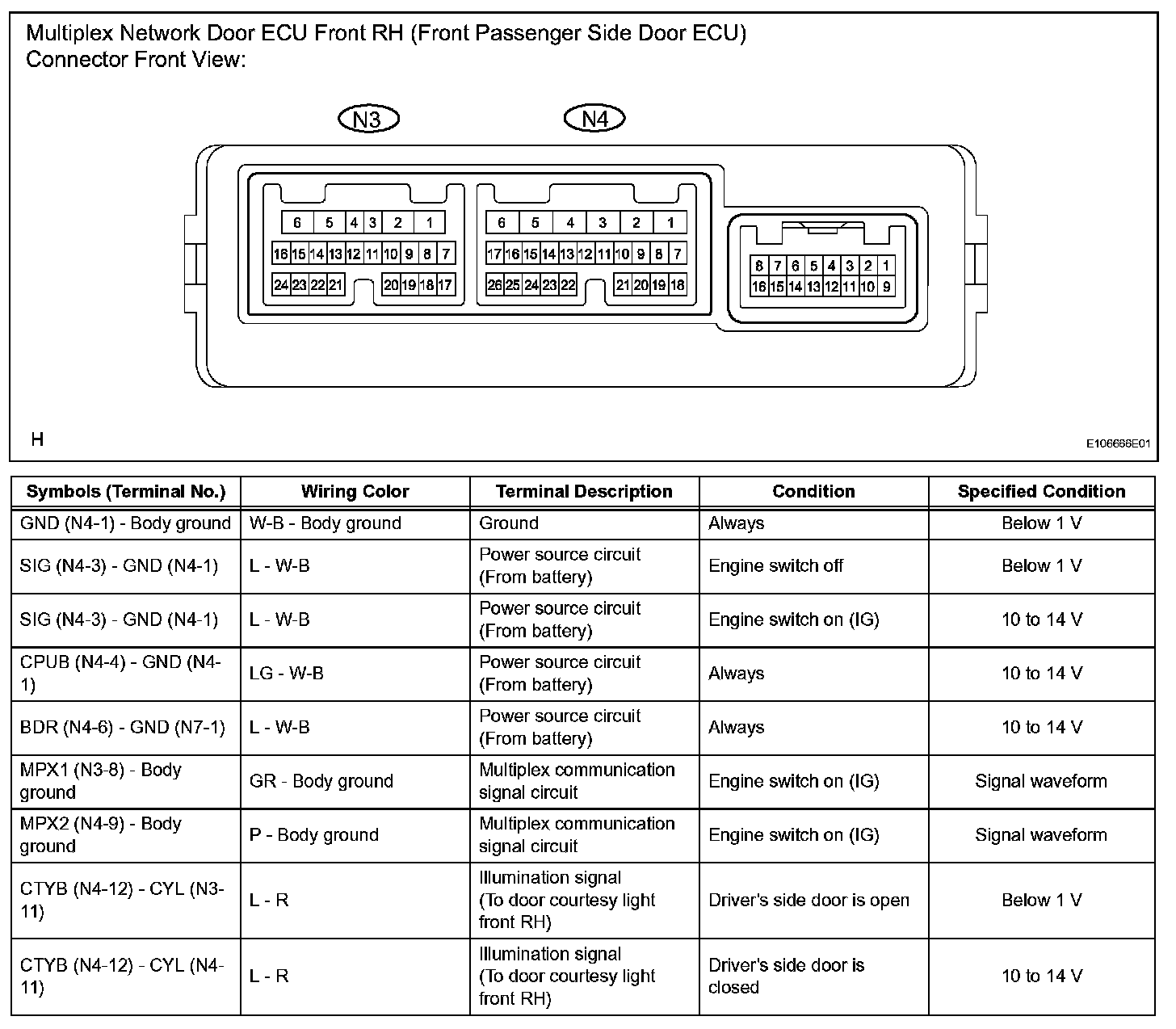

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU (Front Passenger Side Door ECU) (Part 1):

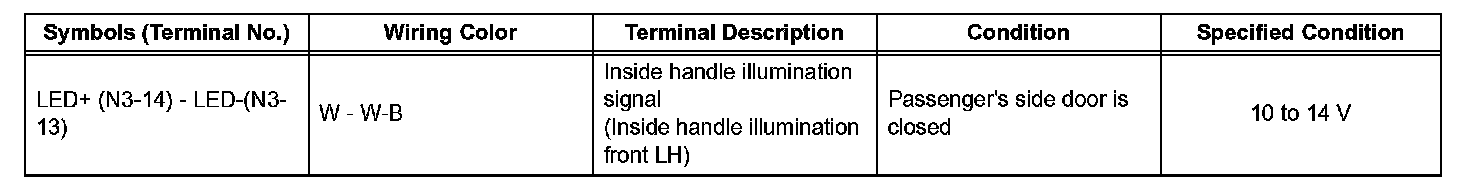

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU (Front Passenger Side Door ECU) (Part 2):

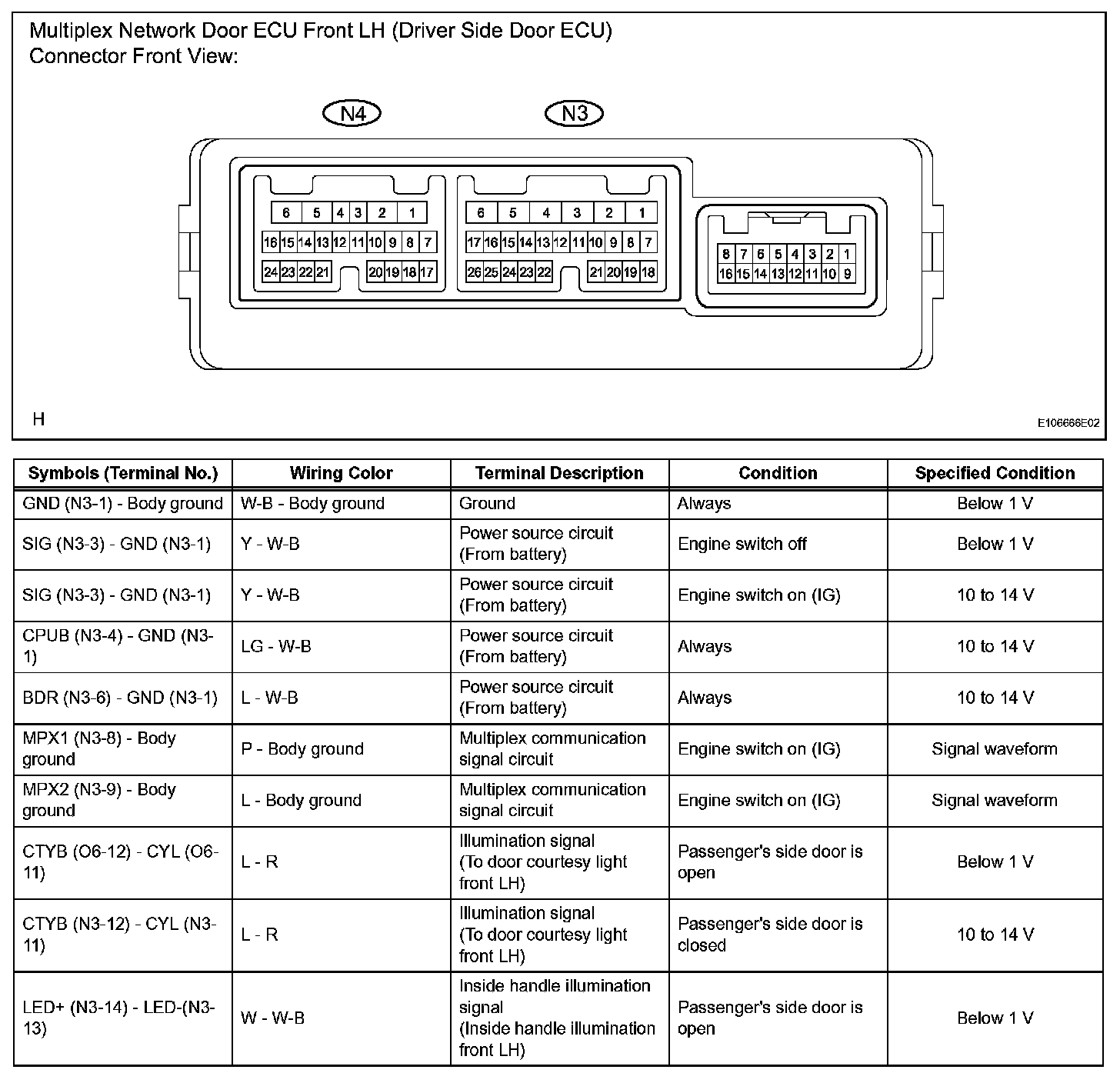

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Side Door ECU) (Part 1):

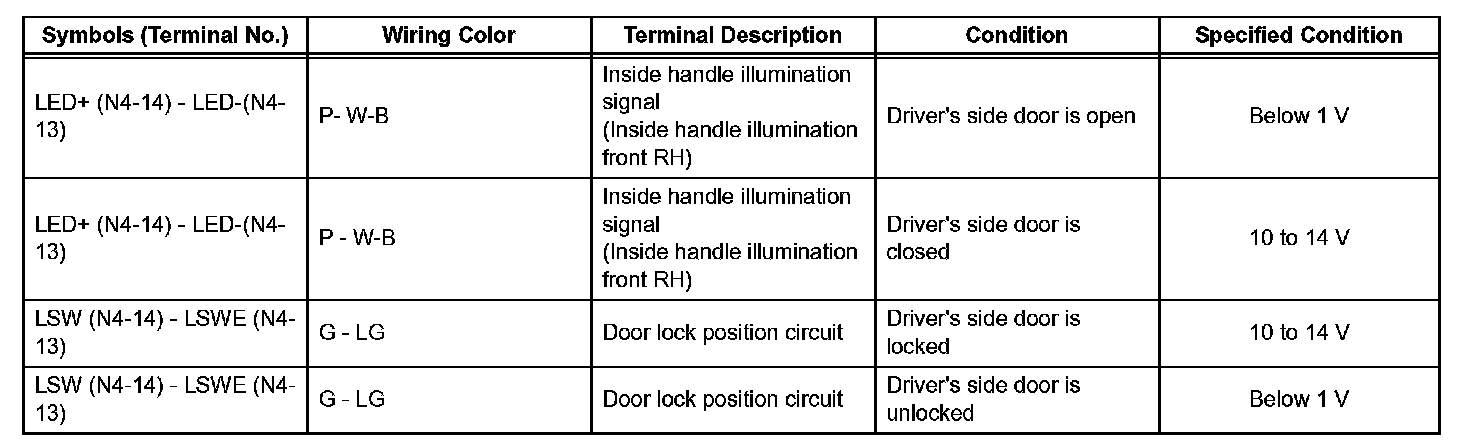

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front LH (Driver Side Door ECU) (Part 2):

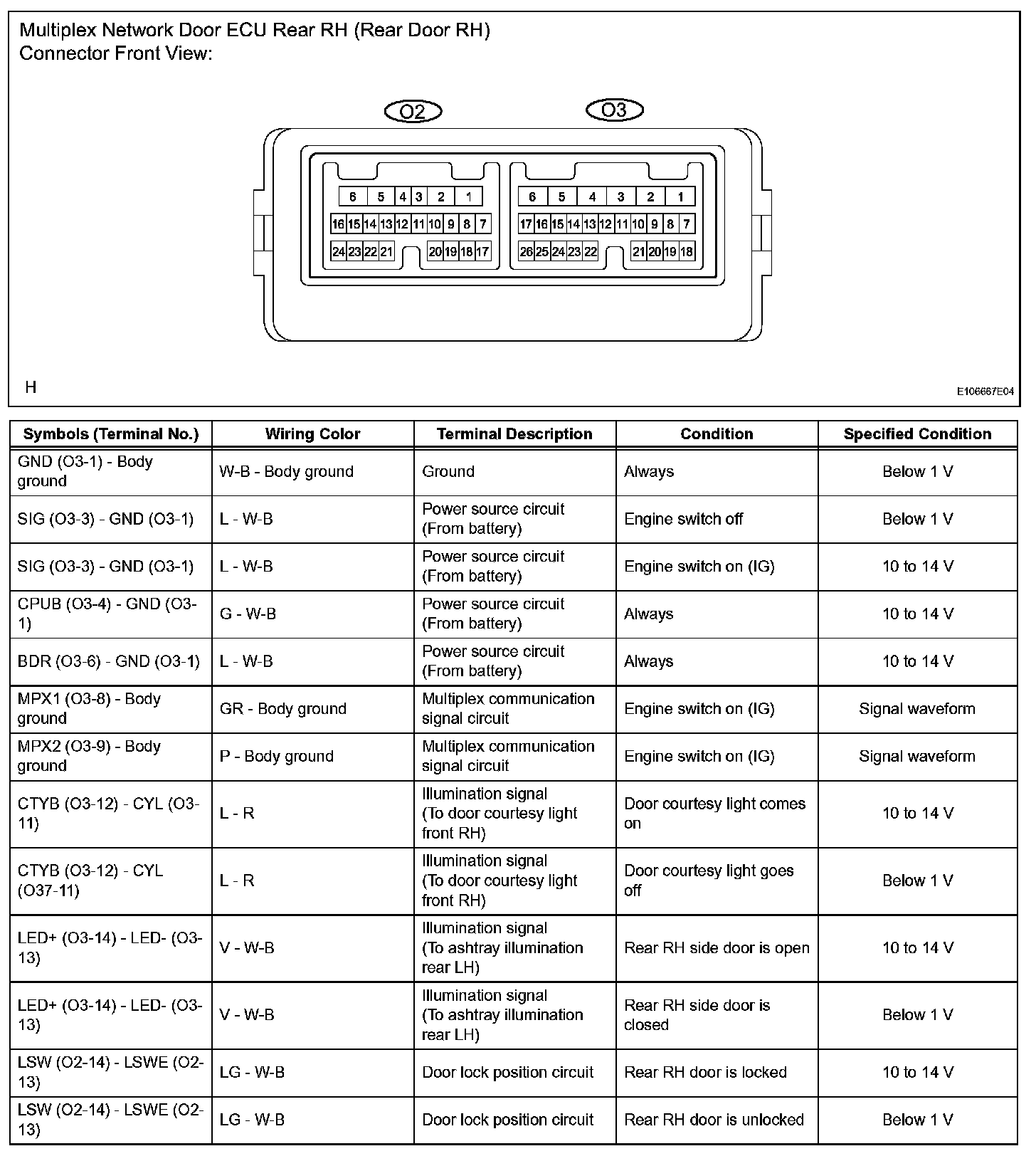

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Rear RH (Rear Door RH):

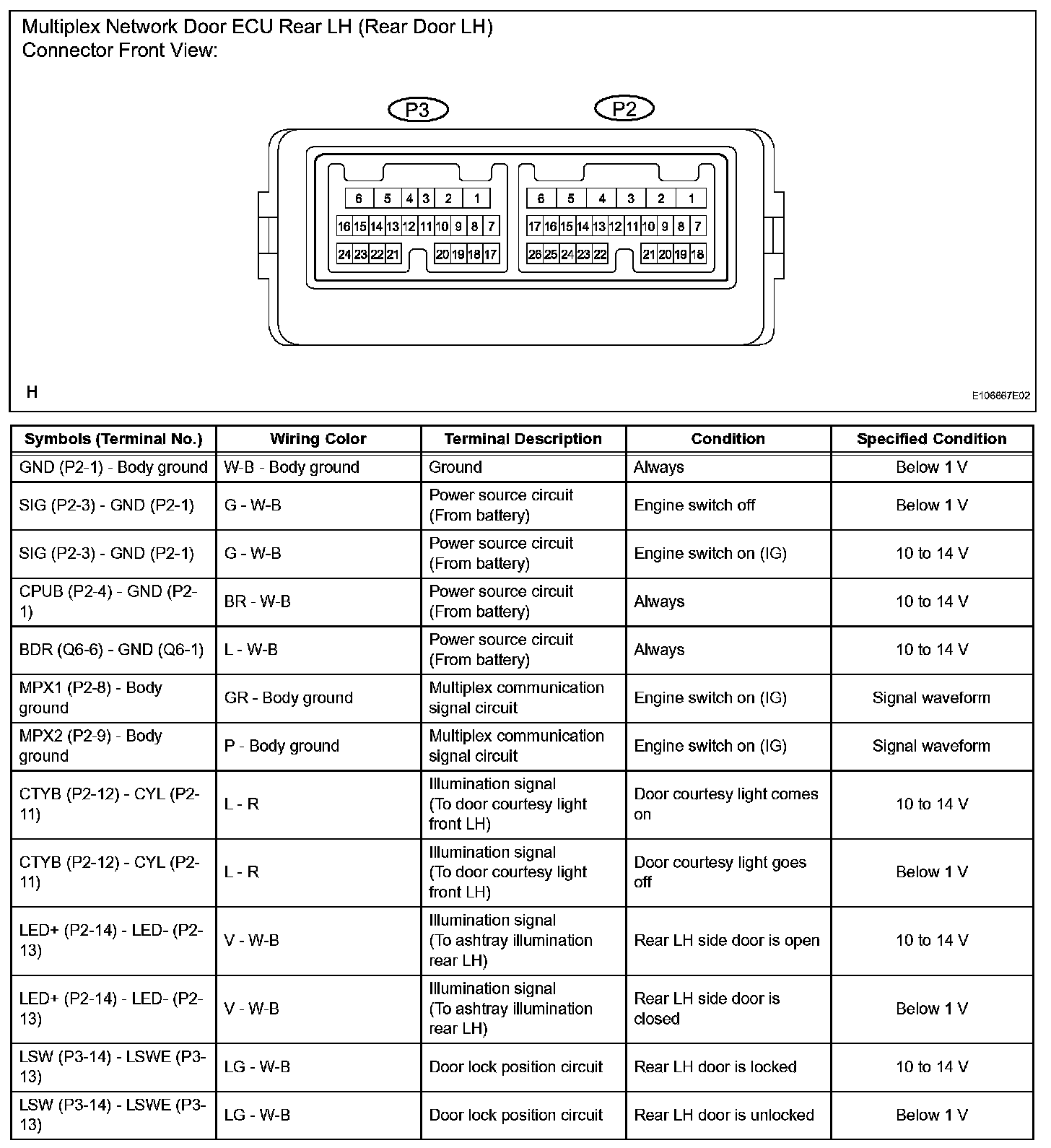

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Rear LH (Rear Door LH):

Terminals Of Control Module/Pinouts - Check Combination Switch Assembly (Windshield Wiper Switch):

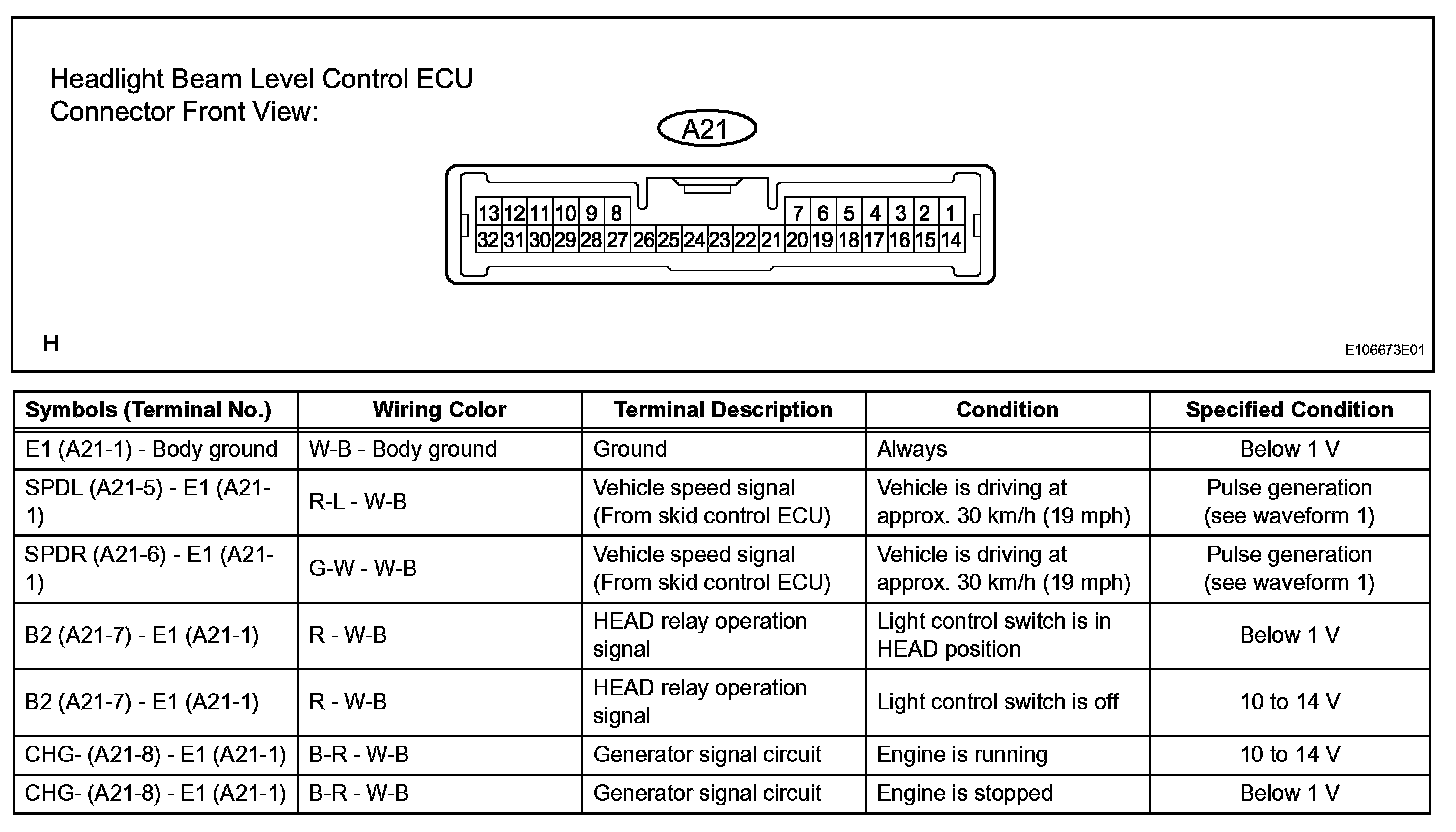

Terminals Of Control Module/Pinouts - Check Head Light Beam Level Control ECU (Part 1):

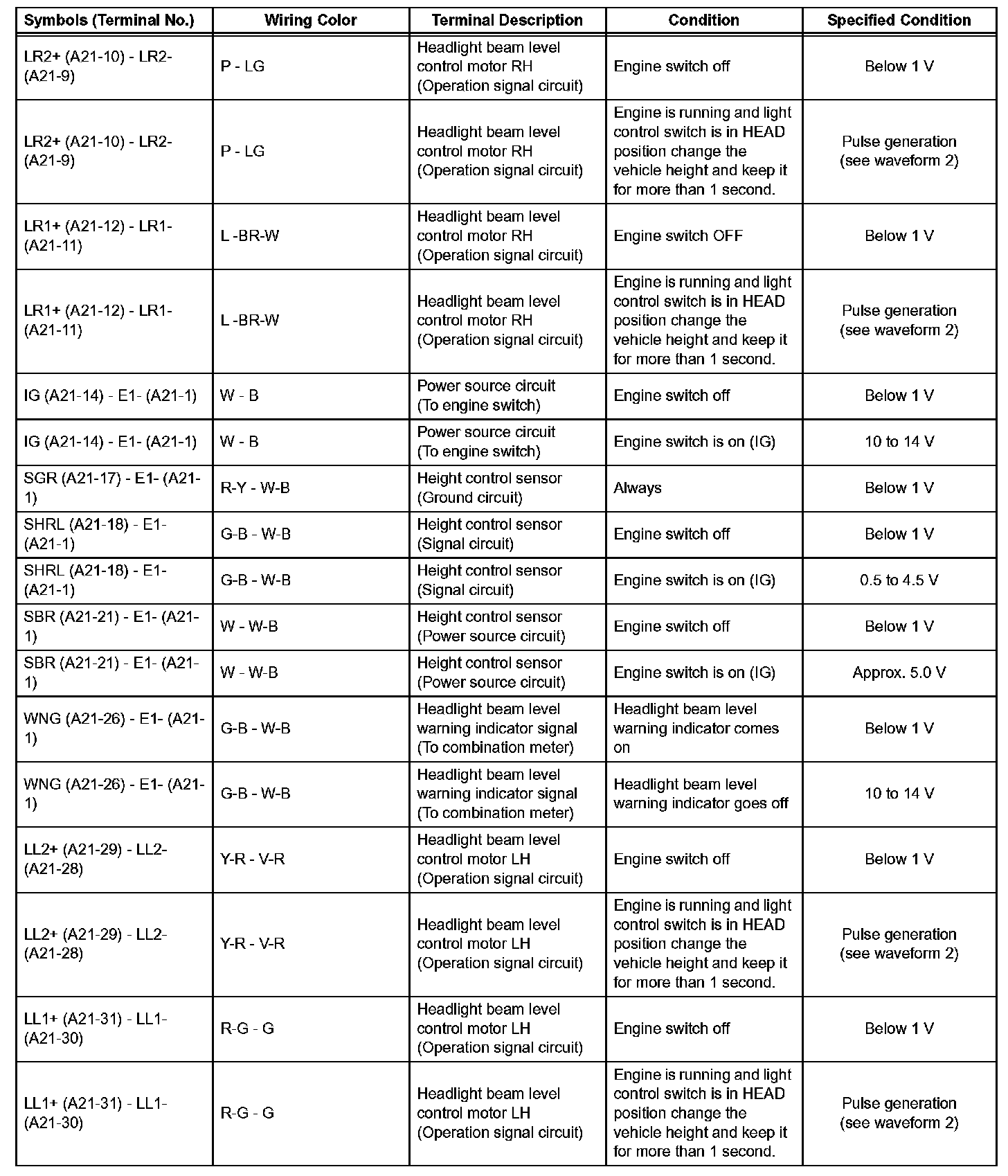

Terminals Of Control Module/Pinouts - Check Head Light Beam Level Control ECU (Part 2):

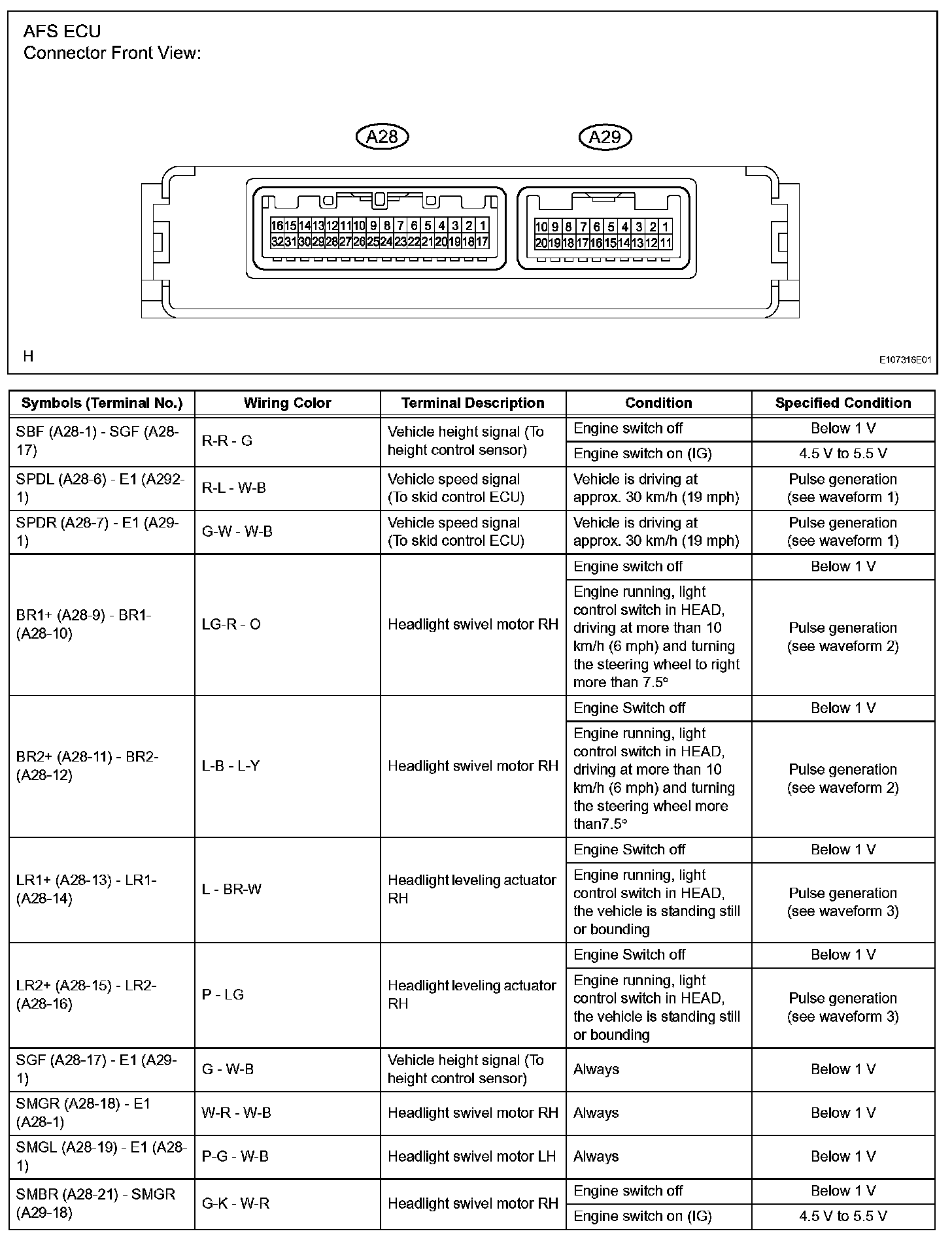

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 1):

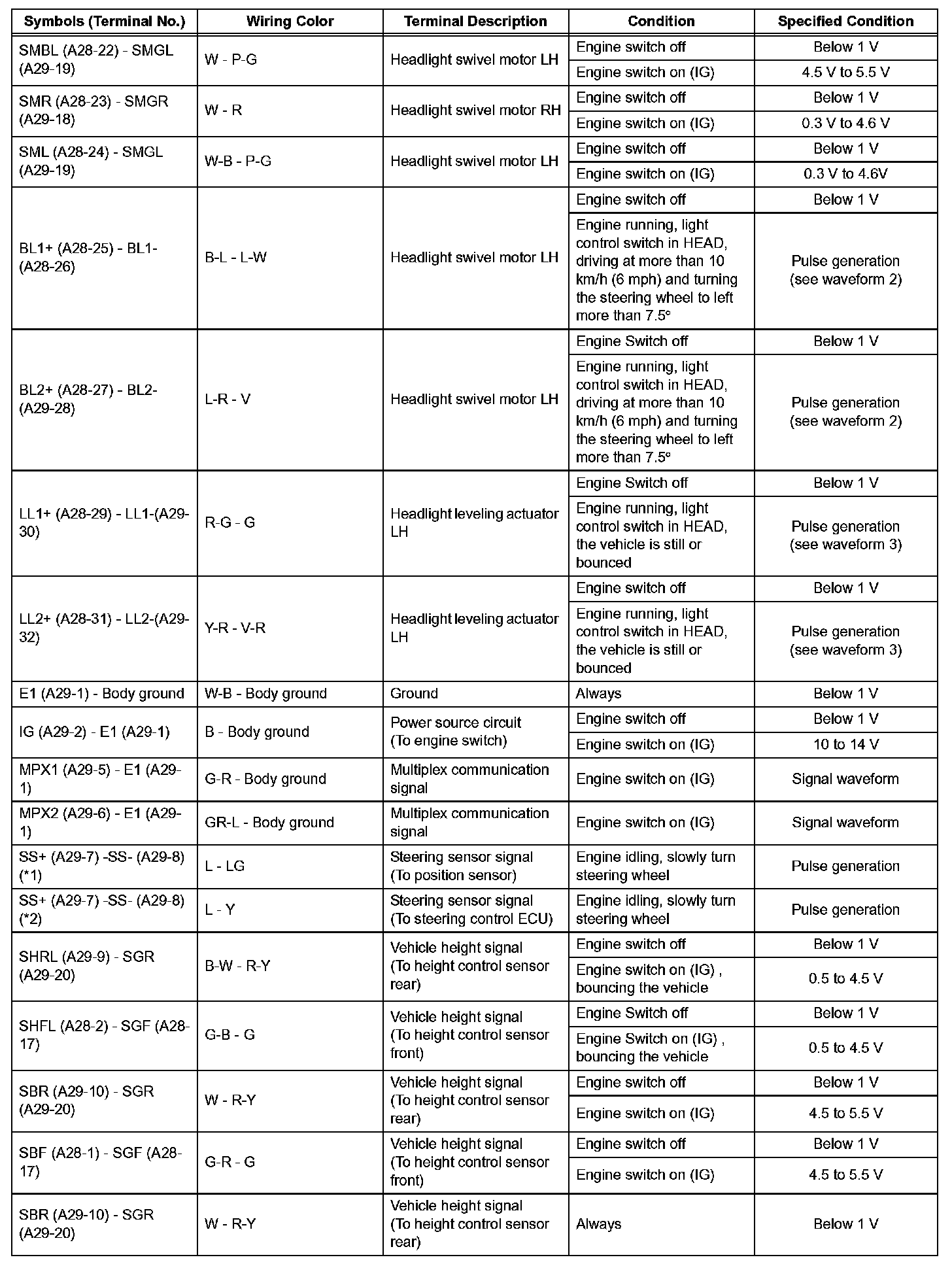

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 2):

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 3):

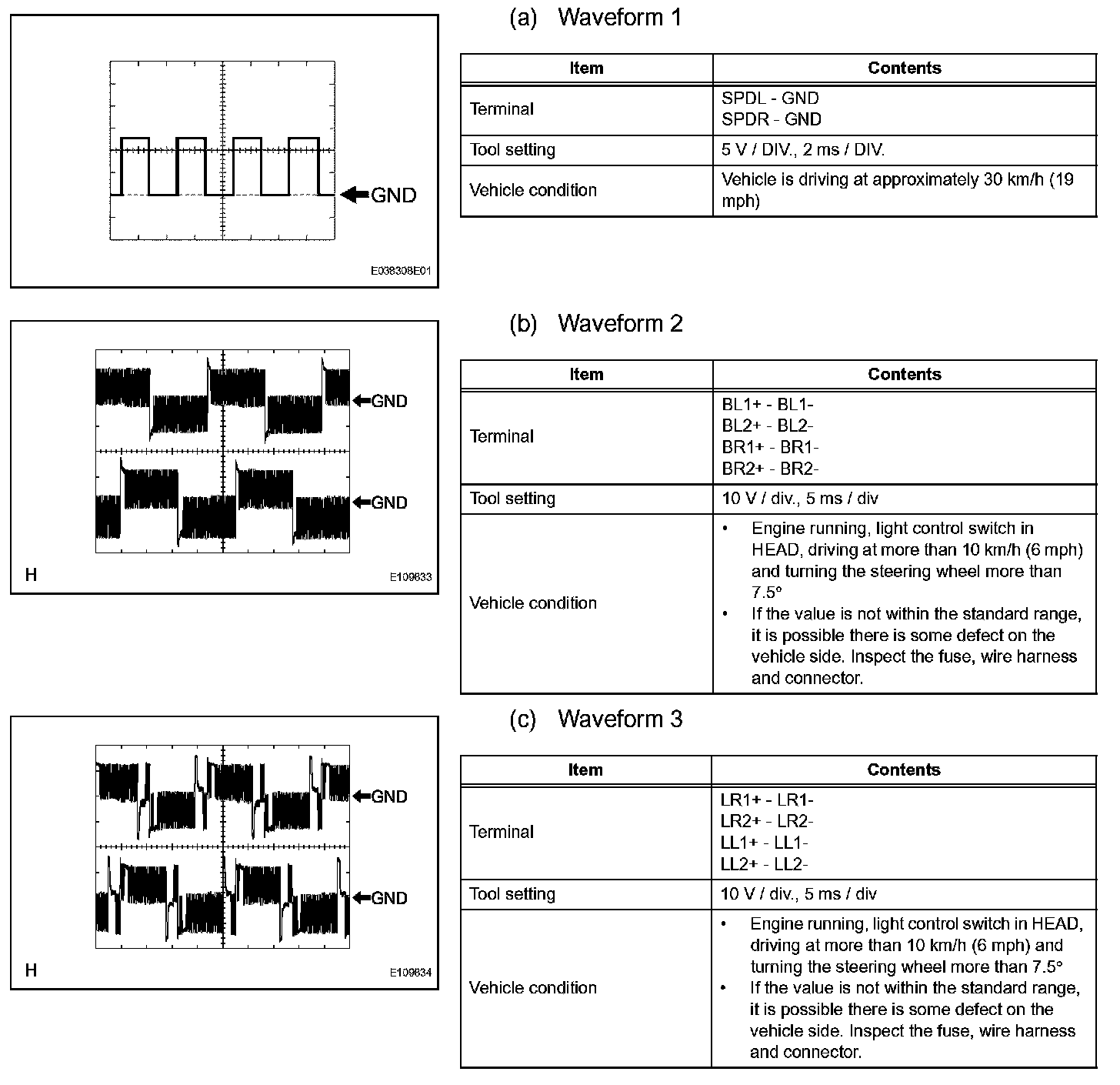

Oscilloscope Waveforms:
