Taillamp Circuit

Taillight Circuit

DESCRIPTION
Front light: The engine room No. 2 relay block receives taillight switch information from the combination switch, and turns on the clearance light.

Rear light: The multiplex network rear ECU receives taillight switch information from the combination switch, and turns on the taillights and license plate light.

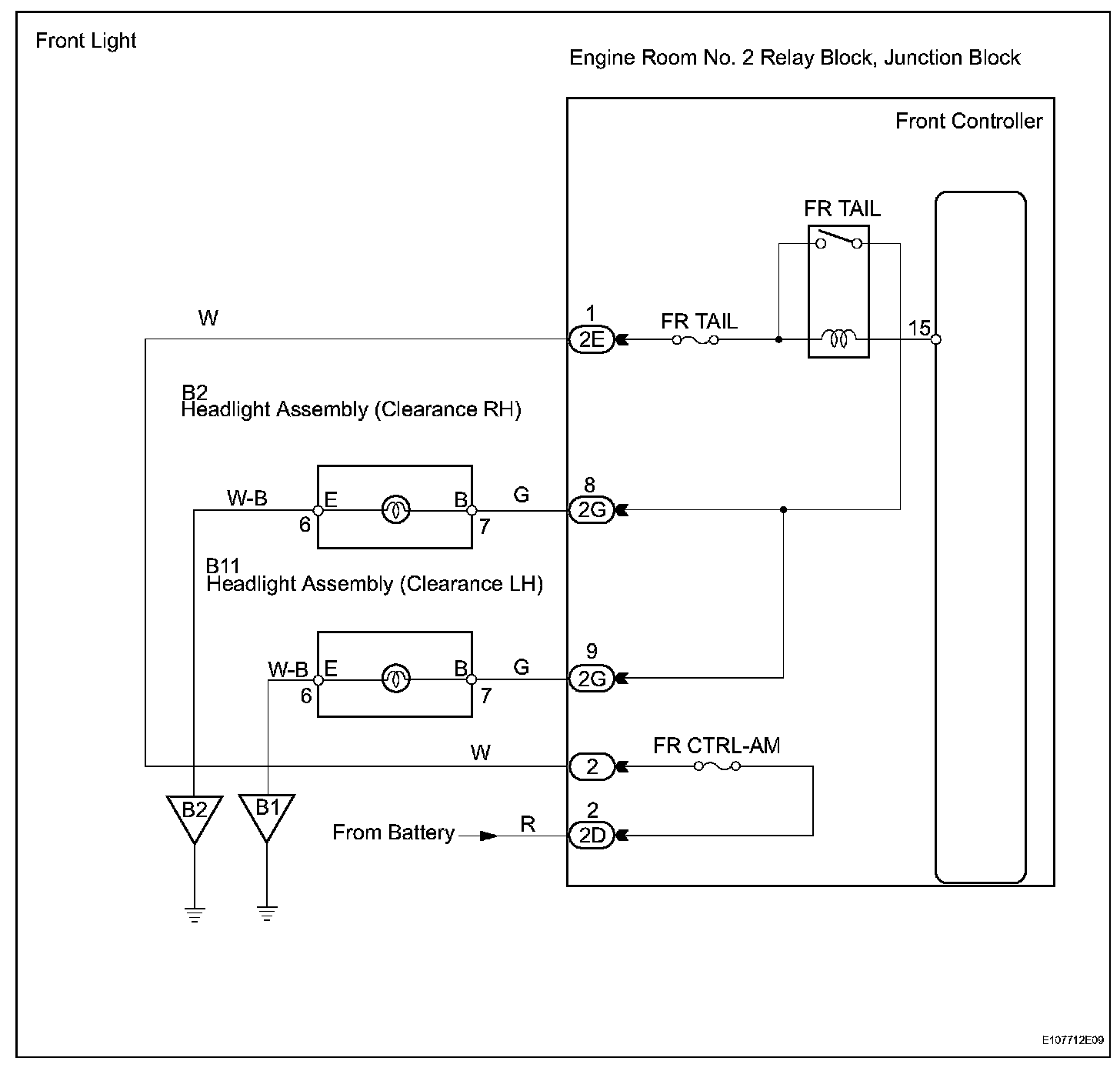

Wiring Diagram:

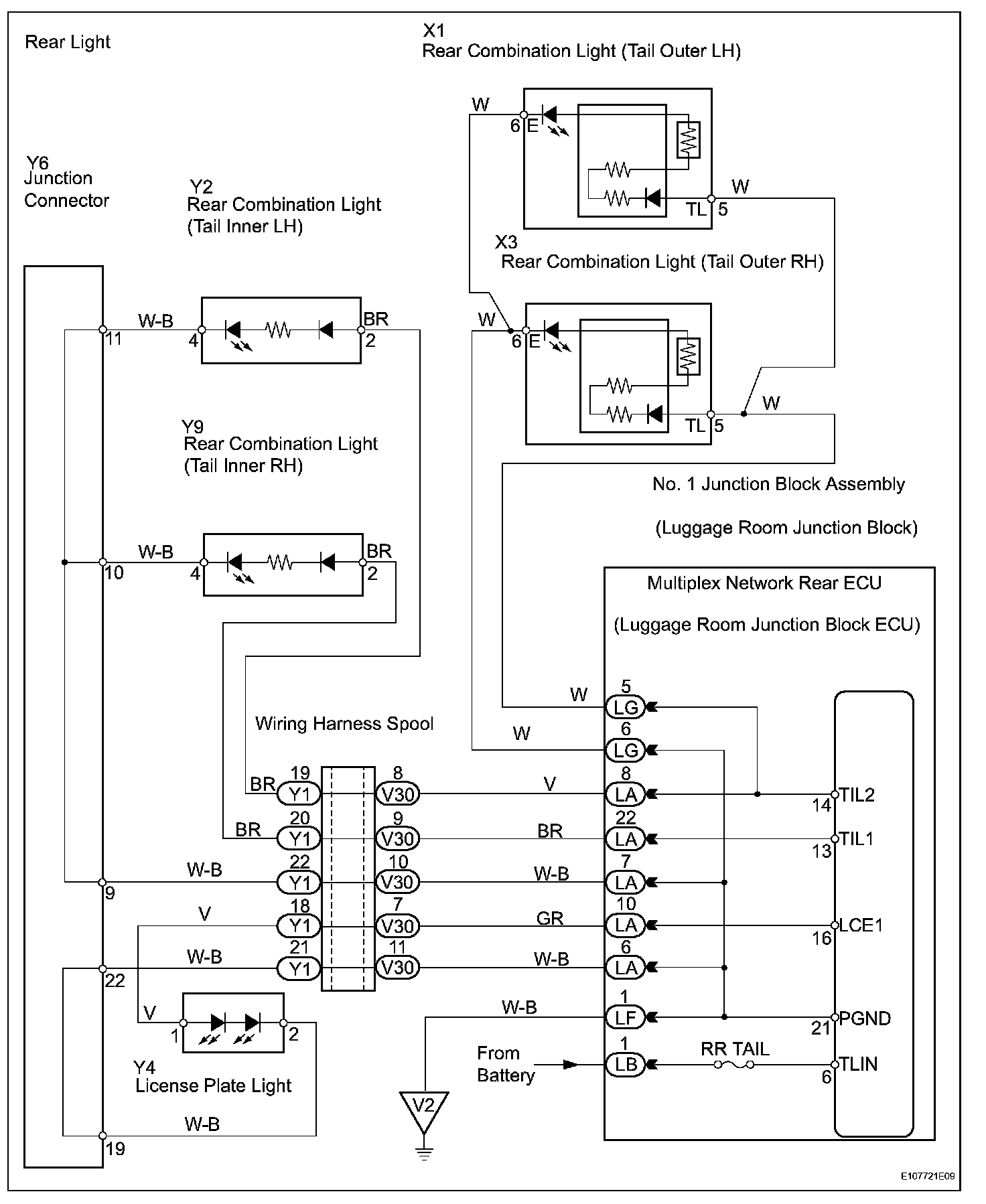

Wiring Diagram:

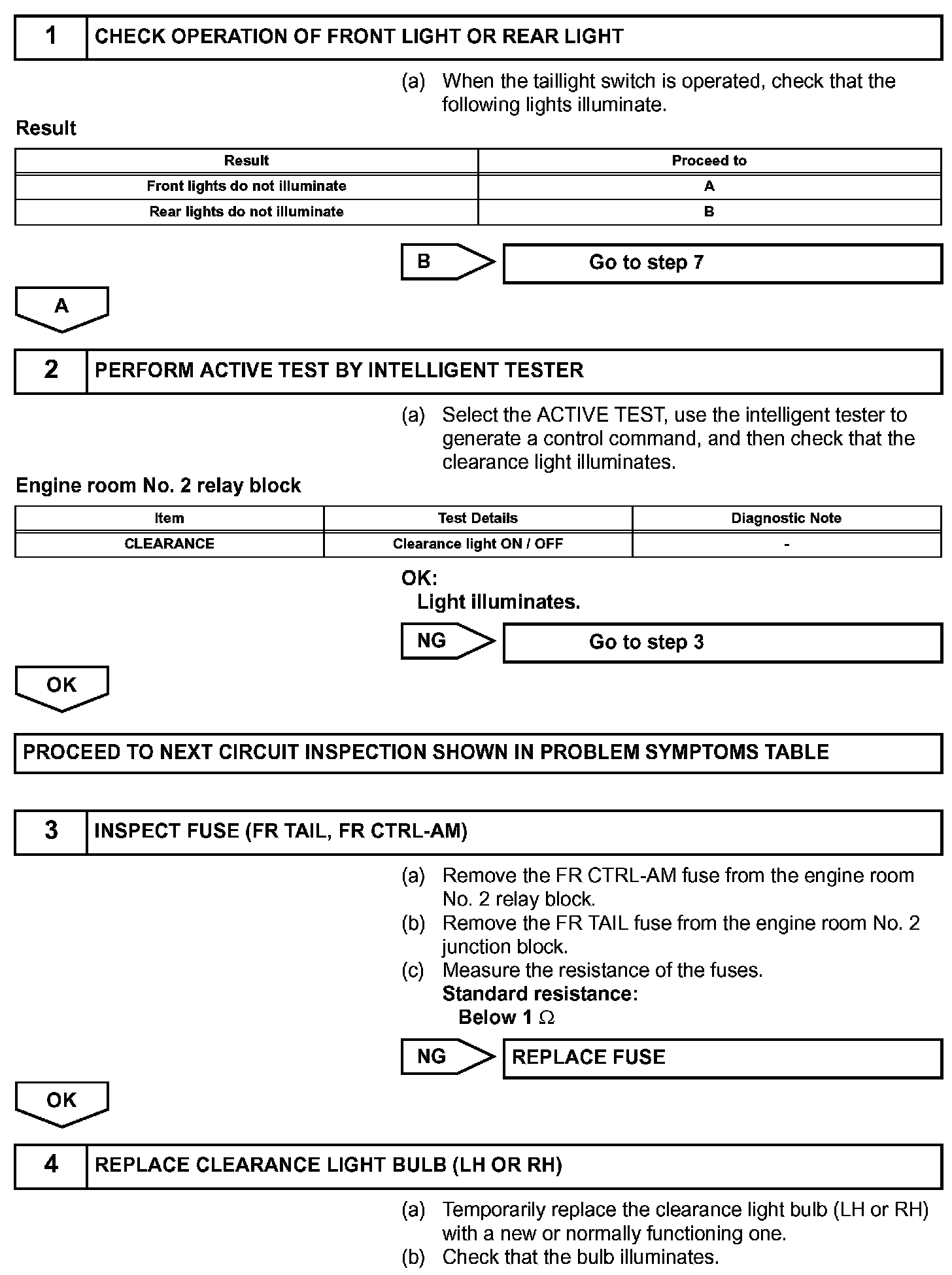

Step 1-4:

Step 4(continued)-6:

Step 6(continued)-7:

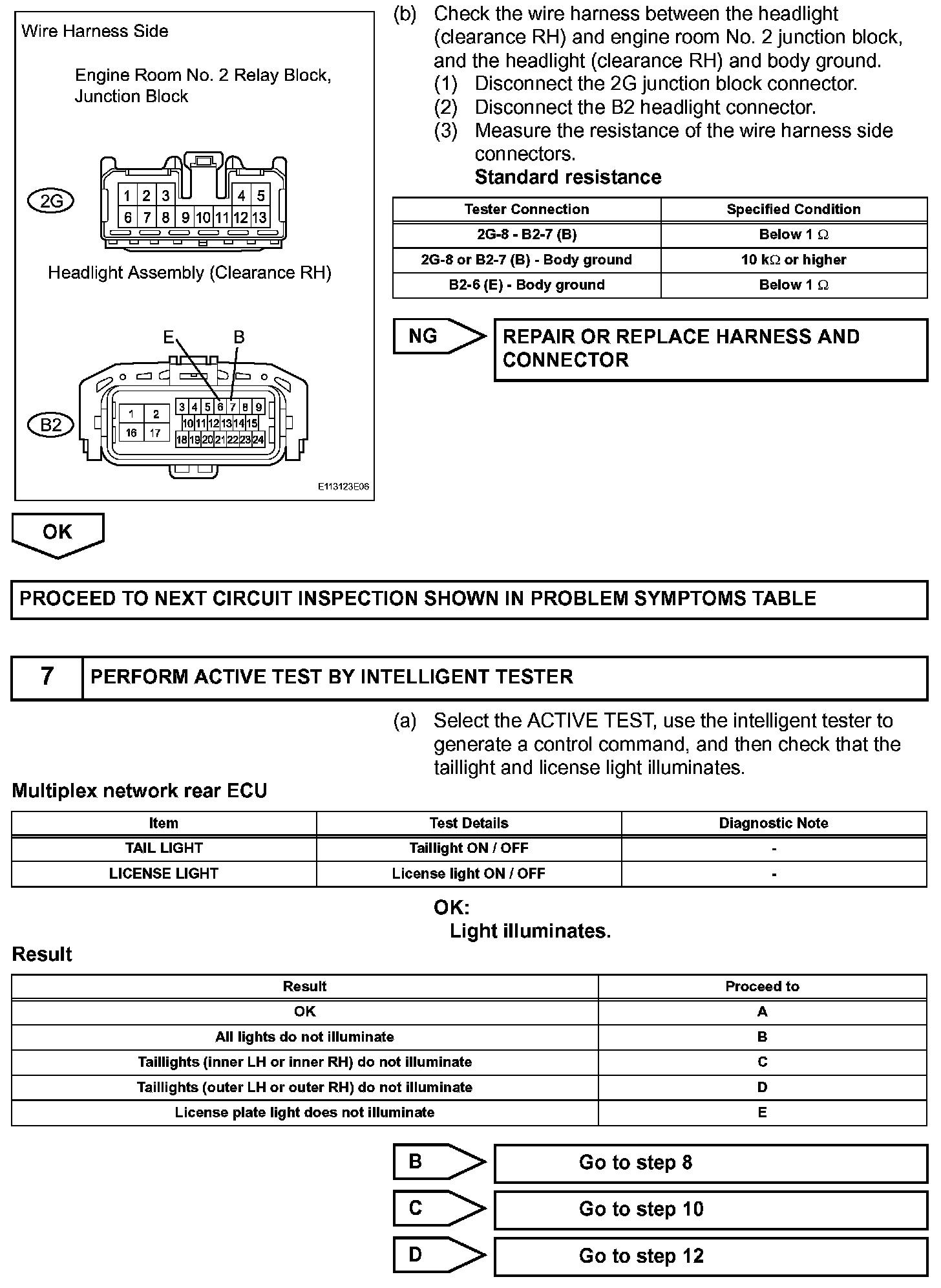

Step 7(continued)-9:

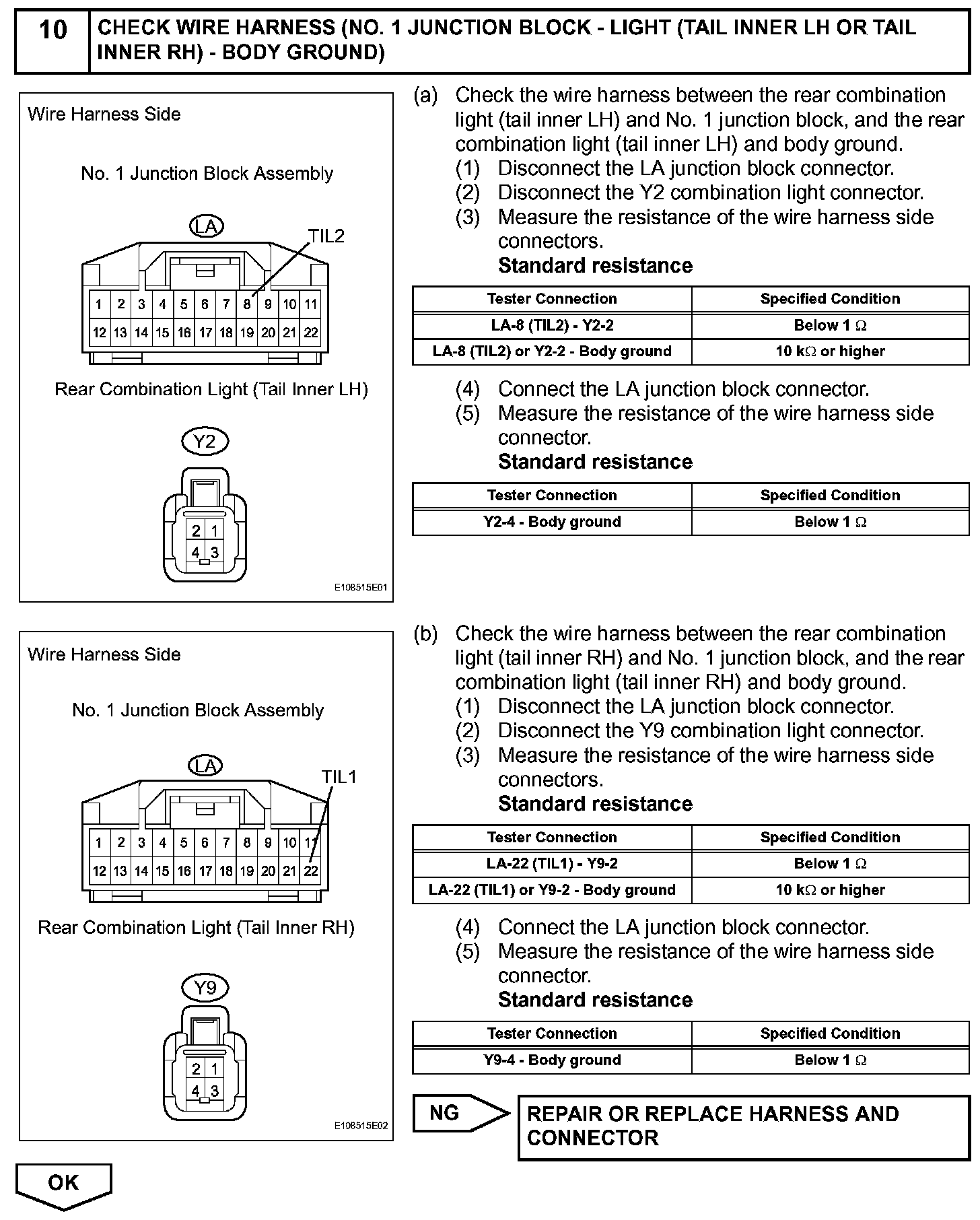

Step 10:

Step 11-12:

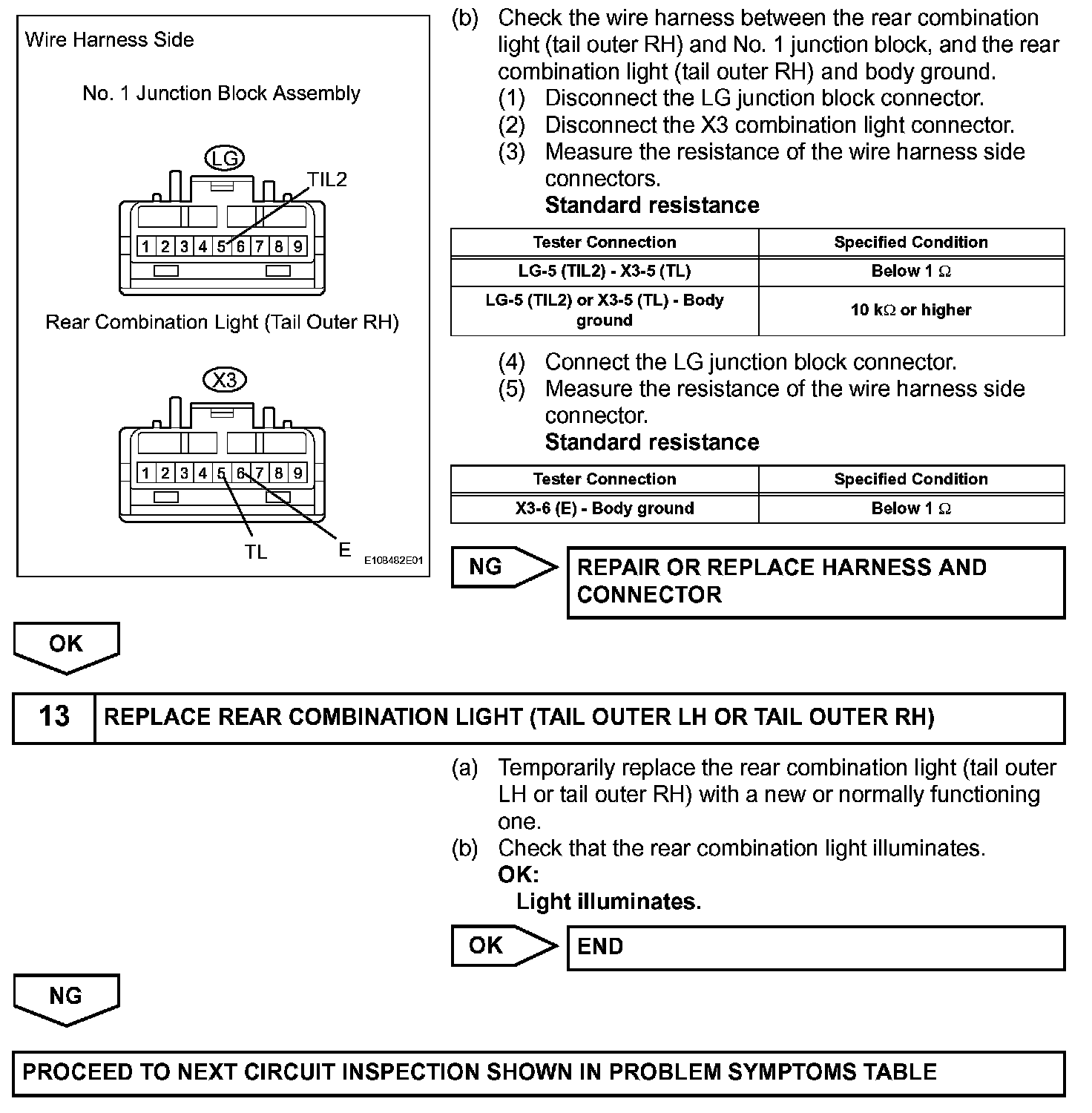

Step 12(continued)-13:

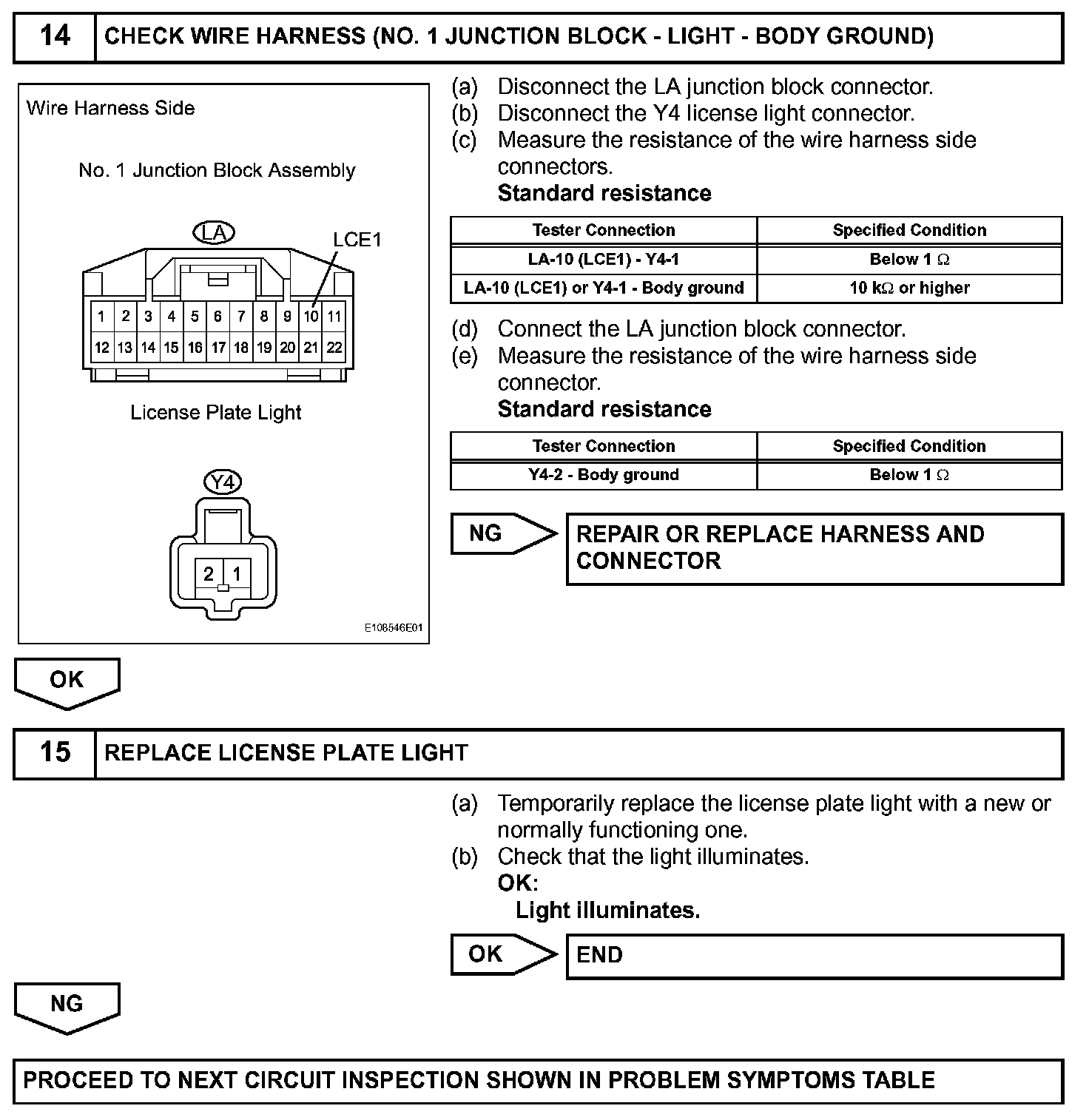

Step 14-15:

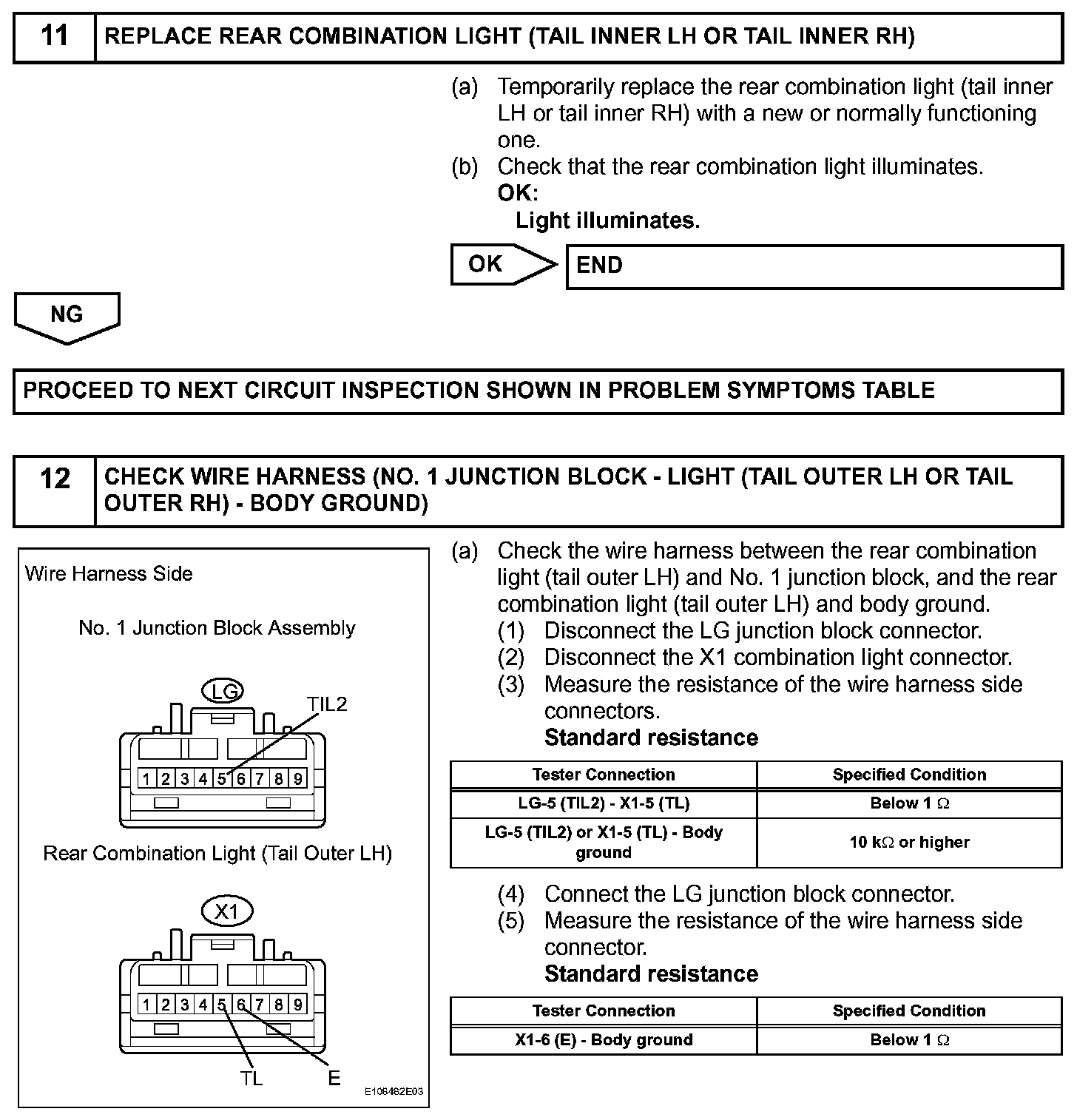

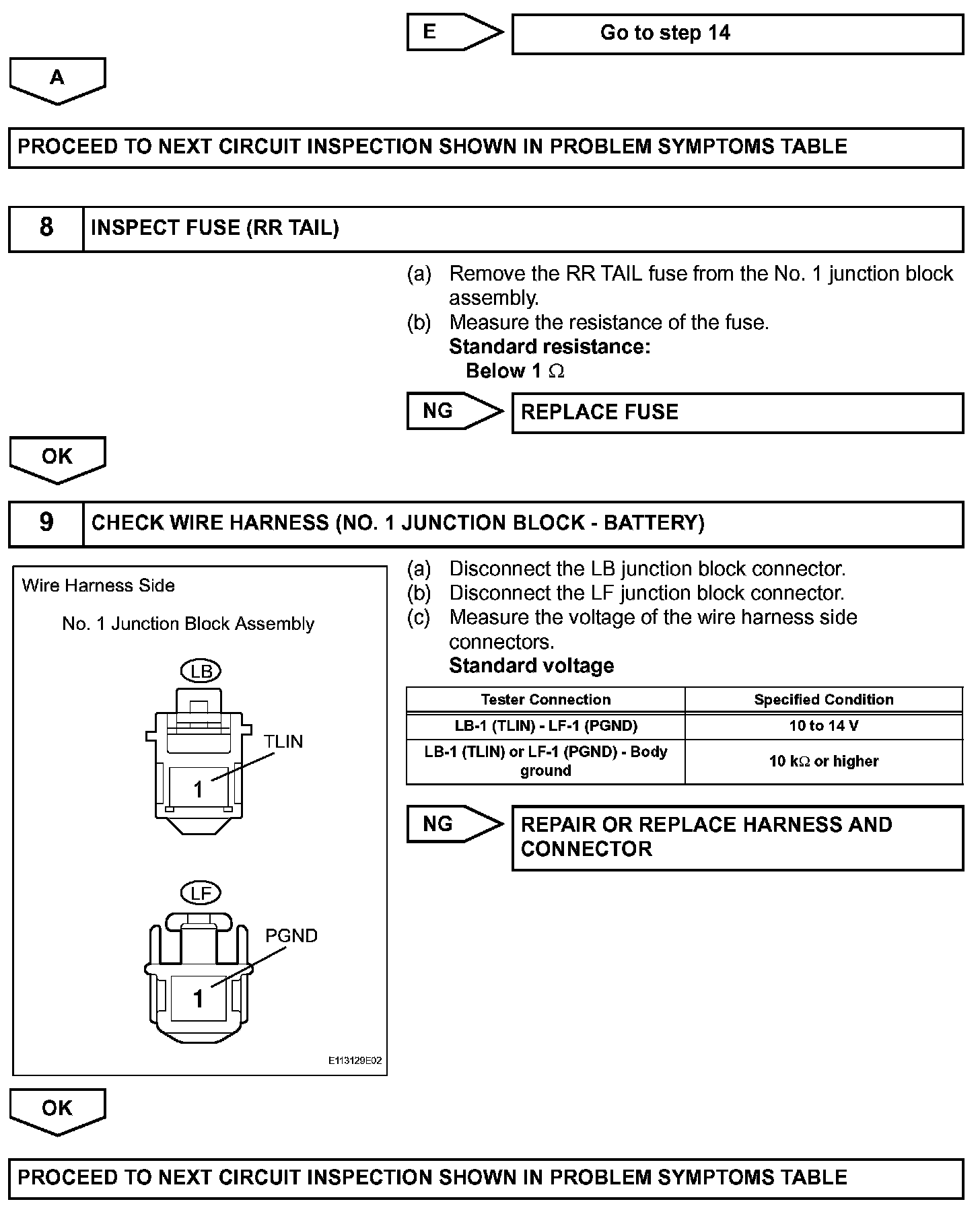

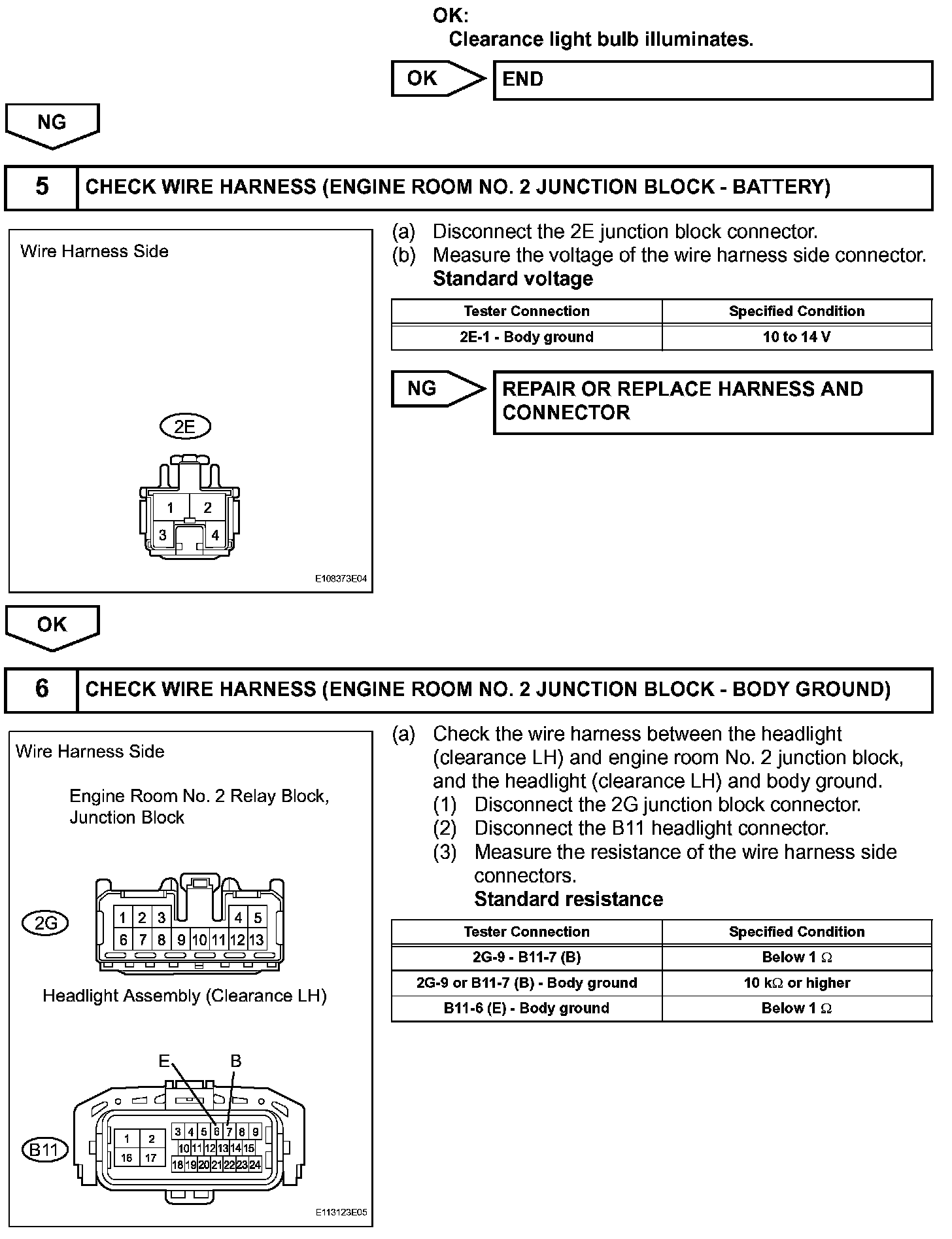

INSPECTION PROCEDURE
