Stop Lamp Circuit

Stop Light Circuit

DESCRIPTION
The multiplex network rear ECU receives stop light switch information from the stop light switch and turns on the stop light.

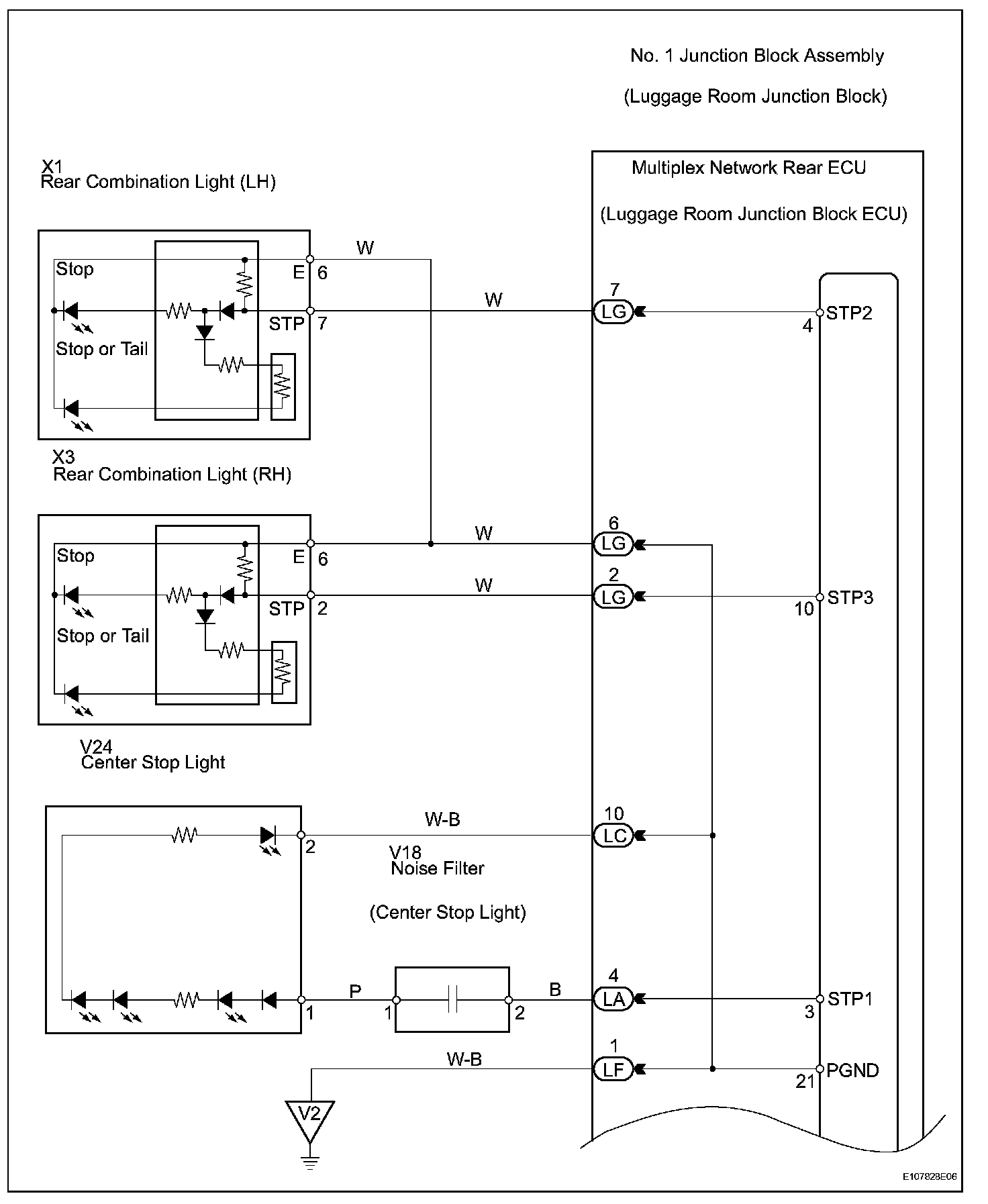

Wiring Diagram:

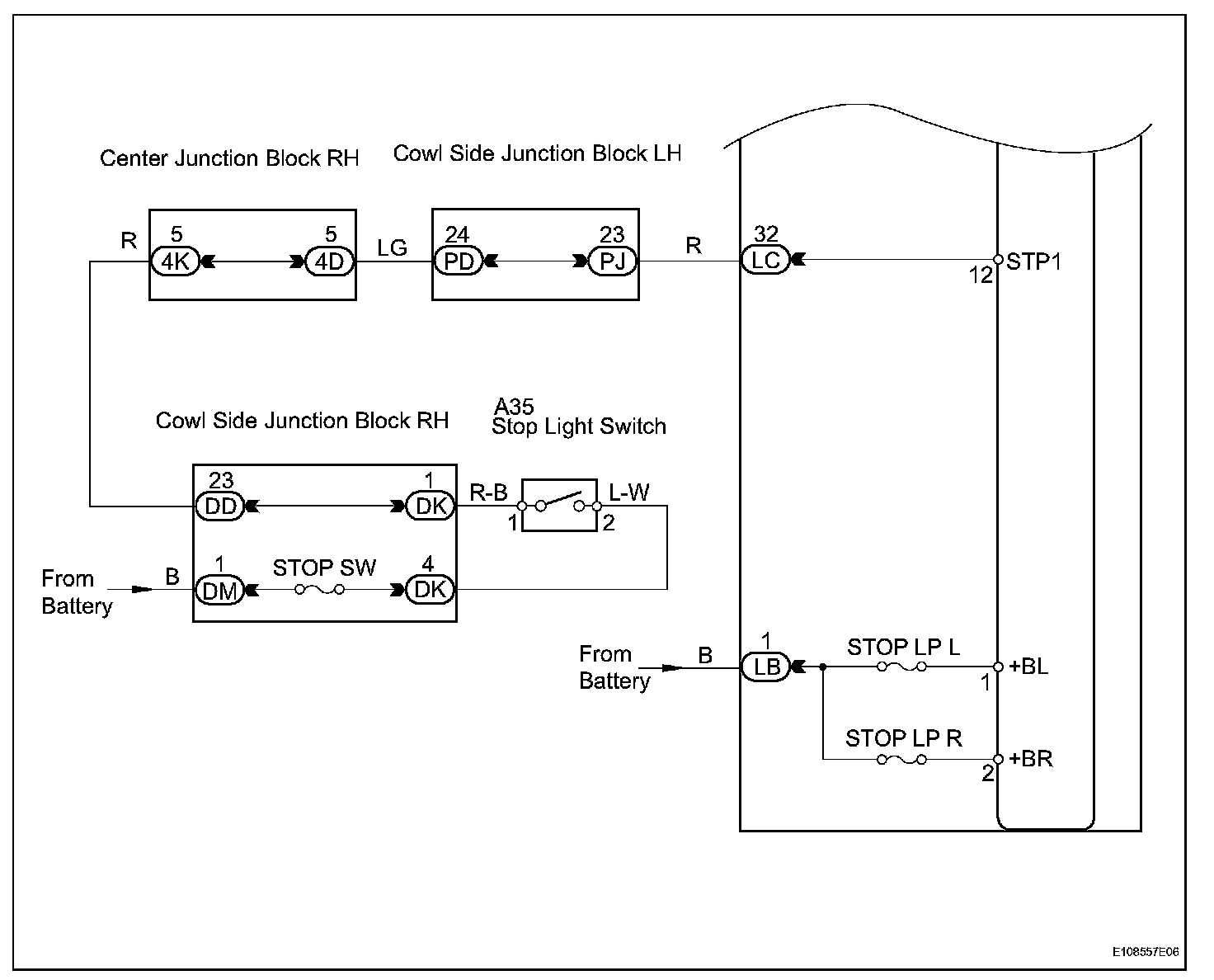

Wiring Diagram:

Step 1:

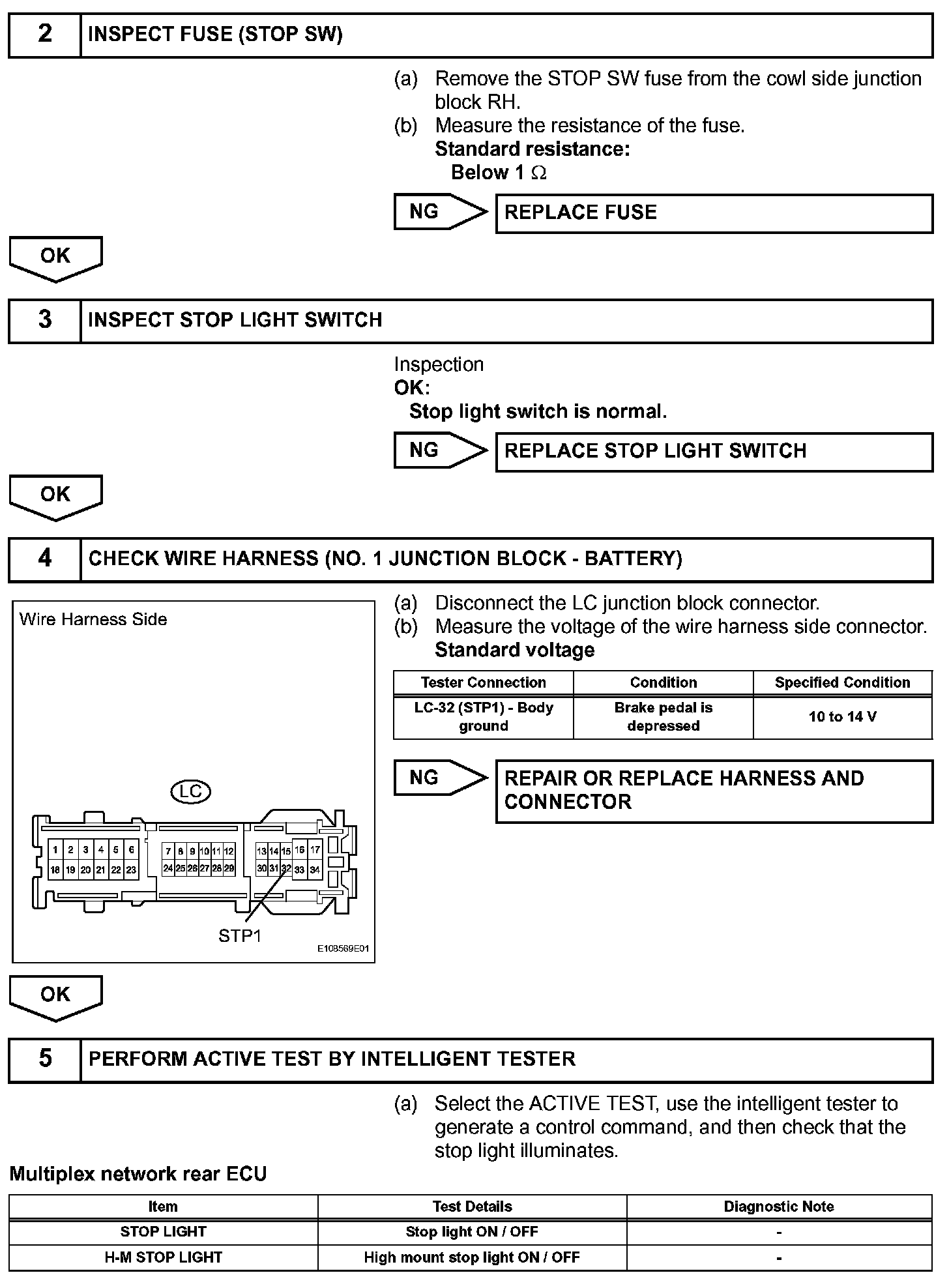

Step 2-5:

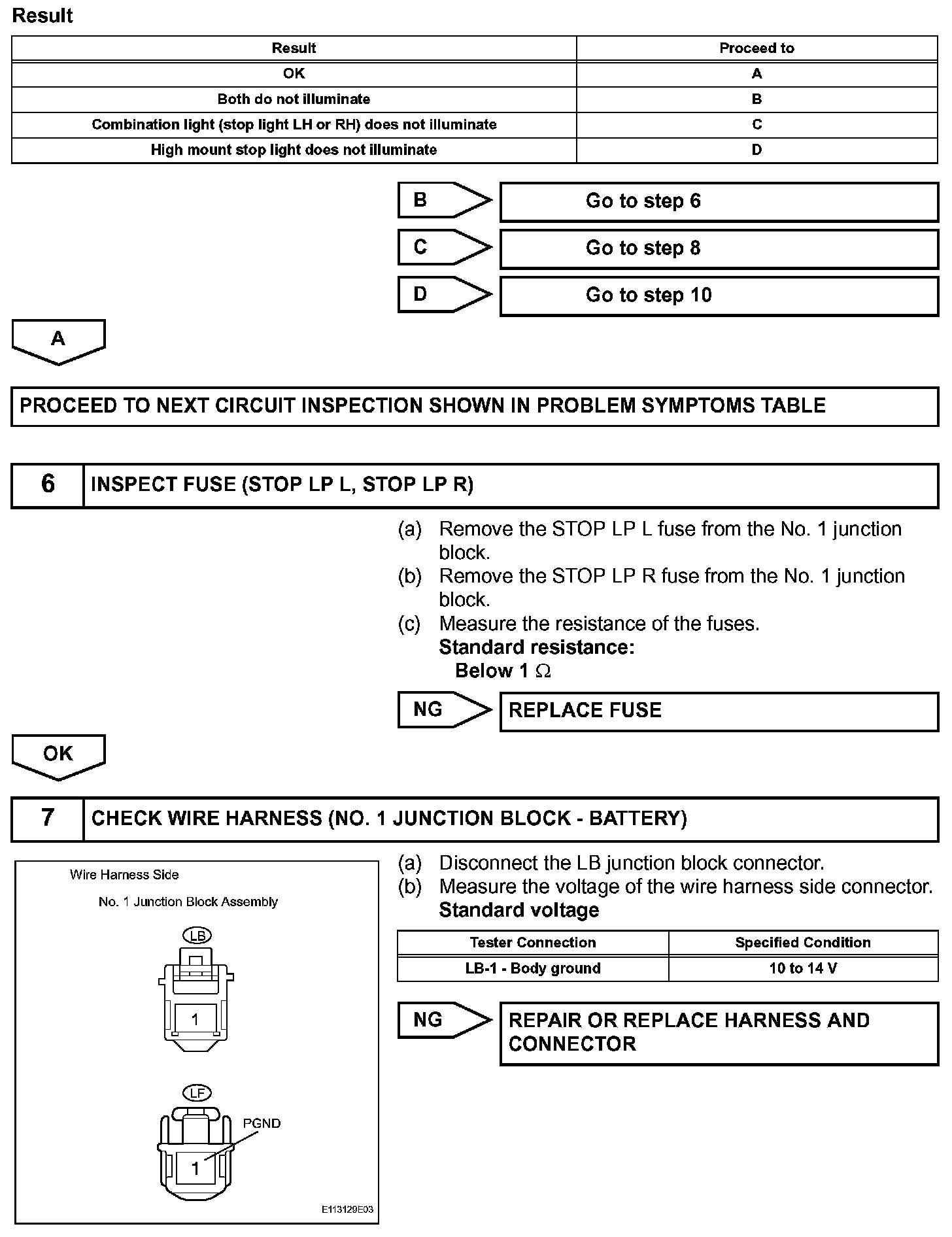

Step 5(continued)-7:

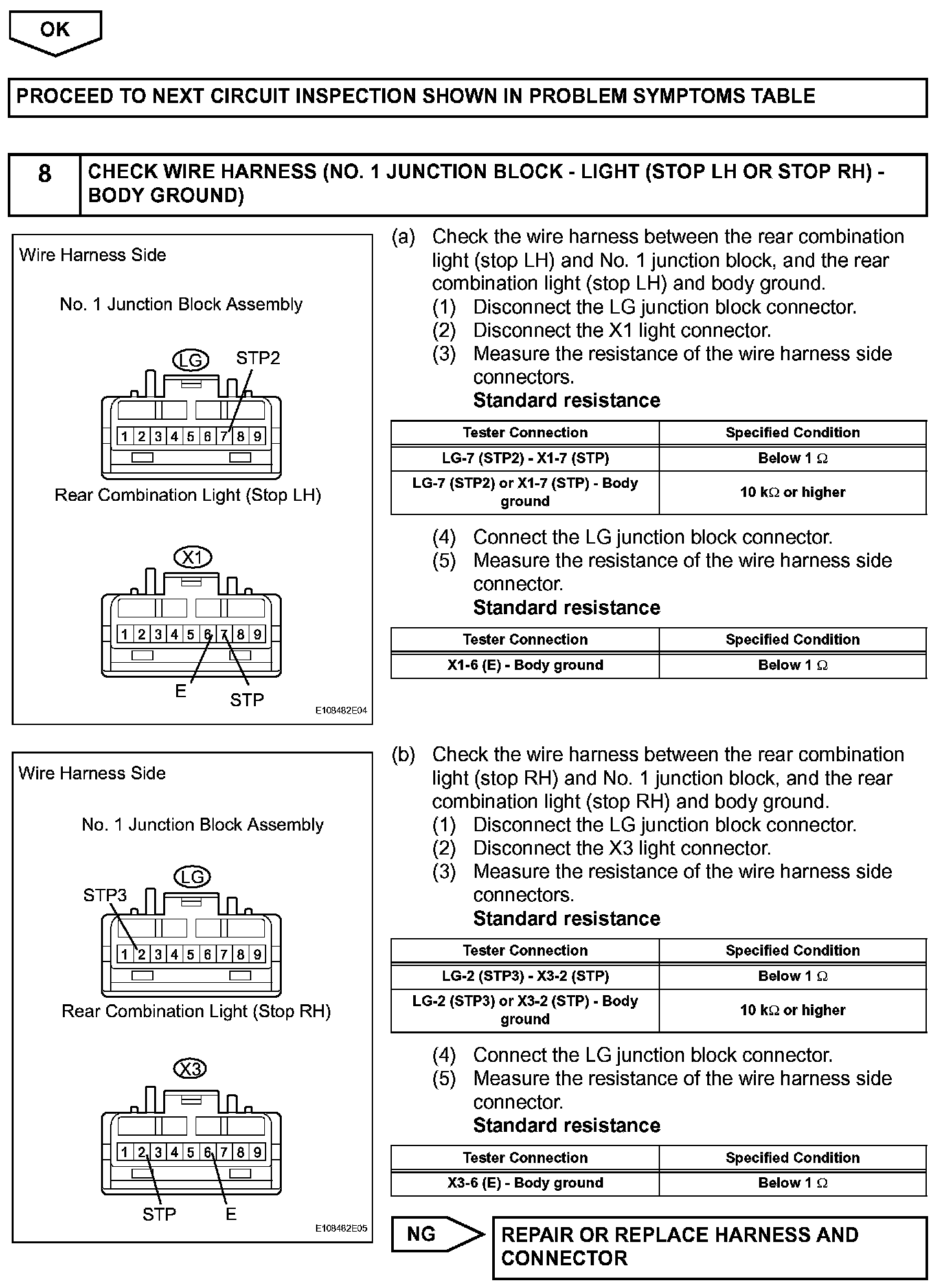

Step 7(continued)-8:

Step 8(continued)-11:

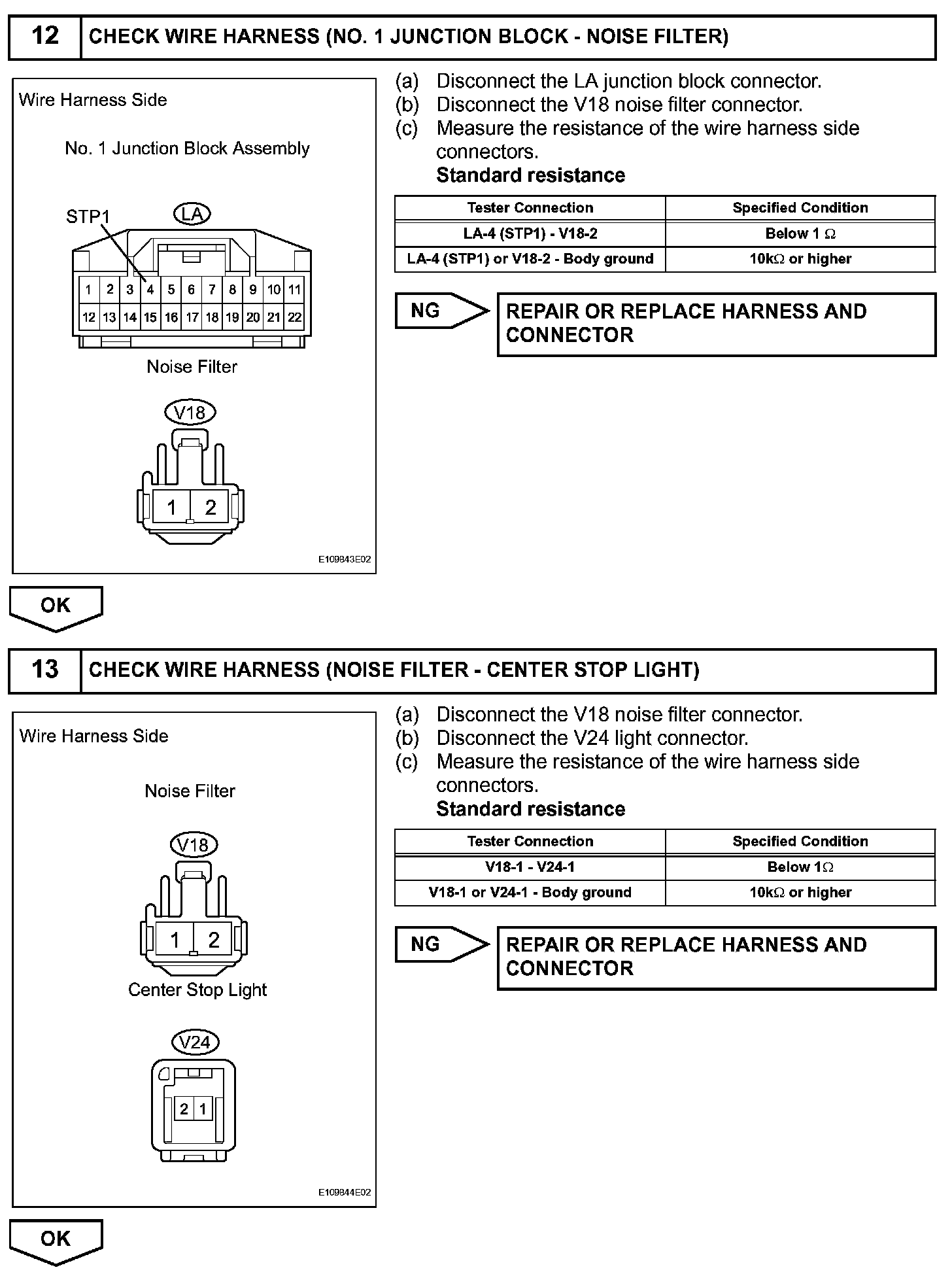

Step 12-13:

Step 14:

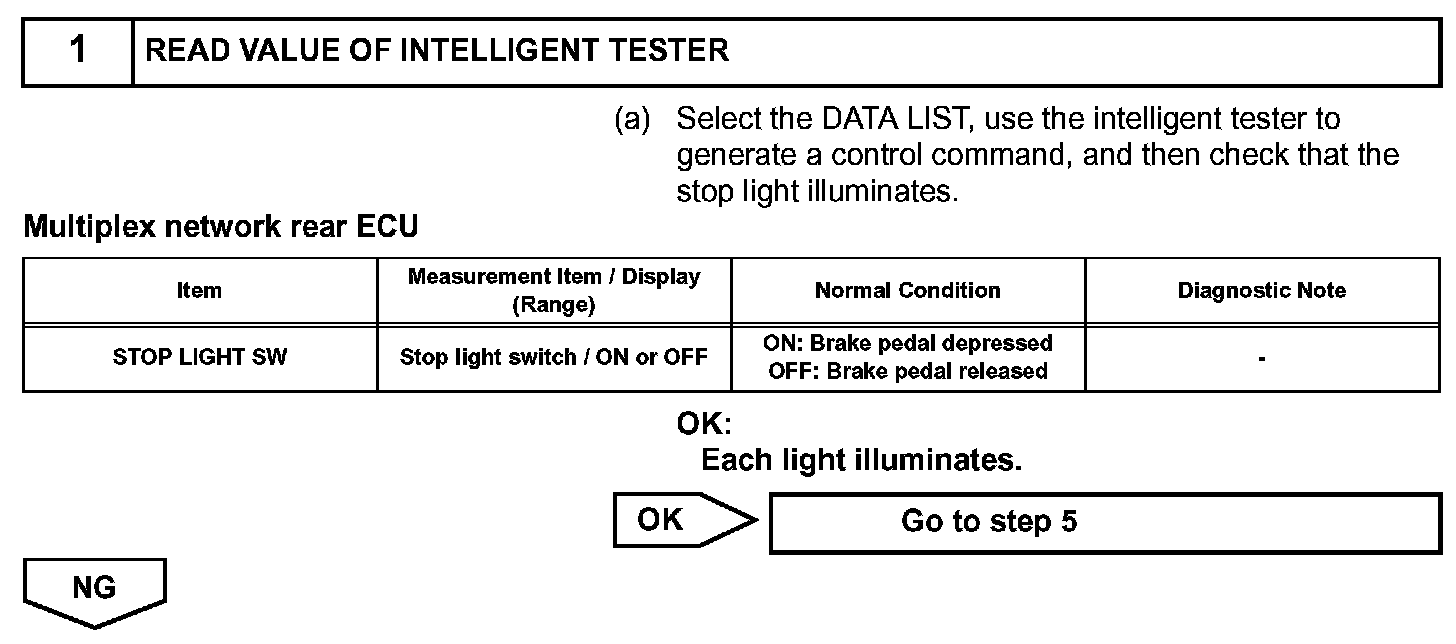

INSPECTION PROCEDURE
