Step Illumination Circuit
Step Illumination CircuitDESCRIPTION
The multiplex network body ECU receives information regarding the door lock position switch and engine switch, and turns on each step light. It also receives shift information and controls the illumination.

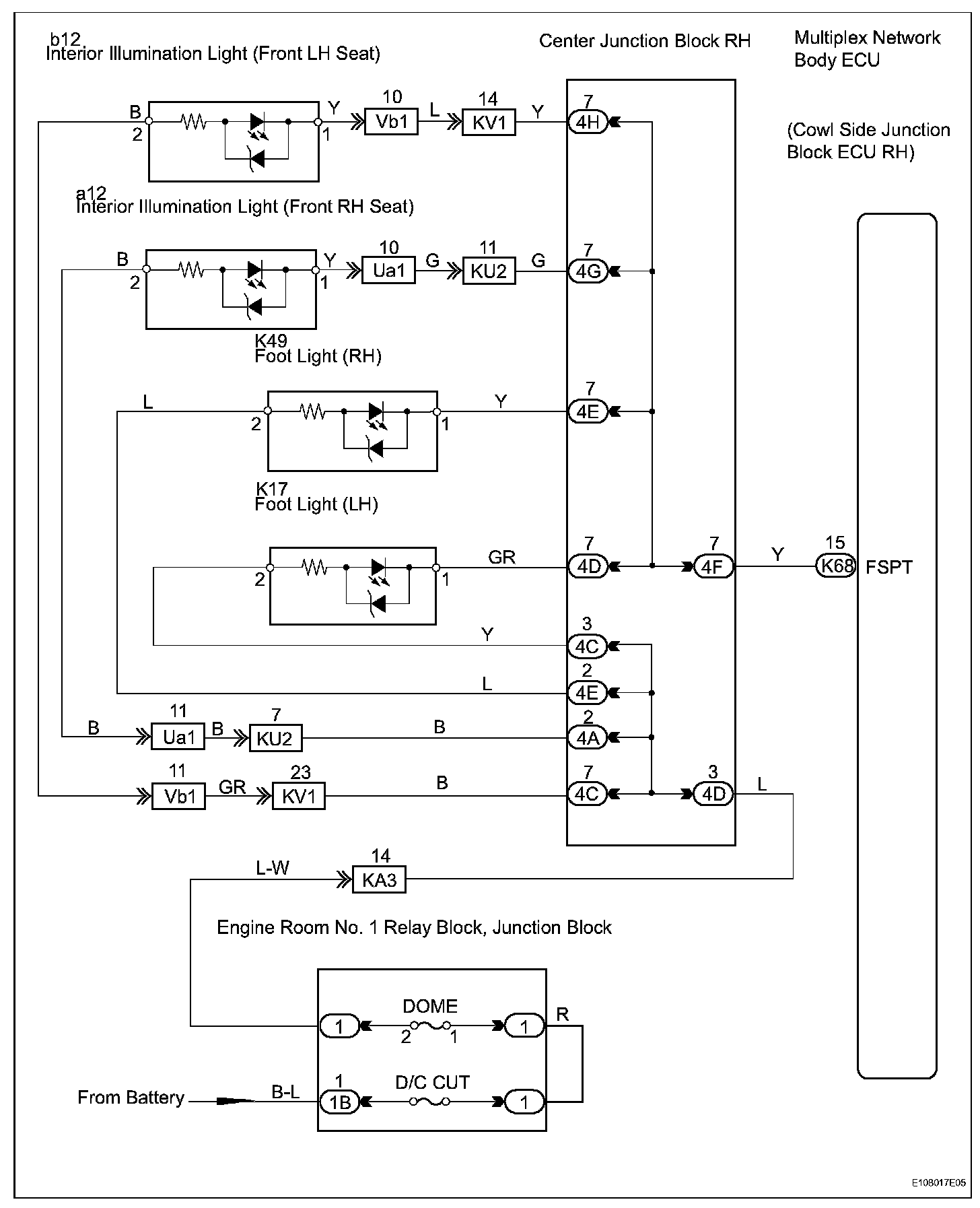

Wiring Diagram:

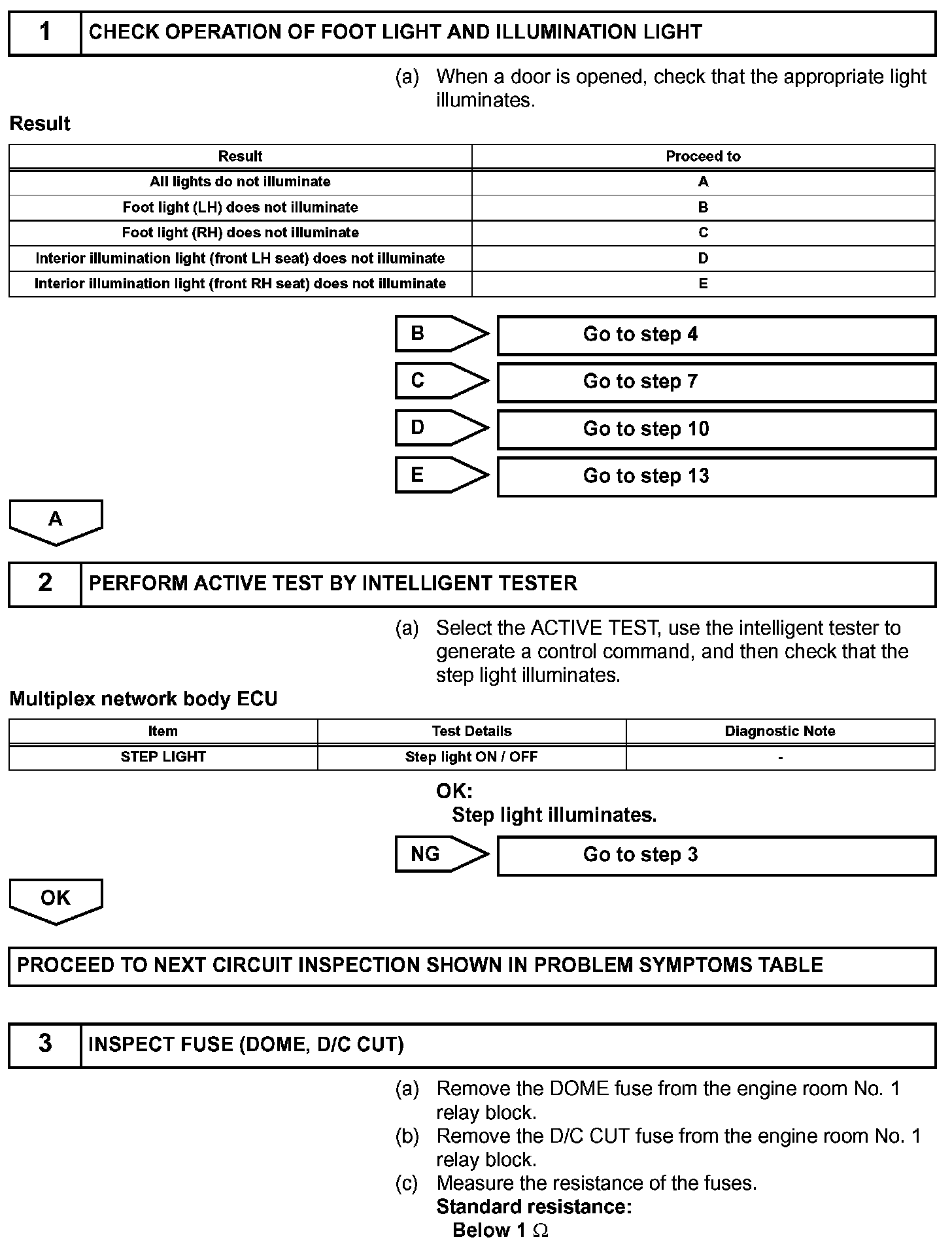

Step 1-3:

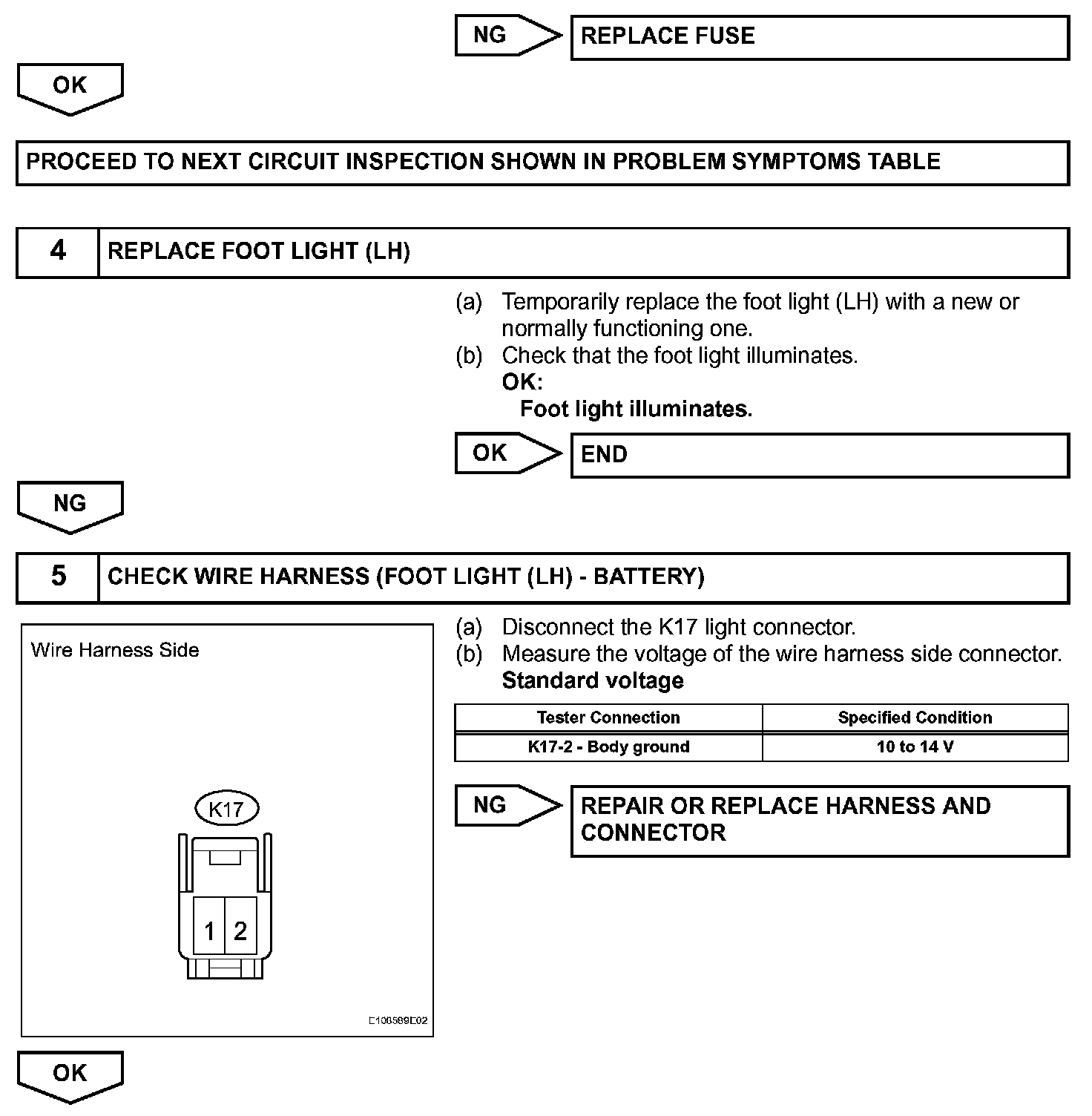

Step 3(continued)-5:

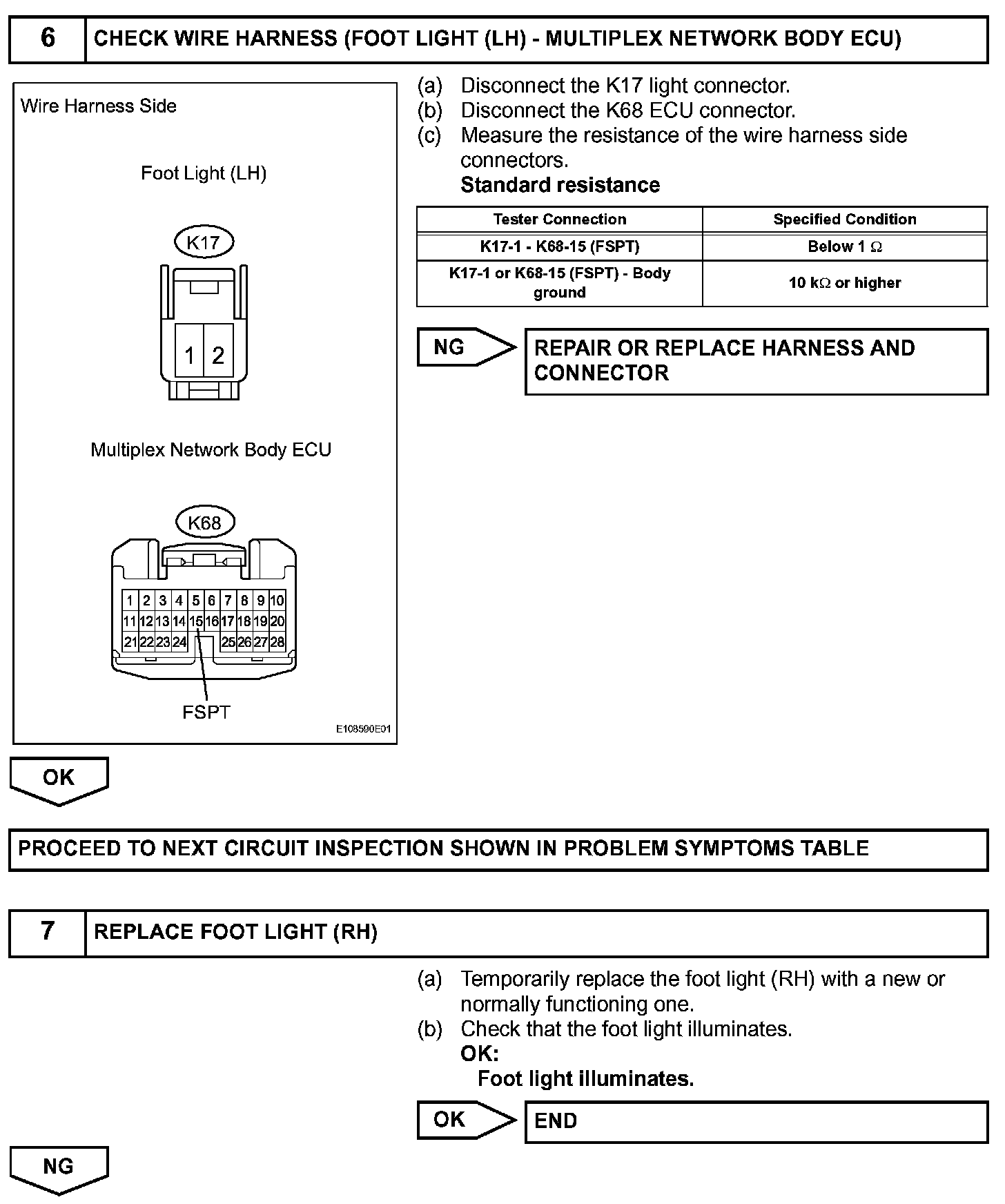

Step 6-7:

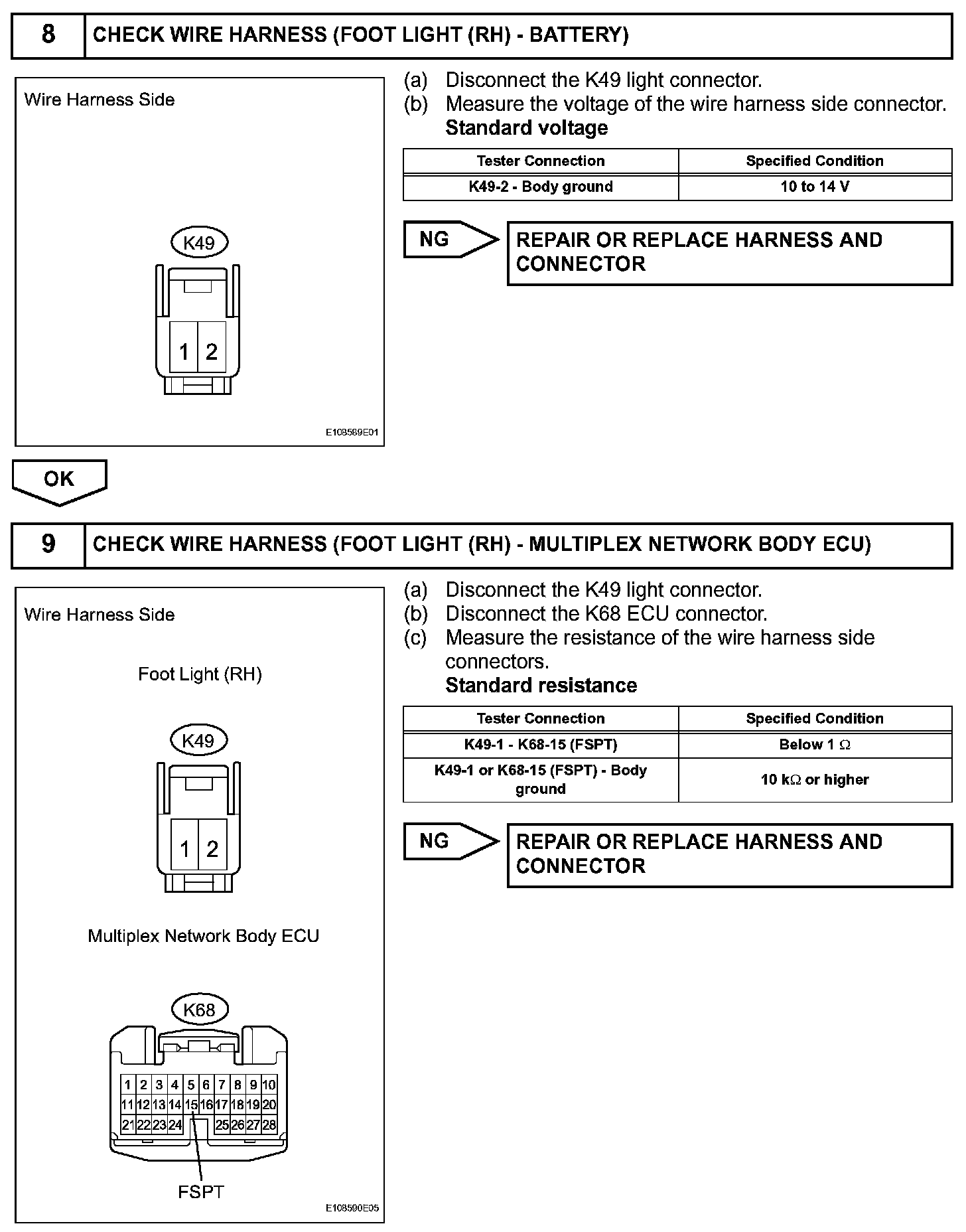

Step 8-9:

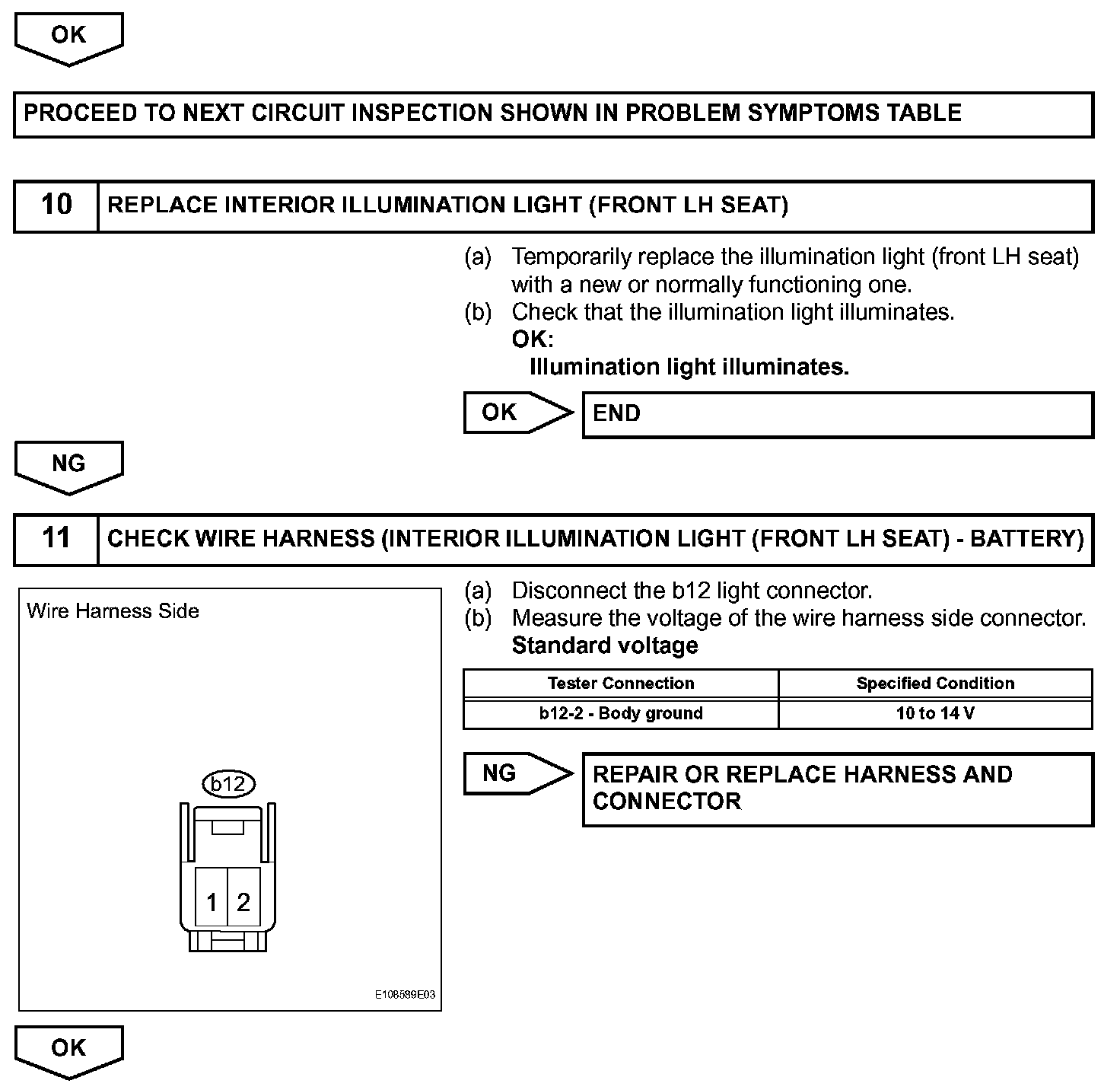

Step 9(continued)-11:

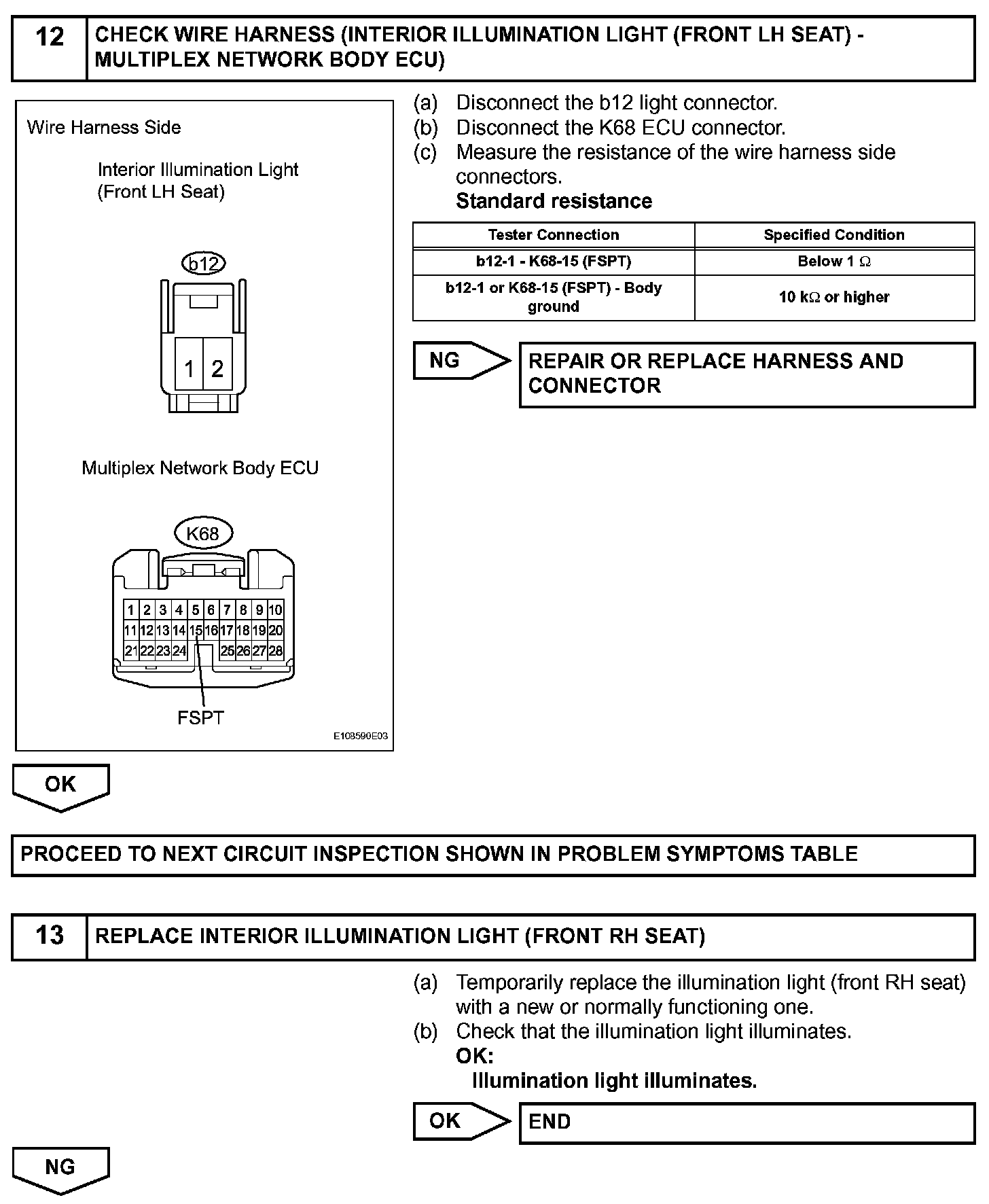

Step 12-13:

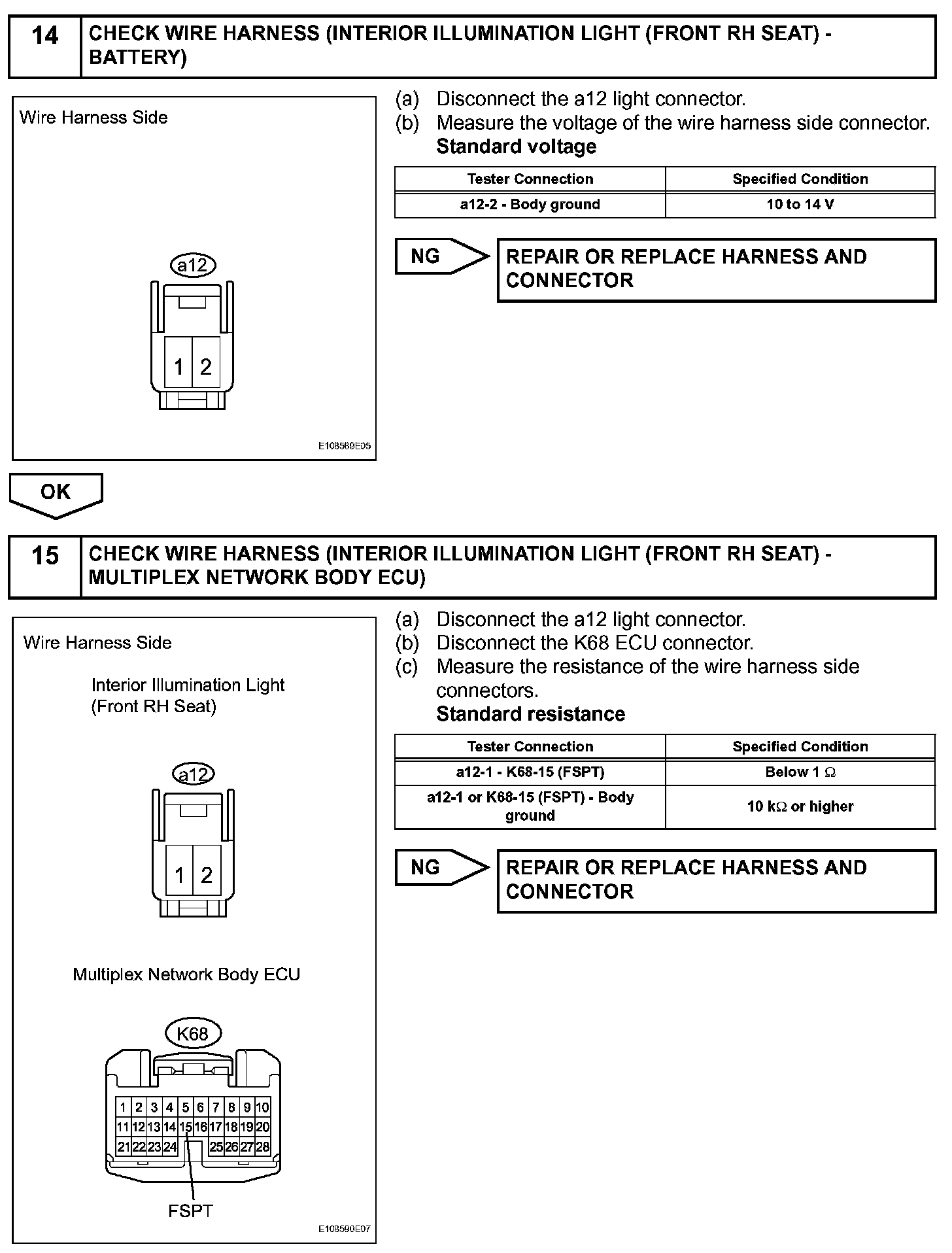

Step 14-15:

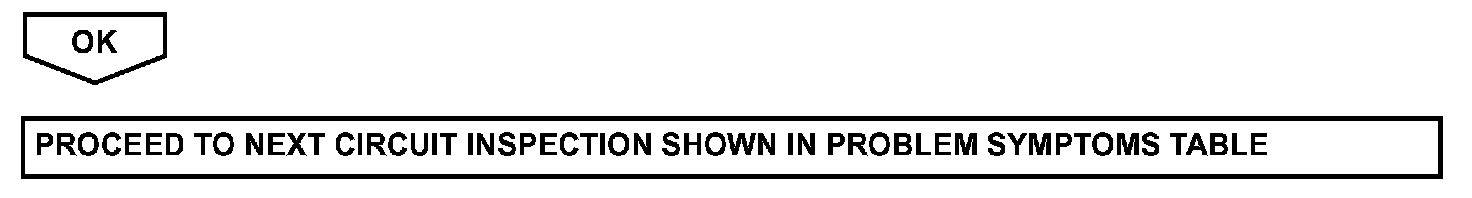

Step 15(continued):
INSPECTION PROCEDURE
