Luggage Room Lamp Circuit

Luggage Room Light Circuit

DESCRIPTION
The No. 1 junction block assembly receives luggage room door information, and turns on the luggage compartment lights.

Wiring Diagram:

Step 1:

Step 1(continued)-3:

Step 4-5:

Step 6:

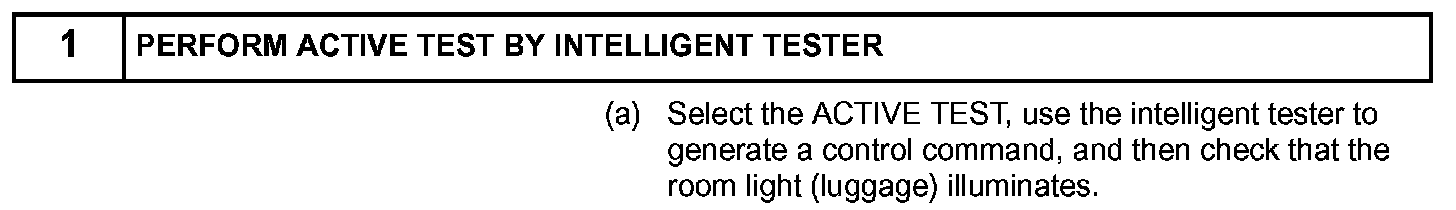

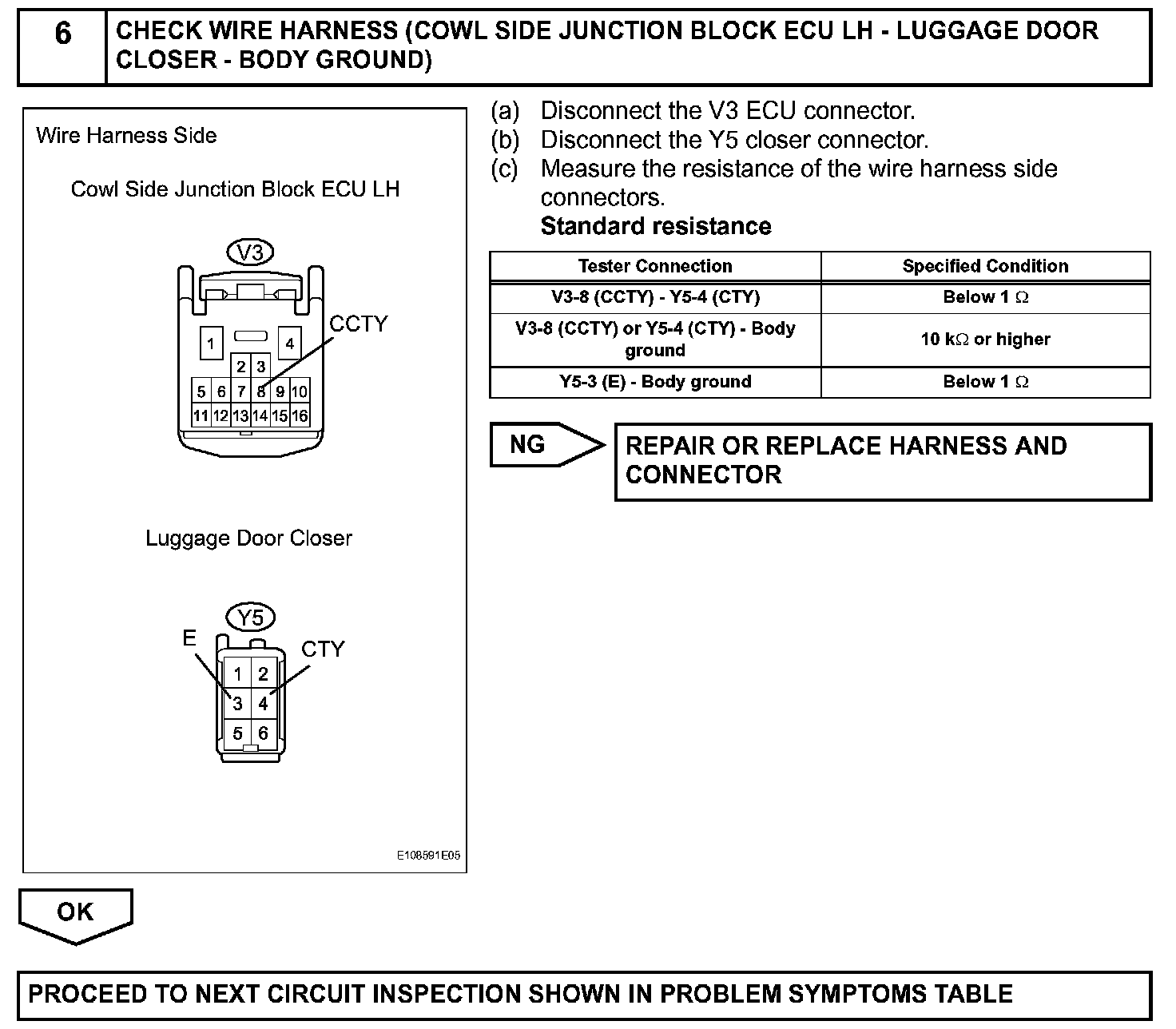

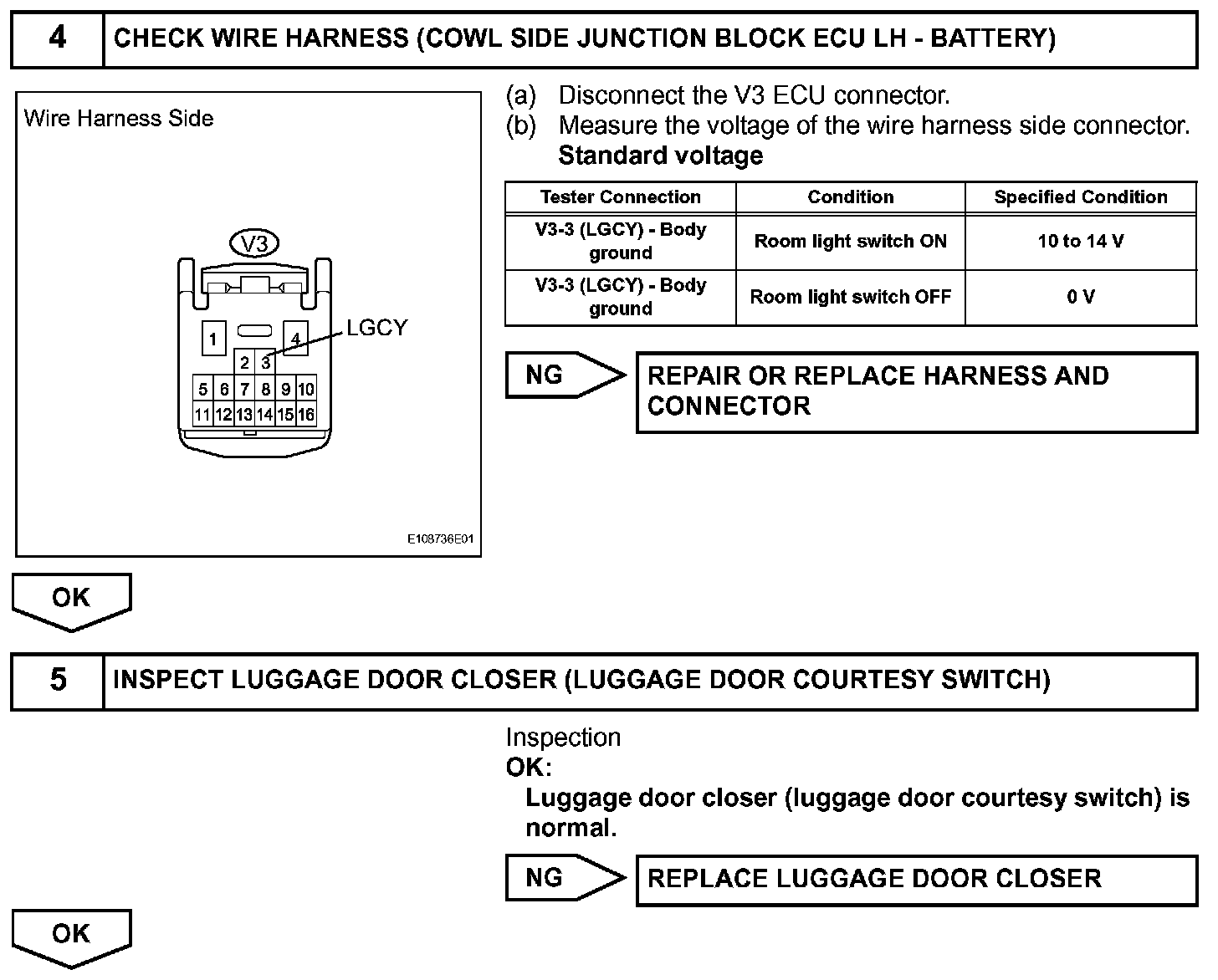

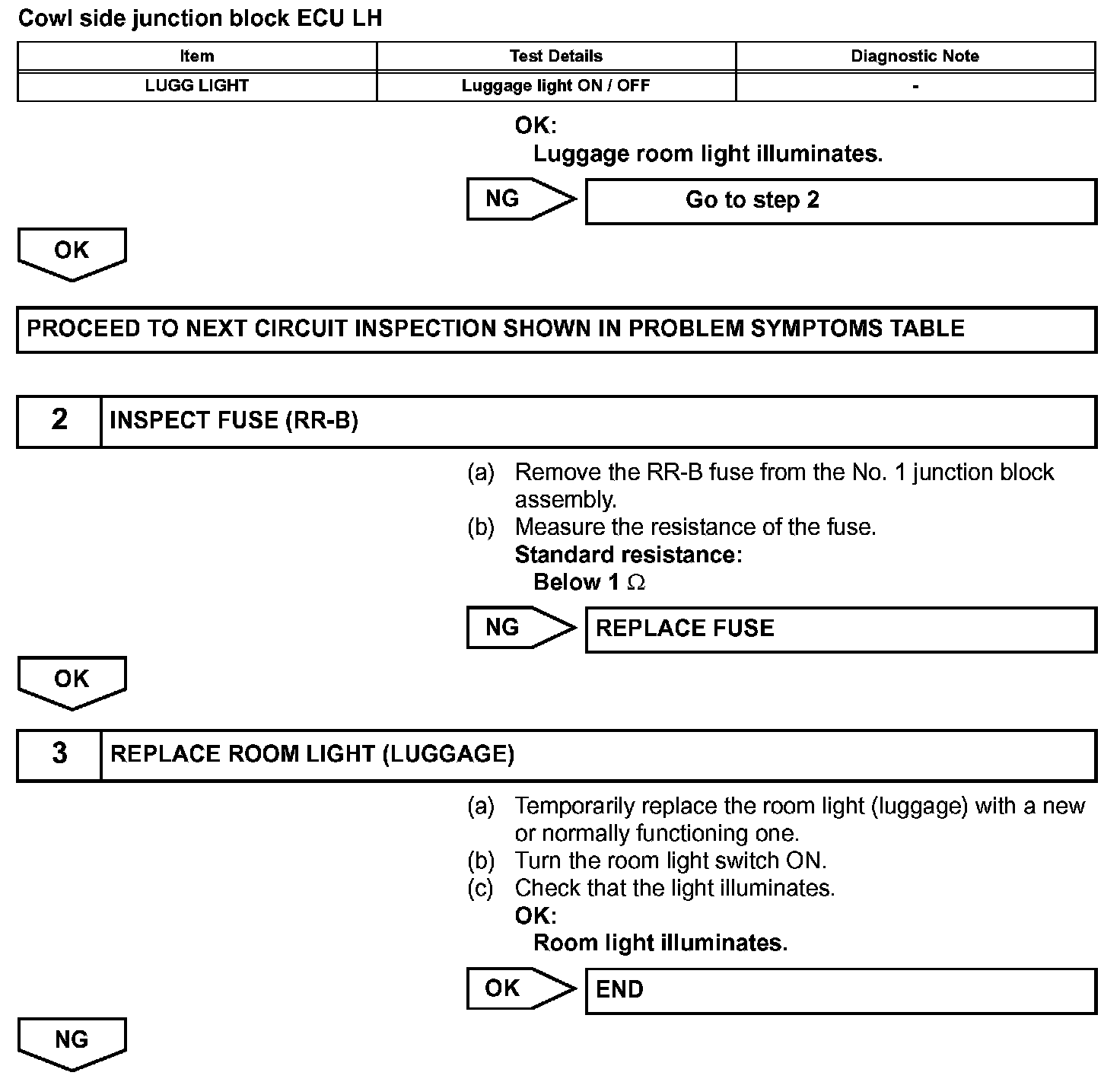

INSPECTION PROCEDURES
