Light Control Switch Circuit
Light Control Switch CircuitDESCRIPTION
The combination switch receives the information of the light control switch, and sends it to each ECU via the multiplex communication system.

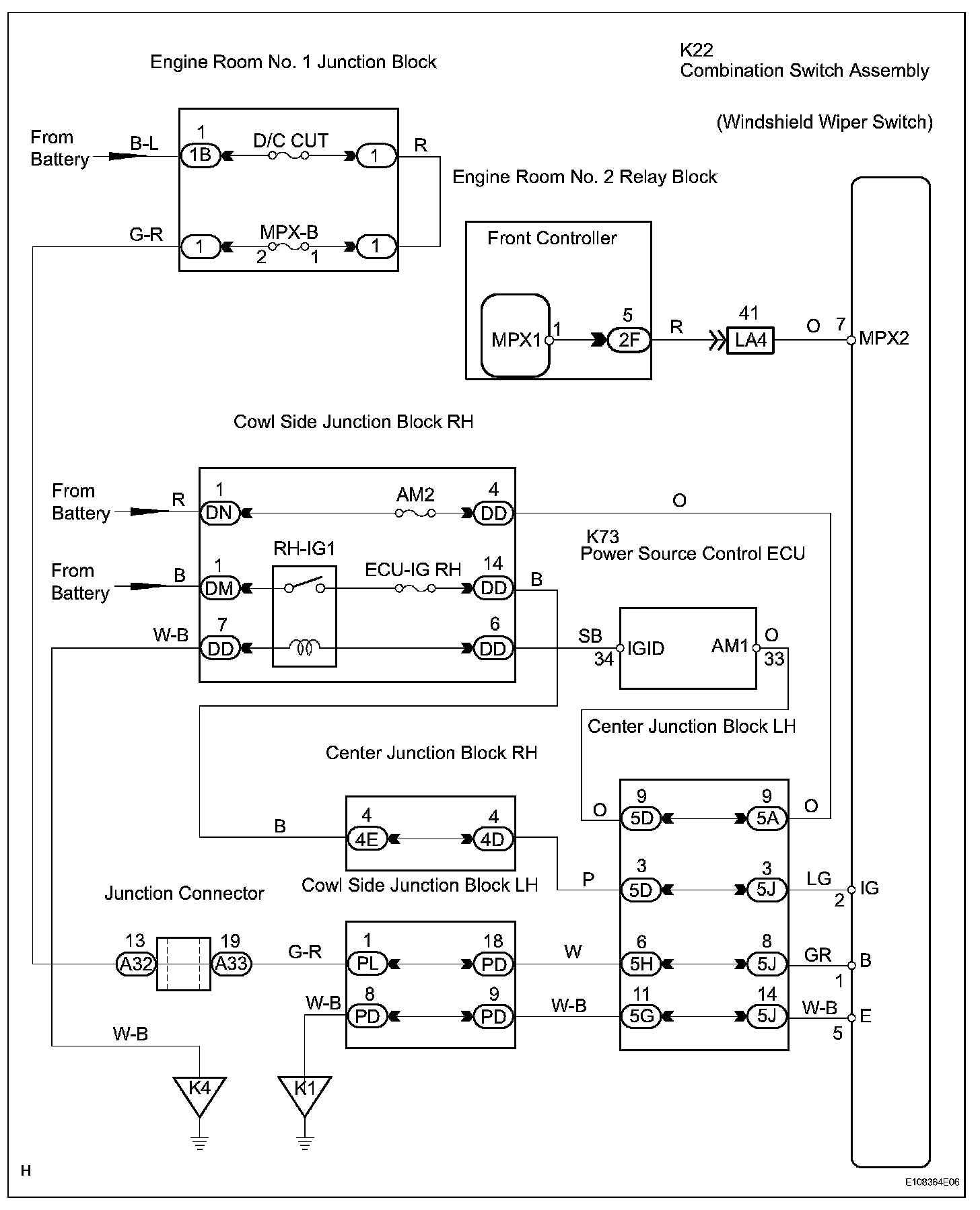

Wiring Diagram:

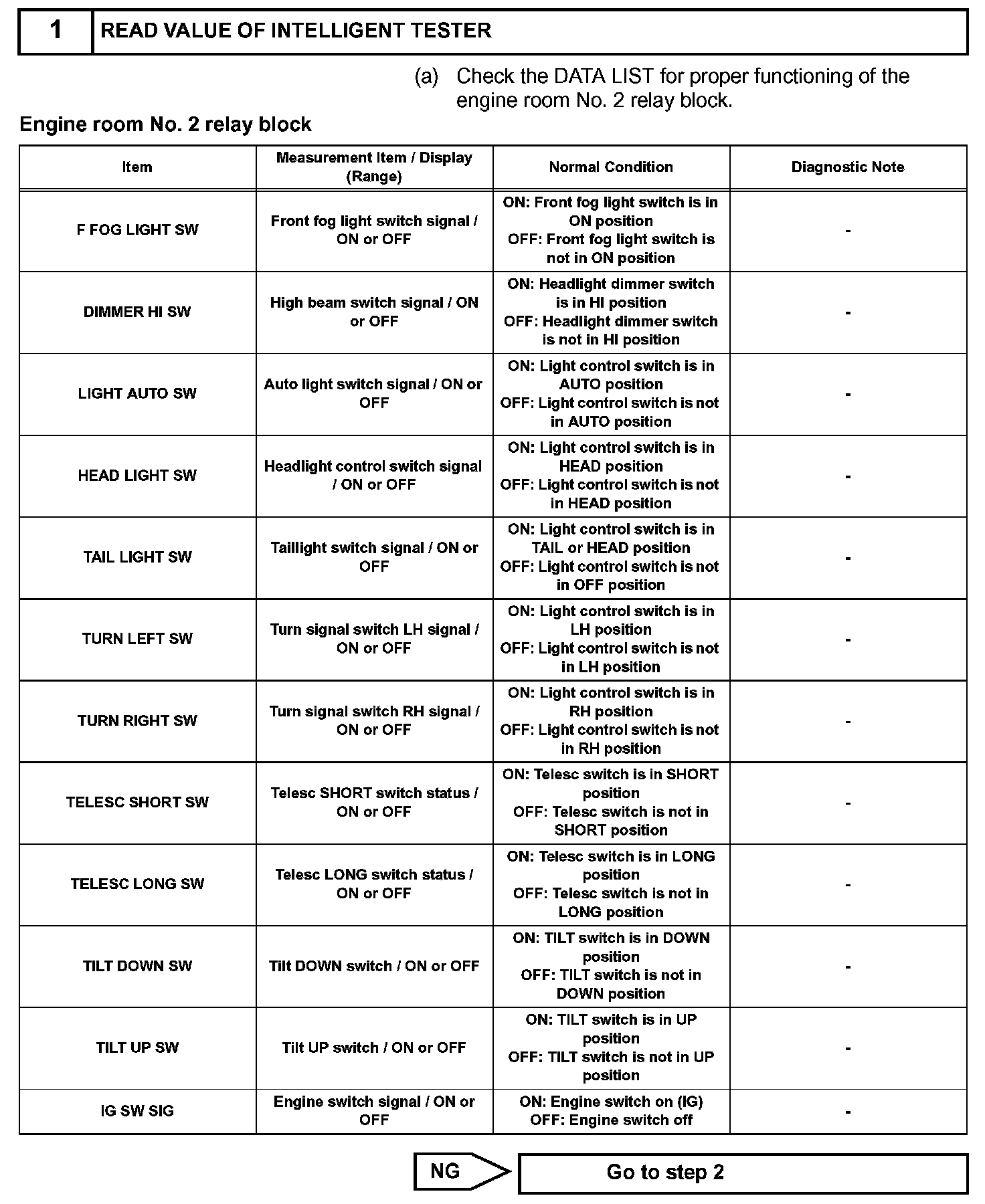

Step 1:

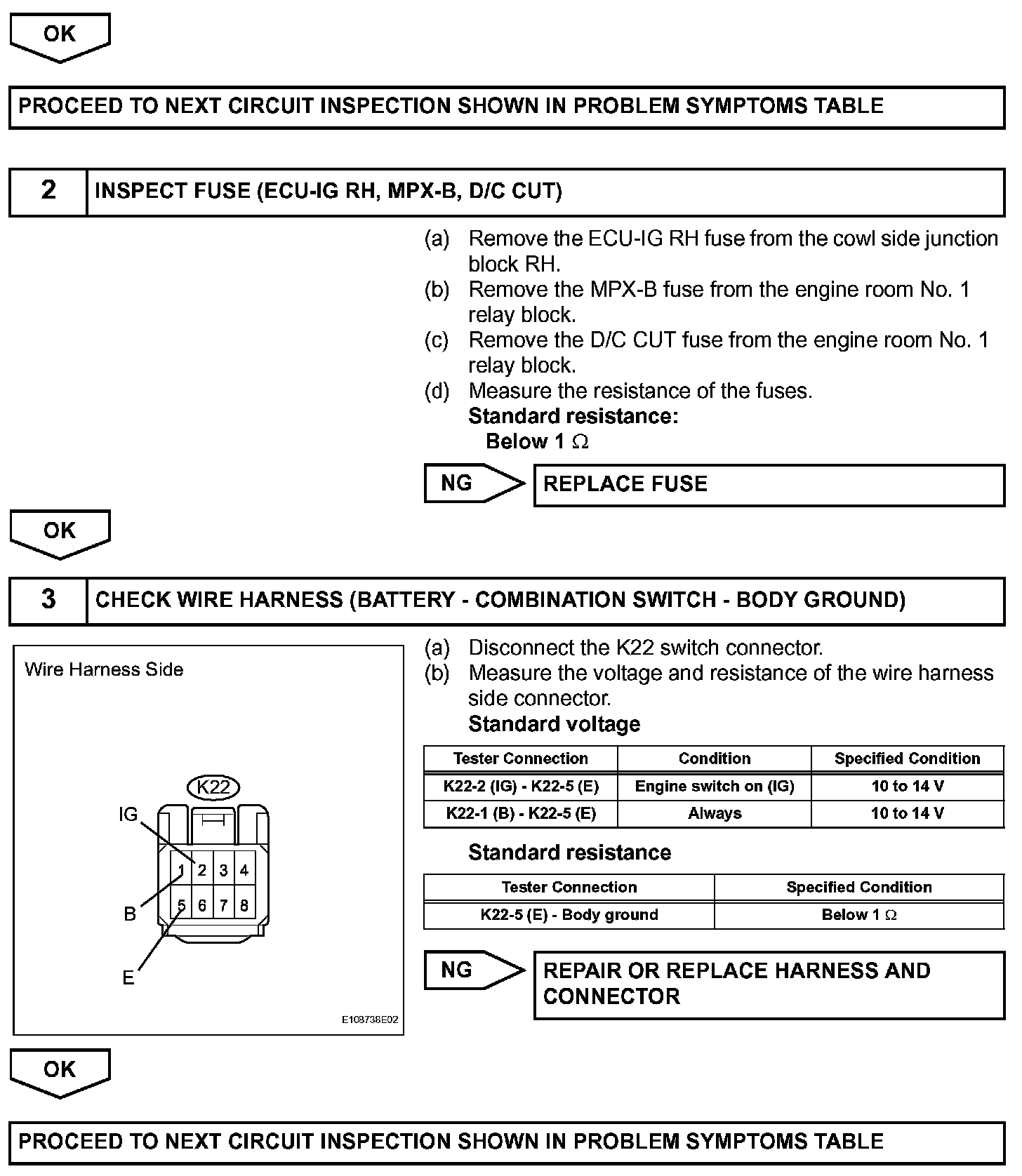

Step 1(continued)-3:
INSPECTION PROCEDURE
