Inside Handle Illumination Light Circuit
Inside Handle Illumination Light CircuitDESCRIPTION
The inside handle illumination light illuminates when the door is opened and turns off when the door is closed.

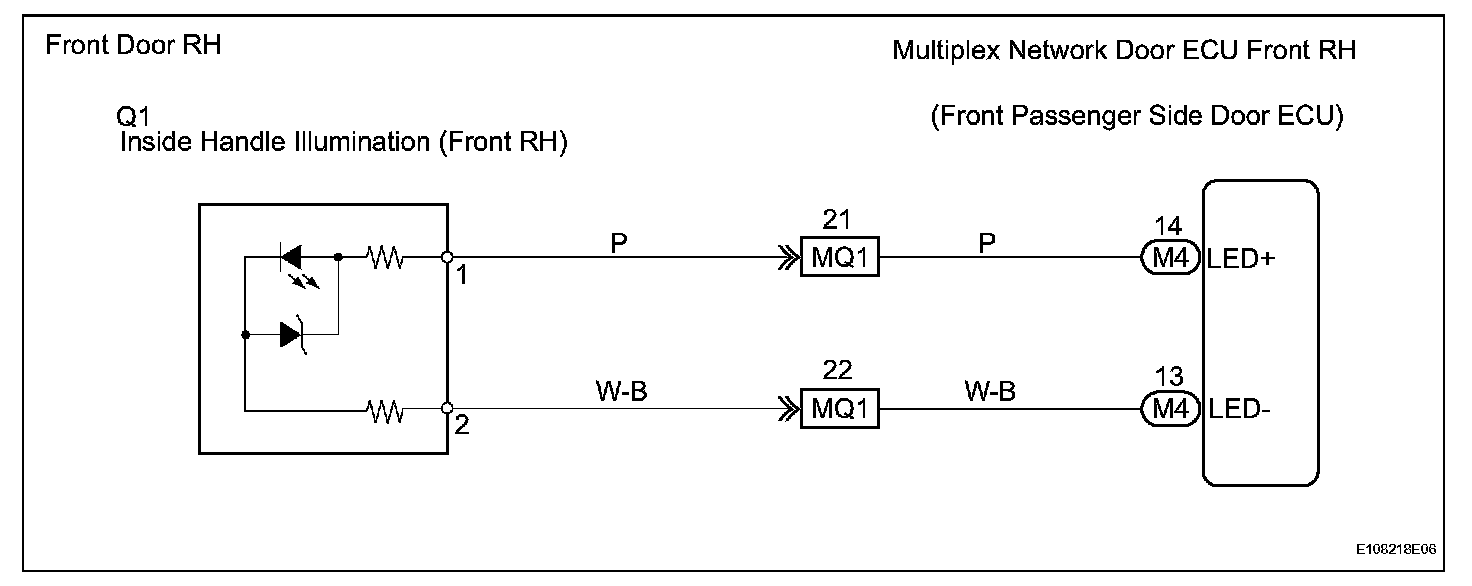

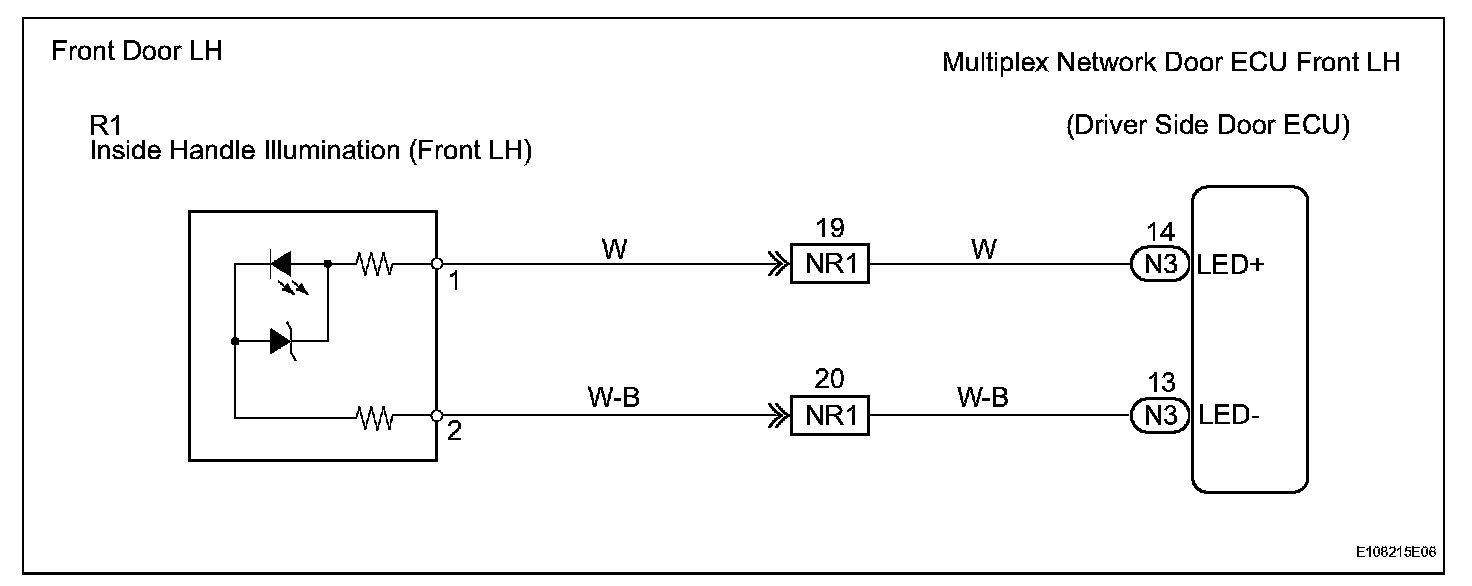

Wiring Diagram:

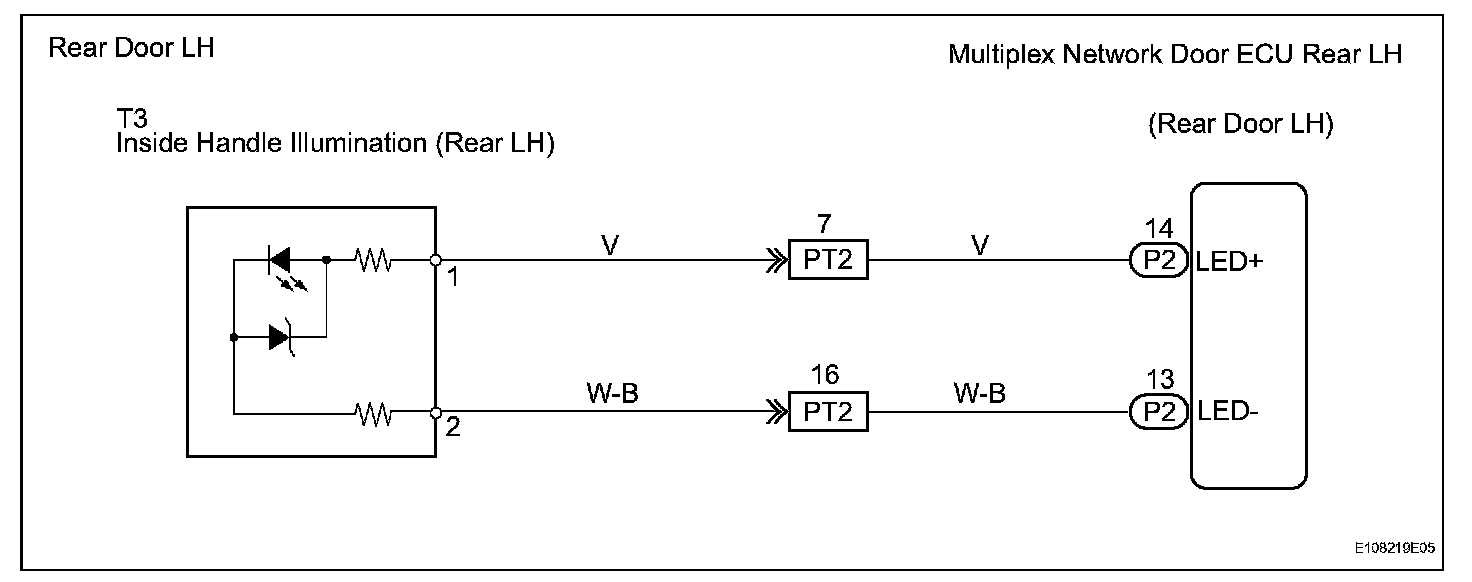

Wiring Diagram:

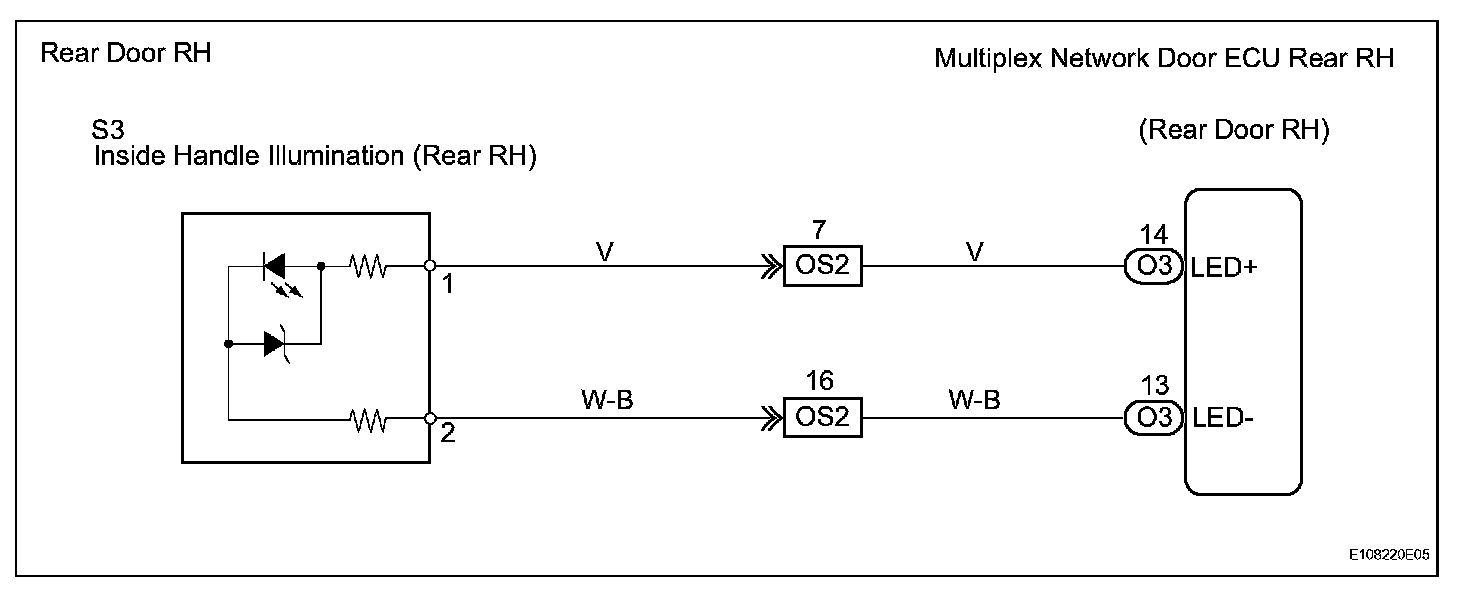

Wiring Diagram:
Wiring Diagram:

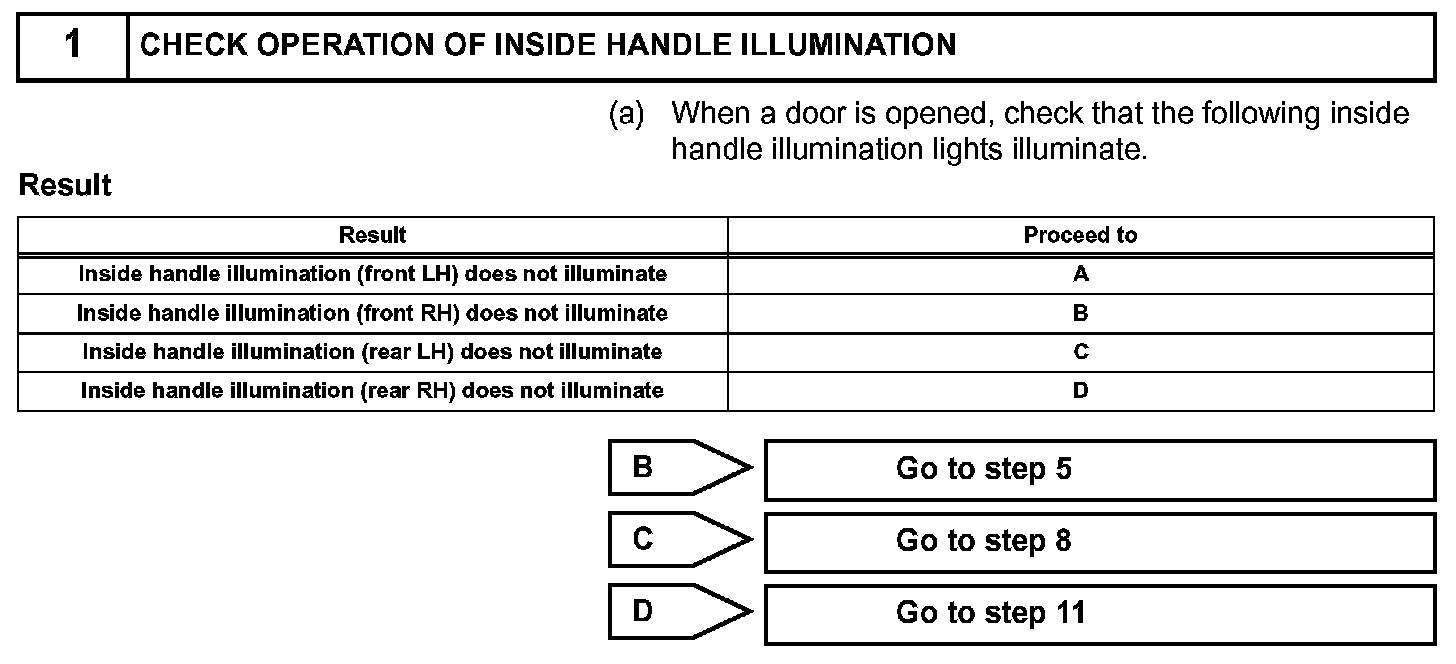

Step 1:
Step 1(continued)-3:

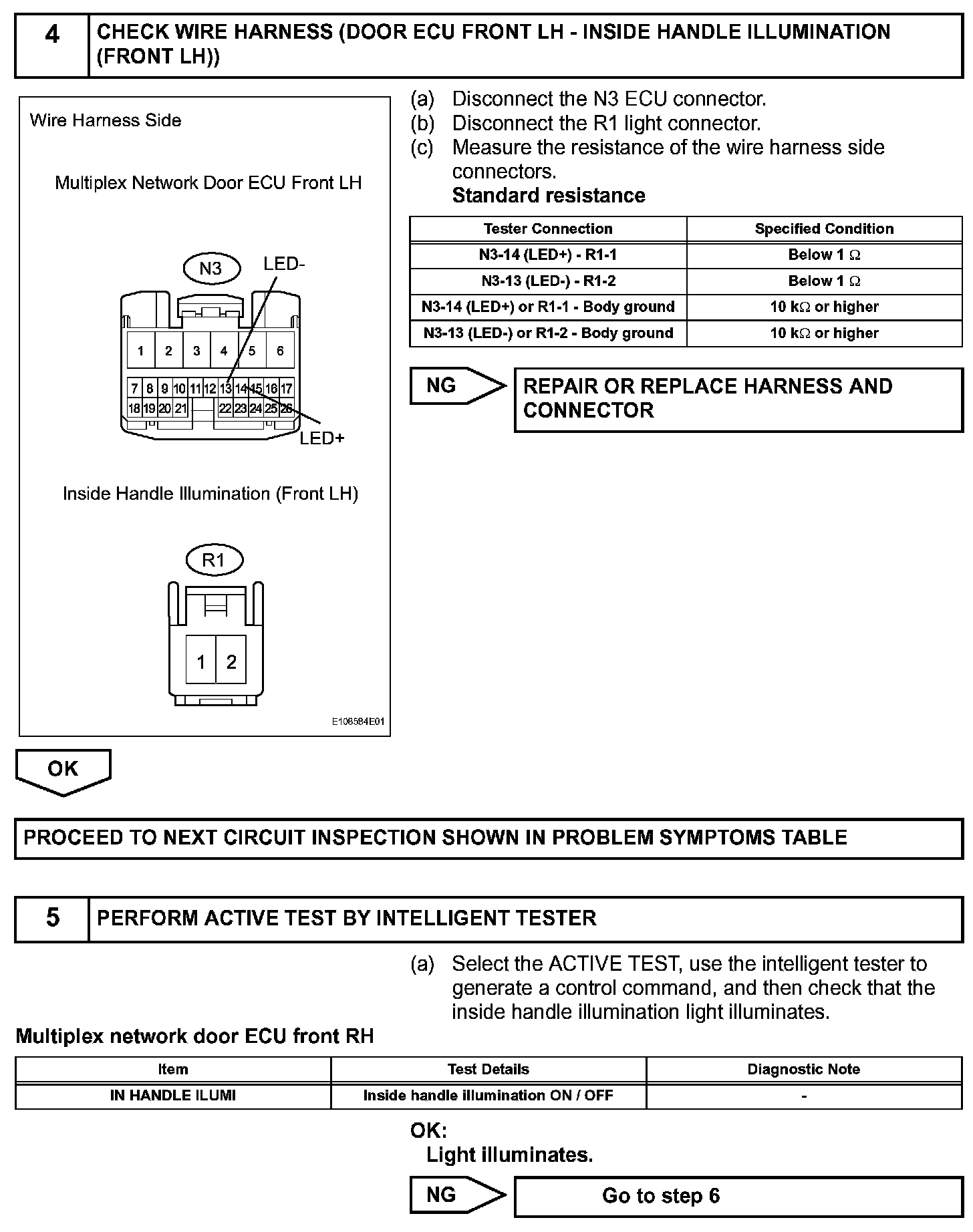

Step 4-5:

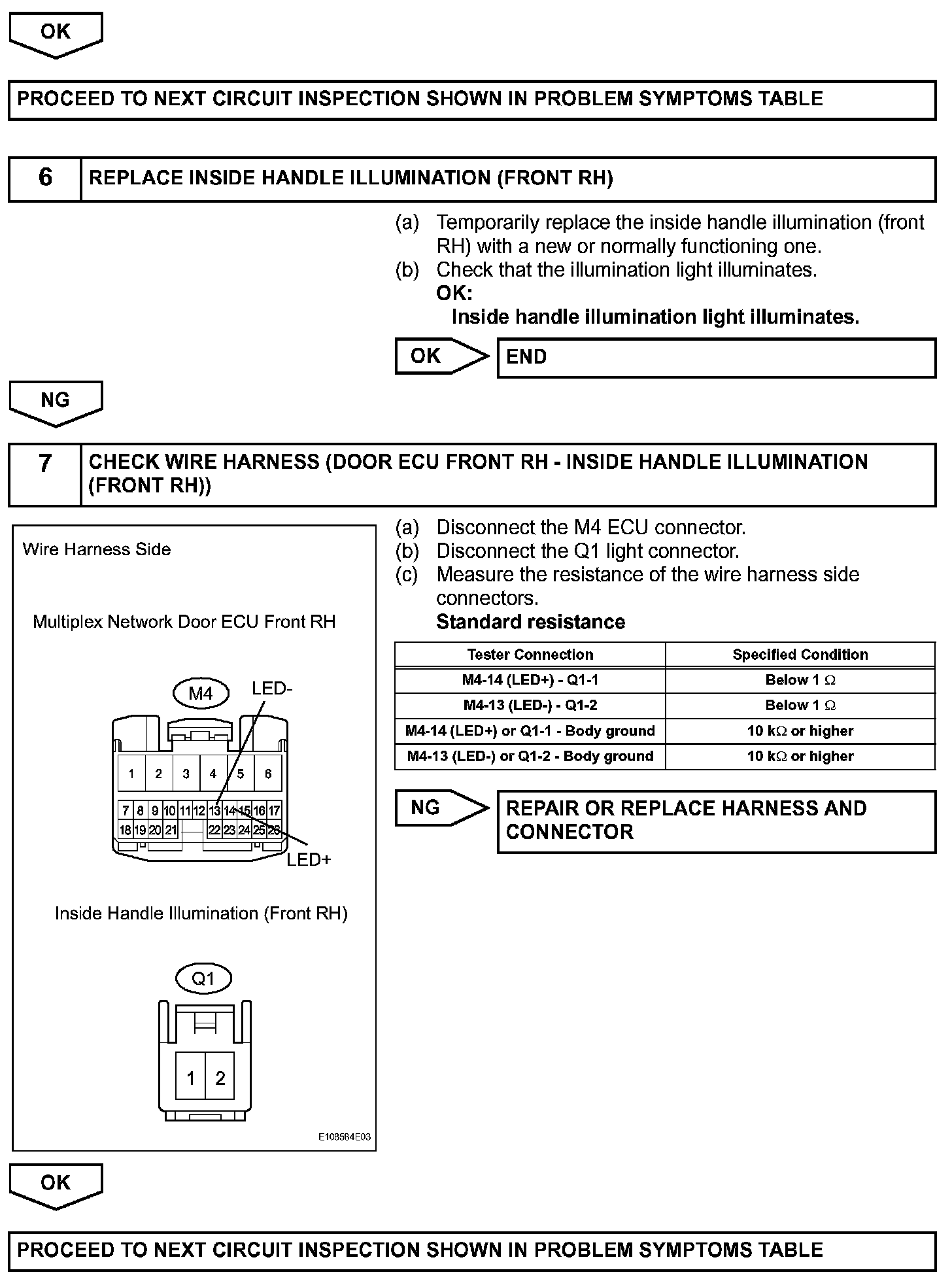

Step 5(continued)-7:

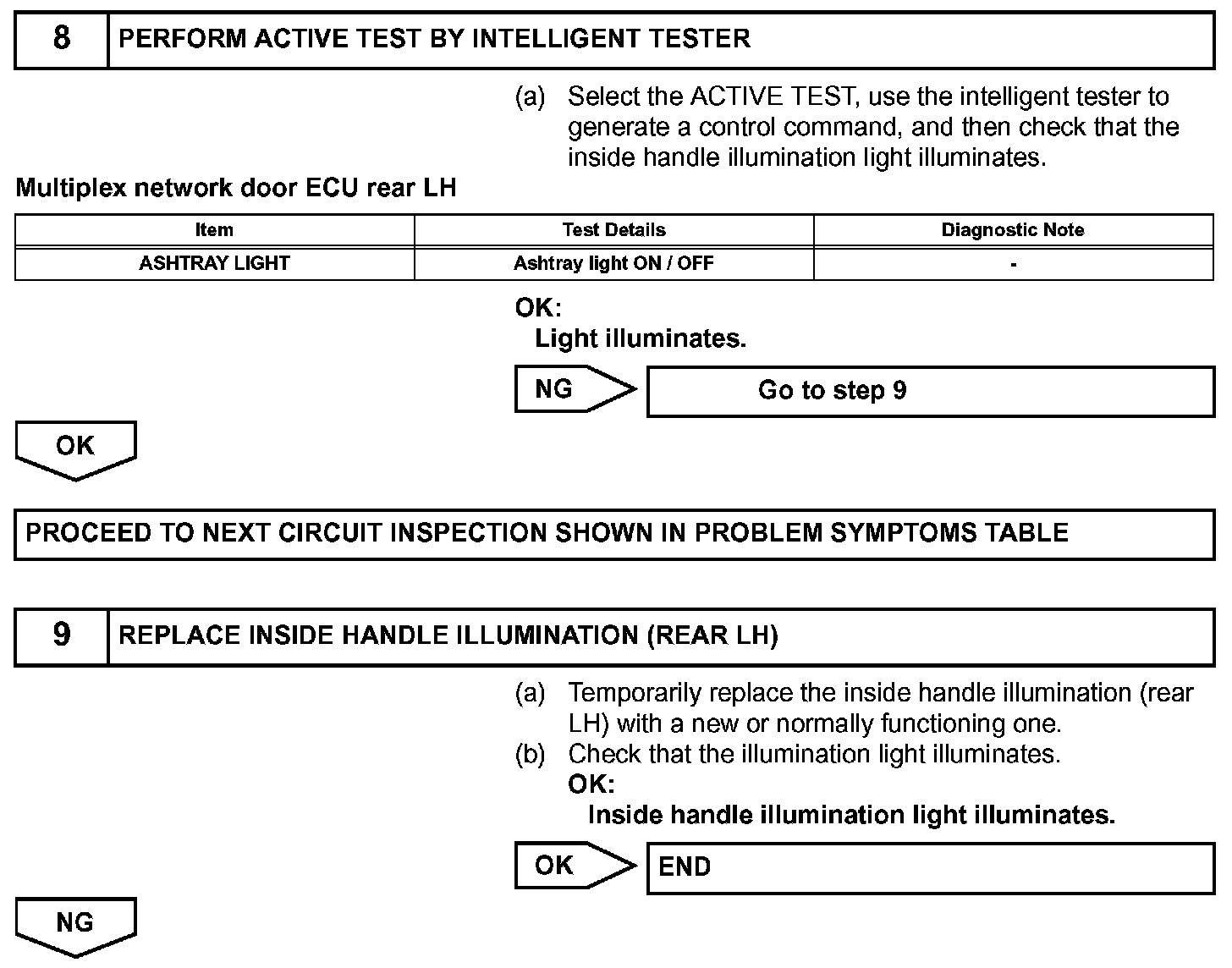

Step 8-9:
Step 10-11:

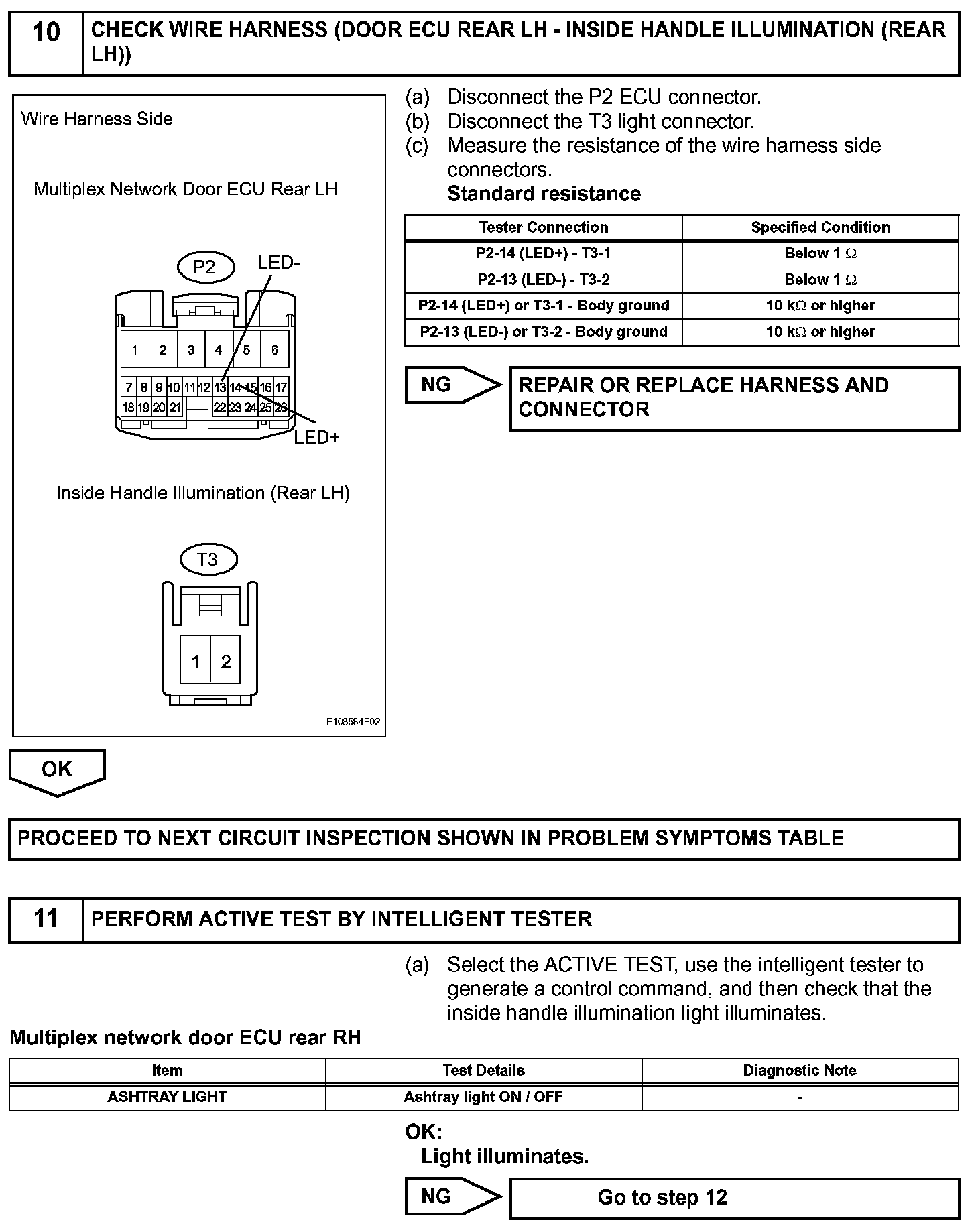

Step 11(continued)-13:

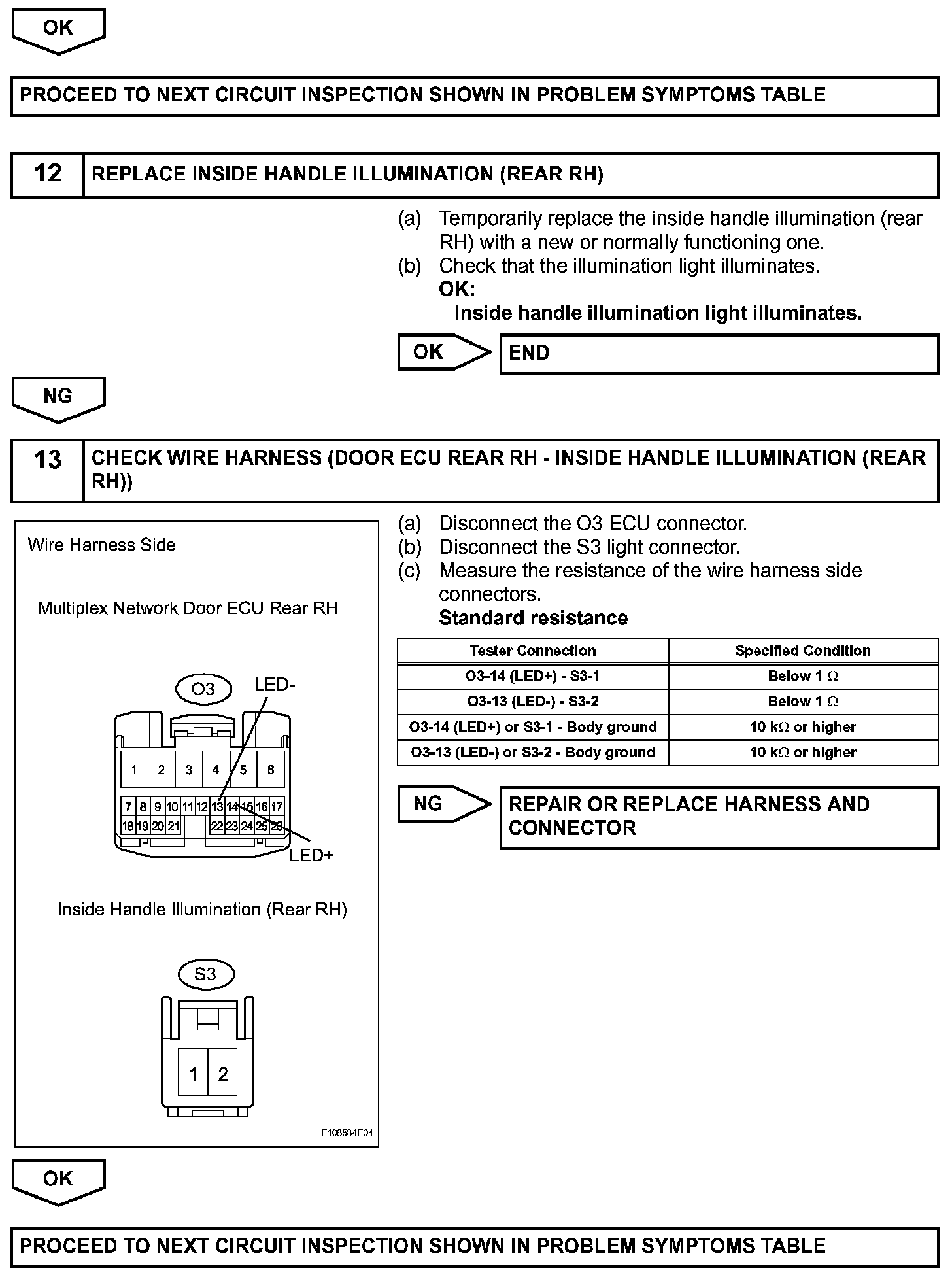

INSPECTION PROCEDURE
