Headlight Beam Level Control ECU Power Source Circuit

Headlight Beam Level Control ECU Power Source Circuit

DESCRIPTION
This circuit detects the state of the engine switch. The headlight beam level control ECU receives it from the engine switch.

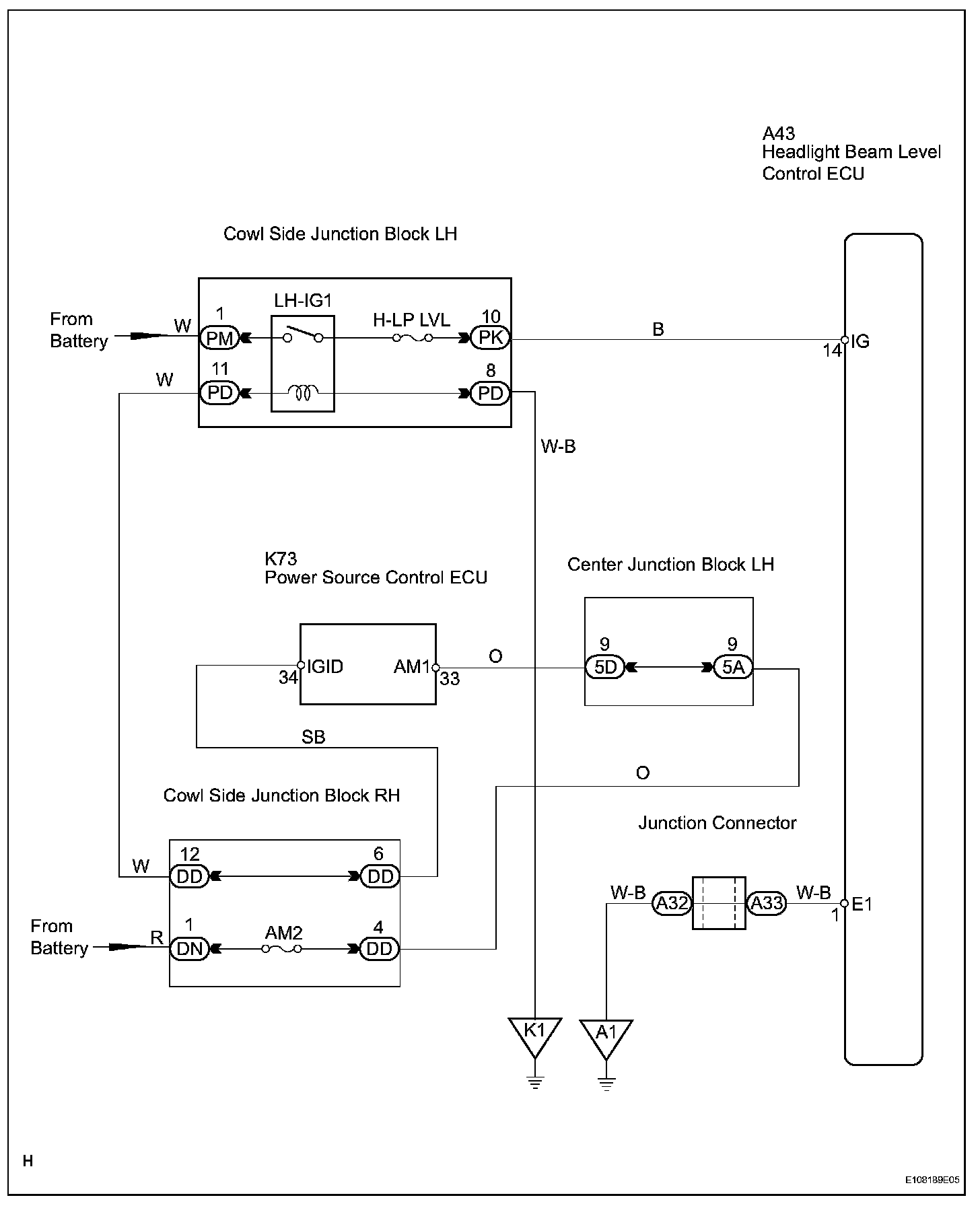

Wiring Diagram:






Step 1-2:




INSPECTION PROCEDURE
