Hazard Warning Switch Circuit

Hazard Warning Switch Circuit

DESCRIPTION
The hazard warning switch sends a signal to the turn signal flasher.

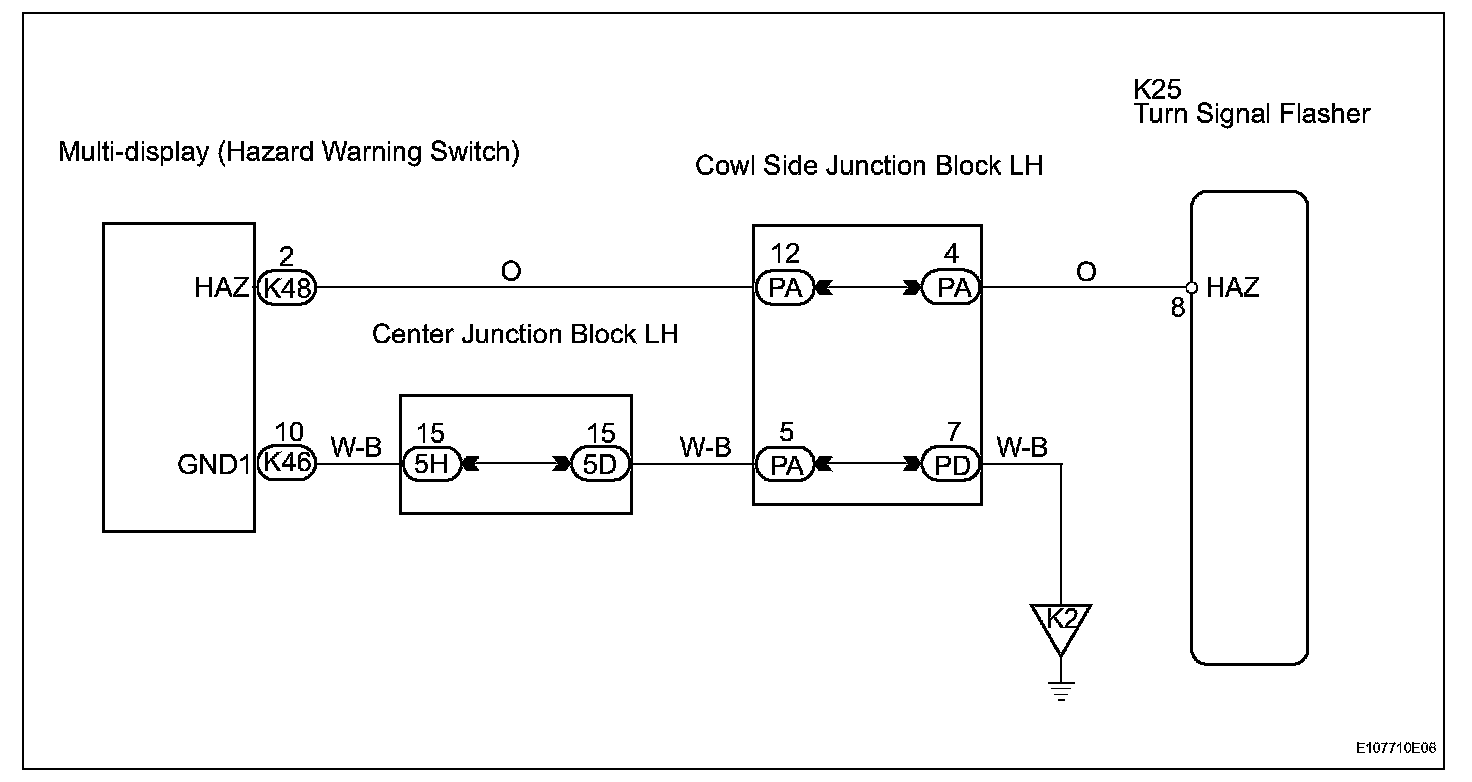

Wiring Diagram:

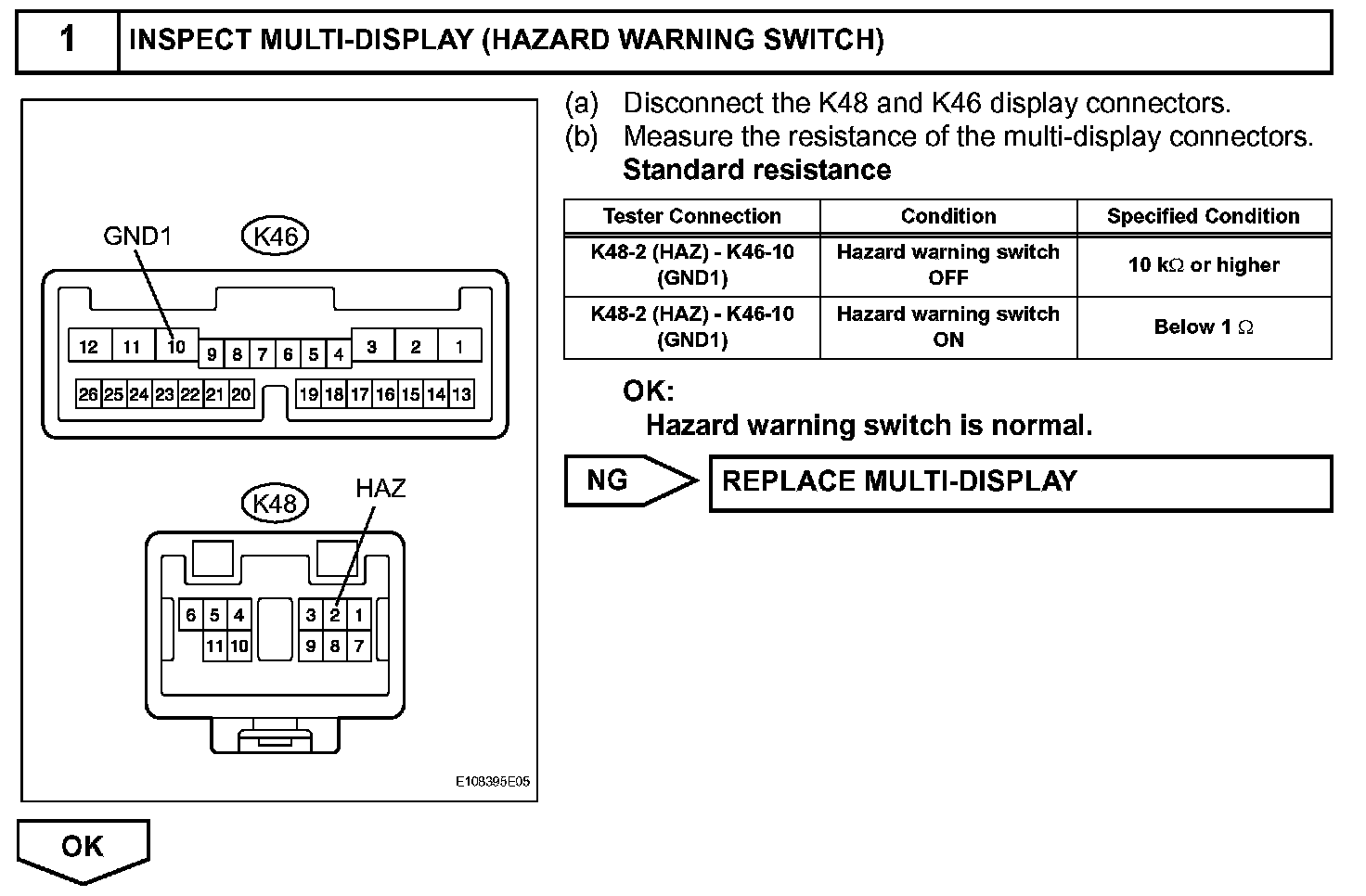

Step 1:

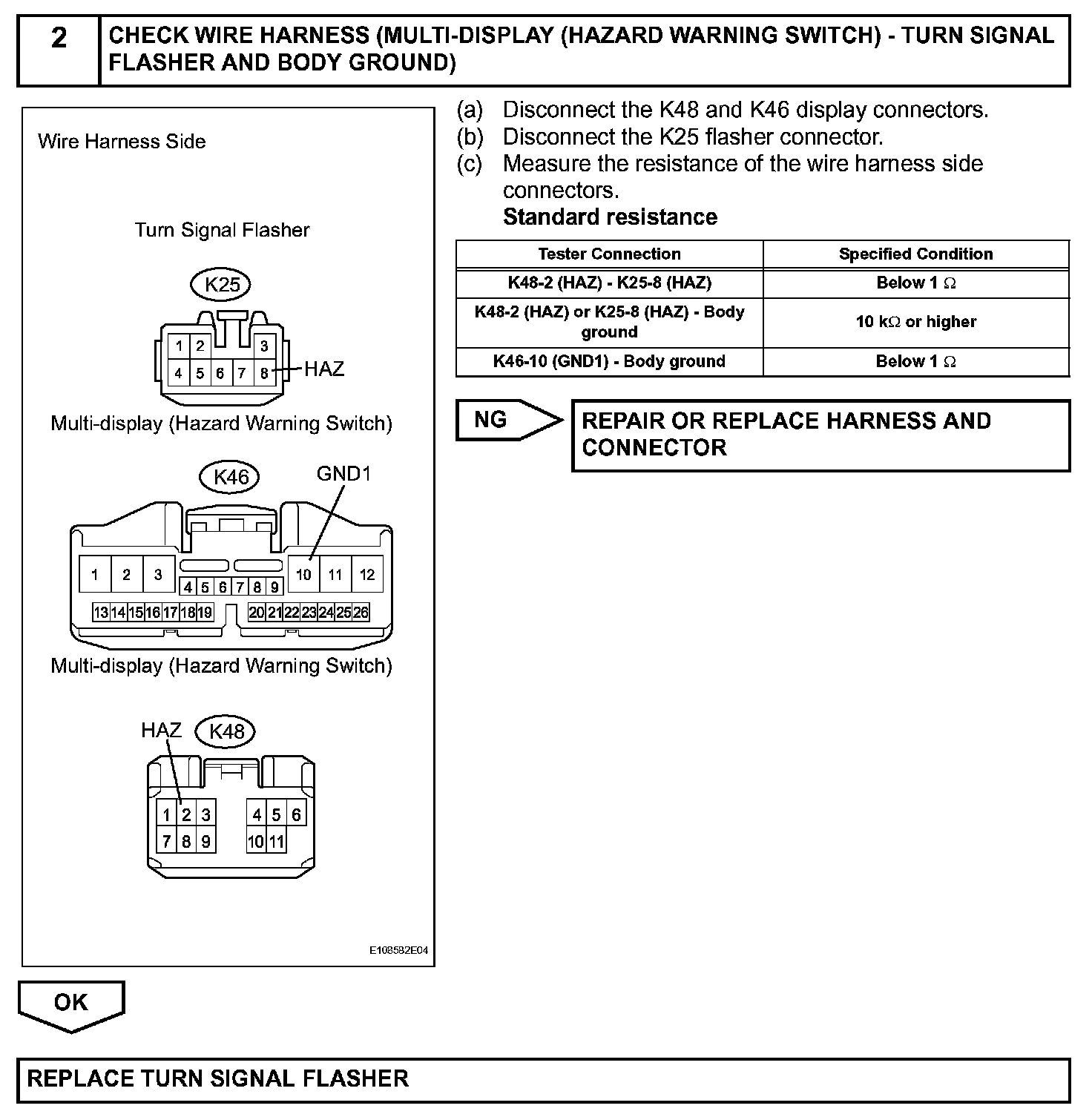

Step 2:




INSPECTION PROCEDURE
