Front Fog Lamp Circuit

Front Fog Light Circuit

DESCRIPTION
The engine room No. 2 relay block receives fog light switch information from the combination switch, and turns on the fog light.

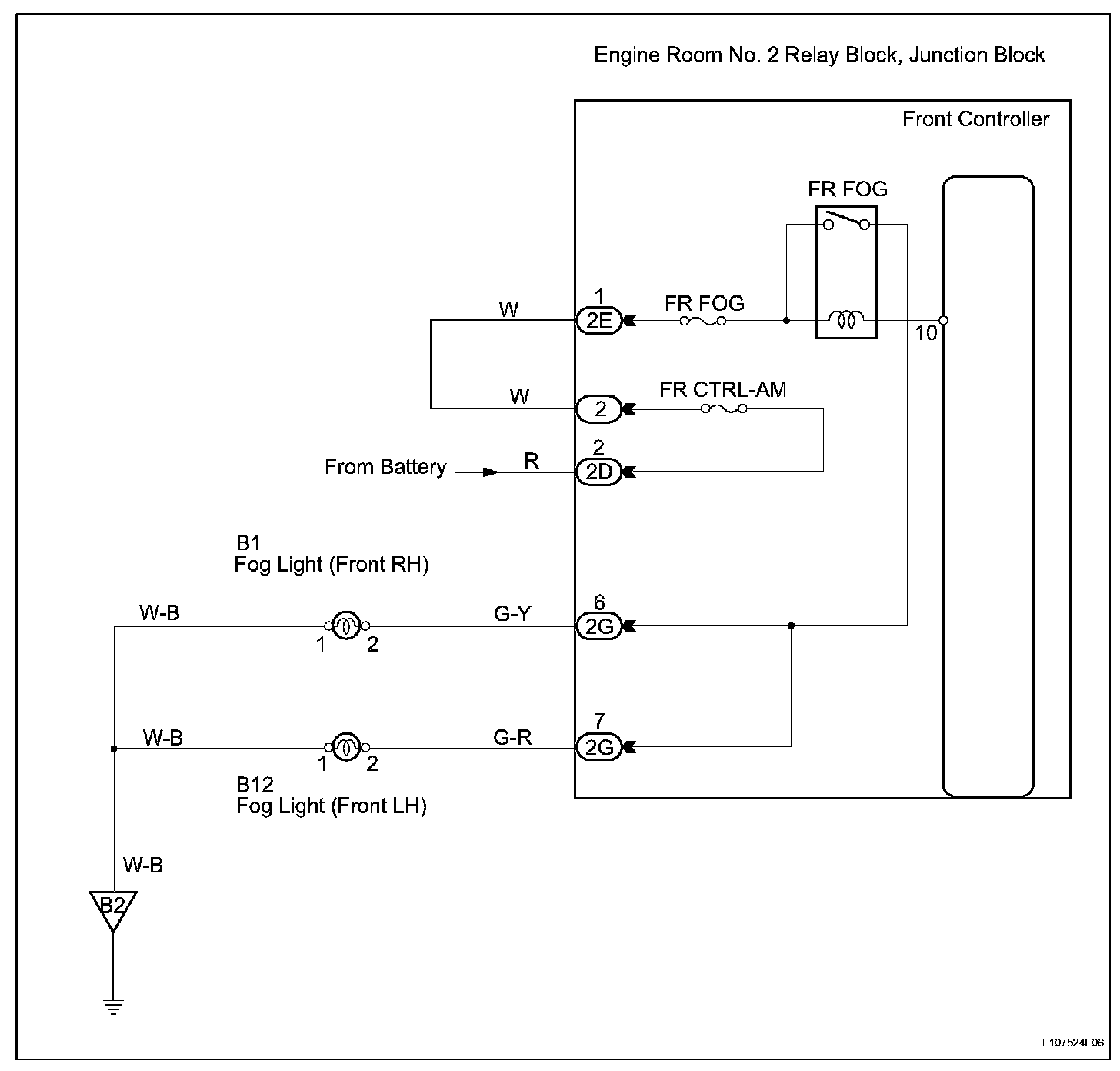

Wiring Diagram:

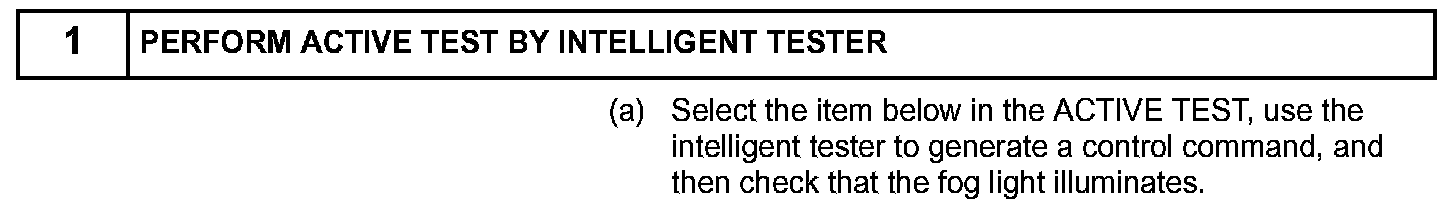

Step 1:

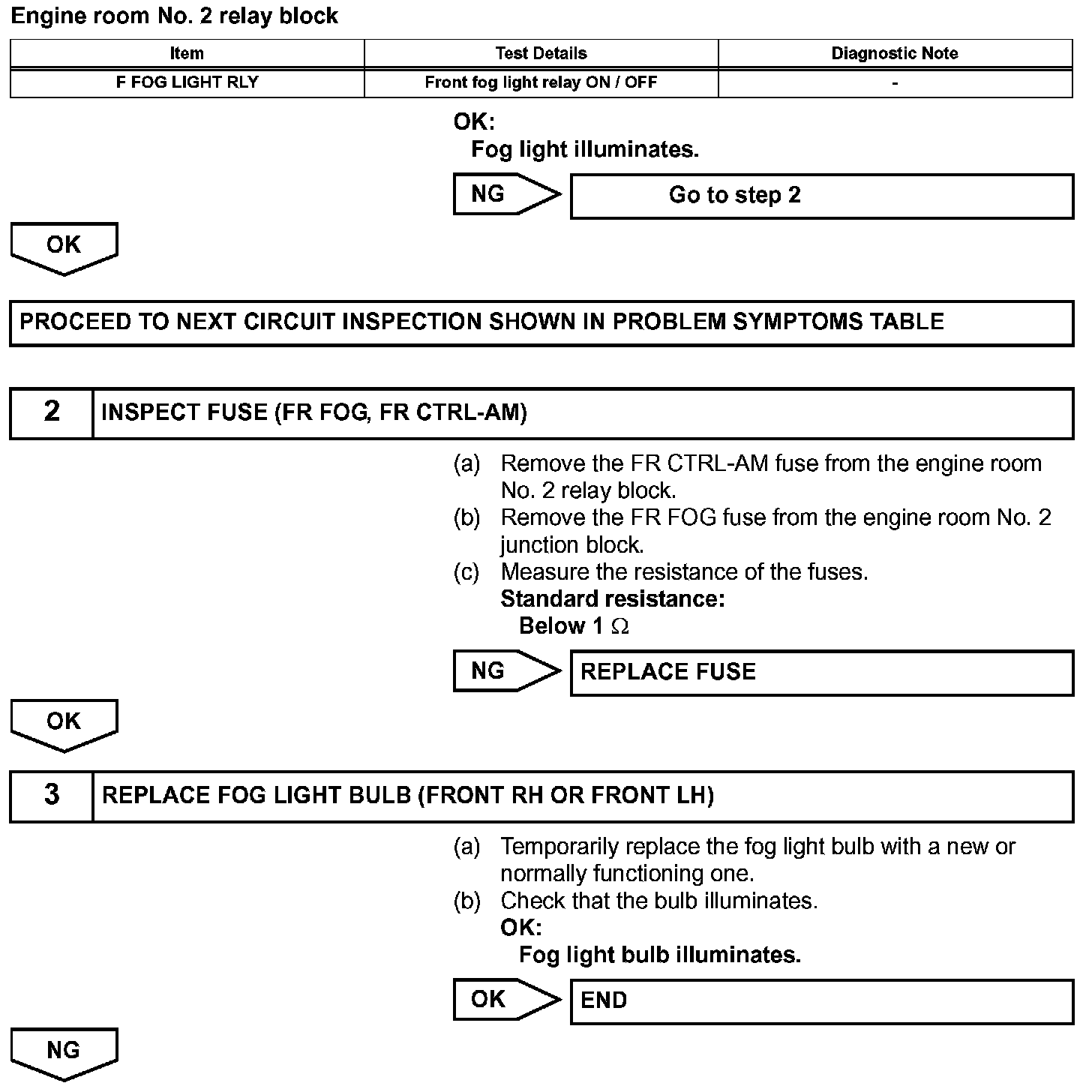

Step 1(continued)-3:

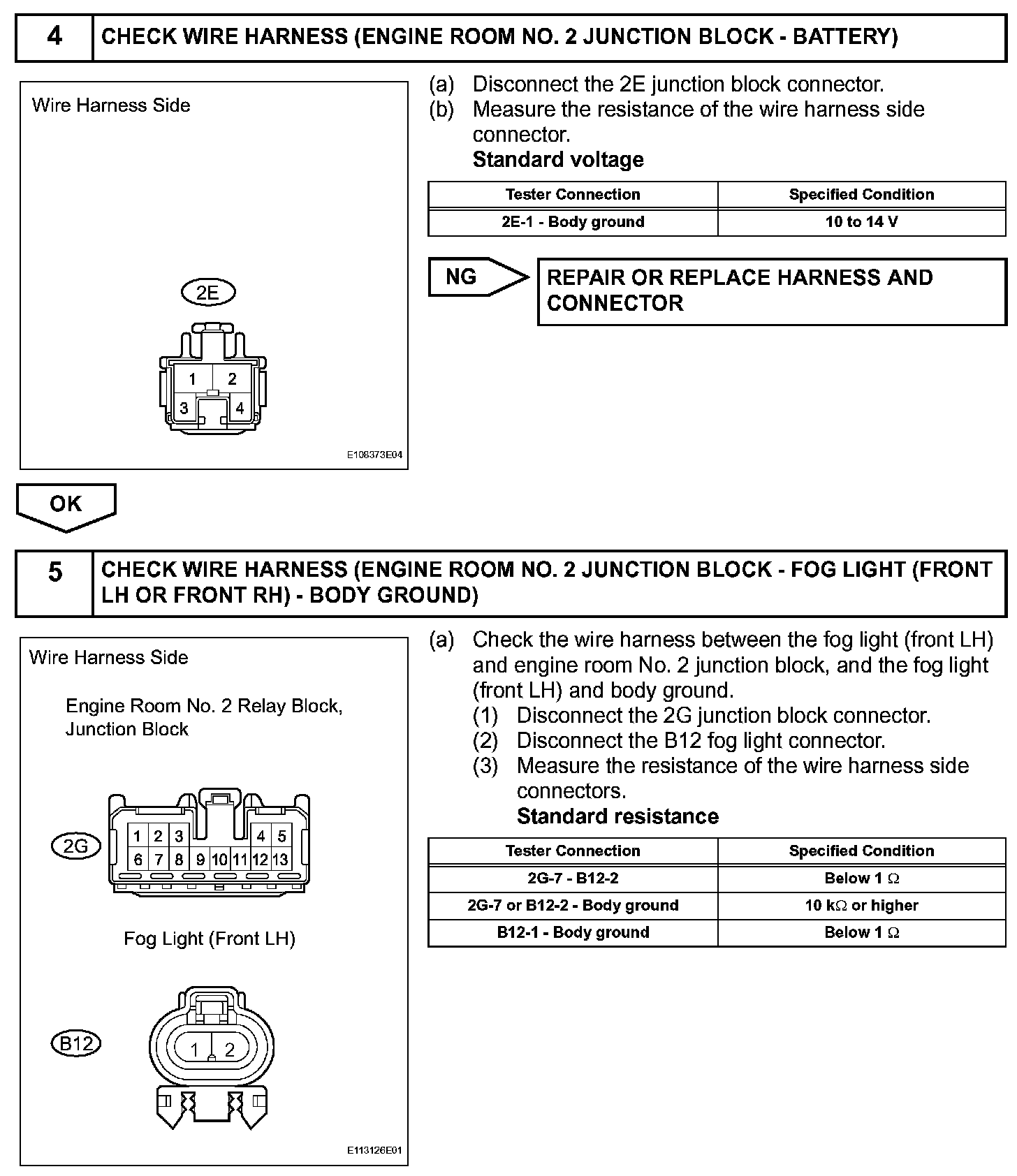

Step 4-5:

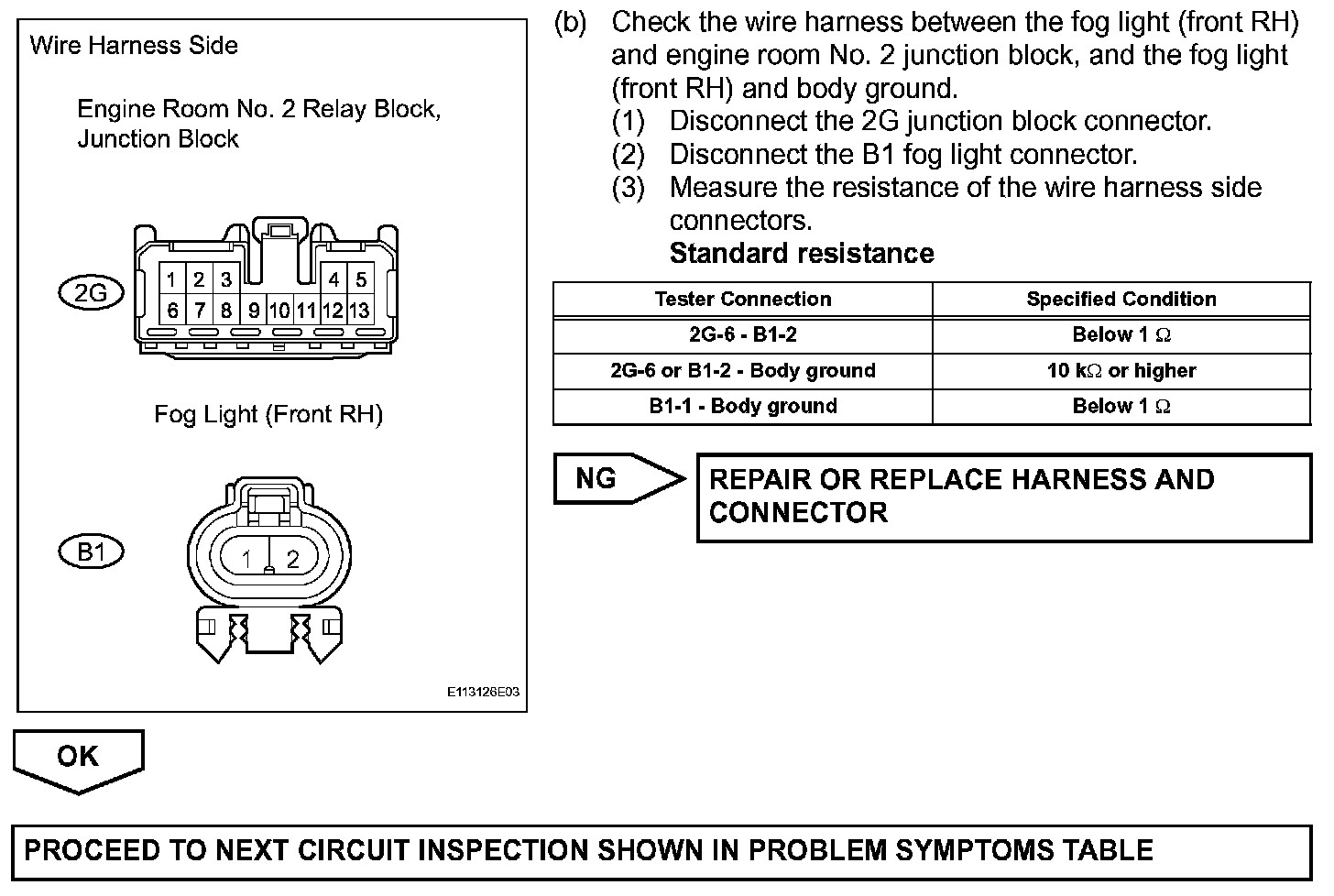

Step 5(continued):

INSPECTION PROCEDURE
