Back-Up Lamp Circuit

Back-up Light Circuit

DESCRIPTION
The back-up light turns on by receiving the park / neutral position switch signal (shift position R signal) from the luggage room junction block ECU.

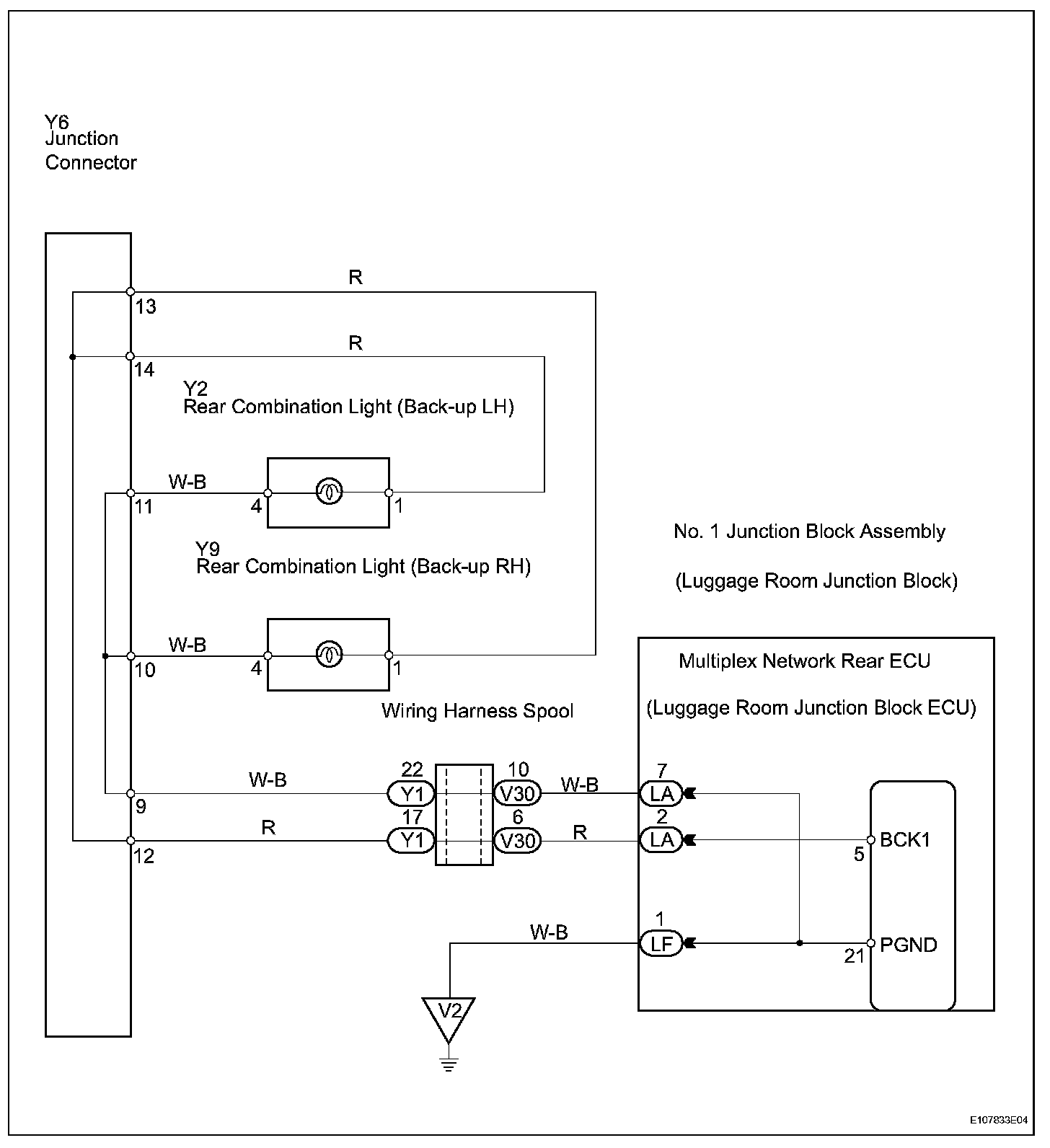

Wiring Diagram:

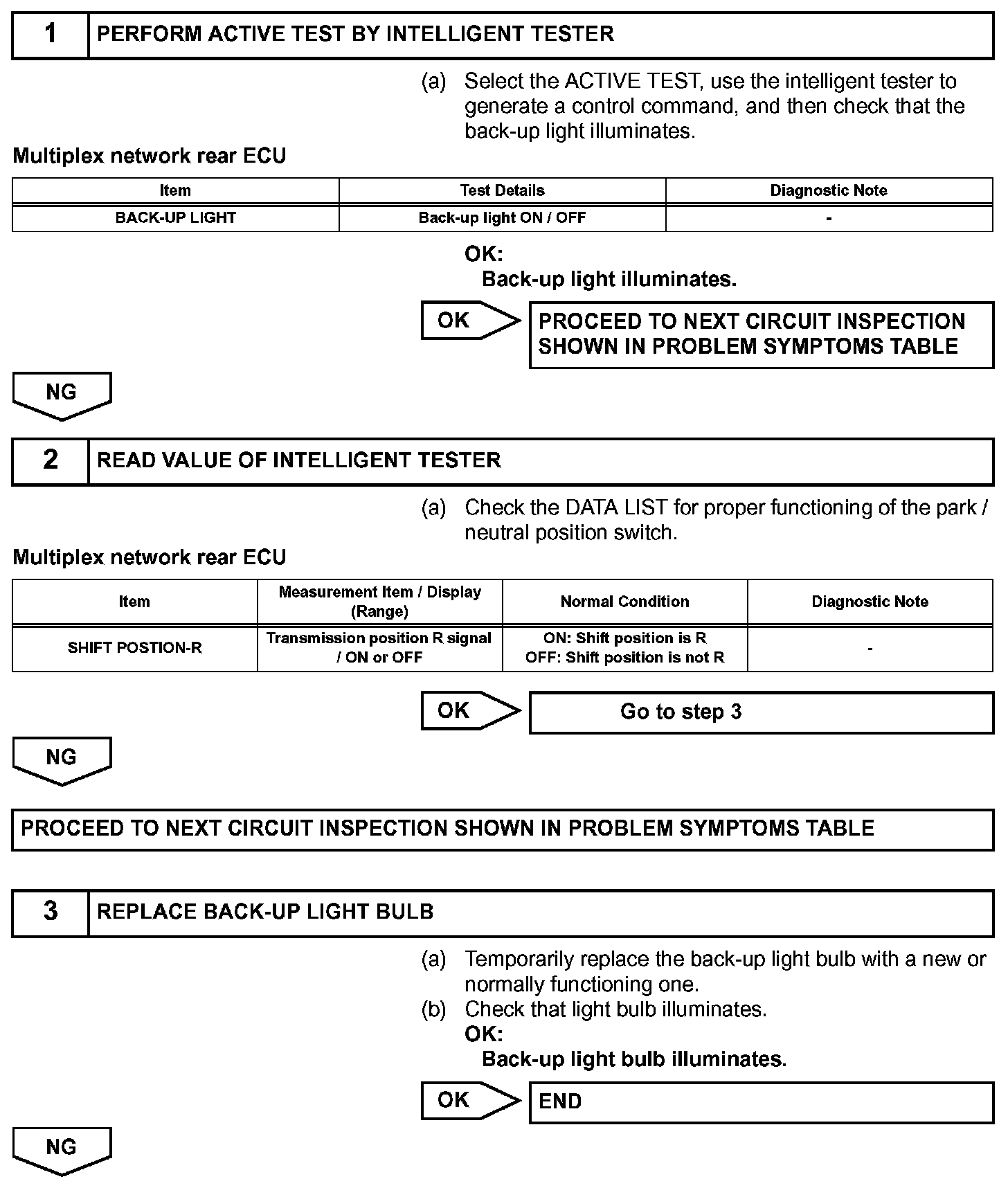

Step 1-3:

Step 4:

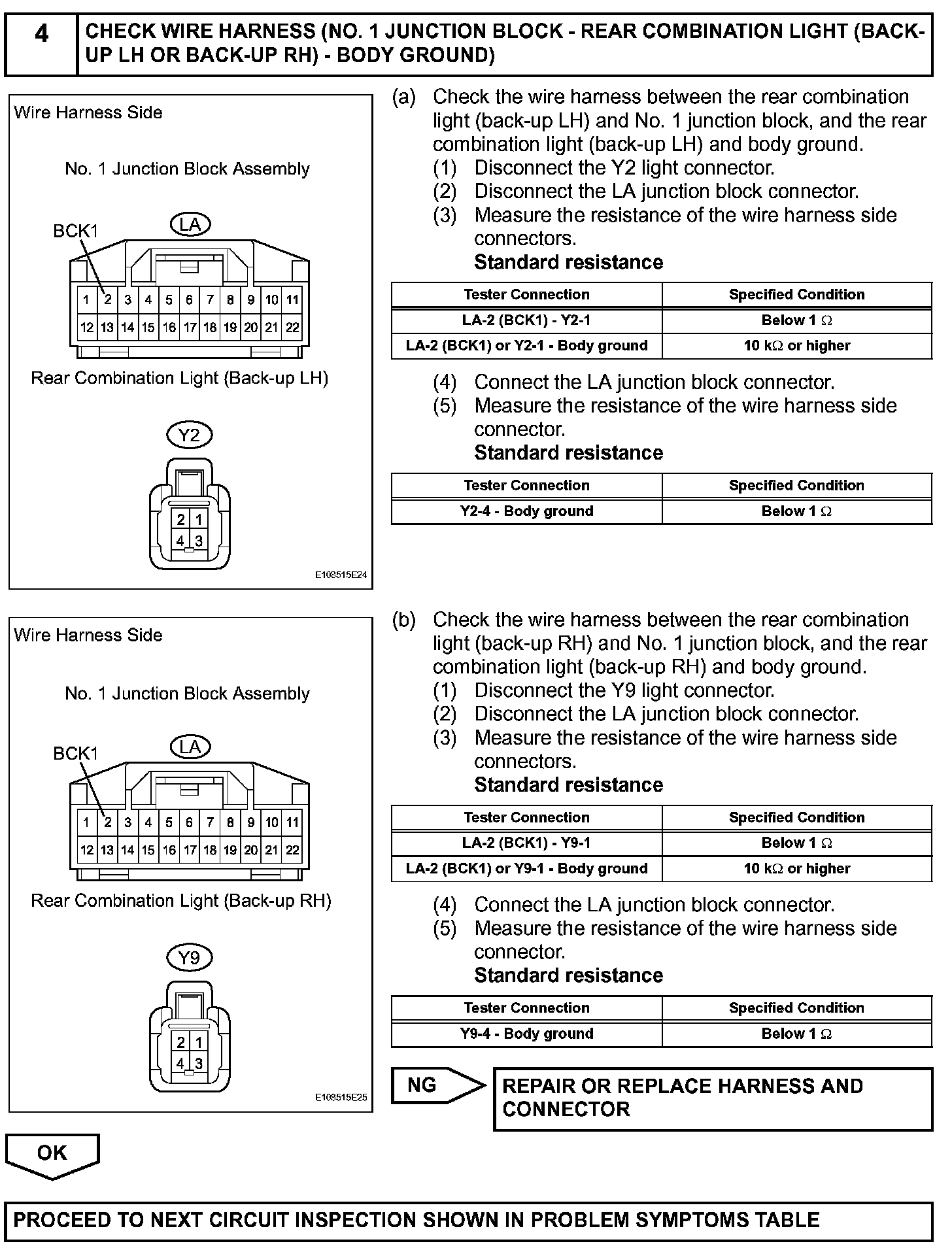

INSPECTION PROCEDURE
