Canada - Lighting - Headlamp Support Bracket
BulletinTSB2199R
Issue Date
February 14, 2006
Title
HEADLAMP SUPPORT BRACKET
Component
BODY COMPONENT
Models
'06 GS 300 & GS430
TSB REVISION NOTICE:
- March 16, 2006: The Repair Procedure is no longer a warrantable procedure. The Warranty Information table has been updated to non-applicable to warranty.
Previous versions of this TSB should be discarded.
INTRODUCTION:

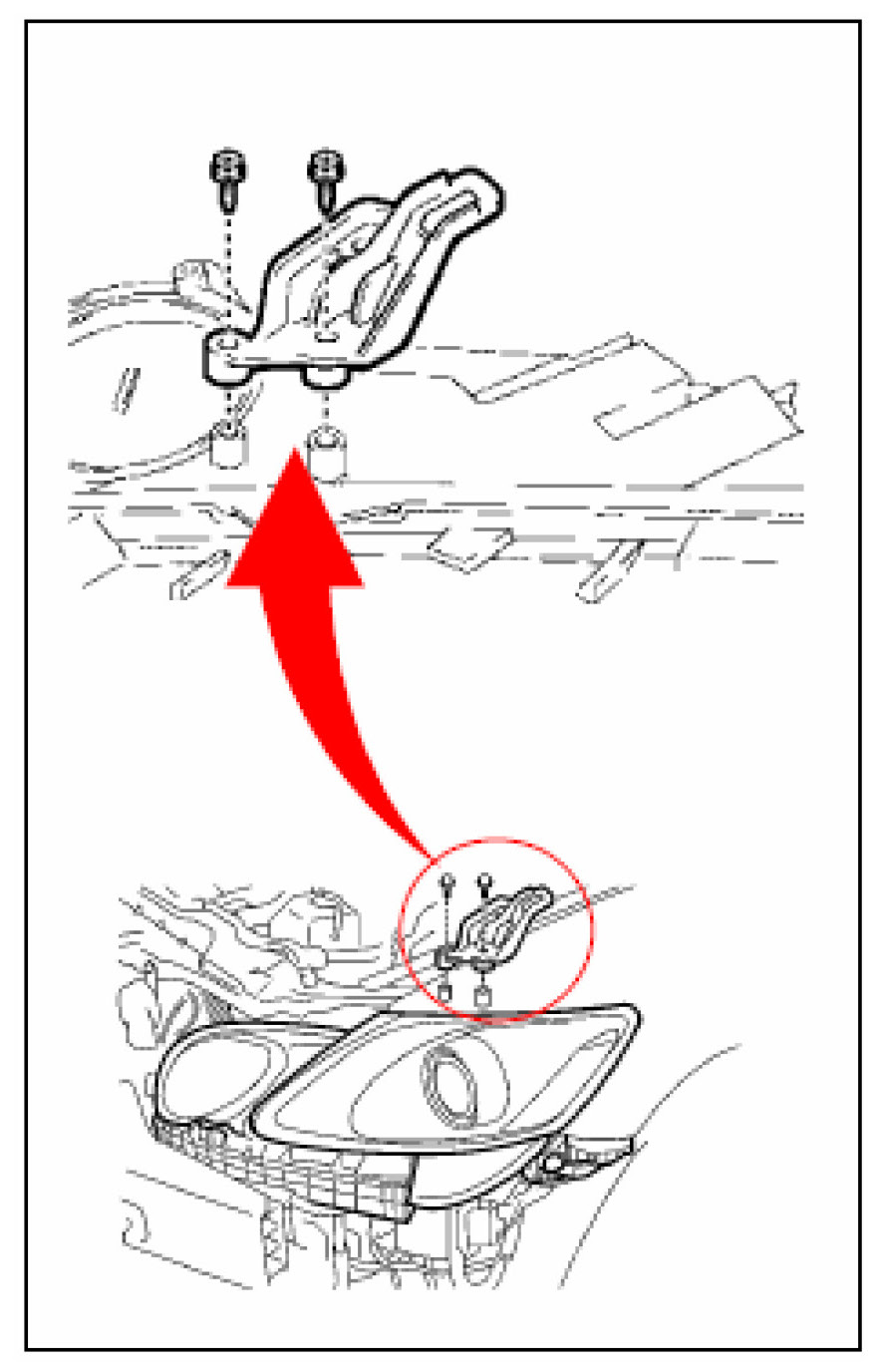

In the event that the top mounting bracket that supports the headlamp assembly on the right or left side is damaged, the following service parts can be obtained to repair the top mounting bracket. This will eliminate the need to dispose of the complete headlamp assembly and also reduce the cost of the repair.
APPLICABLE VEHICLES:
- 2006 model year GS 300 and GS 430 vehicles.
PARTS INFORMATION:
WARRANTY INFORMATION:
REPAIR PROCEDURE:

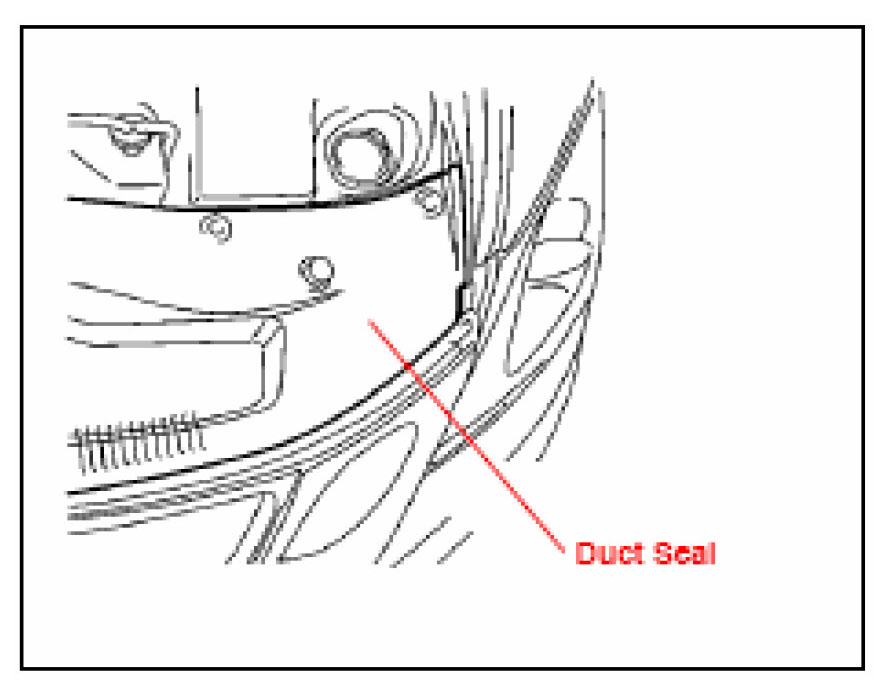

1. Remove the front engine cover/duct seal to access the top of the headlamp.

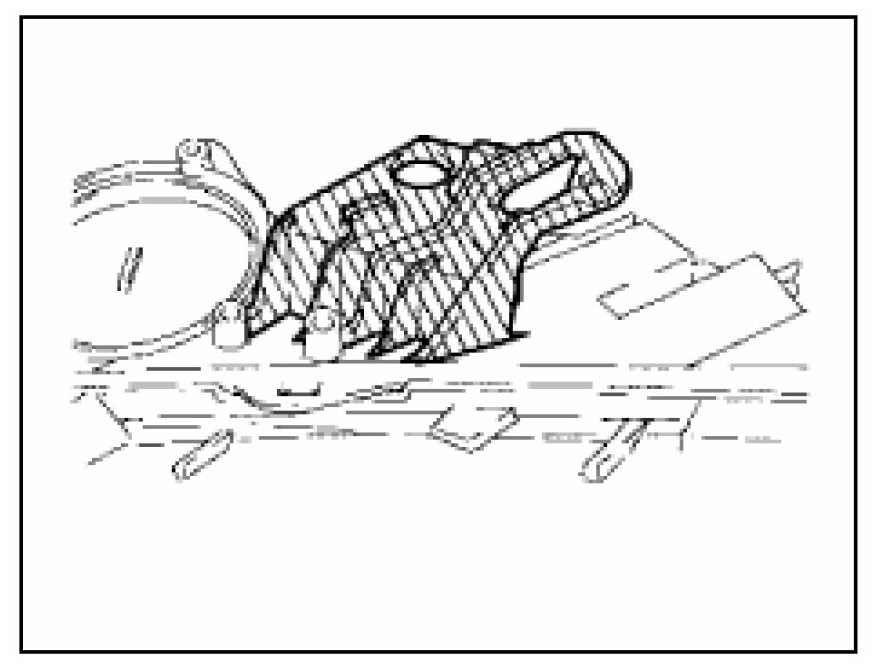

2. After rough-cutting and removing the shaded portion, fit the service part to the bosses to install it, gradually grinding down uneven areas until the part fits properly.
3. Attach the service part with the two (2) enclosed screws.
4. Reinstall the front engine cover.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
