Body/Lighting - Headlamp Support Bracket Installation

BODY
BO002-06
REVISED

January 13, 2006

Title:
HEADLAMP SUPPORT BRACKET

Models:
'06 GS 300 & GS 430

TSIB REVISION NOTICE:

^ March 17, 2006: The Repair Procedure is no longer a warrantable procedure. The Warranty Information table has been updated to Not Applicable to Warranty.

Previous versions of this TSIB should be discarded.

Introduction

In the event that the top mounting bracket that supports the headlamp assembly on the right or left side is damaged, the following service parts can be obtained to repair the top mounting bracket. This will eliminate the need to dispose of the complete headlamp assembly and also reduce the cost of the repair.

Applicable Vehicles
^ 2006 model year GS 300 and GS 430 vehicles.

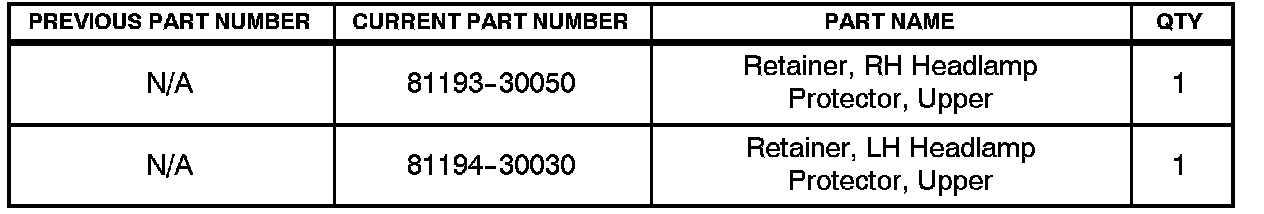

Parts Information

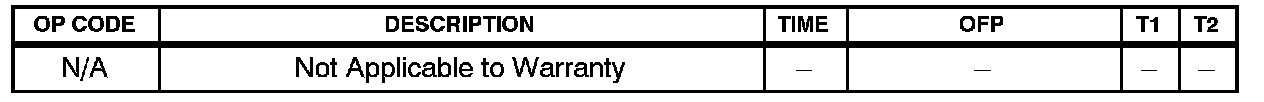

Warranty Information

Repair Procedure

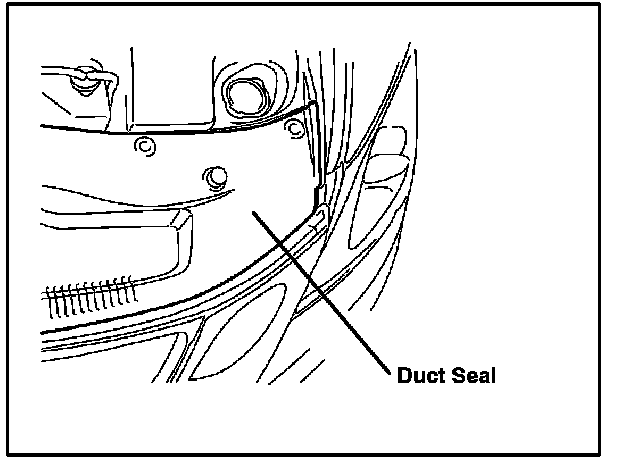

1. Remove the front engine cover/duct seal to access the top of the headlamp.

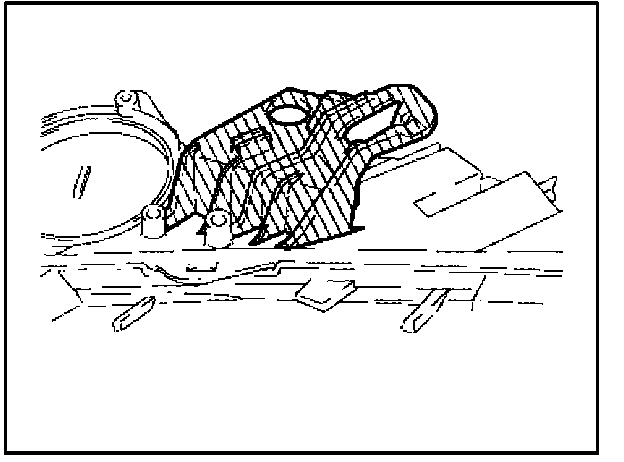

2. After rough-cutting and removing the shaded portion, fit the service part to the bosses to install it, gradually grinding down uneven areas until the part fits properly.

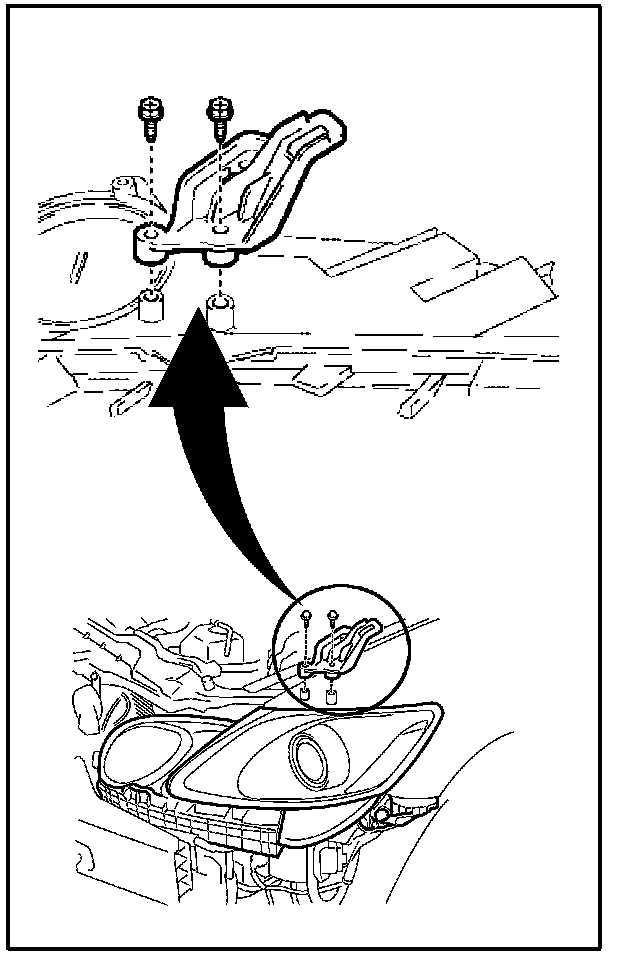

3. Attach the service part with the two (2) enclosed screws.

4. Reinstall the front engine cover.
