Dome Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

CHECK REAR ROOM LIGHT ASSEMBLY

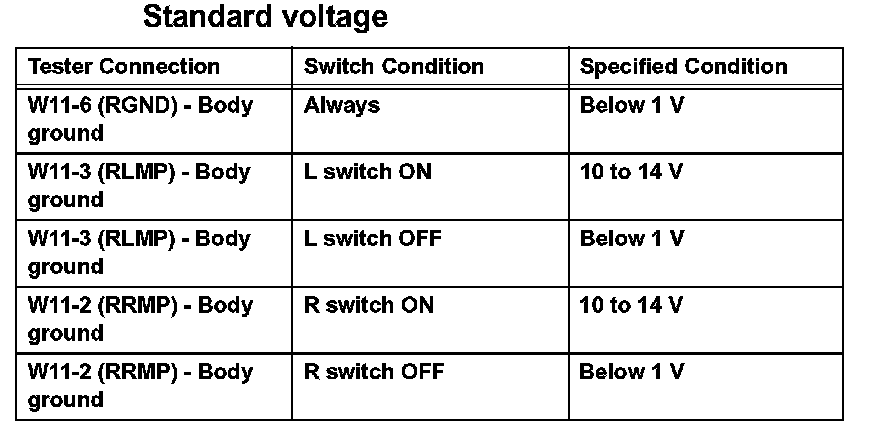

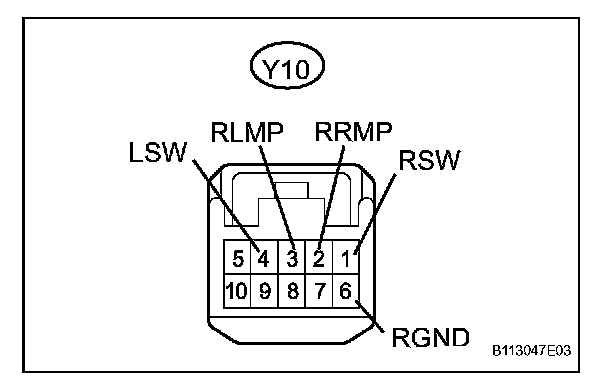

Measure the voltage of the connector.

If the result is not as specified, replace the light assembly.
