Center Mounted Brake Lamp: Testing and Inspection

ON-VEHICLE INSPECTION

CHECK HIGH MOUNTED STOP LIGHT ASSEMBLY

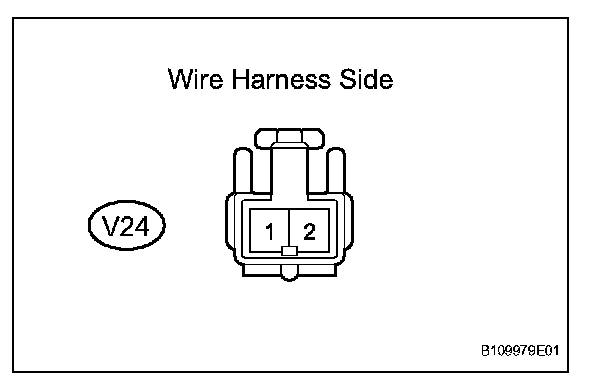

a. Disconnect the V24 connector.
b. Connect the voltmeter's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2.

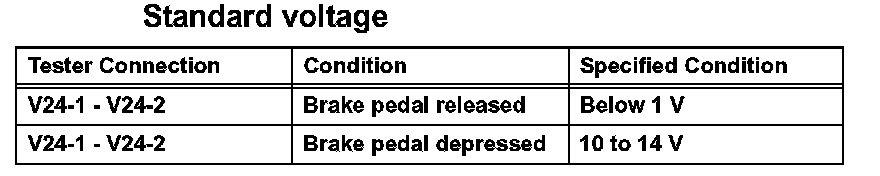

c. Measure the voltage of the connector.

If the result is not as specified, replace the light assembly.
