Malfunction In Tachometer

Malfunction in Tachometer

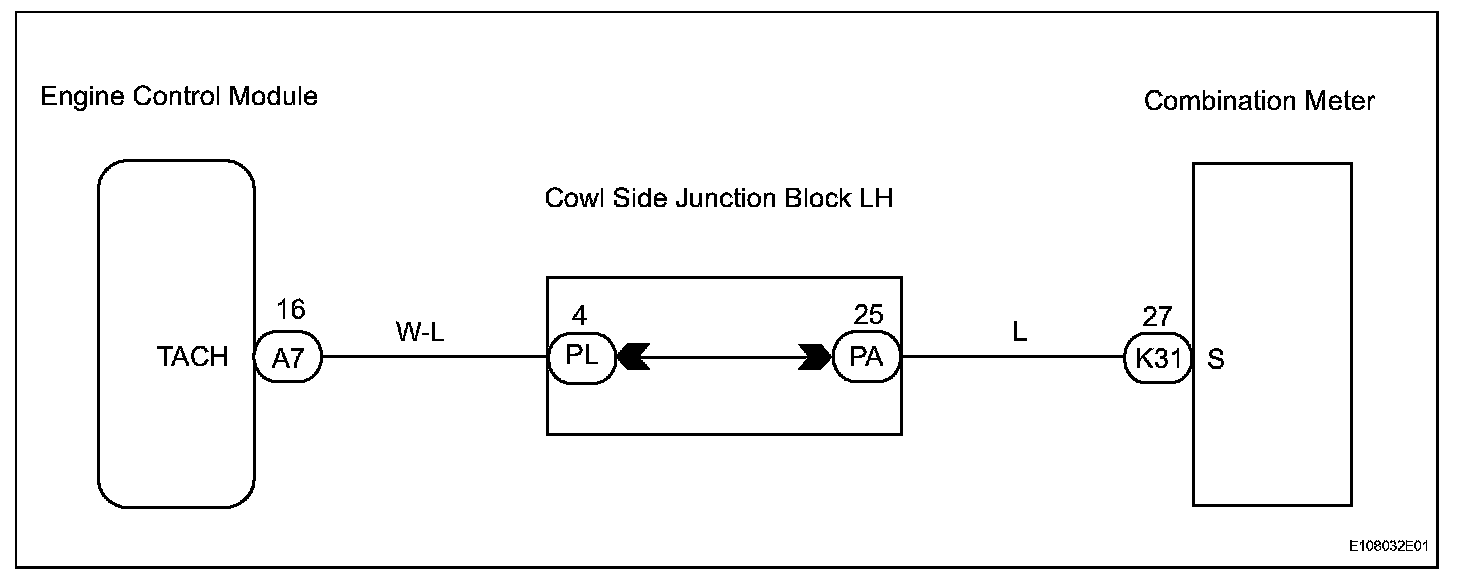

Wiring Diagram:

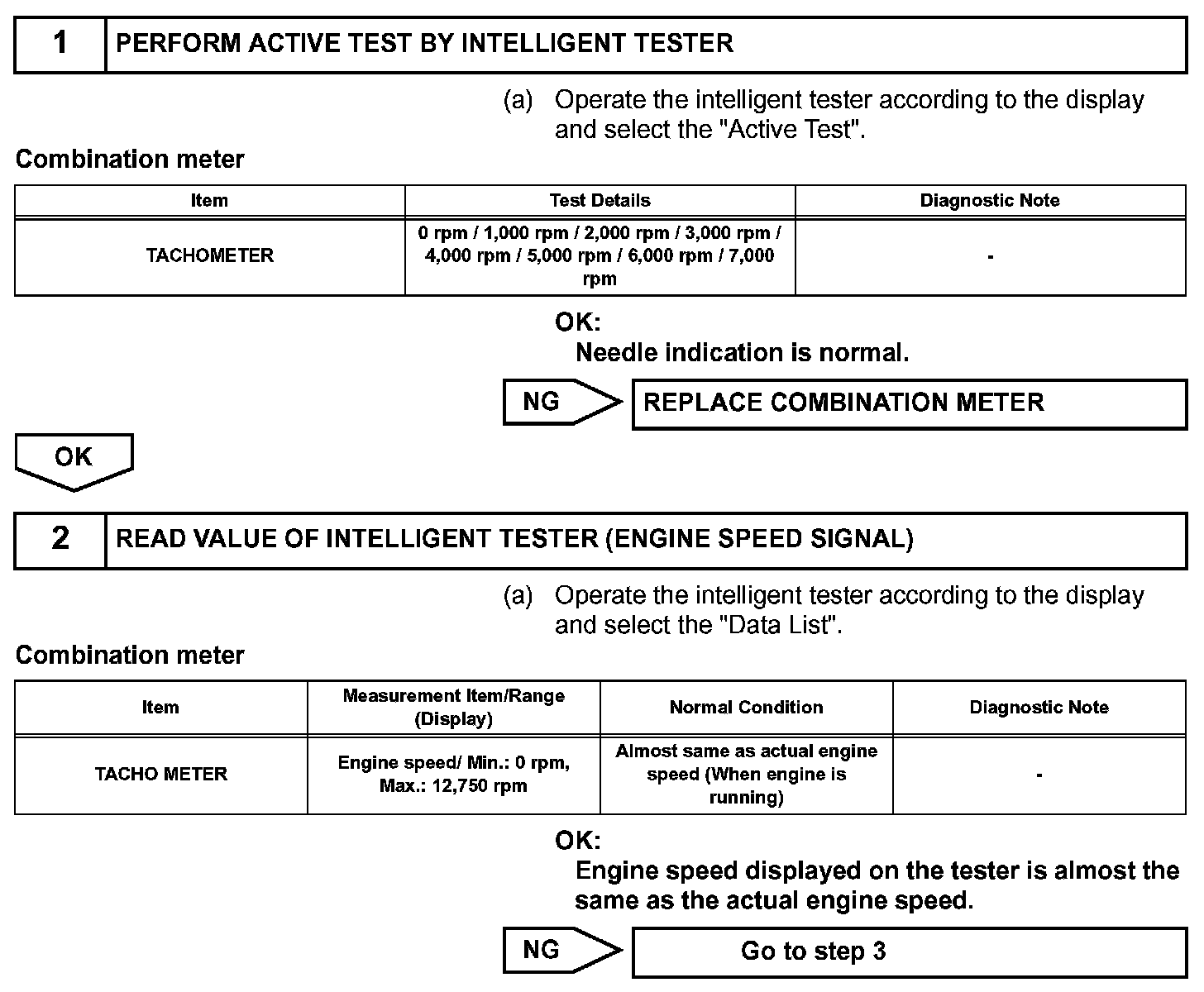

Step 1-2:

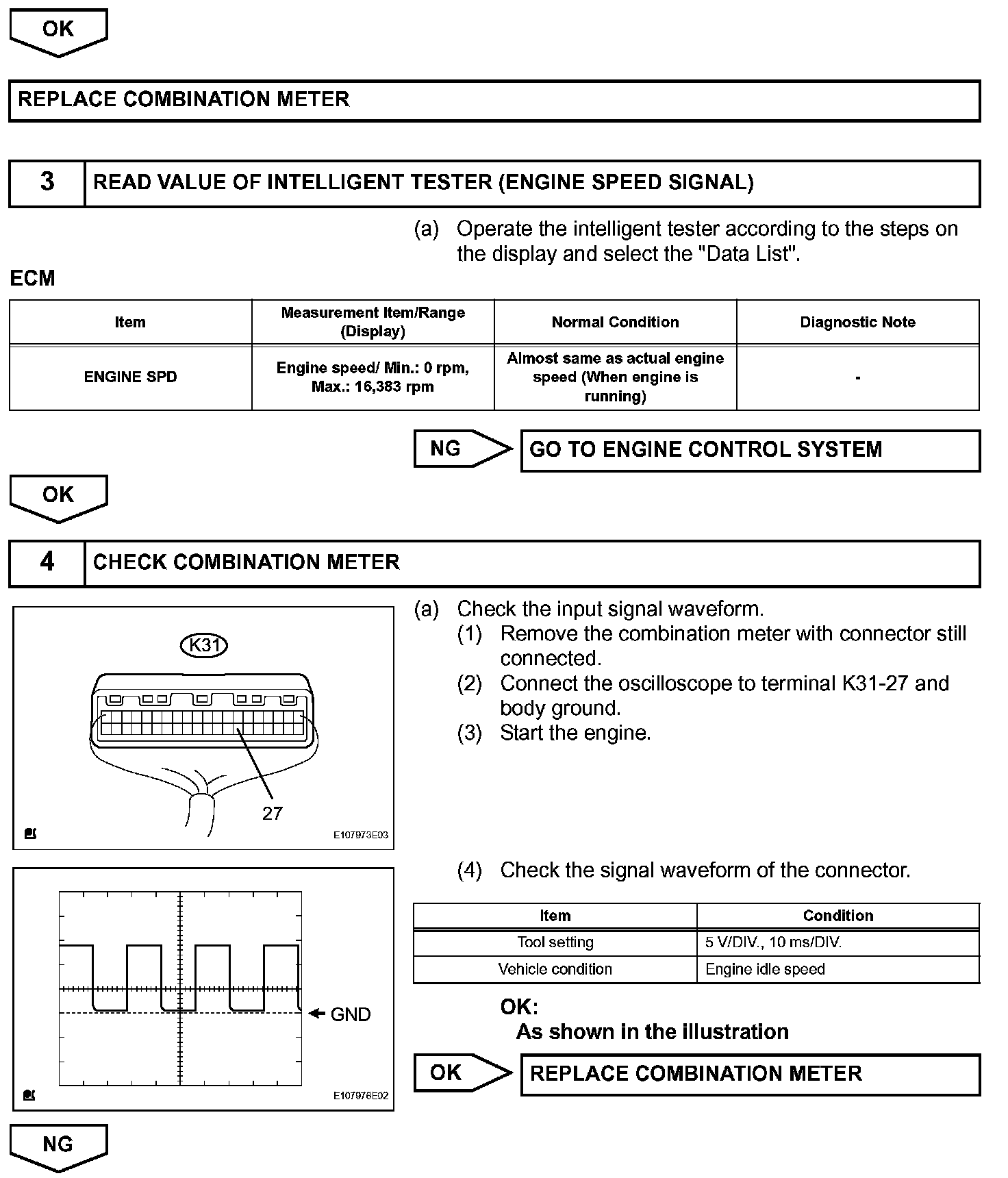

Step 2(continued)-4:

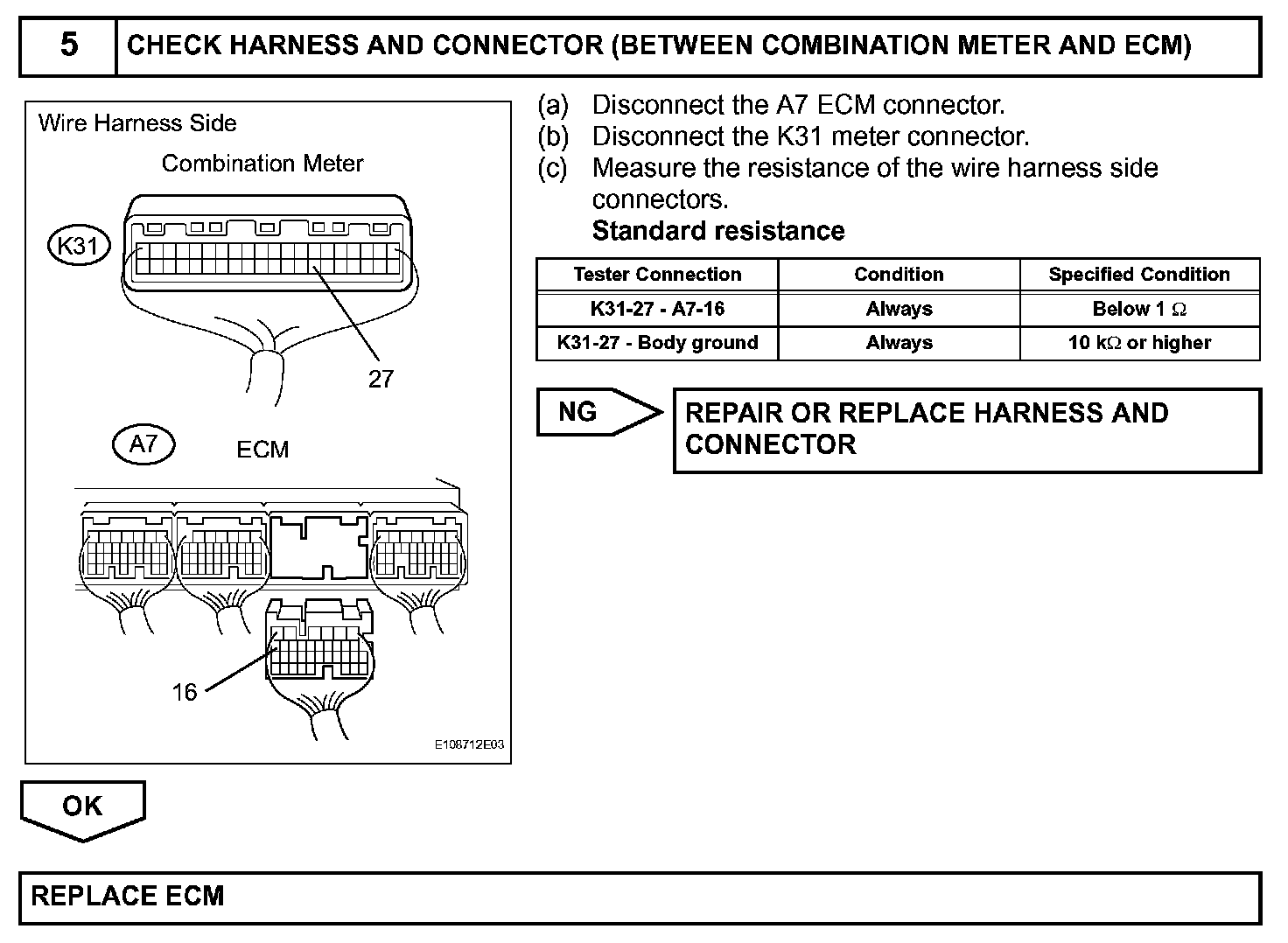

Step 5:




INSPECTION PROCEDURE
