Malfunction In Speedometer

Malfunction in Speedometer

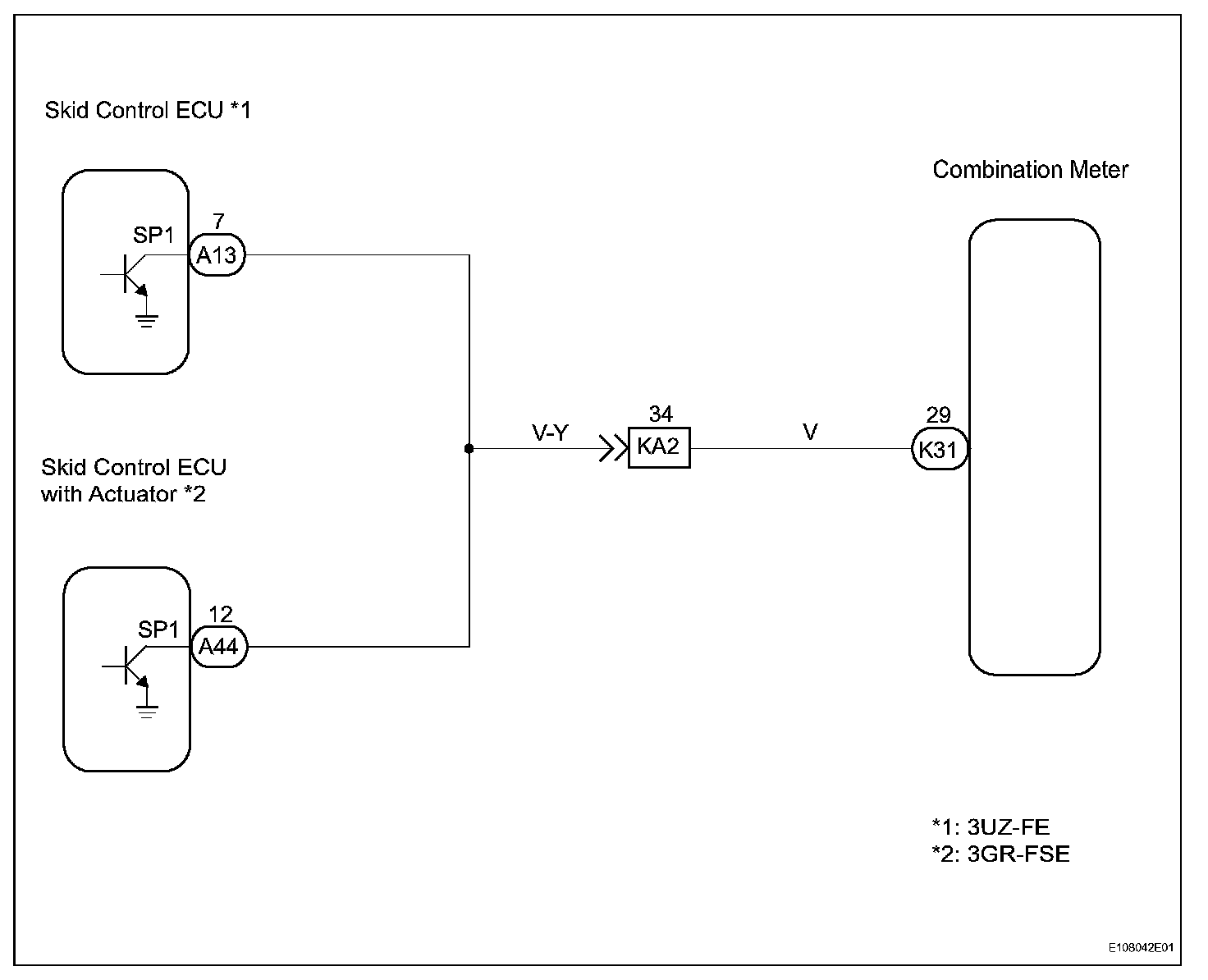

Wiring Diagram:

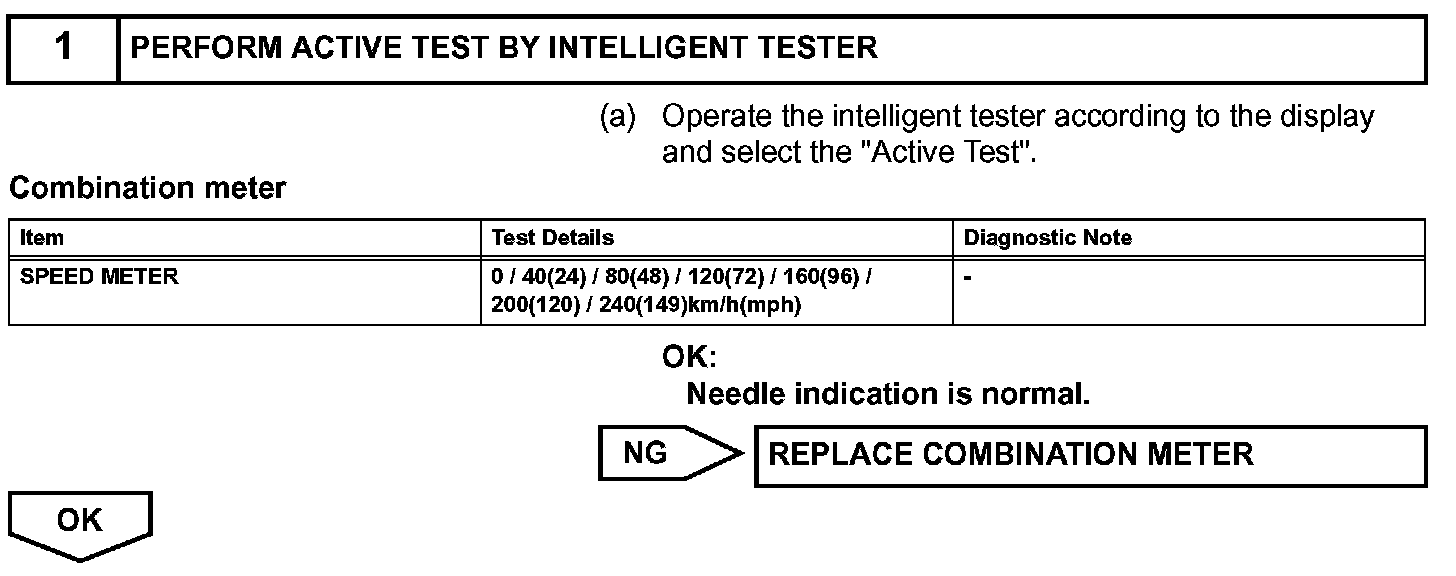

Step 1:

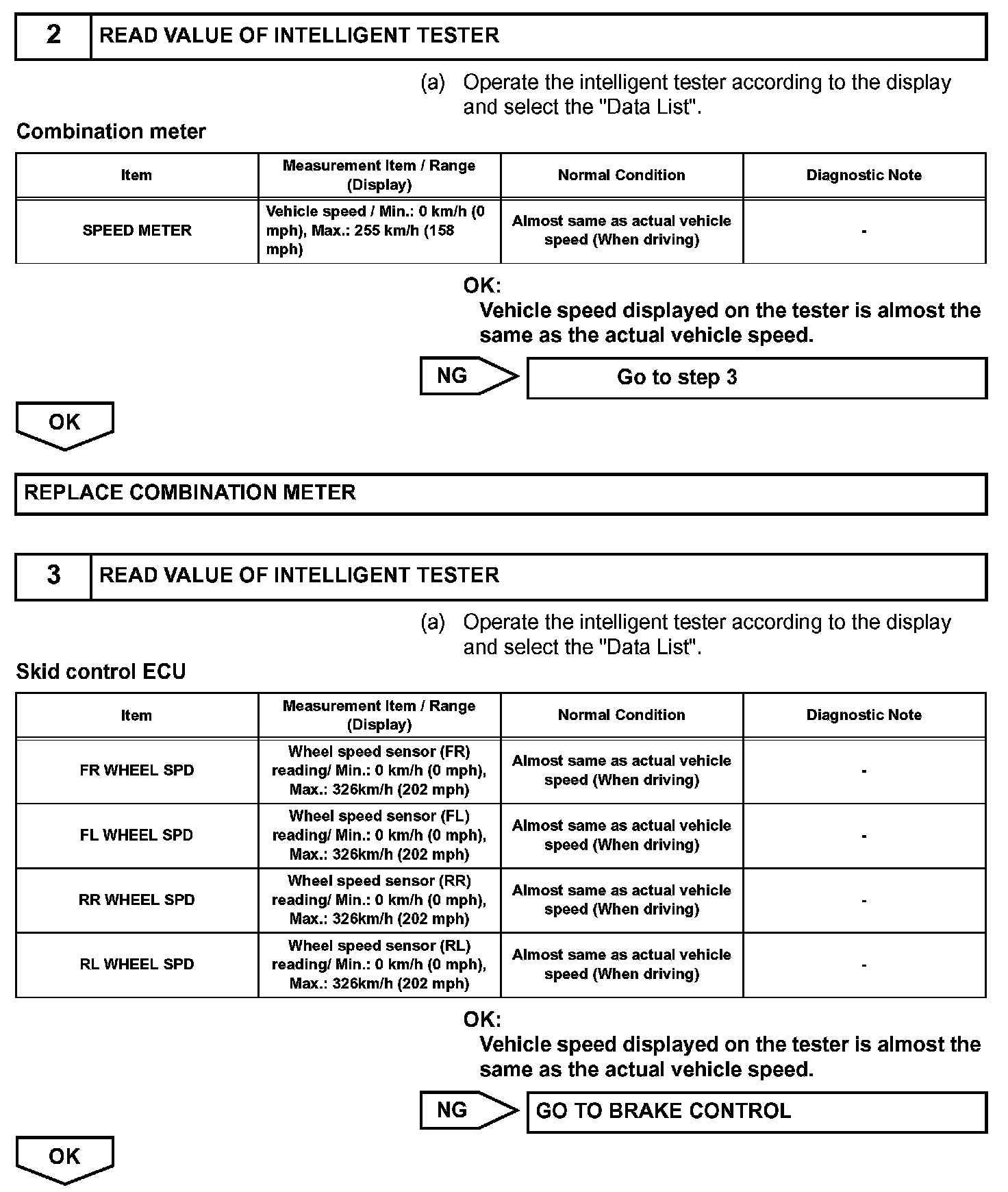

Step 2-3:

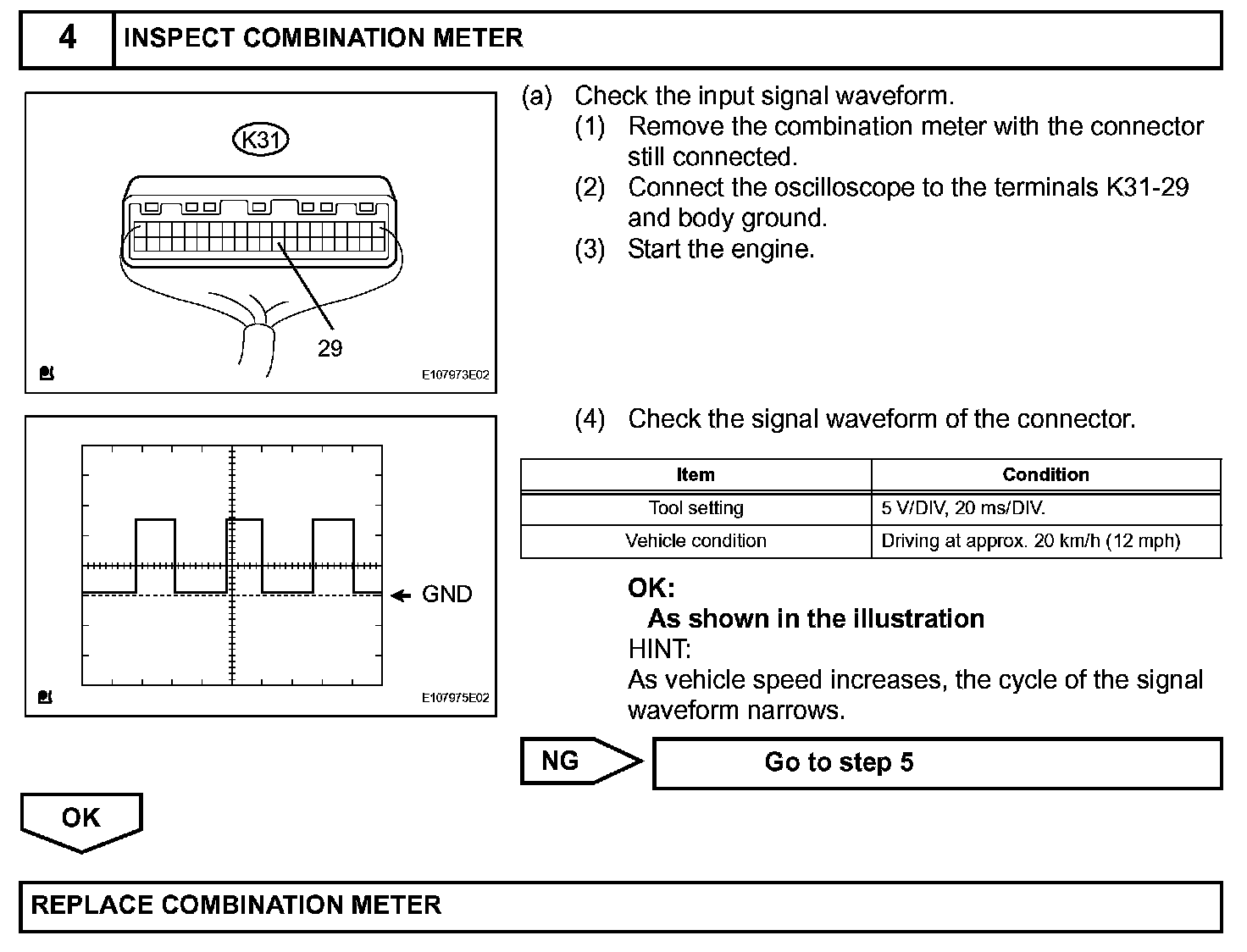

Step 4:

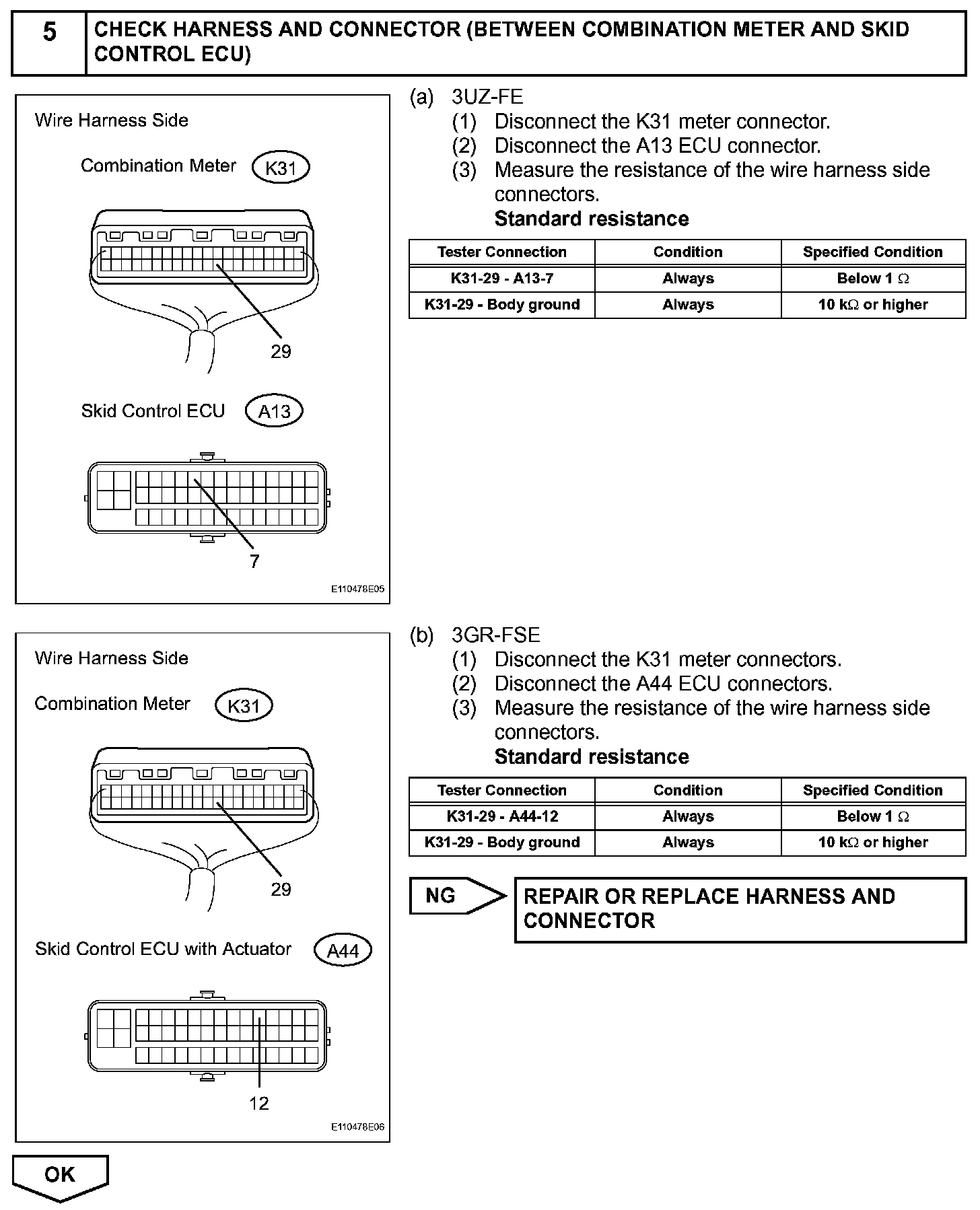

Step 5:

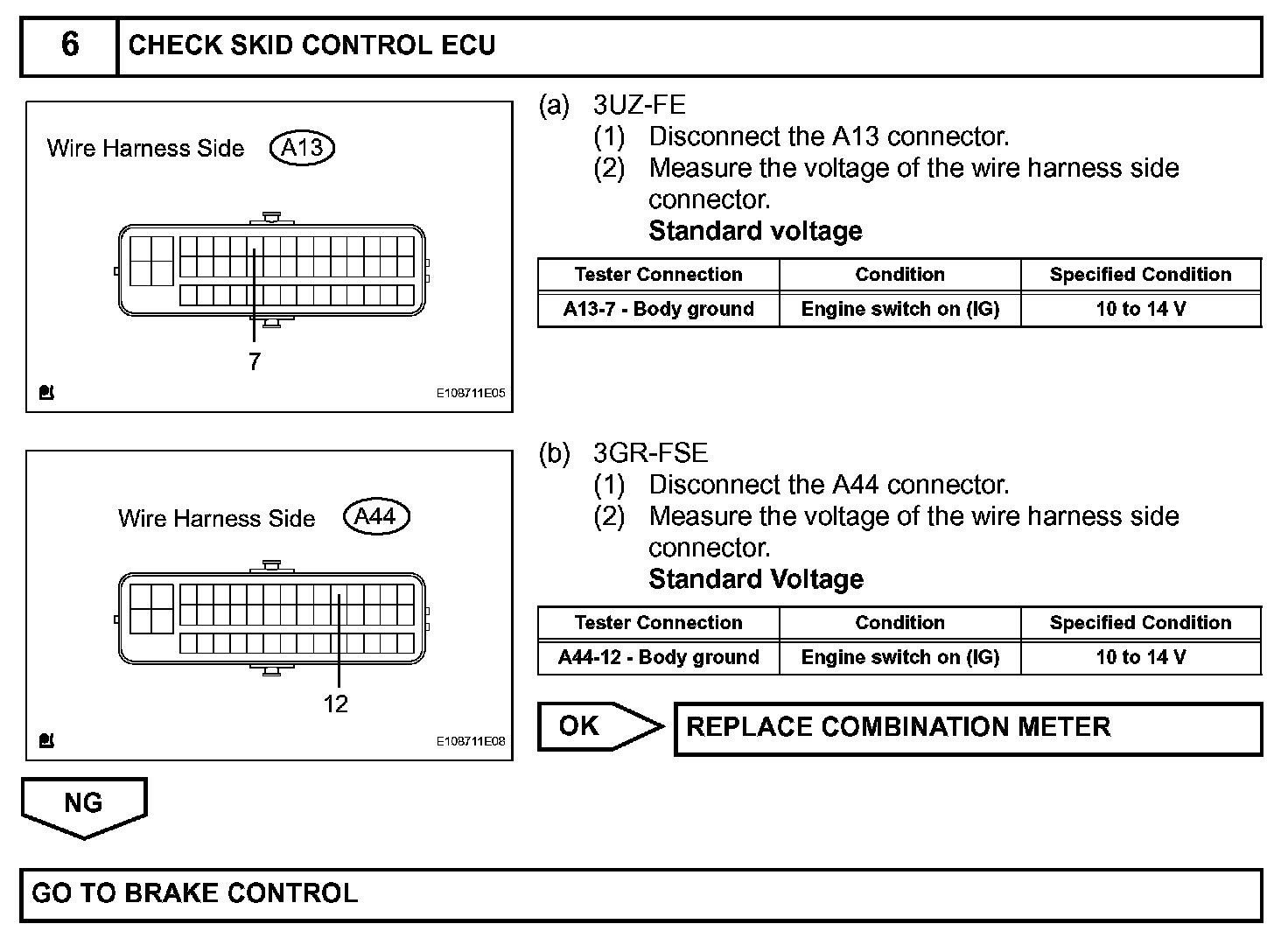

Step 6:




INSPECTION PROCEDURE
