Operating Light Control Rheostat does not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

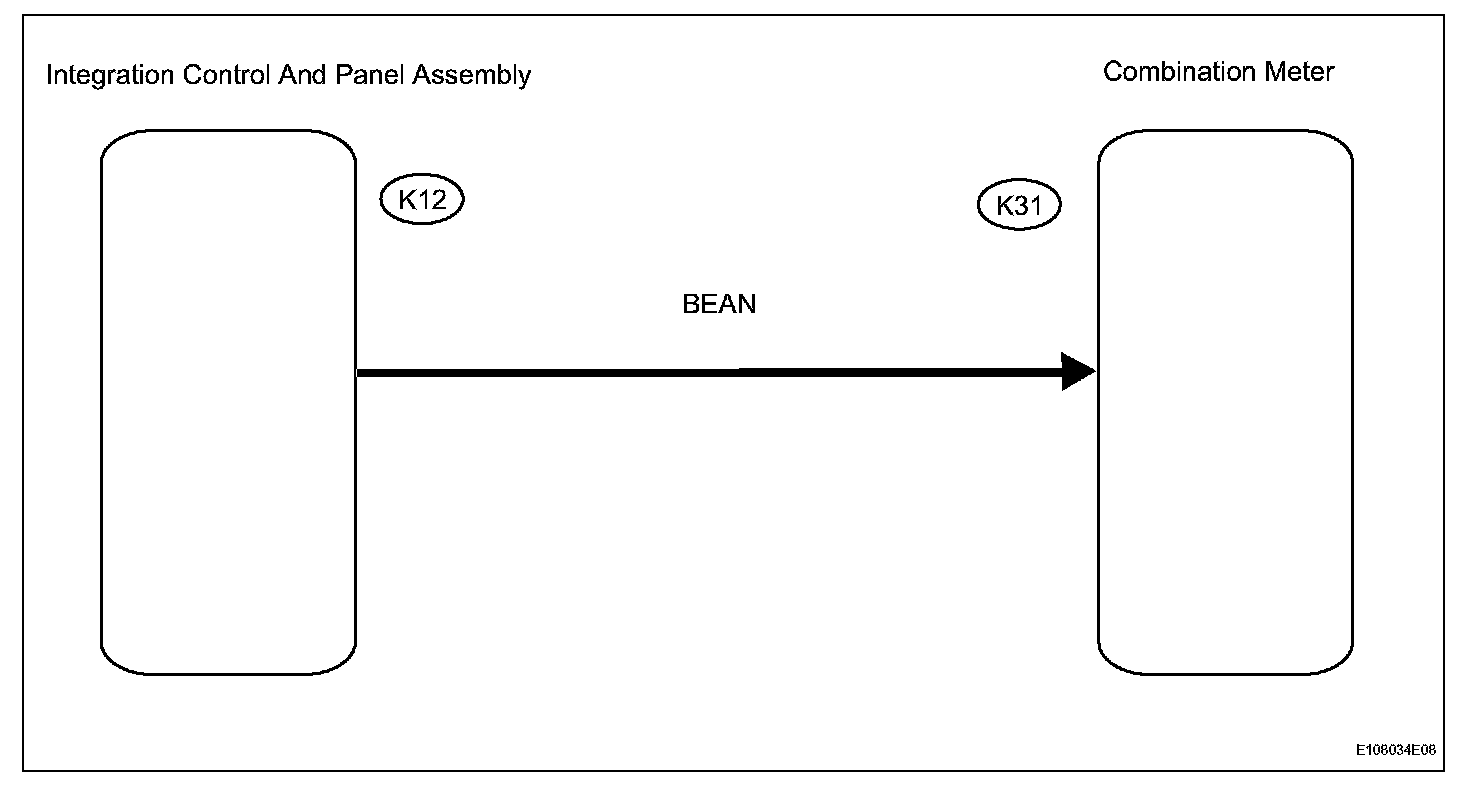

Wiring Diagram:

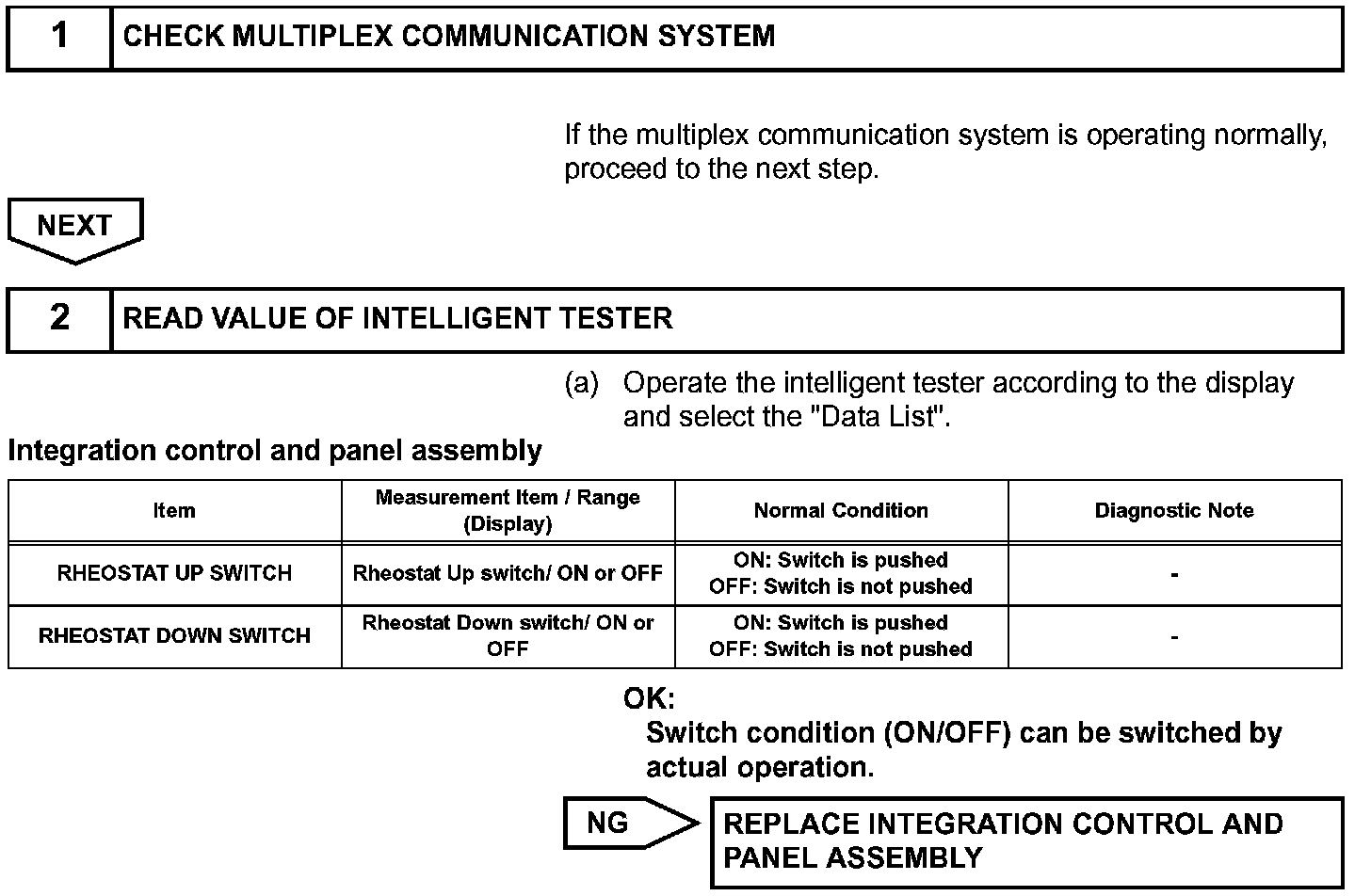

Step 1-2:

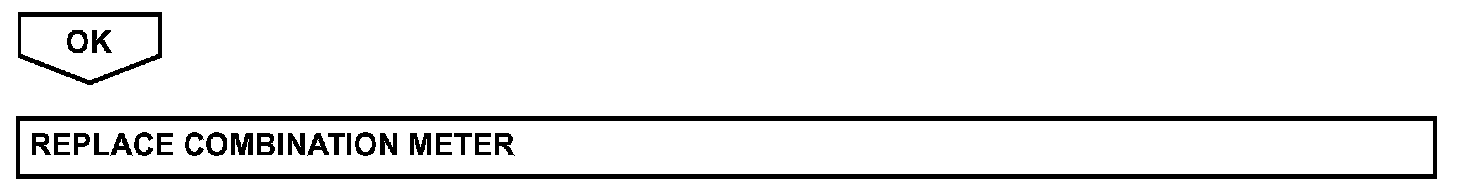

Step 2(continued):




INSPECTION PROCEDURE
