Cluster Glass does not Become Tinted

Cluster Glass does not Become Tinted

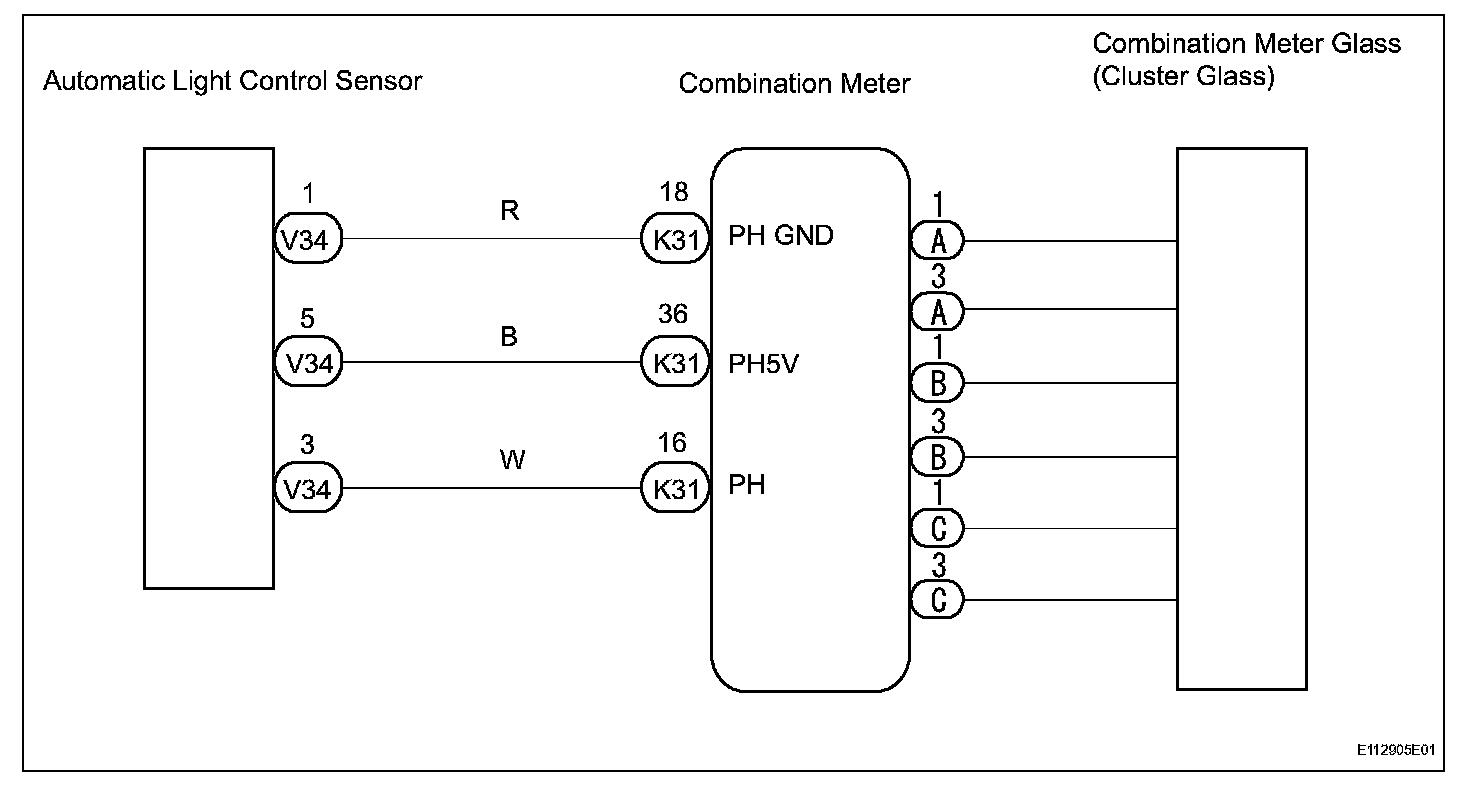

Wiring Diagram:

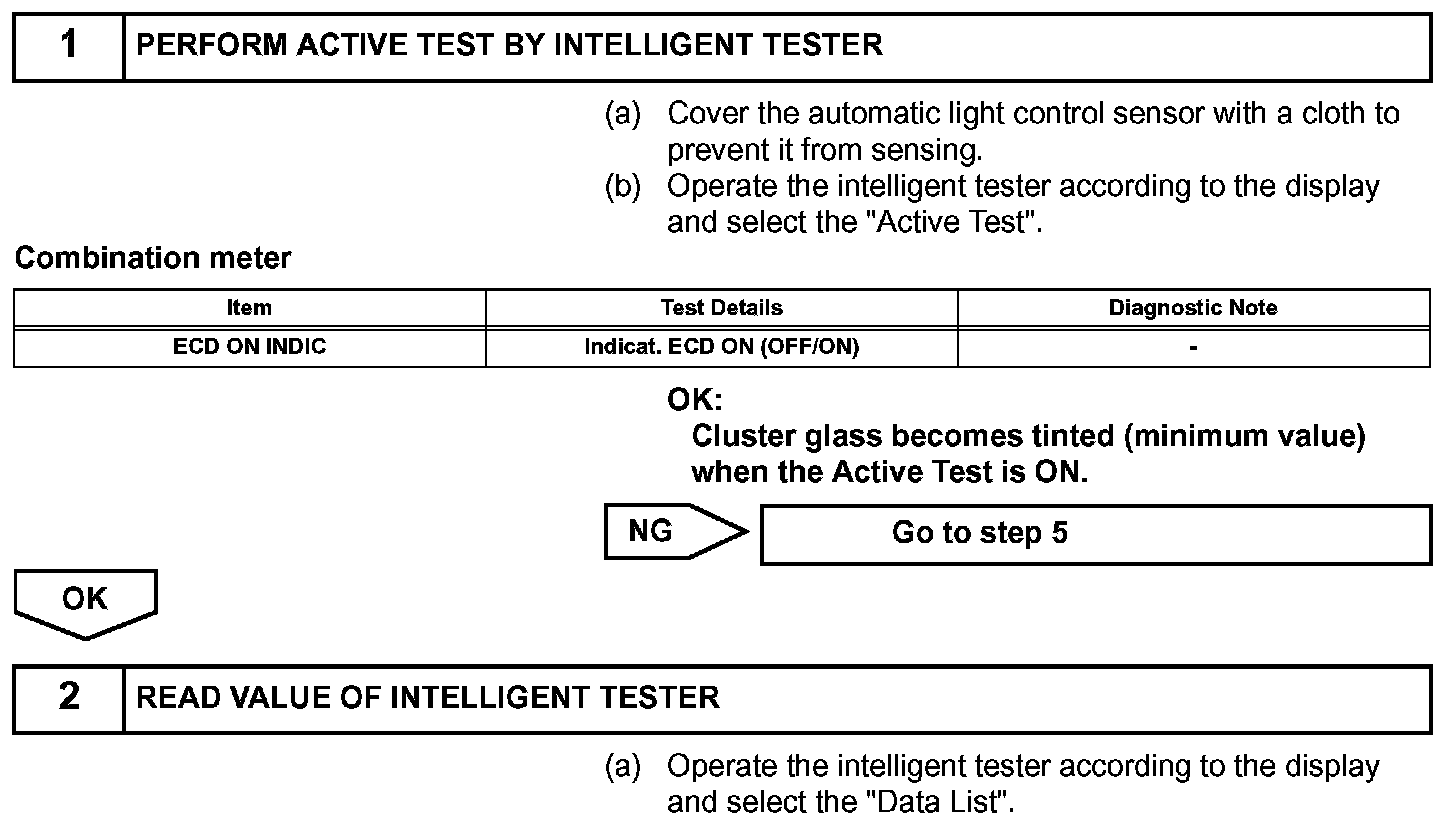

Step 1-2:

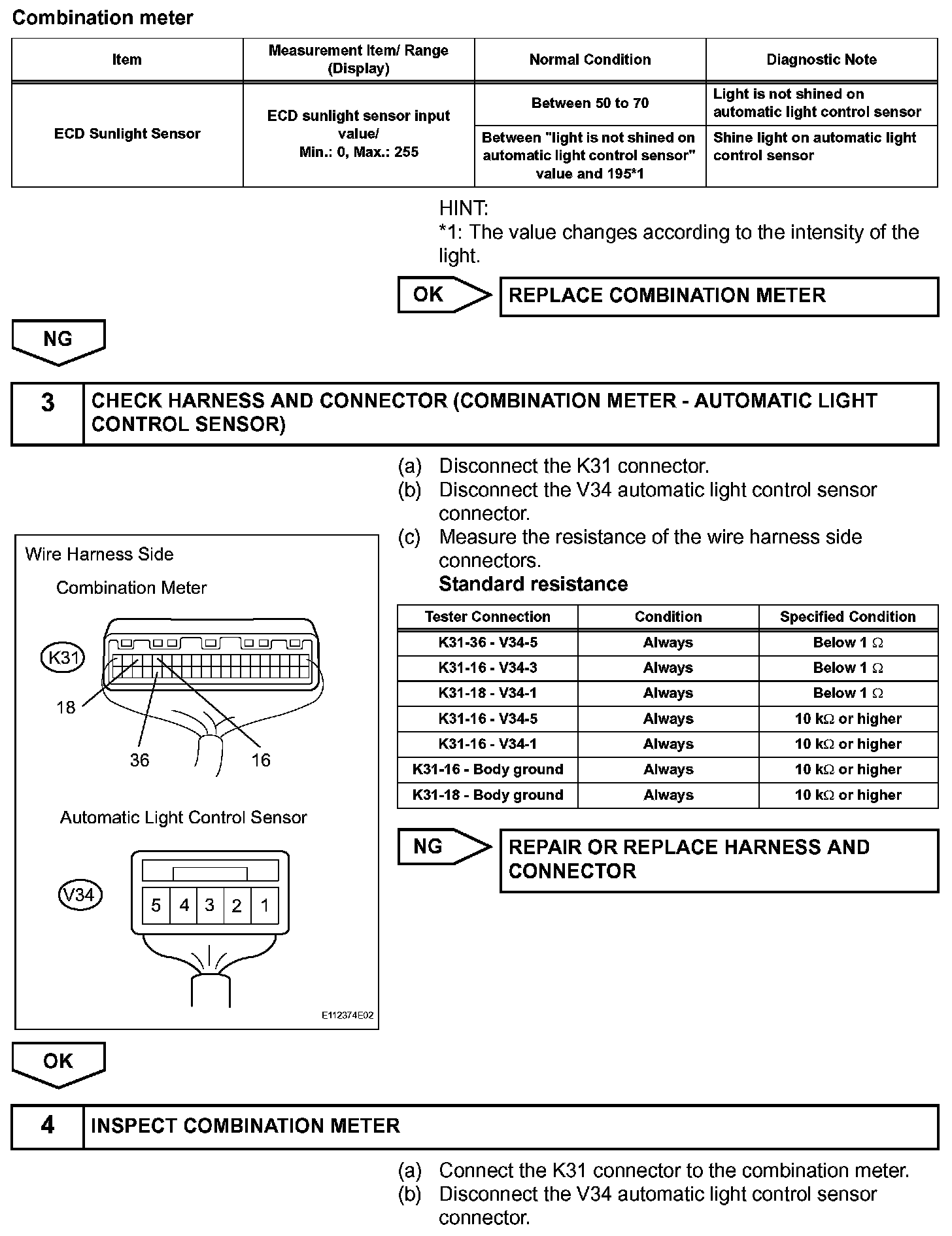

Step 2(continued)-4:

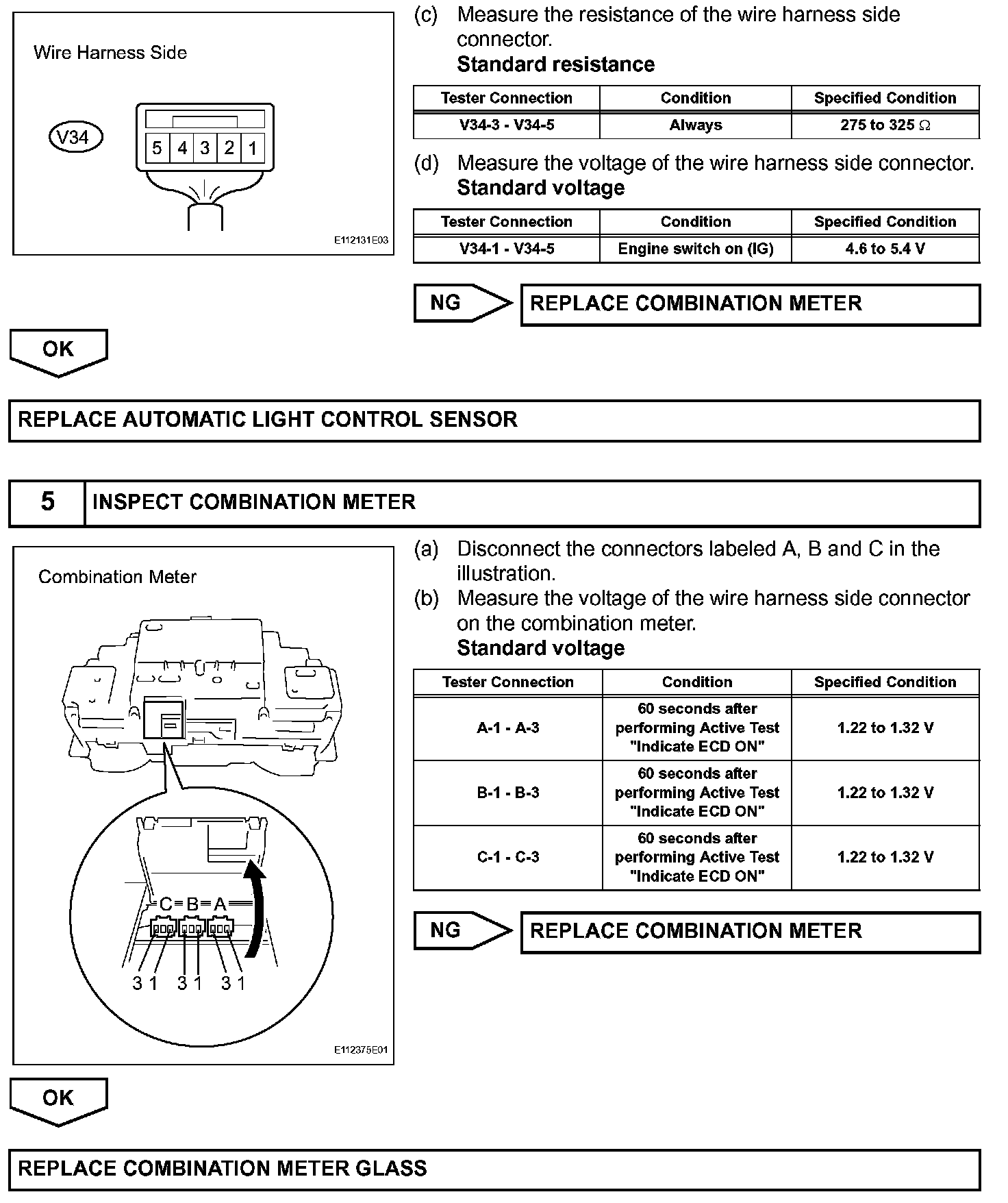

Step 4(continued)-5:




INSPECTION PROCEDURE
