Pinout Values and Diagnostic Parameters

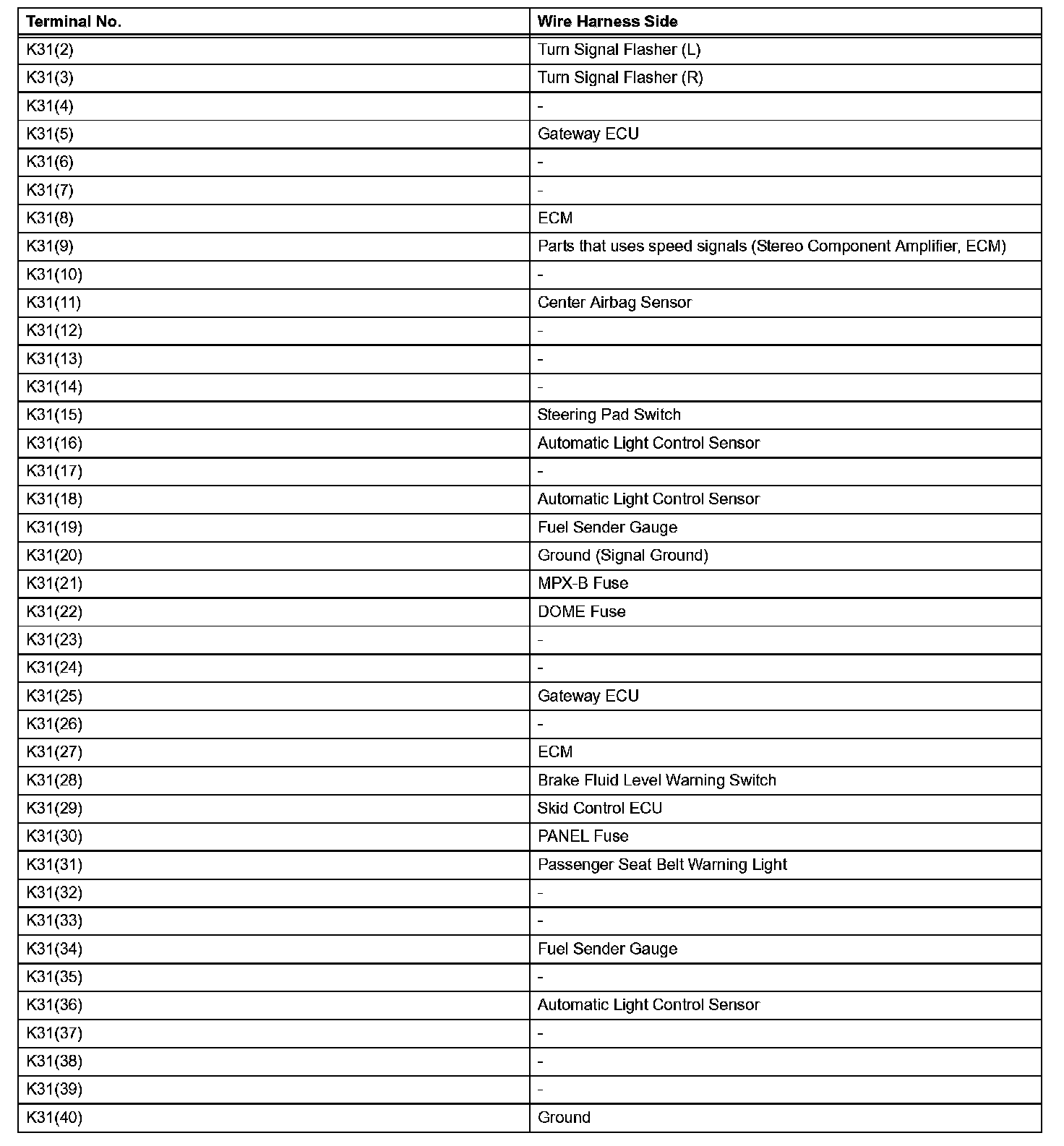

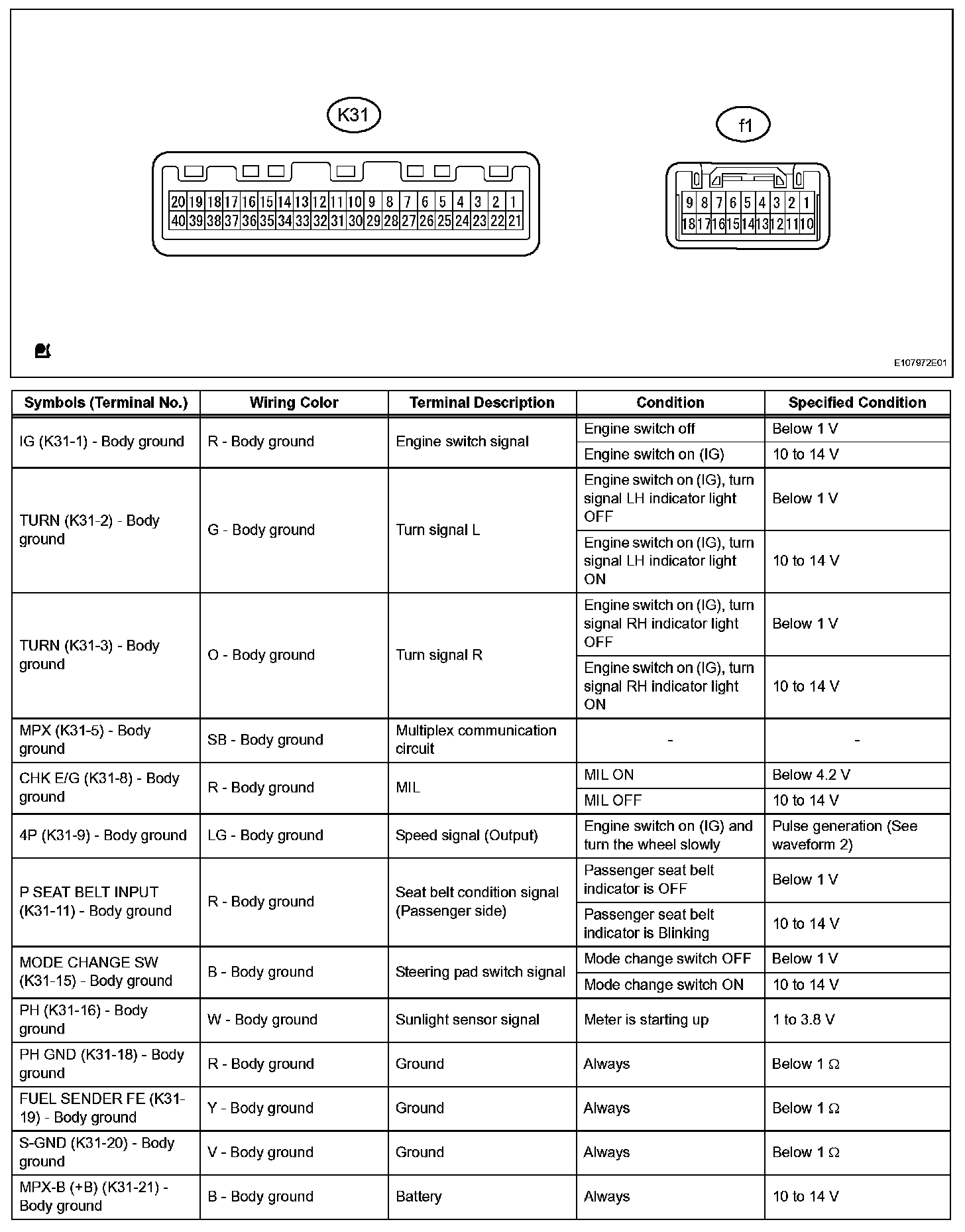

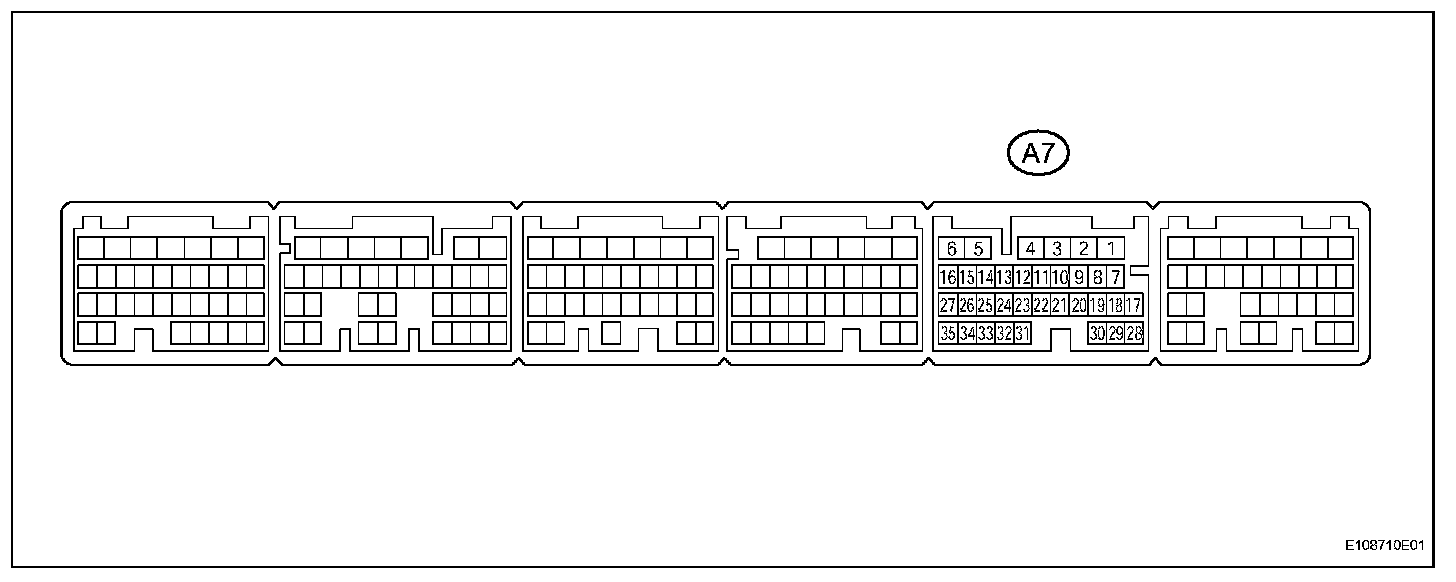

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly (Part 1):

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly (Part 2):

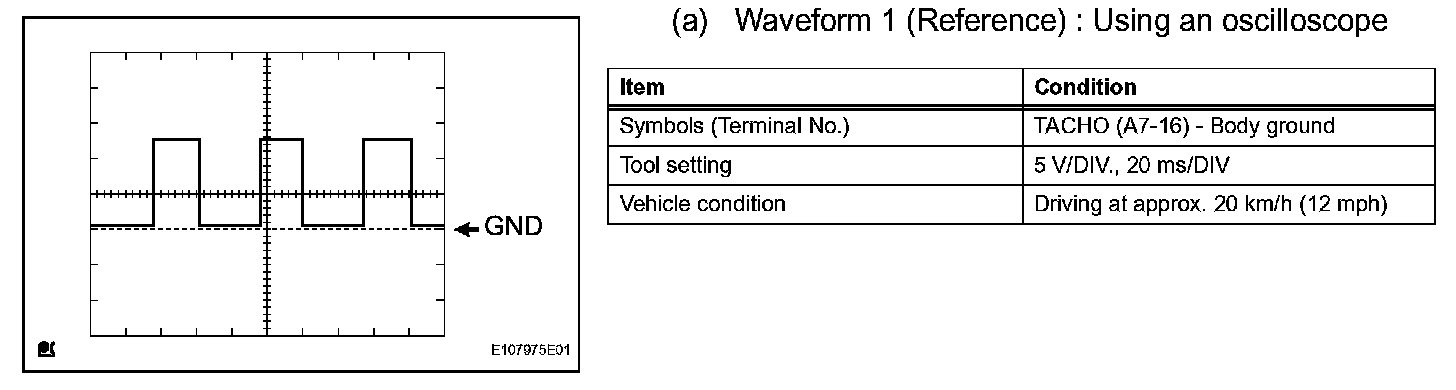

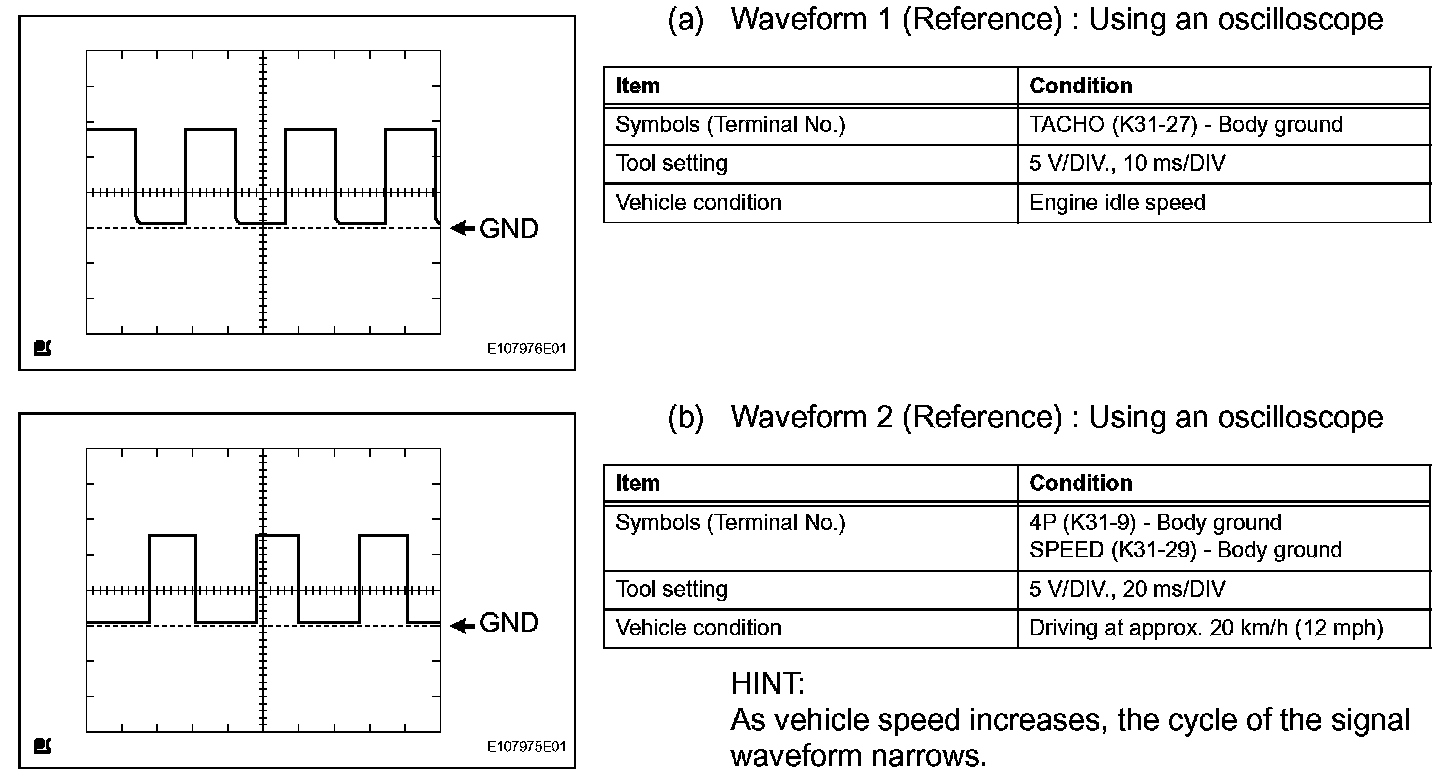

Oscilloscope Waveforms:

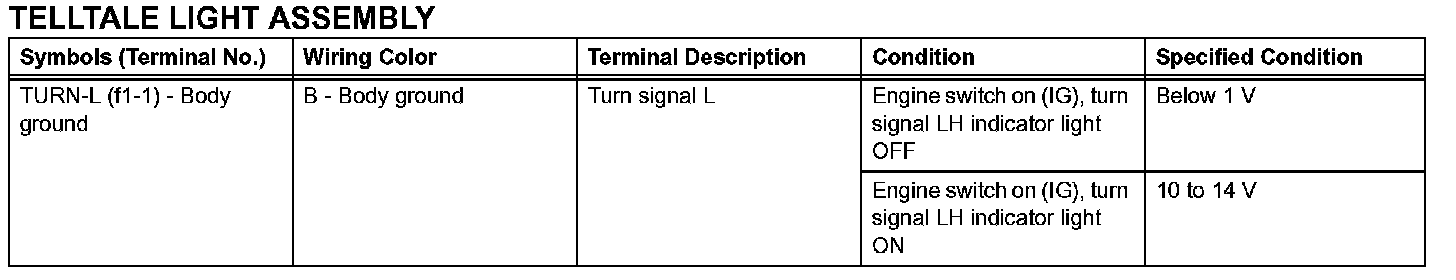

Terminals Of Control Module/Pinouts - Telltale Light Assembly (Part 1):

Terminals Of Control Module/Pinouts - Telltale Light Assembly (Part 2):

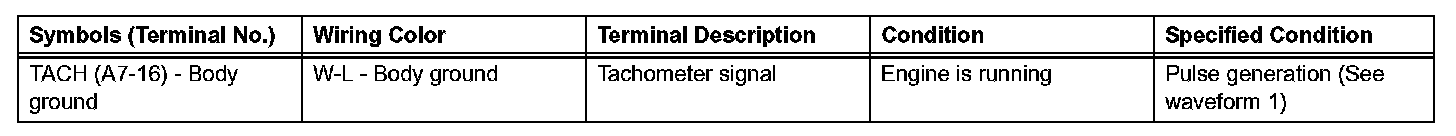

Terminals Of Control Module/Pinouts - Check Skid Control ECU:

Oscilloscope Waveform:

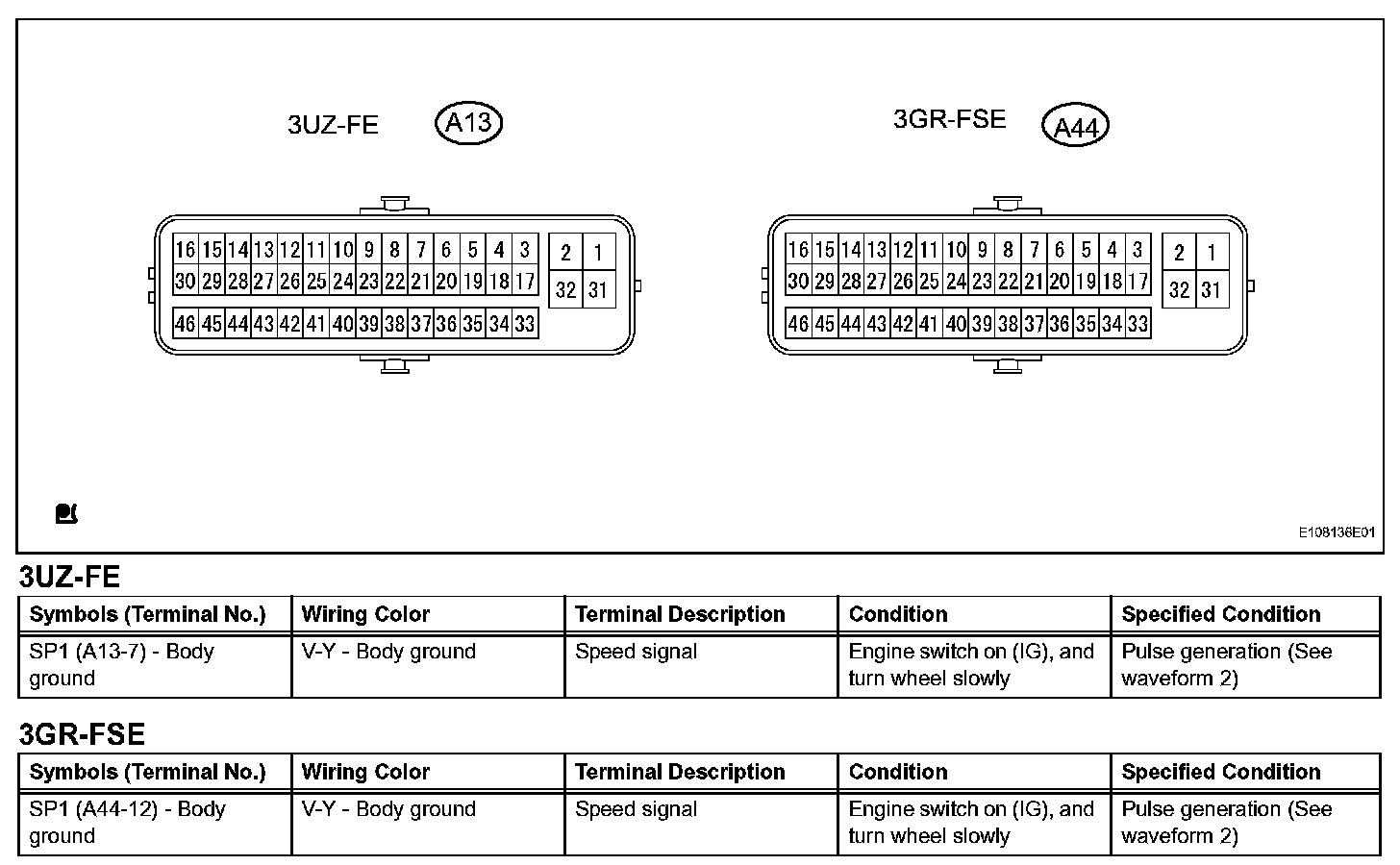

Terminals Of Control Module/Pinouts - Check ECM (Part 1):

Terminals Of Control Module/Pinouts - Check ECM (Part 2):

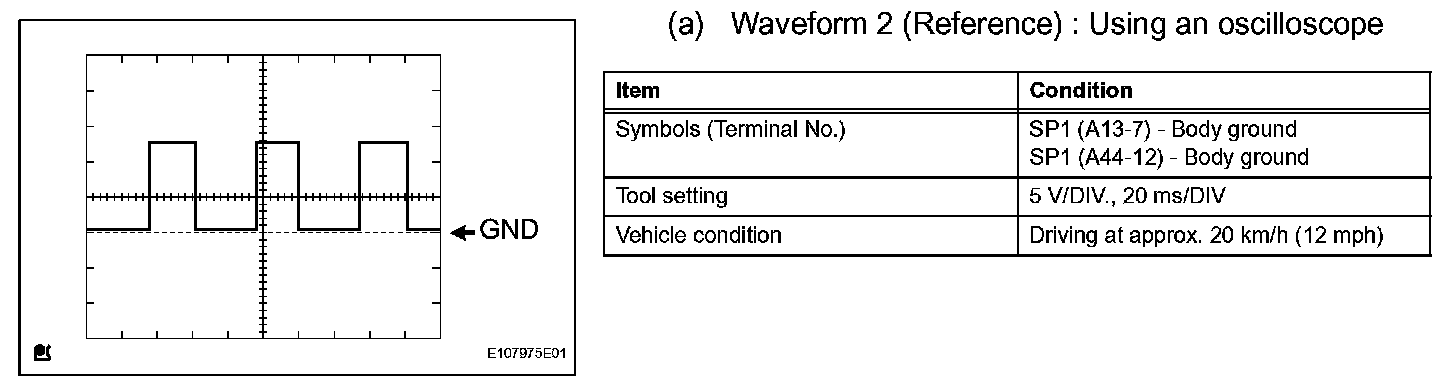

Oscilloscope Waveform:

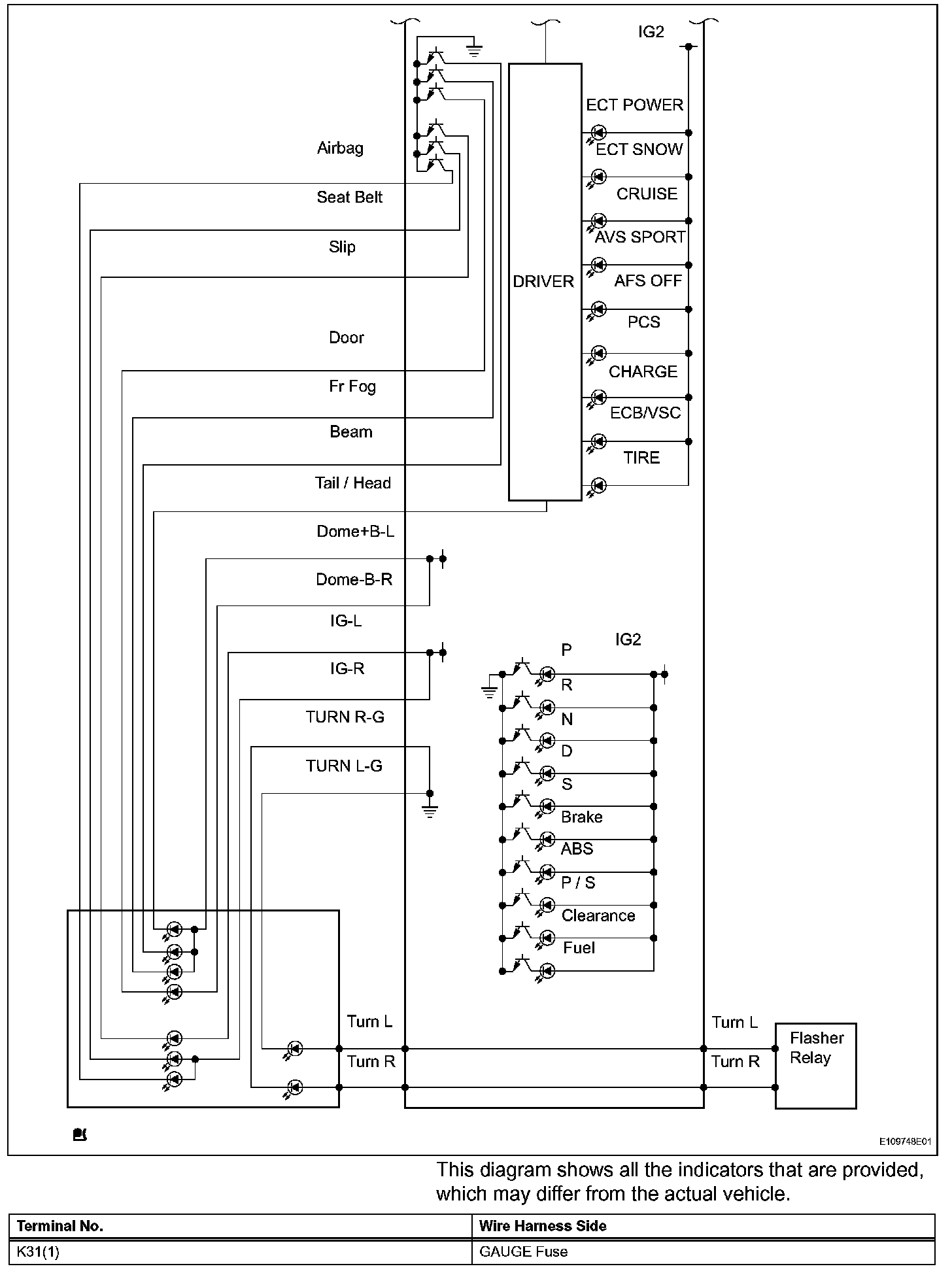

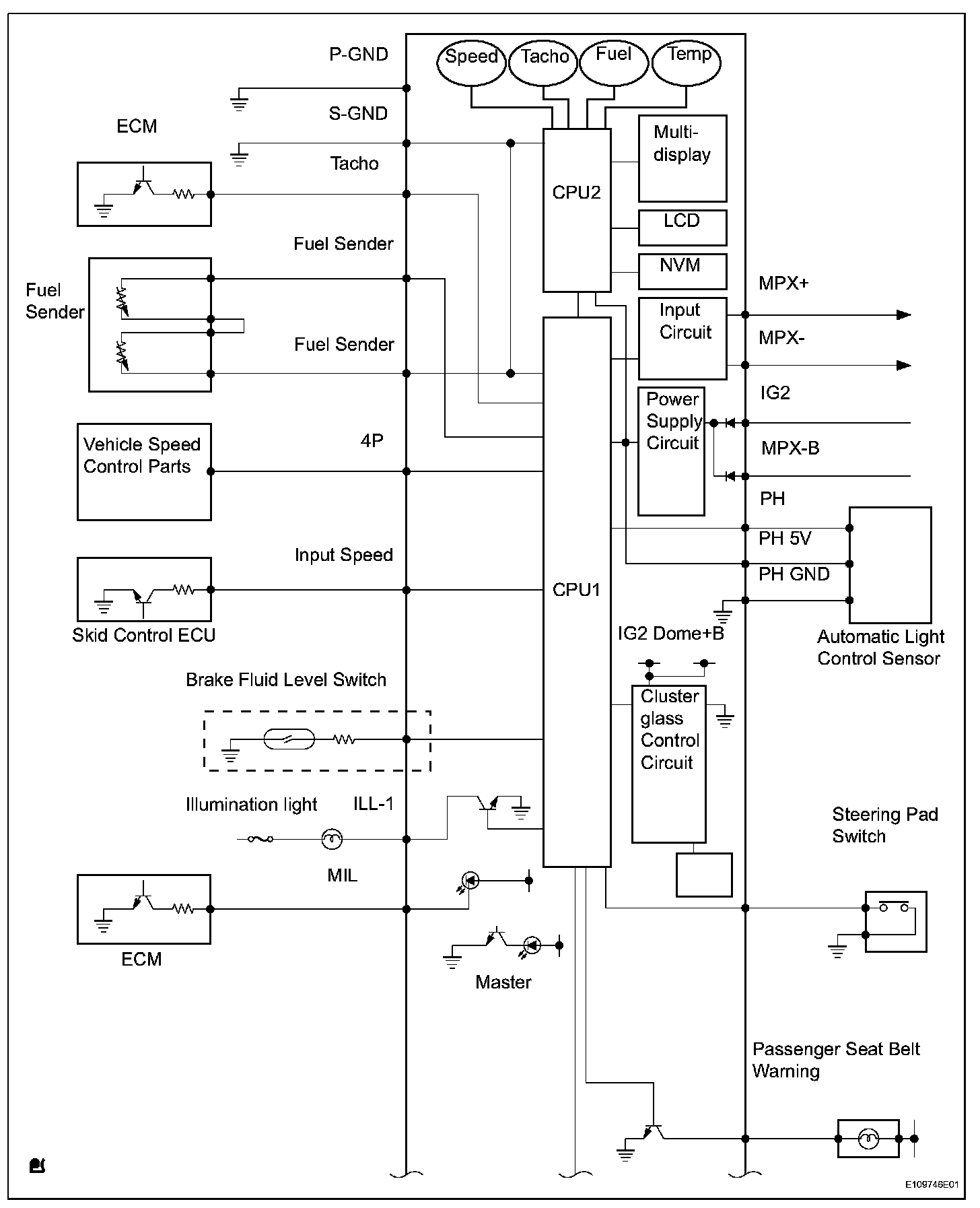

Terminals Of Control Module/Pinouts - Check Combination Meter Inner Circuit (Part 1):

Terminals Of Control Module/Pinouts - Check Combination Meter Inner Circuit (Part 2):

Terminals Of Control Module/Pinouts - Check Combination Meter Inner Circuit (Part 3):
