Malfunction In Water Temperature Receiver Gauge

Malfunction in Water Temperature Receiver Gauge

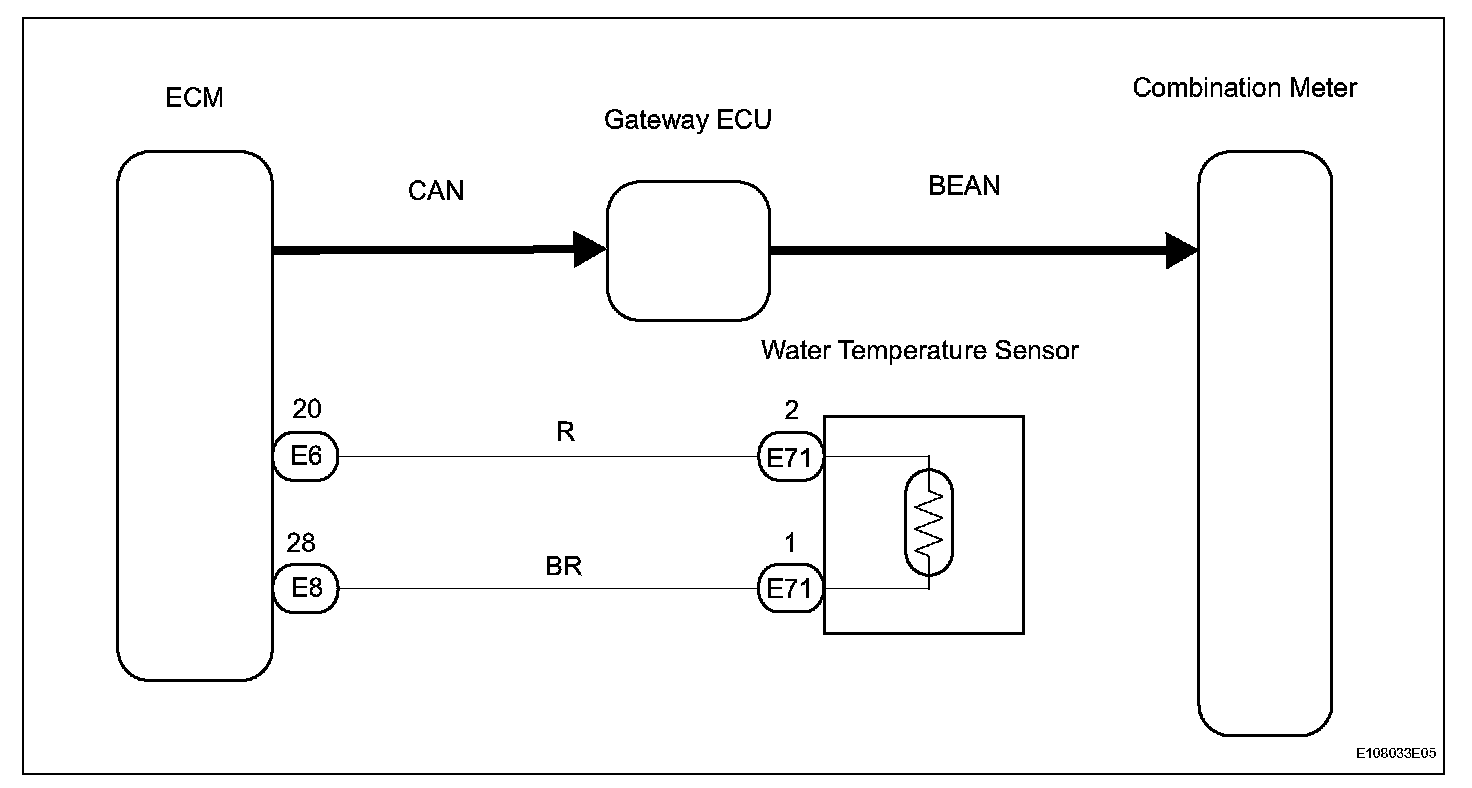

Wiring Diagram:

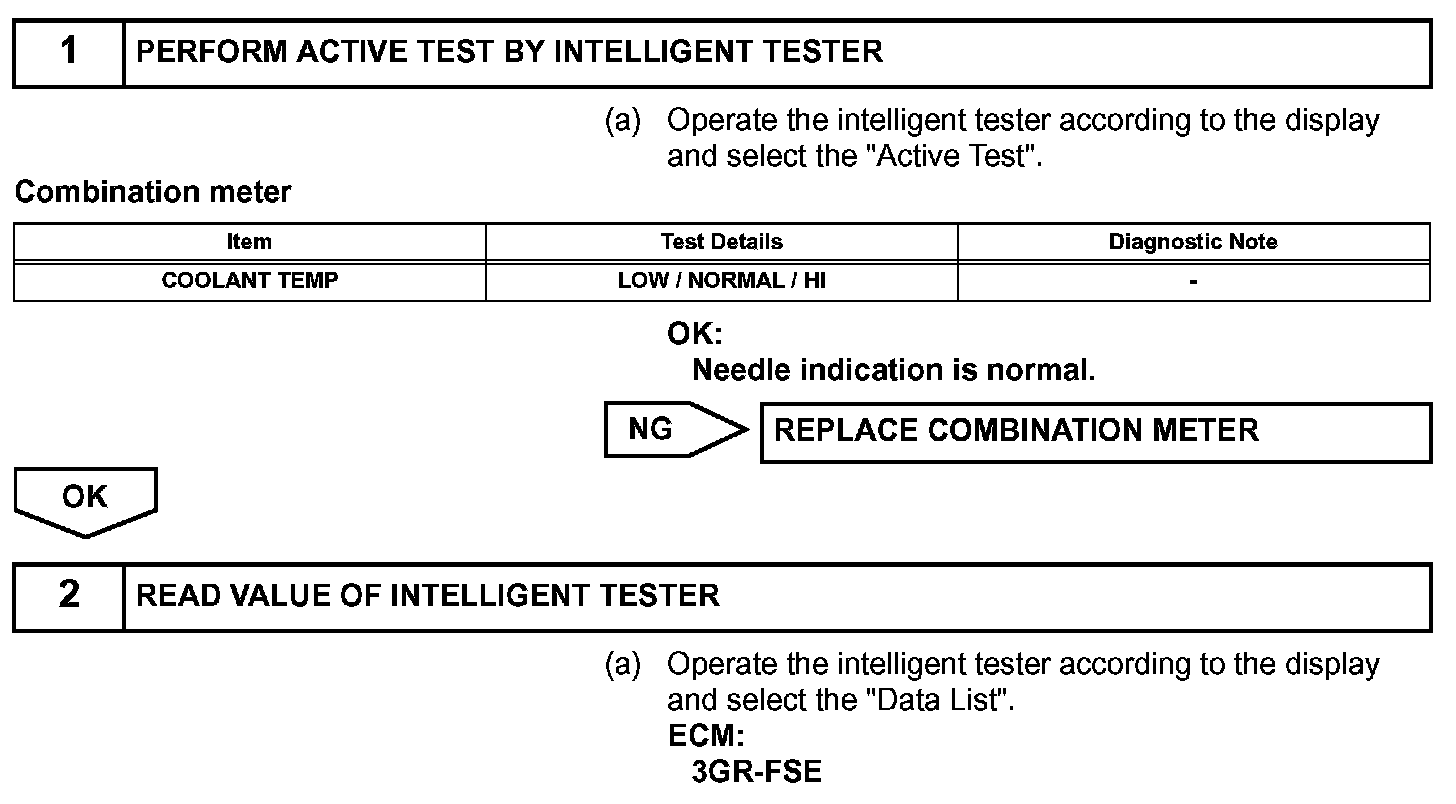

Step 1-2:

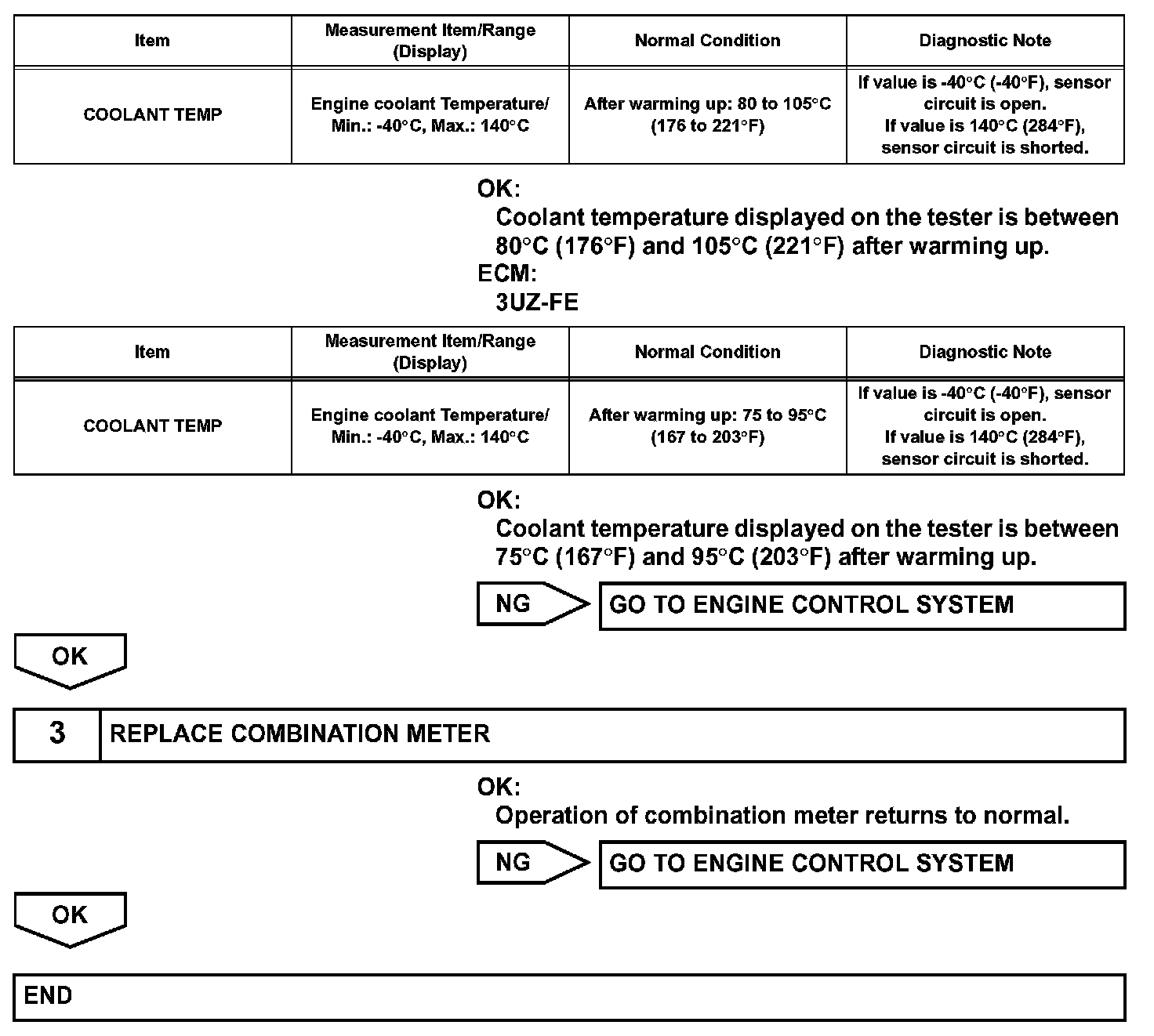

Step 2(continued)-3:

INSPECTION PROCEDURE

HINT: If there is an open or short in the engine coolant temperature sensor circuit, an SFI system DTC is output. If output, perform troubleshooting on the SFI system first.
