Check Mode Procedure

CHECK MODE PROCEDURE

LIST OF OPERATION METHODS

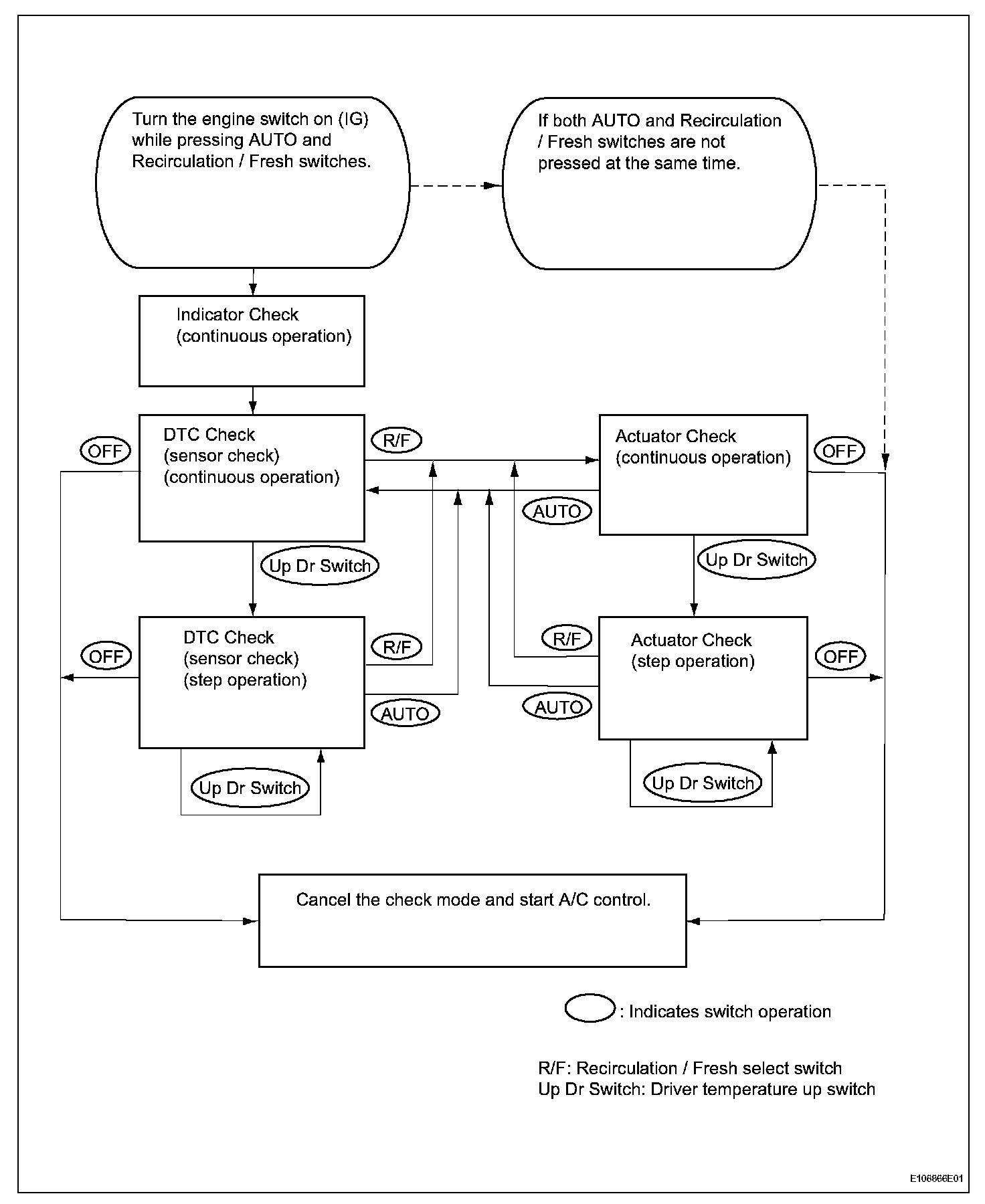

By operating each of the A/C control switches as shown in the diagram given, it is possible to enter the diagnostic check mode.
