Pinout Values and Diagnostic Parameters

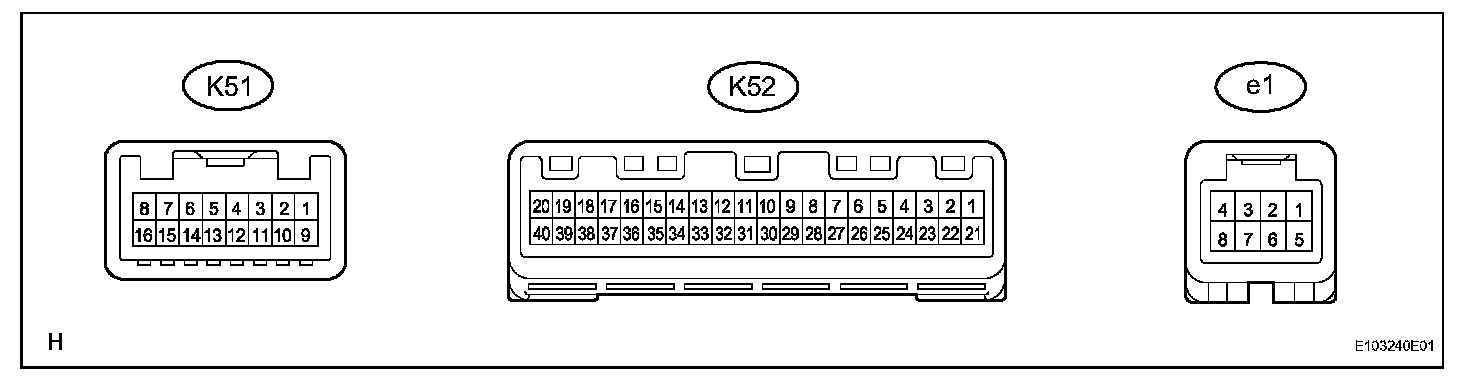

TERMINALS OF ECU

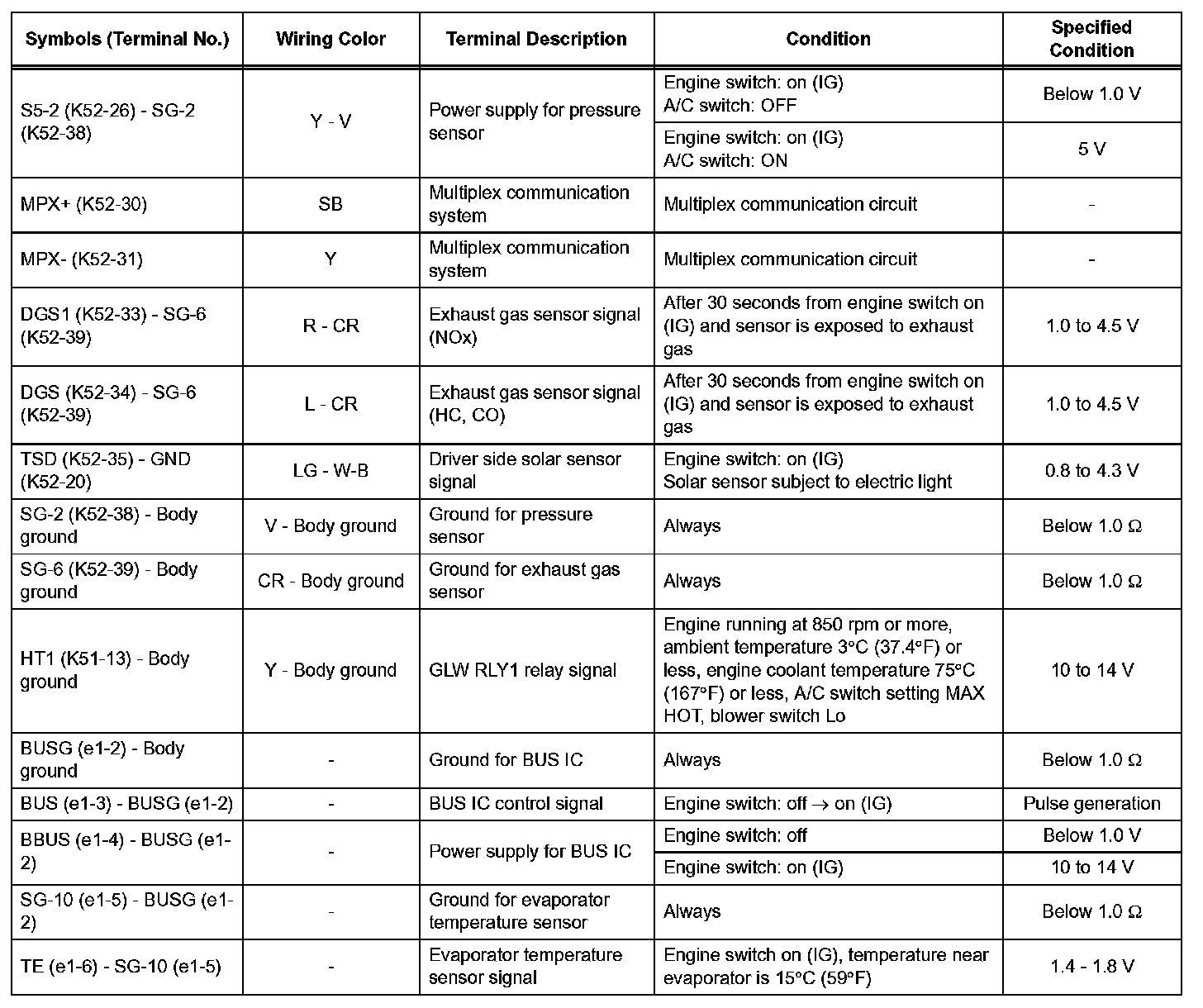

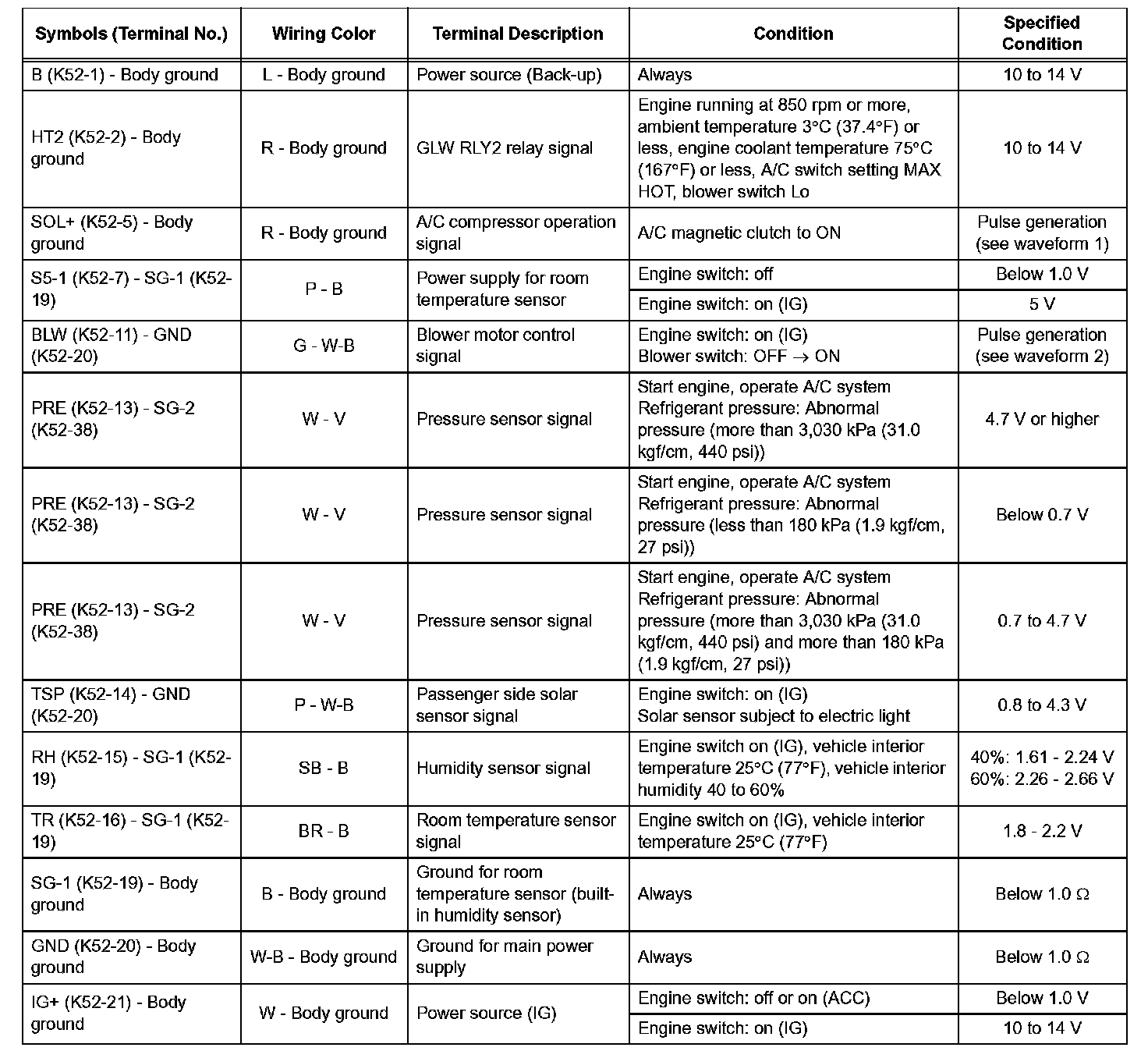

CHECK AIR CONDITIONING AMPLIFIER

HINT: Check from the rear of the connector while it is connected to the A/C amplifier.

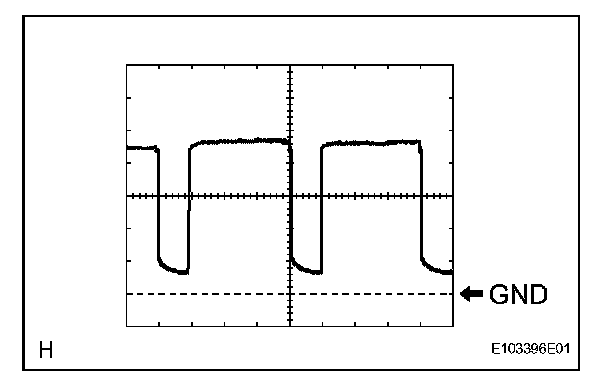

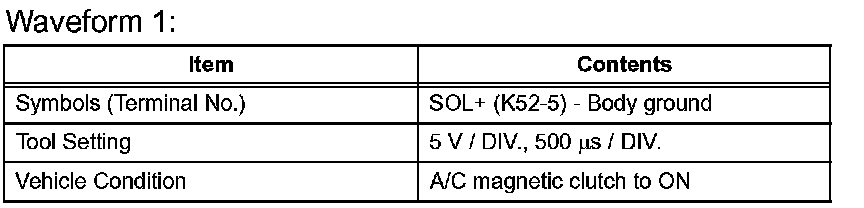

a. Waveform 1:

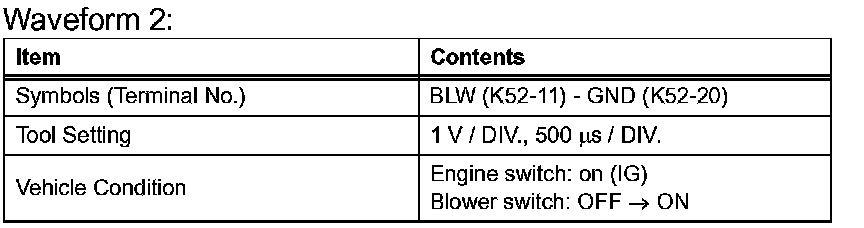

b. Waveform 2:

HINT: When the blower level is increased, the duty ratio changes accordingly.
