Indicator Check

INDICATOR CHECK

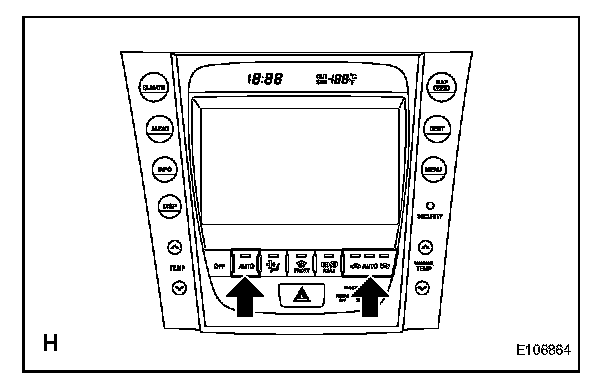

a. Turn the engine switch on (IG) while pressing the A/C control AUTO switch and Recirculation / Fresh switch simultaneously.

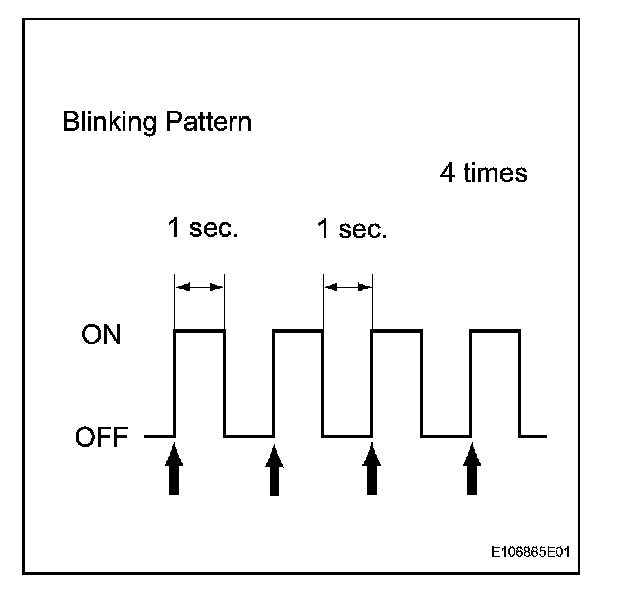

b. Check that all indicators turn on and off 4 times in succession at 1 second intervals.

HINT:
- After the indicator check is completed, the system enters the DTC mode automatically.
- Press the "OFF" switch to cancel the indicator check.
