Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Specifications >> Mechanical Specifications >> Torque

Torque

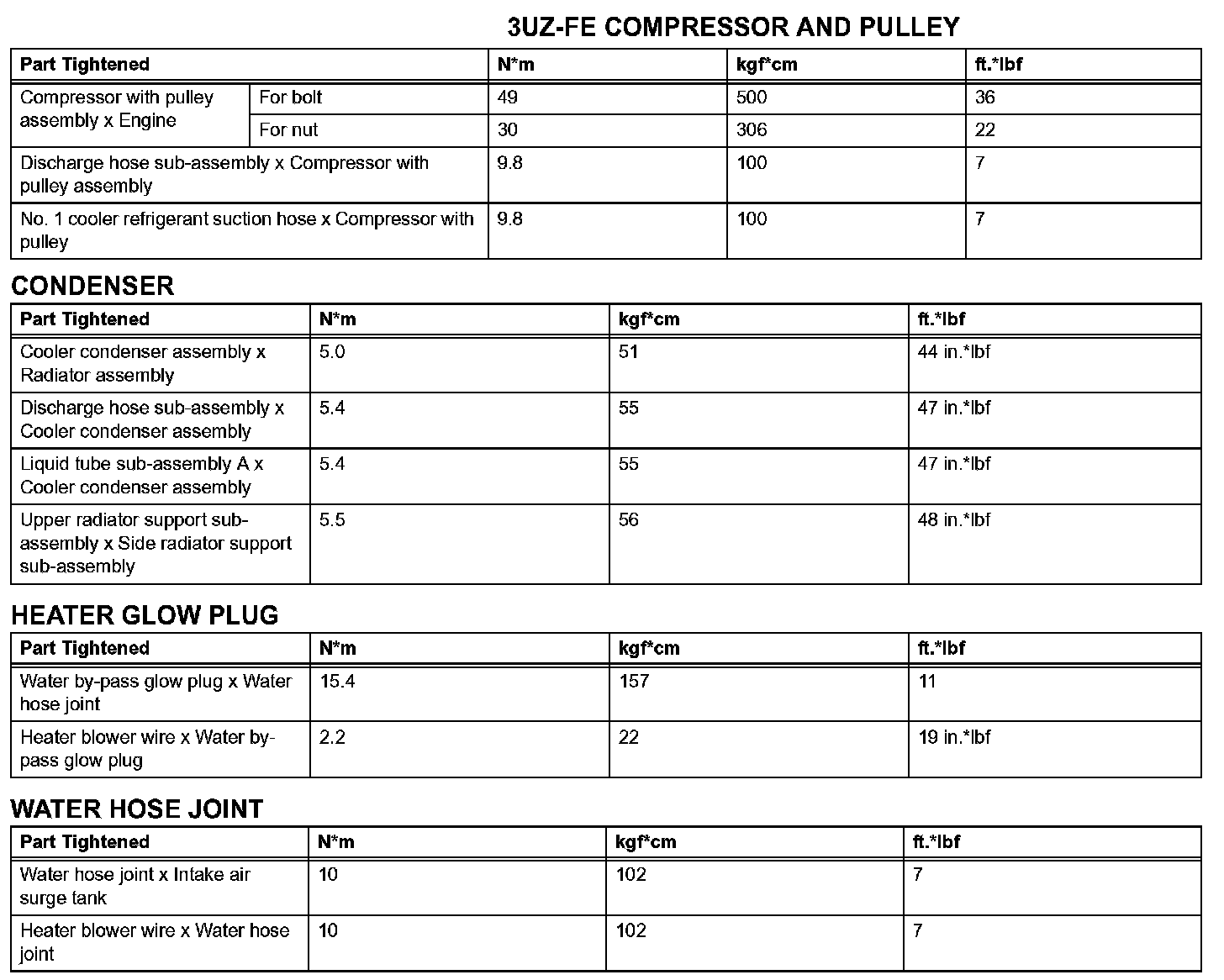

Air Conditioning-Torque Specifications (Part 1):



Air Conditioning-Torque Specifications (Part 2):
