Housing Assembly HVAC: Testing and Inspection

AIR CONDITIONING UNIT

INSPECTION

1. INSPECT DAMPER SERVOMOTOR (AIR MIX AND AIR OUTLET)

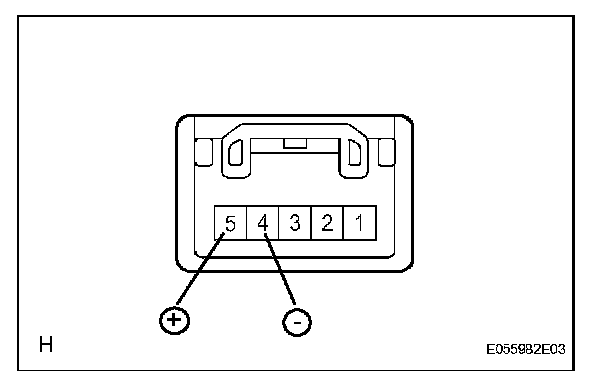

a. Connect the battery's positive (+) lead to terminal 5 of each servomotor and the battery's negative (-) lead to terminal 4. Check that the damper operates smoothly.

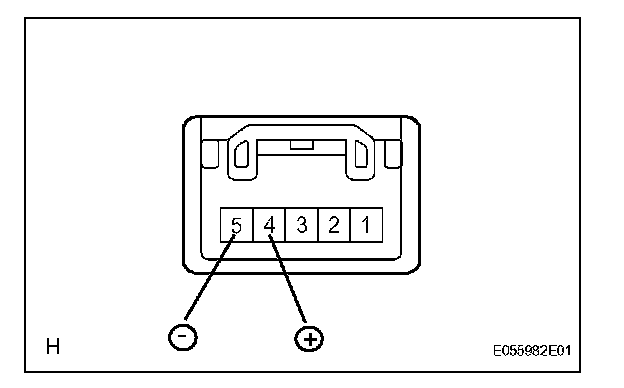

b. Connect the battery's positive (+) lead to terminal 4 of each servomotor and the battery's negative (-) lead to terminal 5. Check that the damper operates smoothly.
