Removal & Installation

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL
2. REMOVE ENGINE ROOM SIDE COVER LH
3. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH
4. REMOVE FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH
5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
6. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
7. REMOVE FRONT FENDER TO COWL SIDE SEAL LH
8. REMOVE FRONT FENDER TO COWL SIDE SEAL RH
9. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
10. REMOVE FRONT WIPER MOTOR AND LINK ASSEMBLY
11. TABLE OF BOLT, SCREW AND NUT
12. SET RADIO RECEIVER ASSEMBLY TO SHIPMENT MODE
13. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

14. REMOVE FRONT DOOR SCUFF PLATE INSIDE RH
15. REMOVE FRONT DOOR SCUFF PLATE INSIDE LH
16. REMOVE FRONT DOOR OPENING TRIM COVER RH
17. REMOVE FRONT DOOR OPENING TRIM COVER LH
18. REMOVE STEERING WHEEL NO. 2 COVER LOWER
19. REMOVE STEERING WHEEL NO. 3 COVER LOWER
20. REMOVE STEERING PAD
21. REMOVE STEERING WHEEL ASSEMBLY
22. REMOVE STEERING COLUMN COVER LOWER
23. REMOVE STEERING COLUMN COVER UPPER
24. REMOVE SPIRAL CABLE WITH STEERING SENSOR
25. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
26. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
27. REMOVE FRONT CONSOLE UPPER PANEL ASSEMBLY
28. REMOVE CONSOLE UPPER PANEL ASSEMBLY
29. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
30. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
31. REMOVE CONSOLE BOX PLATE
32. REMOVE CONSOLE BOX REGISTER ASSEMBLY
33. REMOVE CONSOLE BOX
34. REMOVE STEERING COLUMN ASSEMBLY
35. REMOVE INSTRUMENT CLUSTER FINISH PANEL
36. REMOVE COMBINATION METER ASSEMBLY
37. REMOVE INSTRUMENT SIDE PANEL RH
38. REMOVE INSTRUMENT SIDE PANEL LH
39. REMOVE INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY
40. REMOVE INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY
41. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
42. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY
43. REMOVE INSTRUMENT PANEL NO. 2 UNDER COVER
44. REMOVE STEERING CONTROL ECU
45. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
46. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
47. REMOVE FRONT PILLAR GARNISH RH
48. REMOVE FRONT PILLAR GARNISH LH
49. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
50. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
51. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
52. REMOVE NO. 2 AIR DUCT
53. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
54. REMOVE BLOWER ASSEMBLY

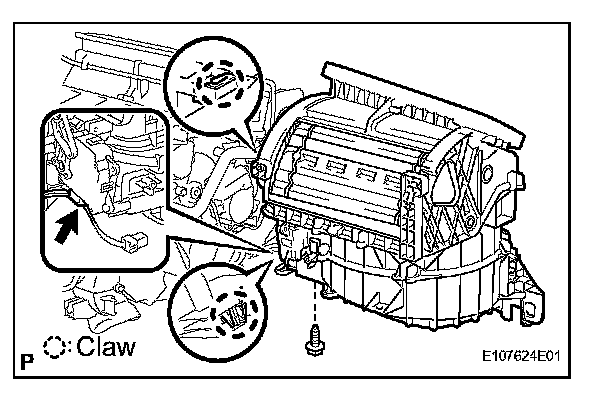

a. Disconnect the connector.
b. Remove the screw and nut.
c. Detach the 2 claws and remove the blower.

INSTALLATION

1. INSTALL BLOWER ASSEMBLY

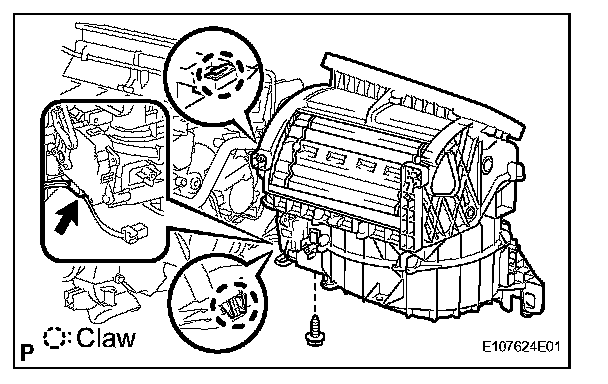

a. Install the blower with the 2 claws and screw.

Torque: 3.0 N.m (31 kgf.cm, 27 in.lbf)

b. Install the blower with the nut.

Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

c. Connect the connector.

2. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY
3. INSTALL NO. 2 AIR DUCT
4. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
5. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
6. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY
7. INSTALL FRONT PILLAR GARNISH LH
8. INSTALL FRONT PILLAR GARNISH RH
9. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
10. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
11. INSTALL STEERING CONTROL ECU
12. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
13. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY
14. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
15. INSTALL INSTRUMENT PANEL NO. 1 SAFETY PAD SUB-ASSEMBLY
16. INSTALL INSTRUMENT PANEL NO. 1 UNDER COVER SUB-ASSEMBLY
17. INSTALL INSTRUMENT SIDE PANEL LH
18. INSTALL INSTRUMENT SIDE PANEL RH
19. INSTALL COMBINATION METER ASSEMBLY
20. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
21. INSTALL CONSOLE BOX
22. INSTALL STEERING COLUMN ASSEMBLY
23. INSTALL CONSOLE BOX REGISTER ASSEMBLY
24. INSTALL CONSOLE BOX PLATE
25. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
26. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
27. INSTALL CONSOLE UPPER PANEL ASSEMBLY
28. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
29. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
30. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
31. INSTALL SPIRAL CABLE WITH STEERING SENSOR
32. INSTALL STEERING COLUMN COVER UPPER
33. INSTALL STEERING COLUMN COVER LOWER
34. INSTALL STEERING WHEEL ASSEMBLY
35. INSTALL STEERING PAD
36. INSTALL STEERING WHEEL NO. 3 COVER LOWER
37. INSTALL STEERING WHEEL NO. 2 COVER LOWER
38. INSTALL FRONT DOOR OPENING TRIM COVER LH
39. INSTALL FRONT DOOR OPENING TRIM COVER RH
40. INSTALL FRONT DOOR SCUFF PLATE LH
41. INSTALL FRONT DOOR SCUFF PLATE RH
42. INSTALL FRONT WIPER MOTOR AND LINK ASSEMBLY
43. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
44. INSTALL FRONT FENDER TO COWL SIDE SEAL RH
45. INSTALL FRONT FENDER TO COWL SIDE SEAL LH
46. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
47. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
48. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY RH
49. INSTALL FRONT PILLAR TO FRONT SIDE SEAL SUB-ASSEMBLY LH
50. INSTALL ENGINE ROOM SIDE COVER LH
51. INSTALL COOL AIR INTAKE DUCT SEAL
52. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
53. PERFORM INITIALIZATION
a. Perform initialization

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

54. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
