Blower Motor: Testing and Inspection

ON-VEHICLE INSPECTION

INSPECT BLOWER MOTOR

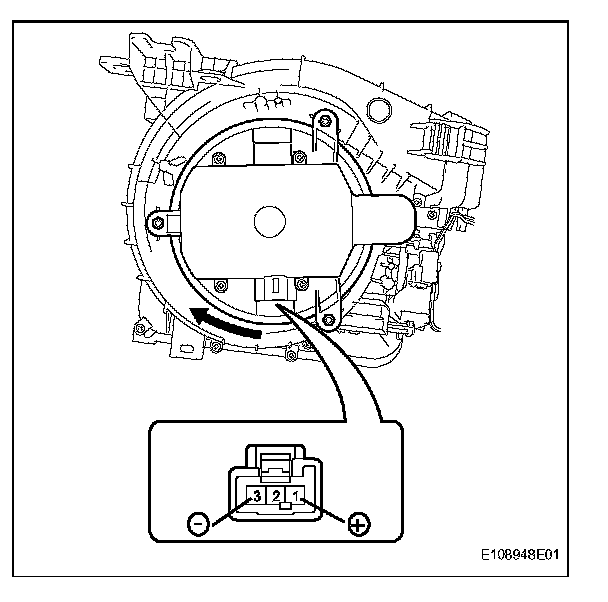

Connect the battery 's positive (+) lead to terminal 1 and negative (-) lead to terminal 3 Check that the motor operates smoothly.

If the result is not as specified, replace the blower motor.
