Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Auxiliary Cabin Heater >> Auxiliary Heater Element >> Testing and Inspection

Auxiliary Heater Element: Testing and Inspection

INSPECTION

INSPECT WATER BY-PASS GLOW PLUG

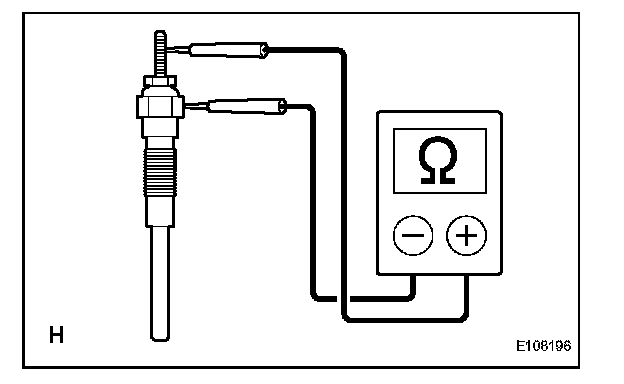

Measure the resistance of the glow plug.

Standard resistance: Below 1 Ohm

If the result is not as specified, replace the glow plug.
