Speaker

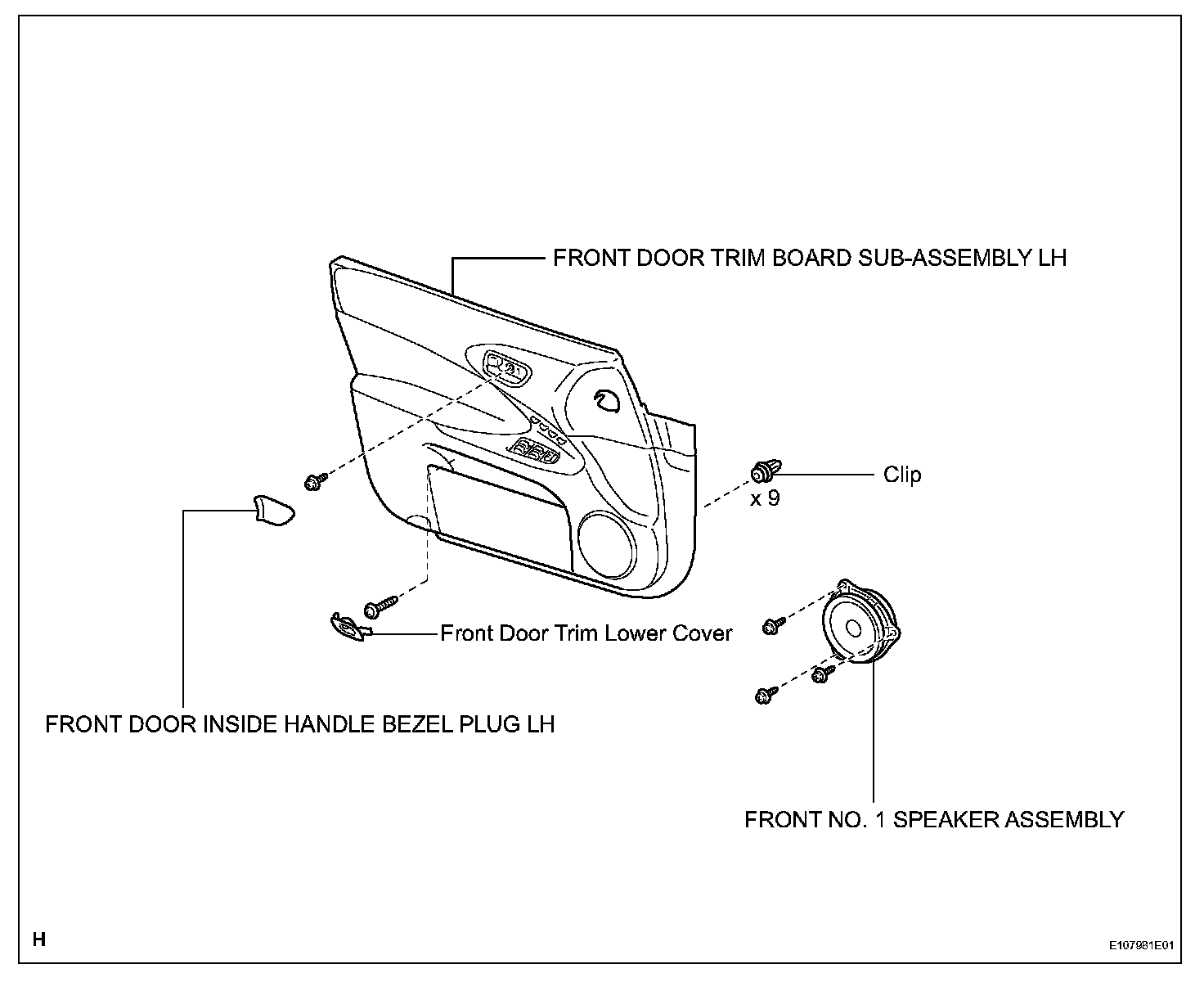

Front No.1 Speaker:

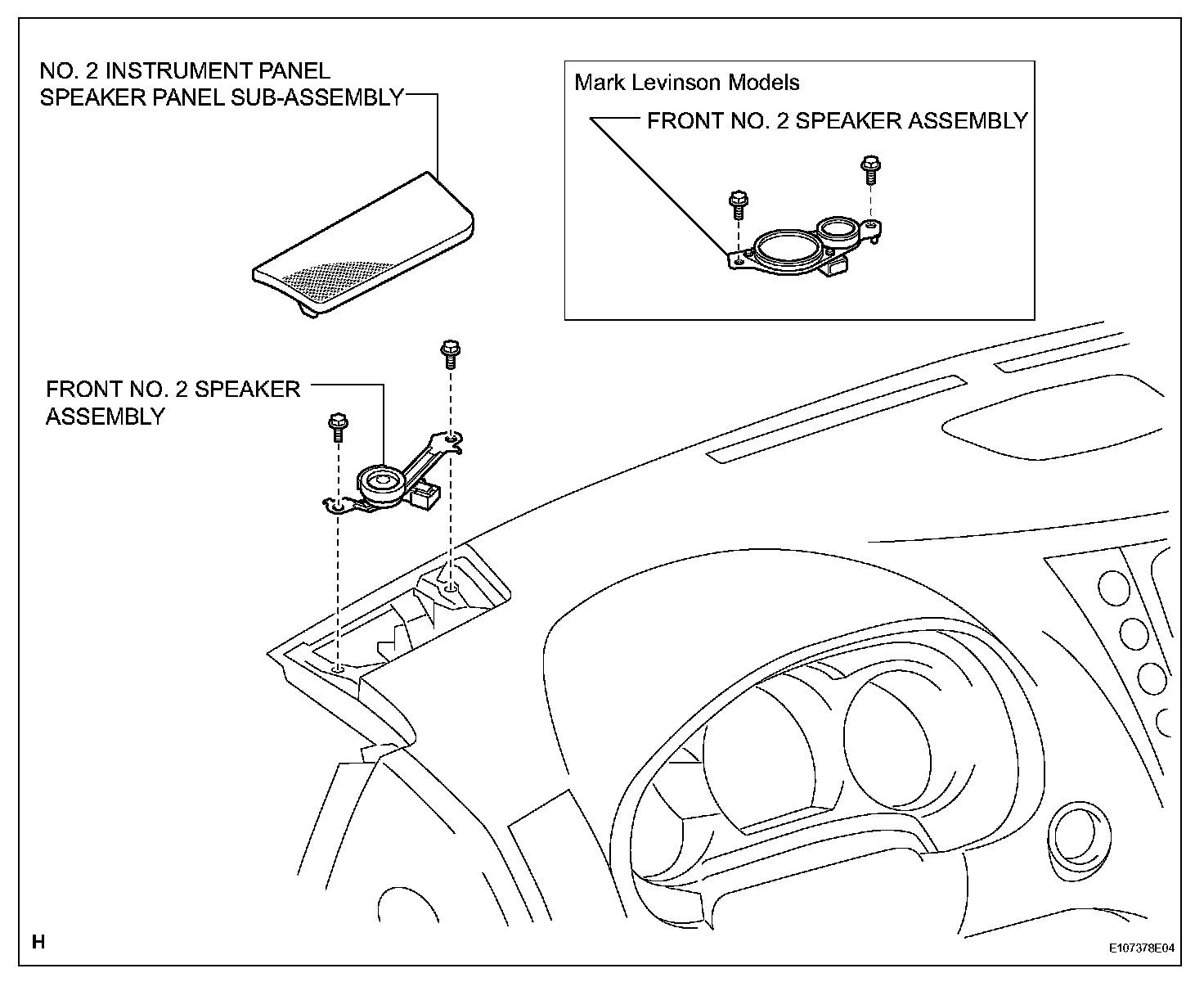

Front No.2 Speaker:

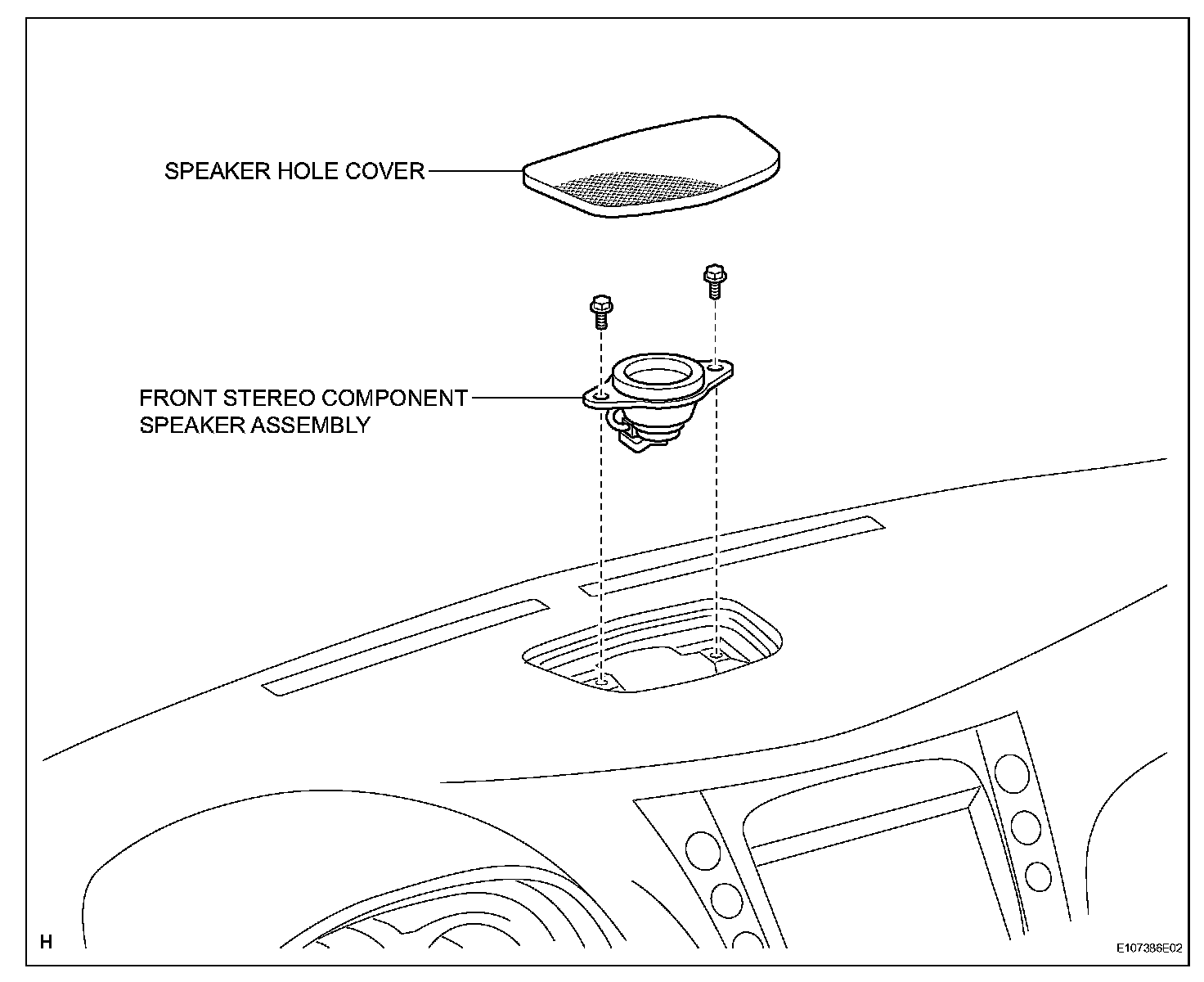

Front Stereo Component Speaker:

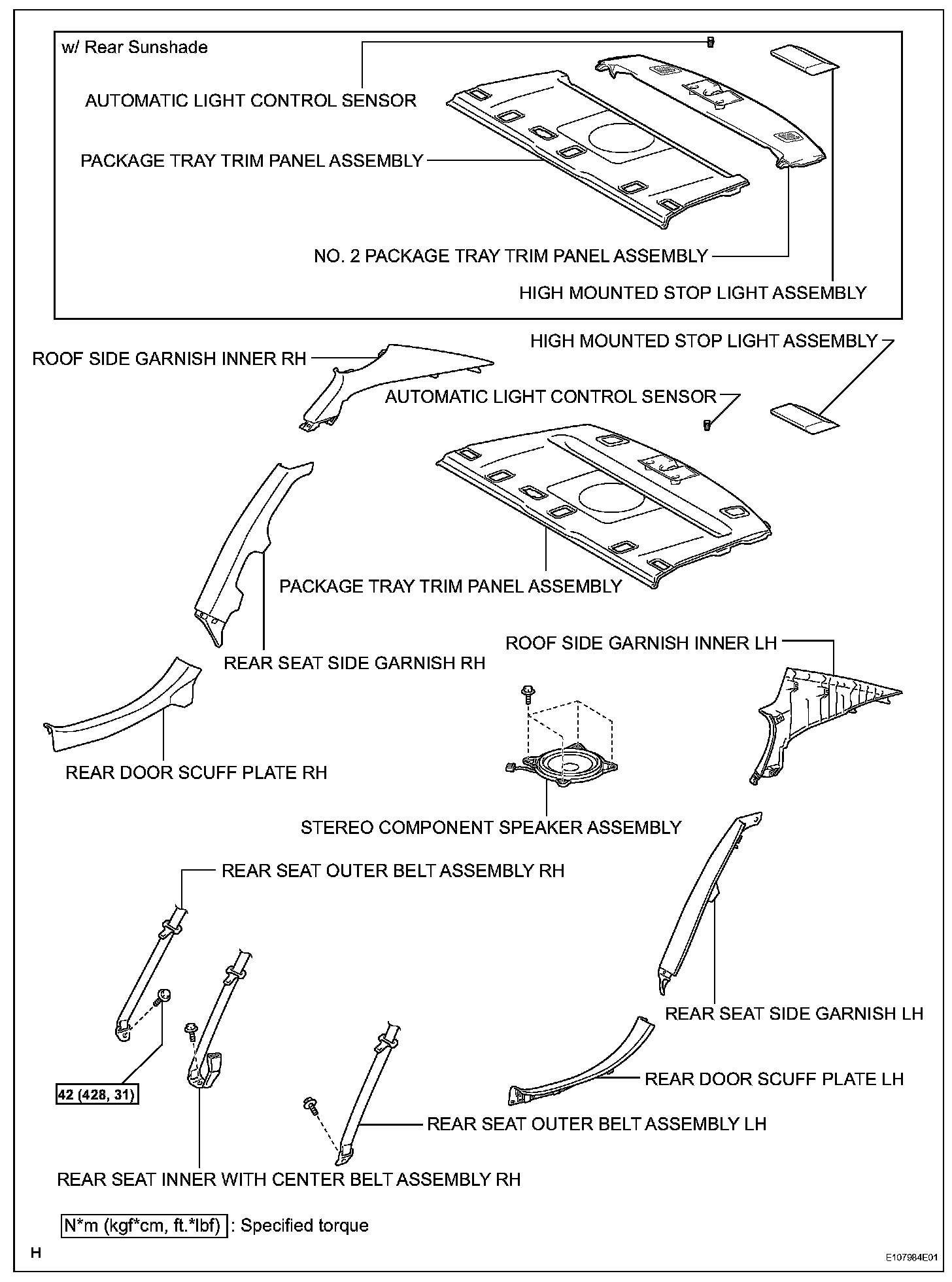

Stereo Component Speaker:



Stereo Component Speaker:

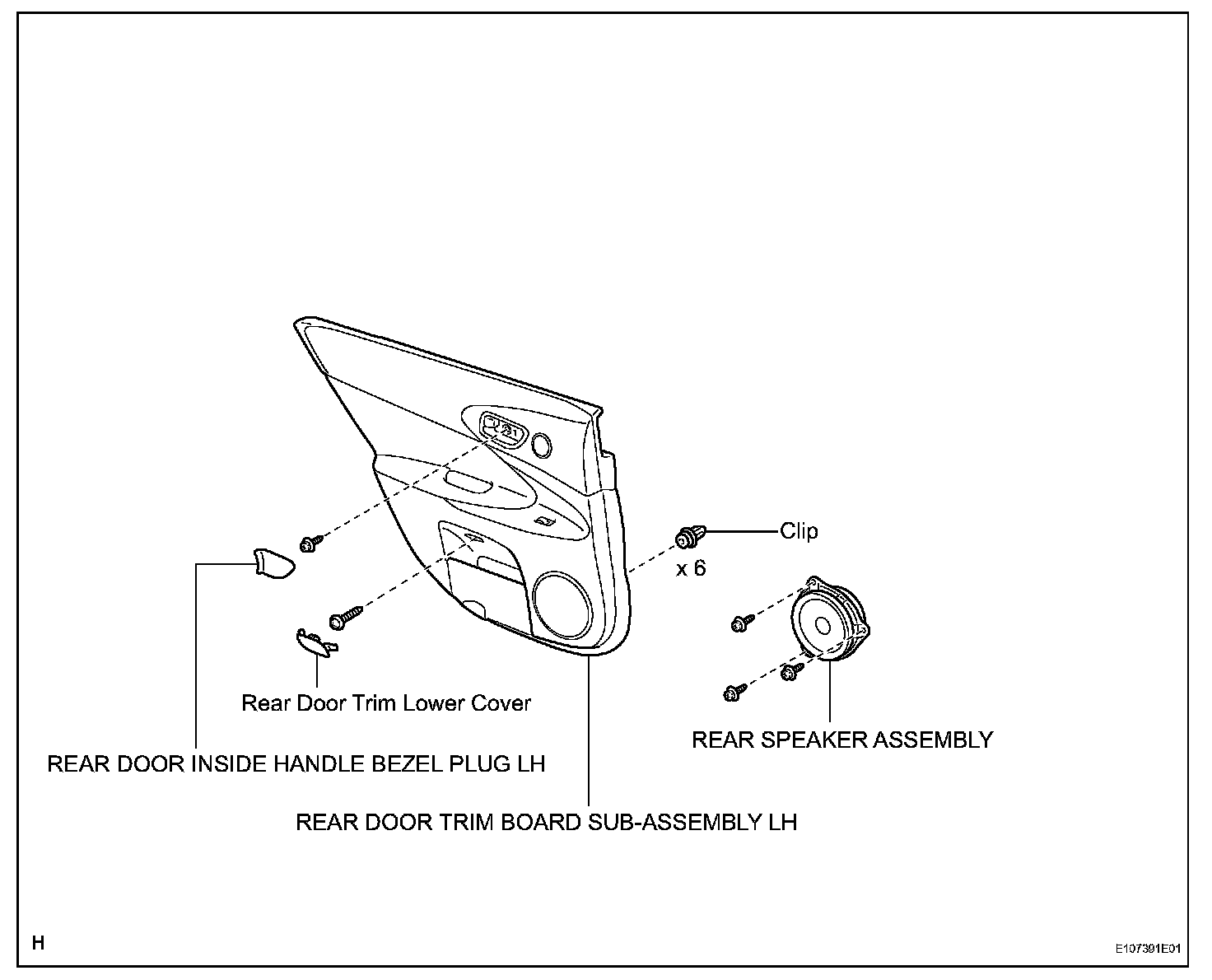

Rear Speaker:

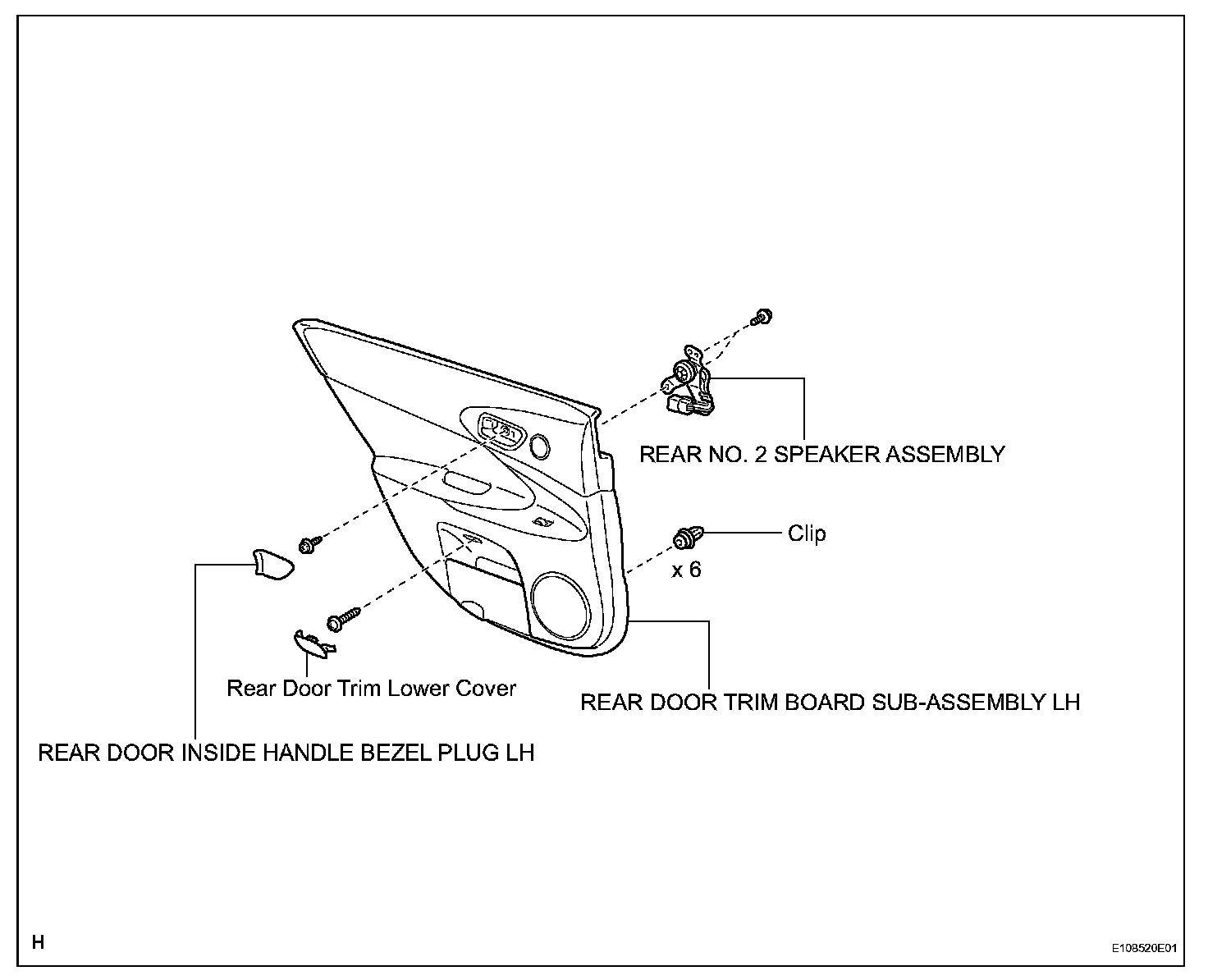

Rear No.2 Speaker:

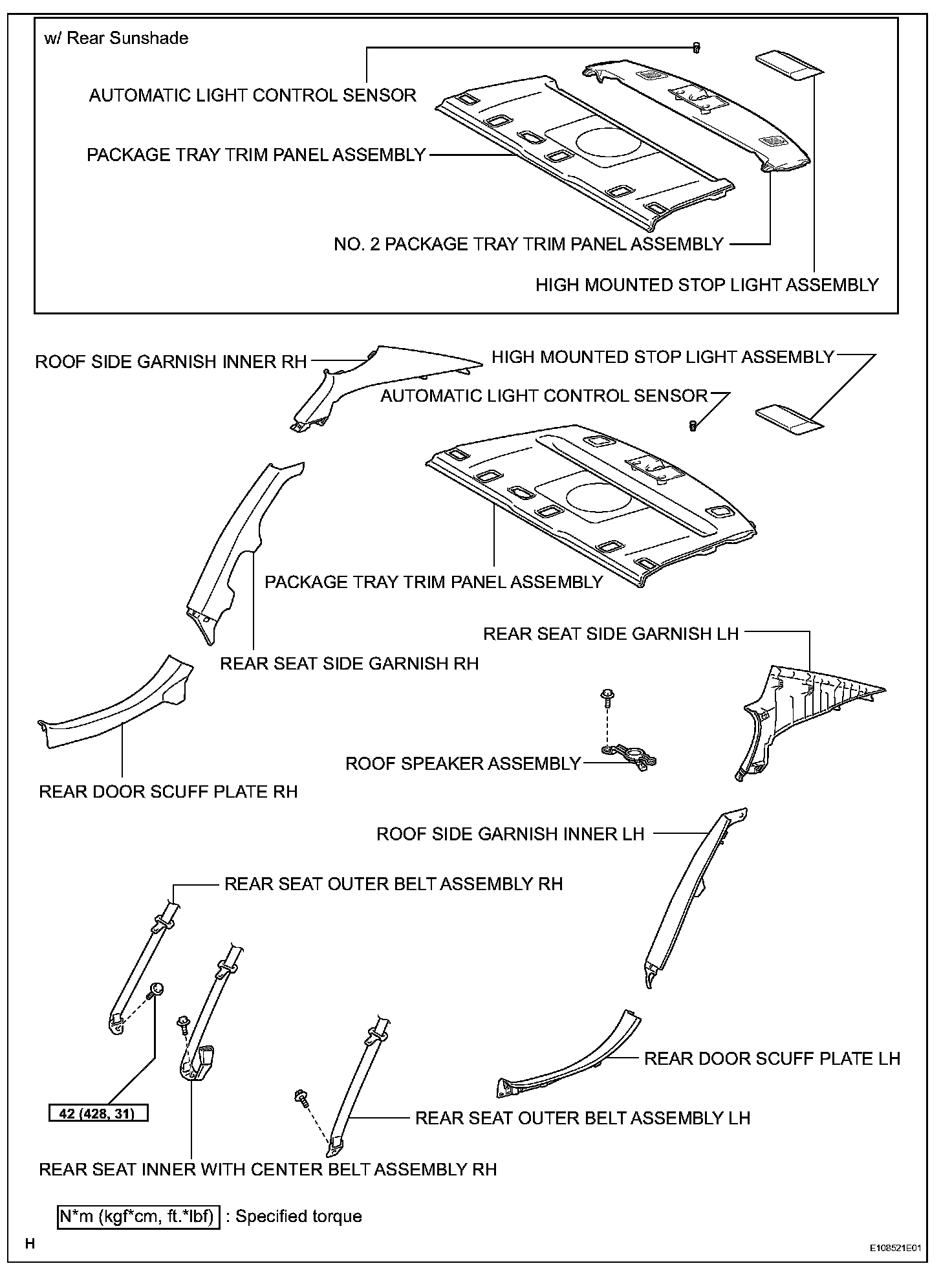

Roof Speaker:



Roof Speaker:
