Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning >> Auxiliary Heater Element >> Heater Core Glow Plug

Heater Core Glow Plug

Heater Glow Plug:

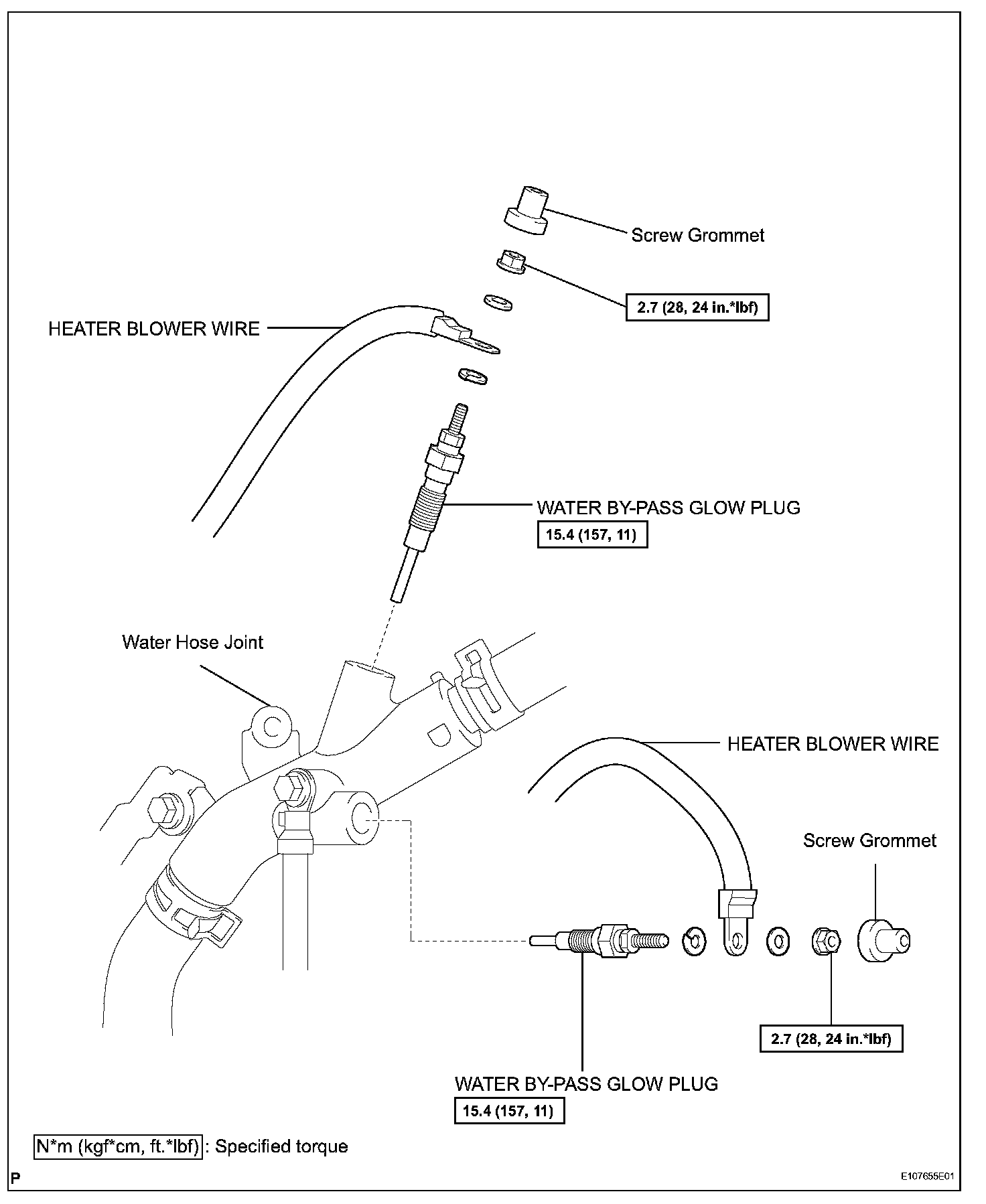

Heater Glow Plug:
