Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Air Bag

Air Bag

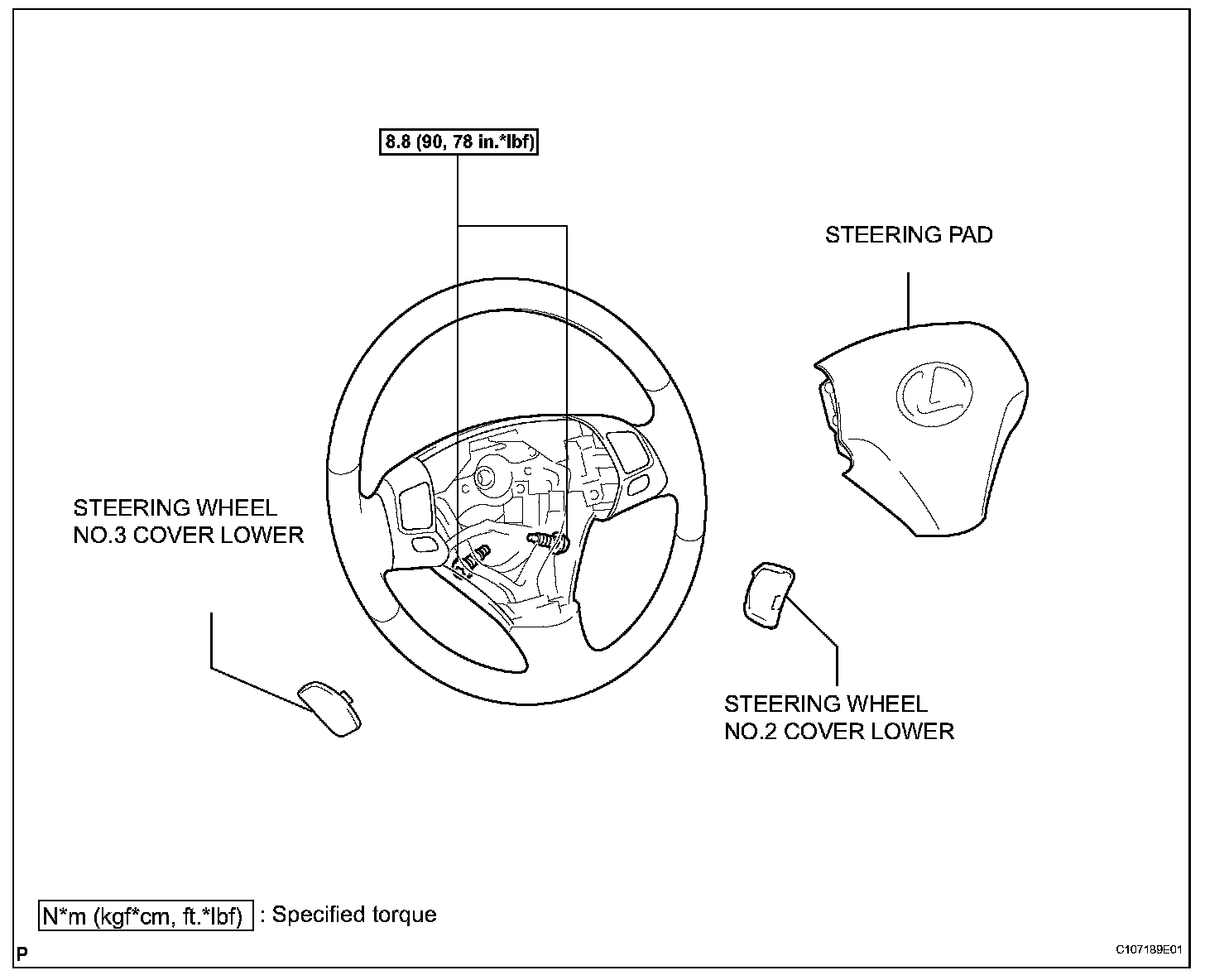

Steering Pad:

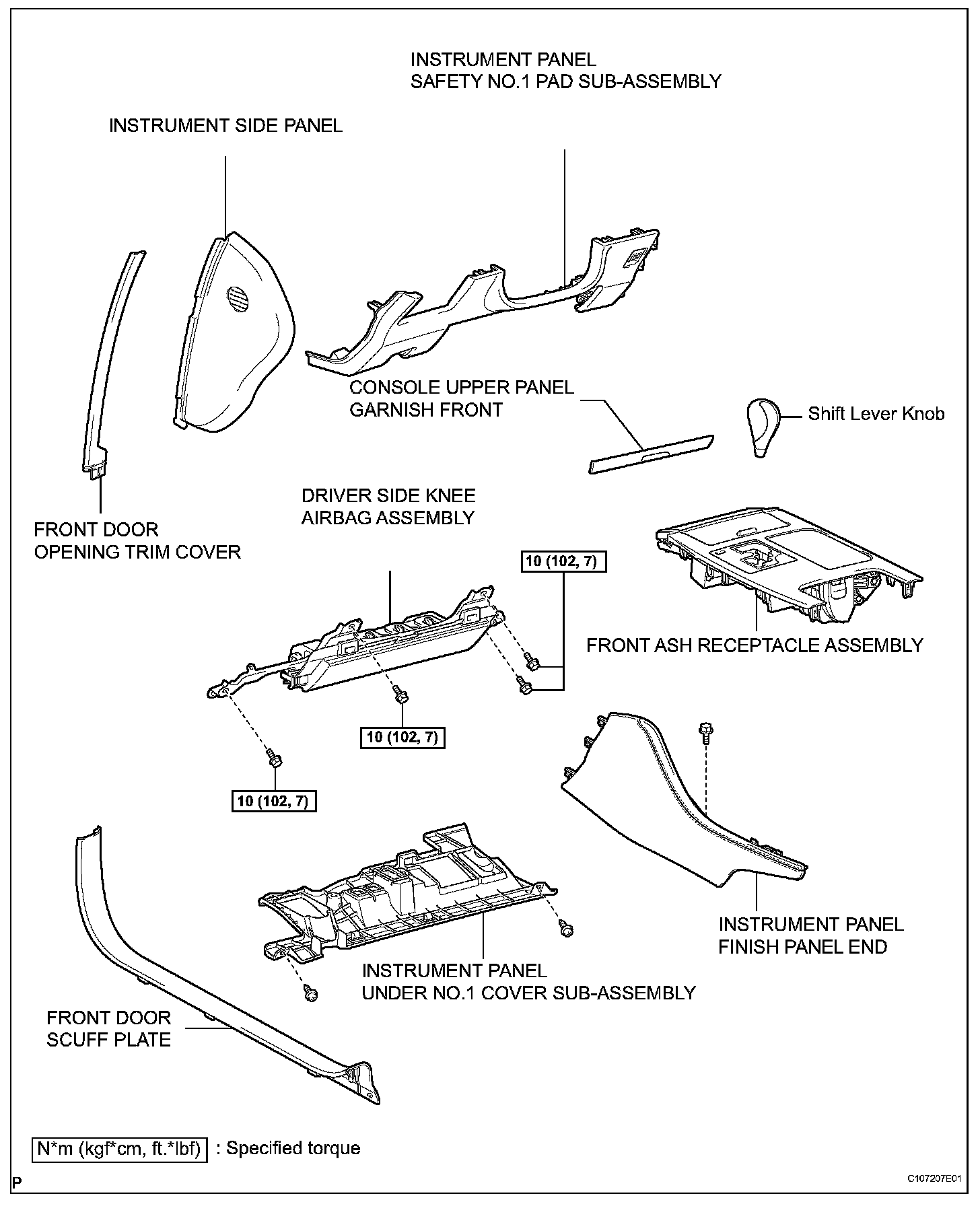

Driver Side Knee Airbag Assembly:

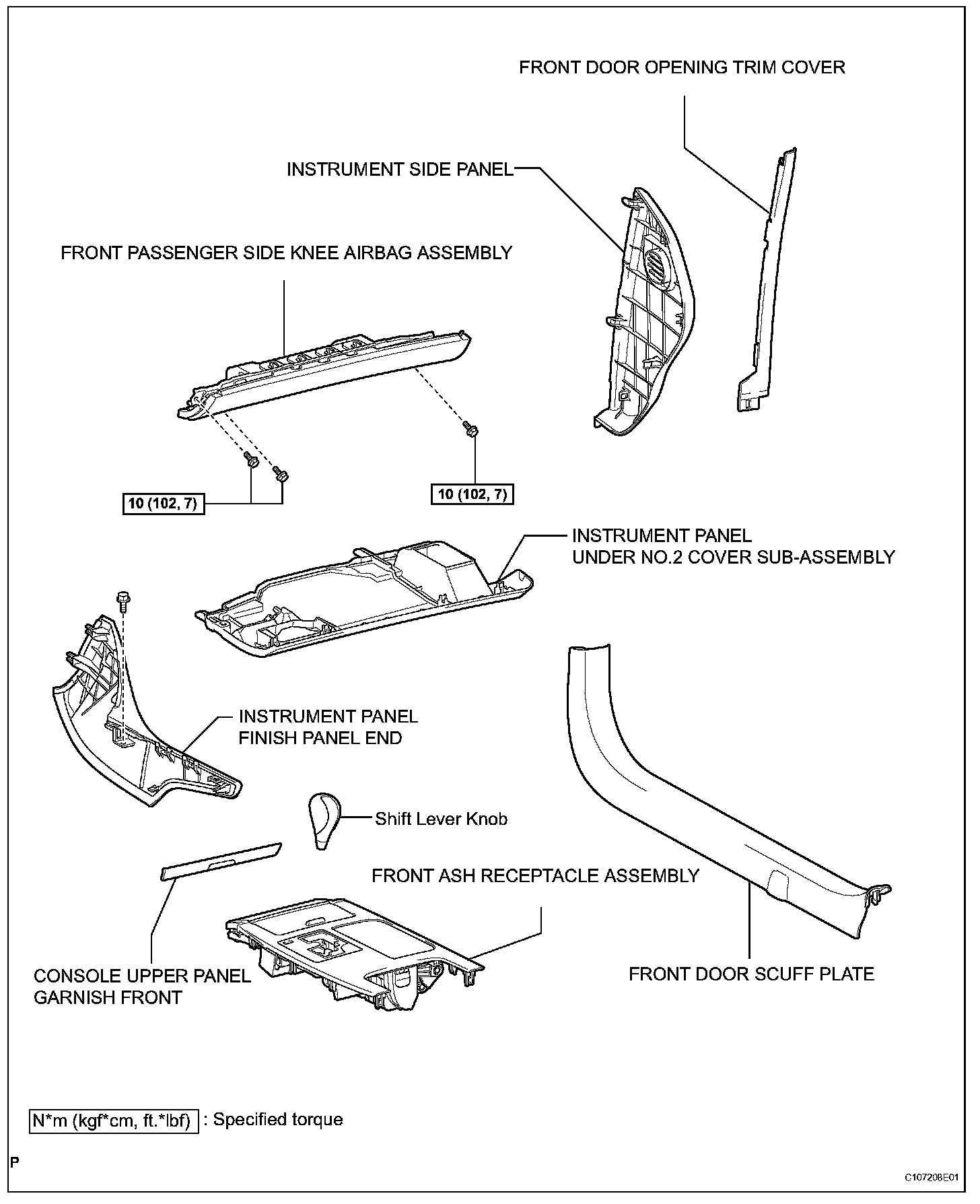

Front Passenger Side Knee Airbag Assembly:

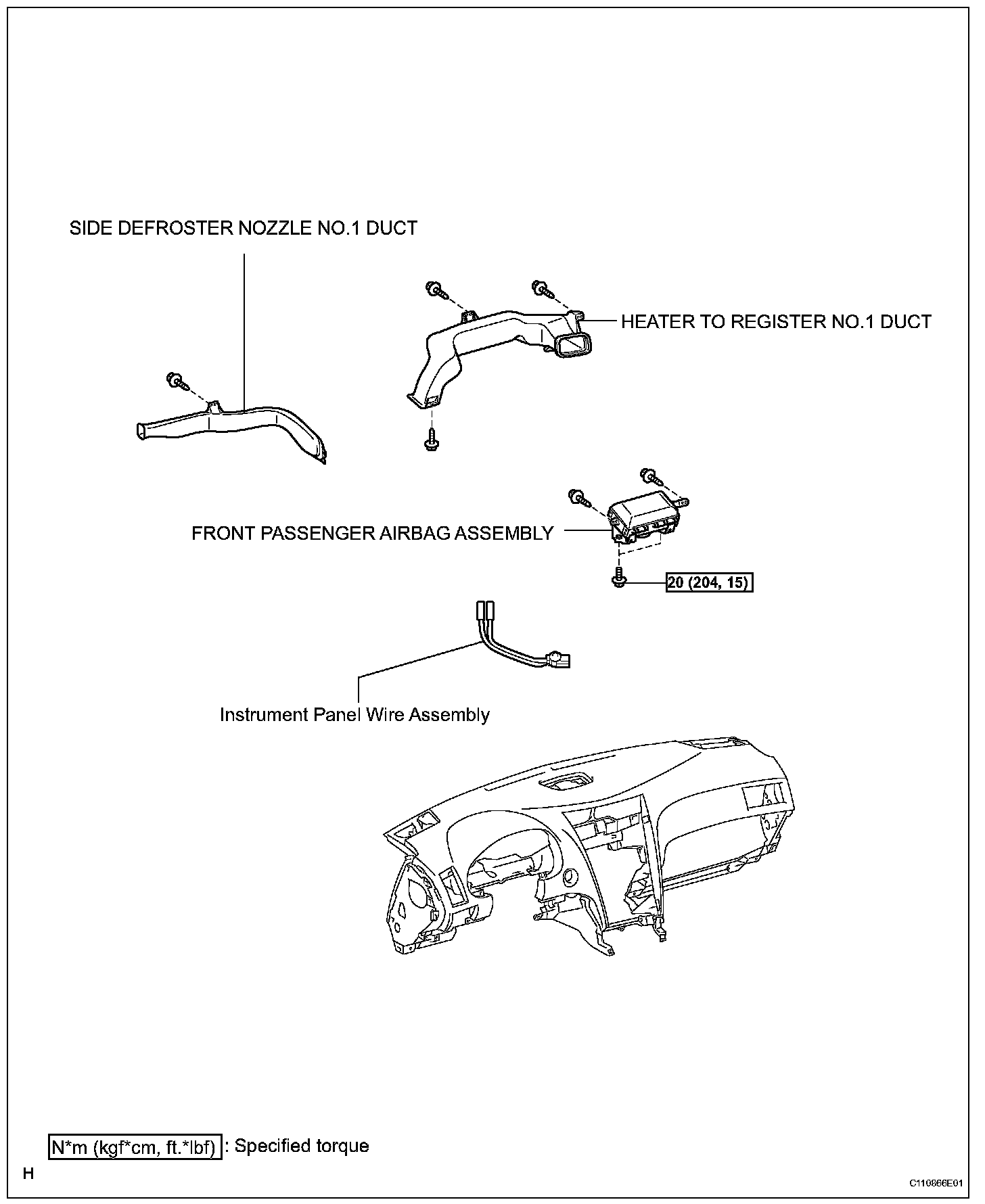

Front Passenger Airbag Assembly:

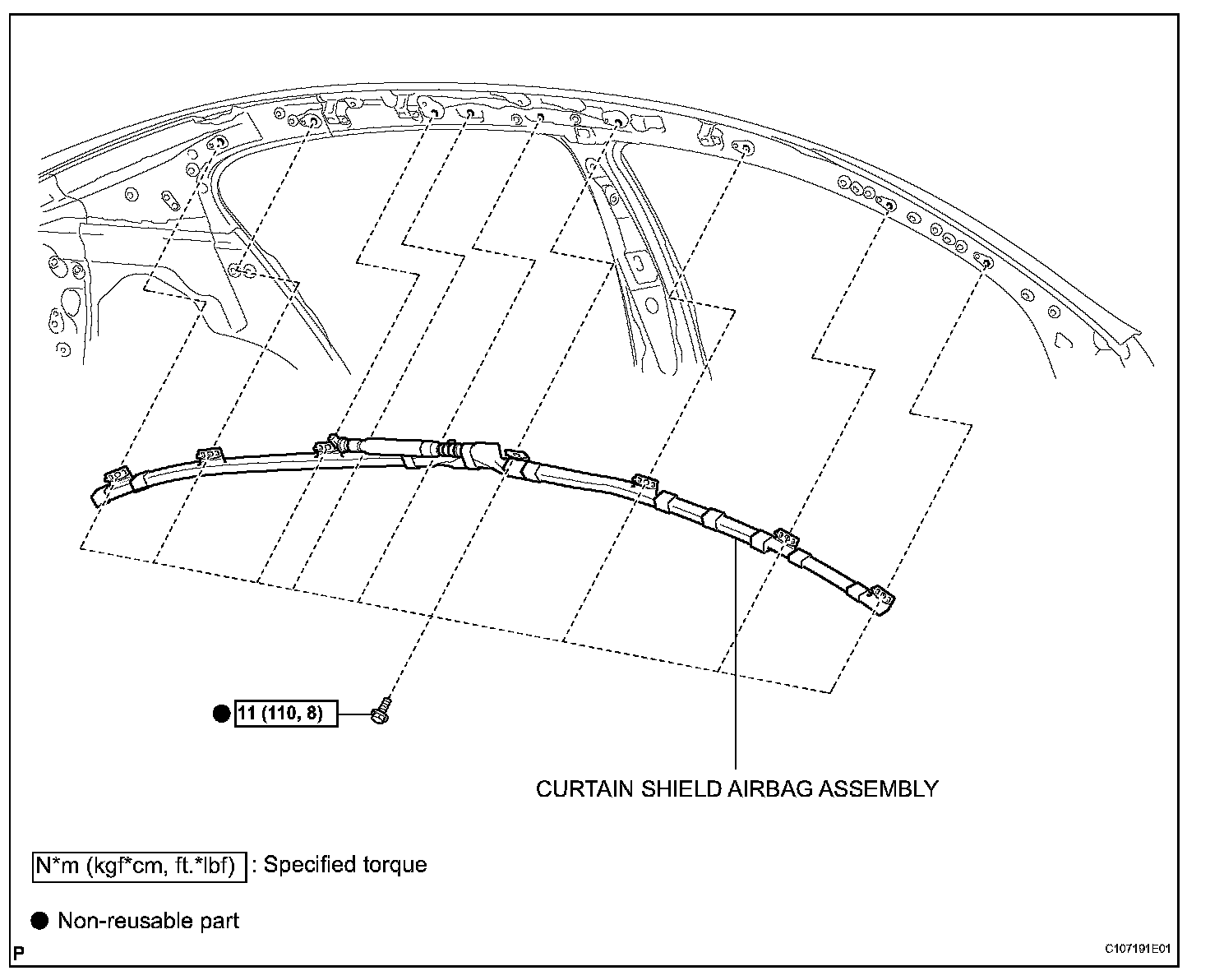

Curtain Shield Airbag Assembly:

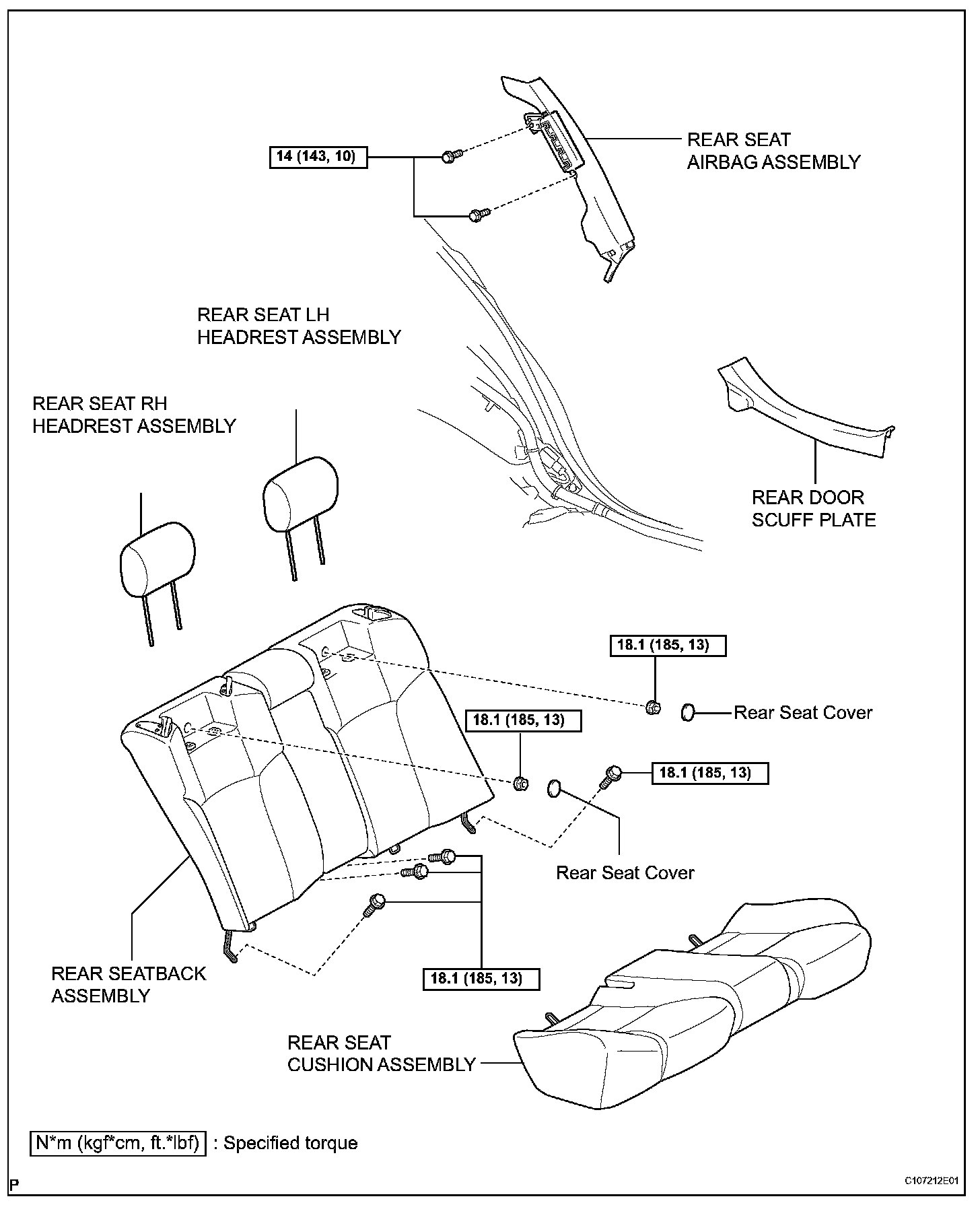

Rear Seat Airbag Assembly:
