Suspension Control ( Automatic - Electronic )

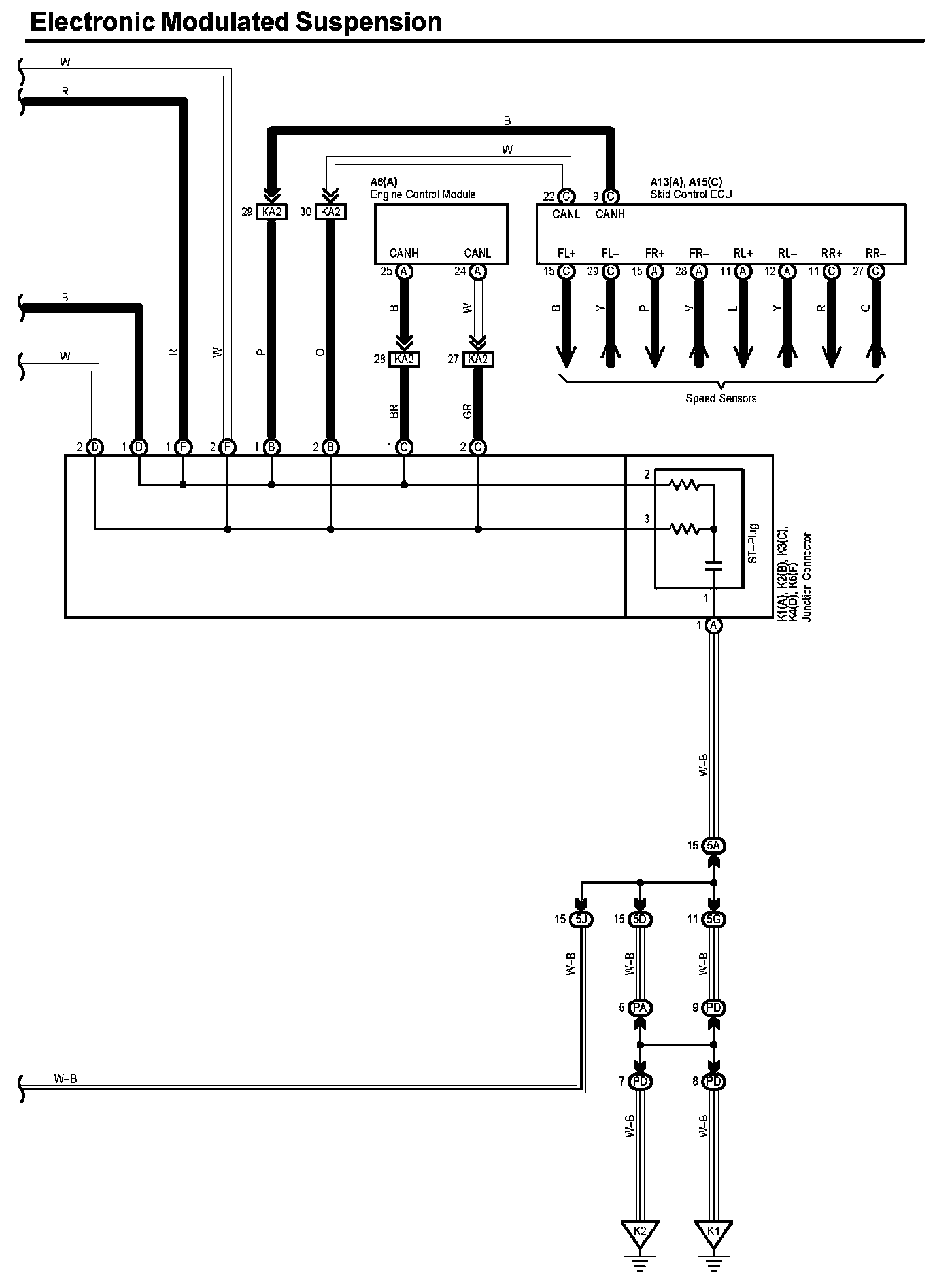

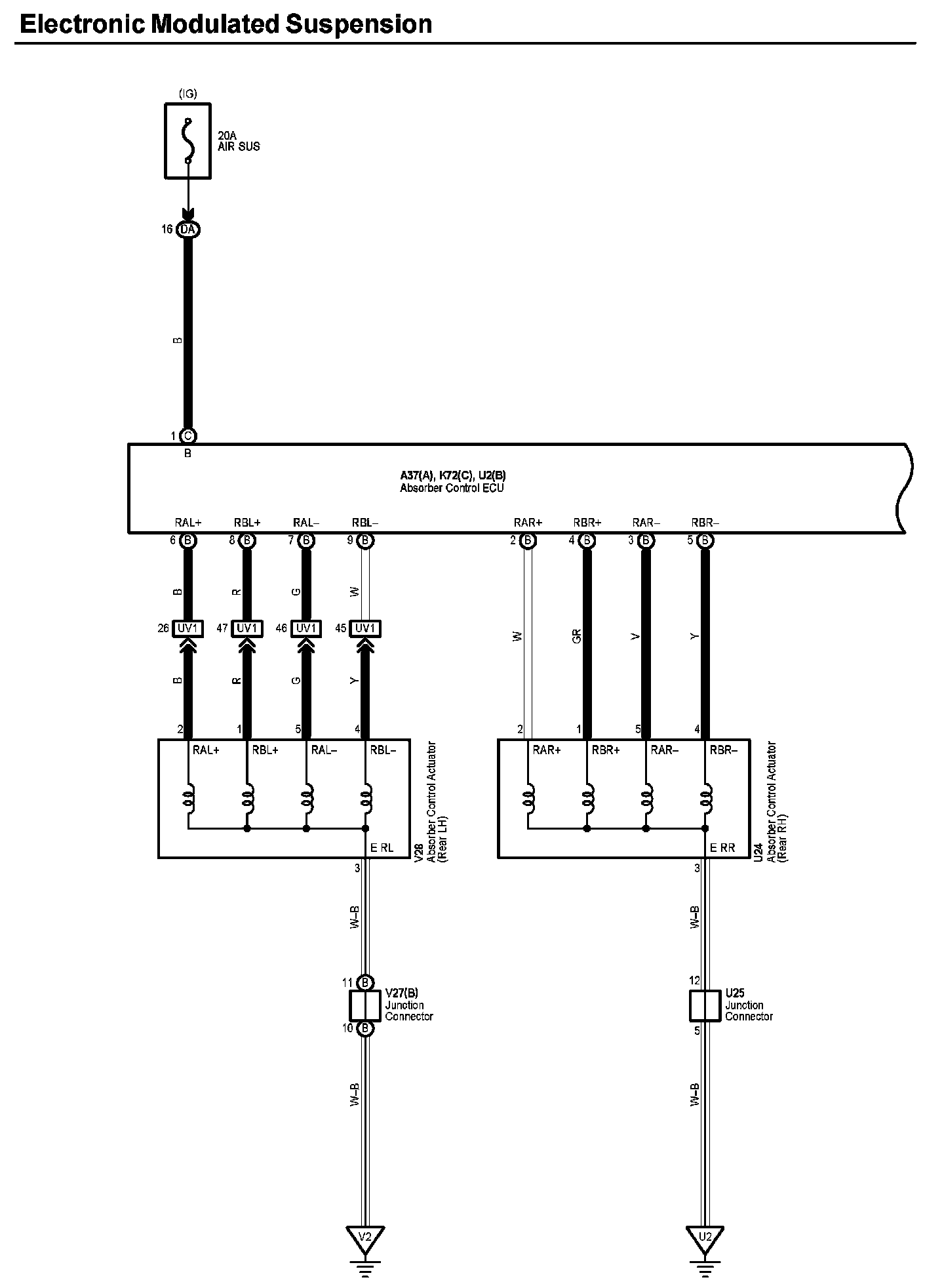

Electronic Modulated Suspension (Part 1):

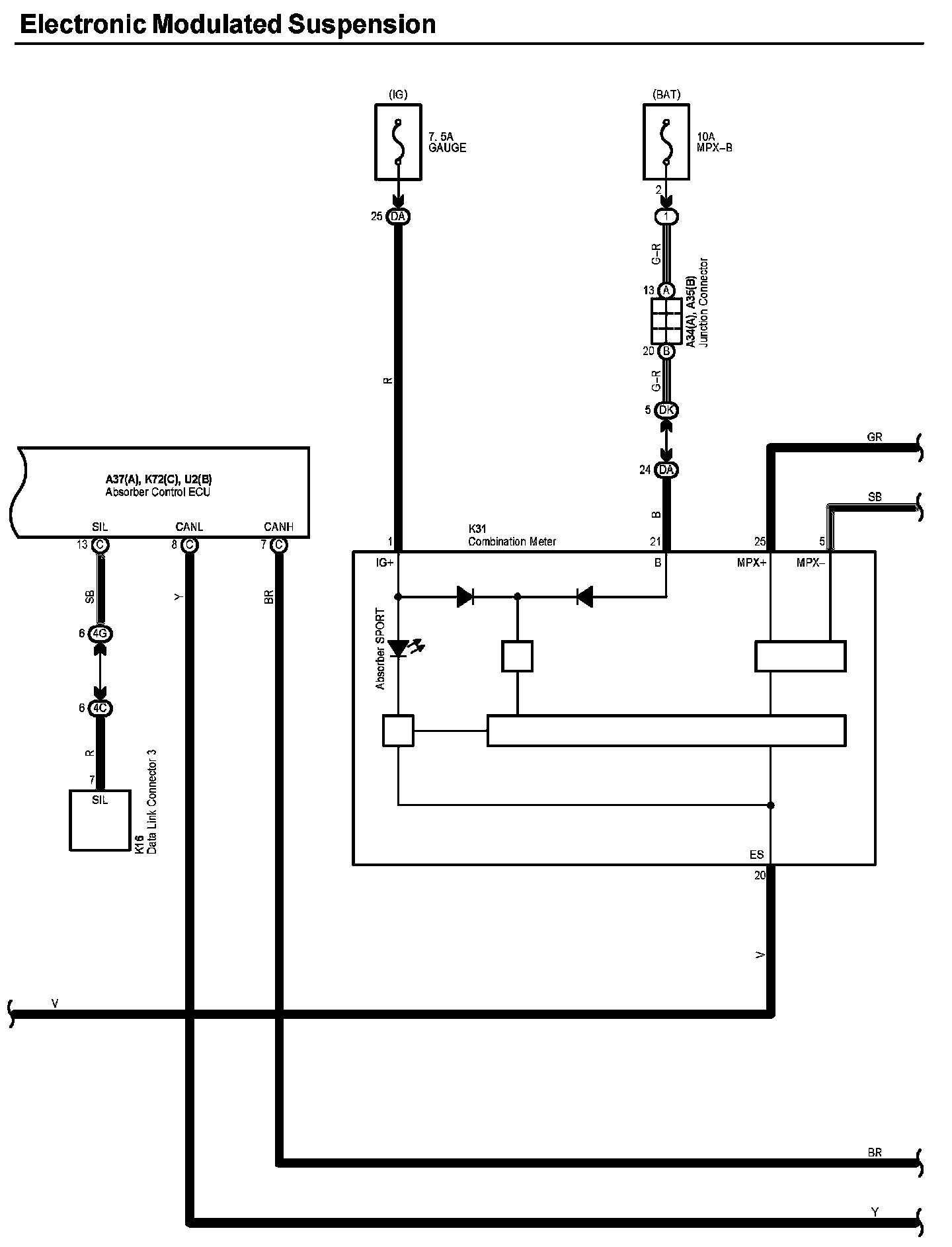

Electronic Modulated Suspension (Part 2):

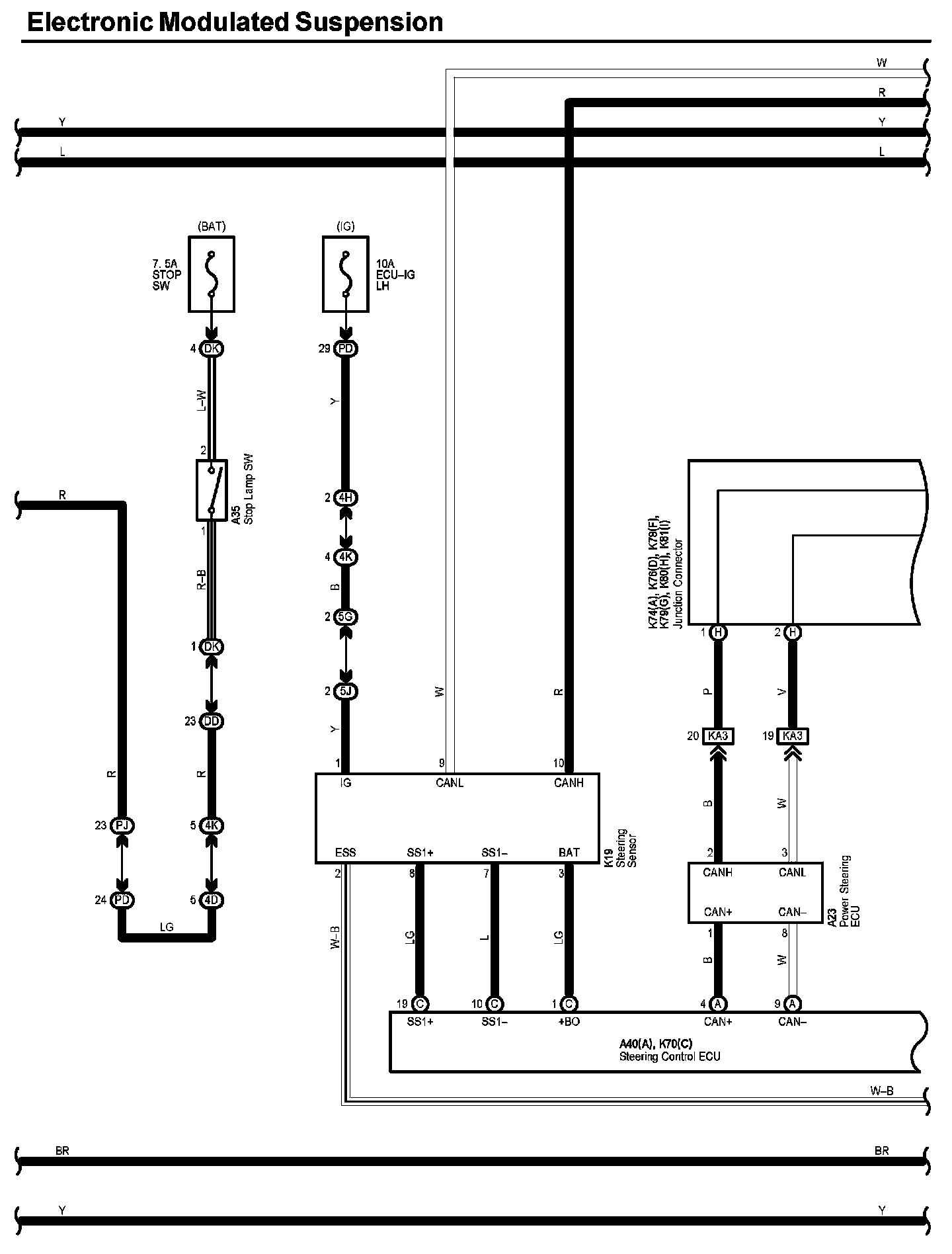

Electronic Modulated Suspension (Part 3):

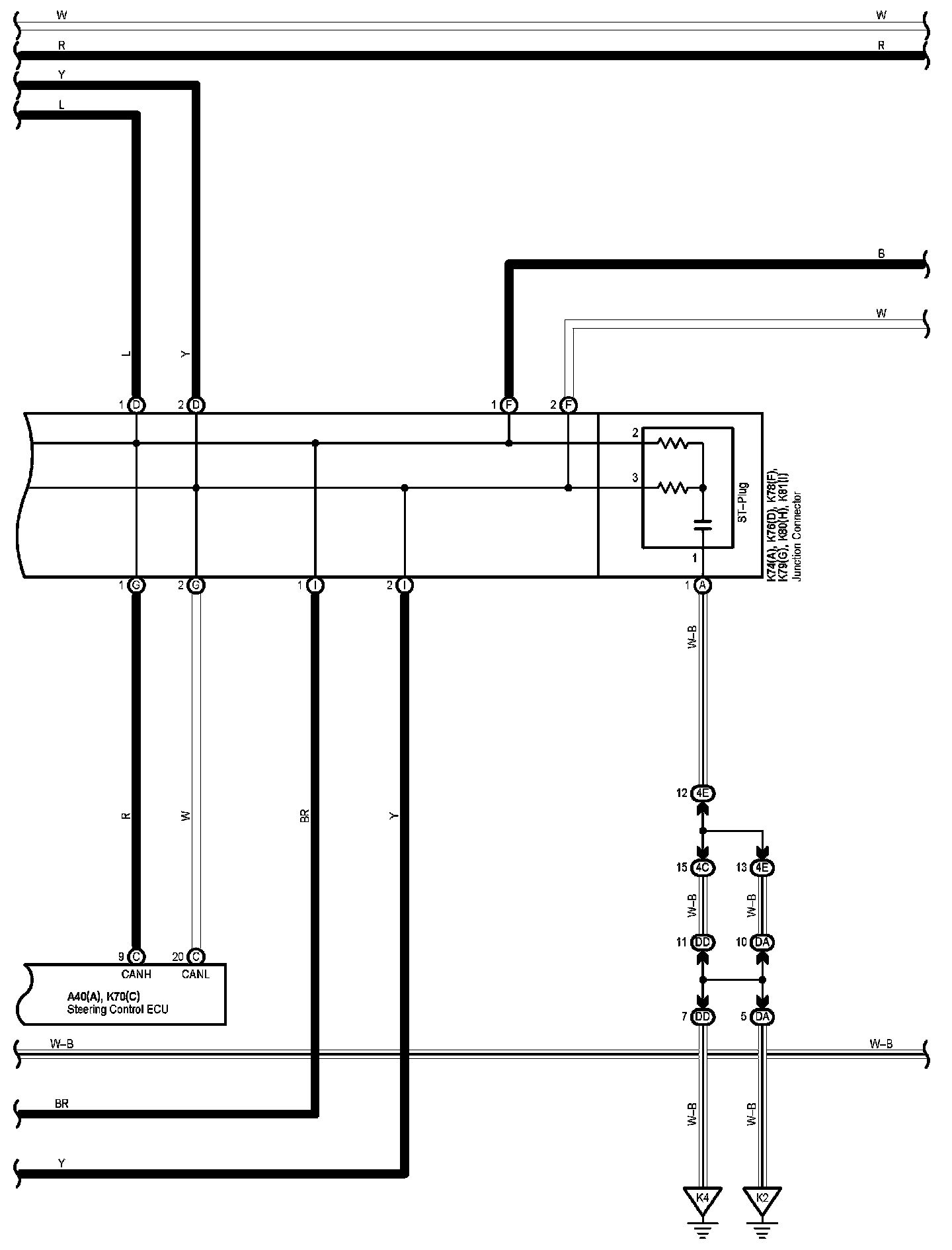

Electronic Modulated Suspension (Part 4):

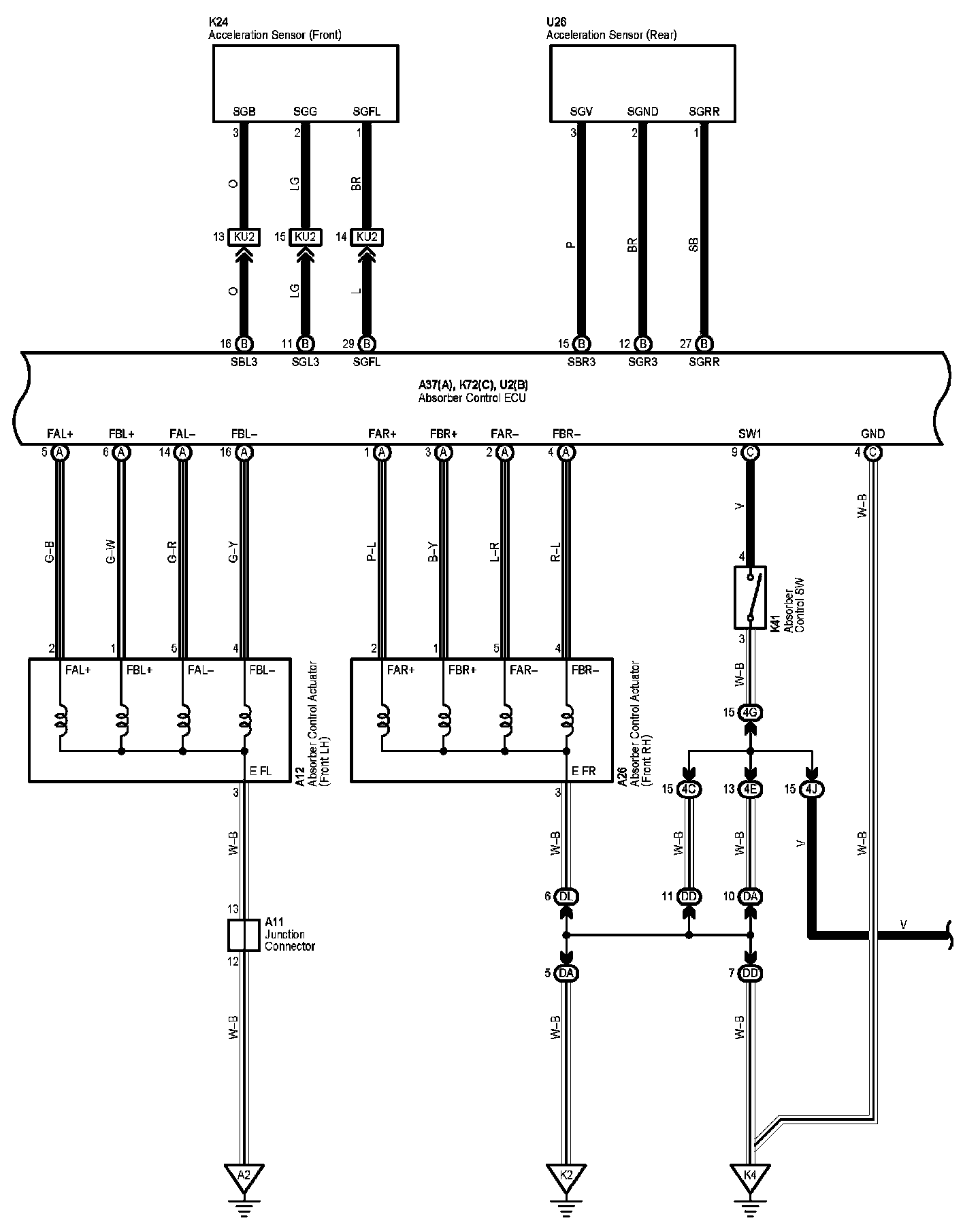

Electronic Modulated Suspension (Part 5):

Electronic Modulated Suspension (Part 6):

Electronic Modulated Suspension (Part 7):

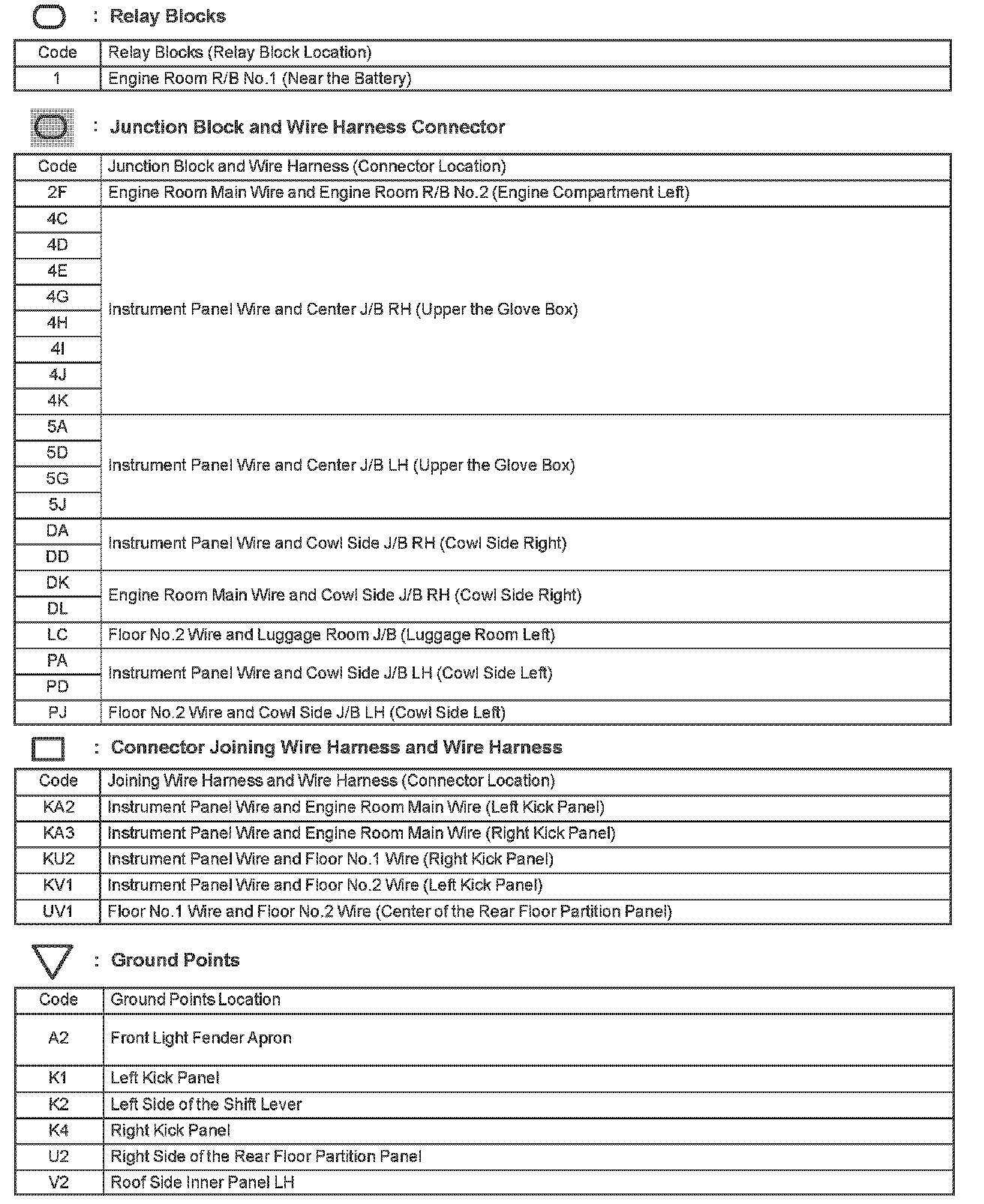

Diagram Legend:

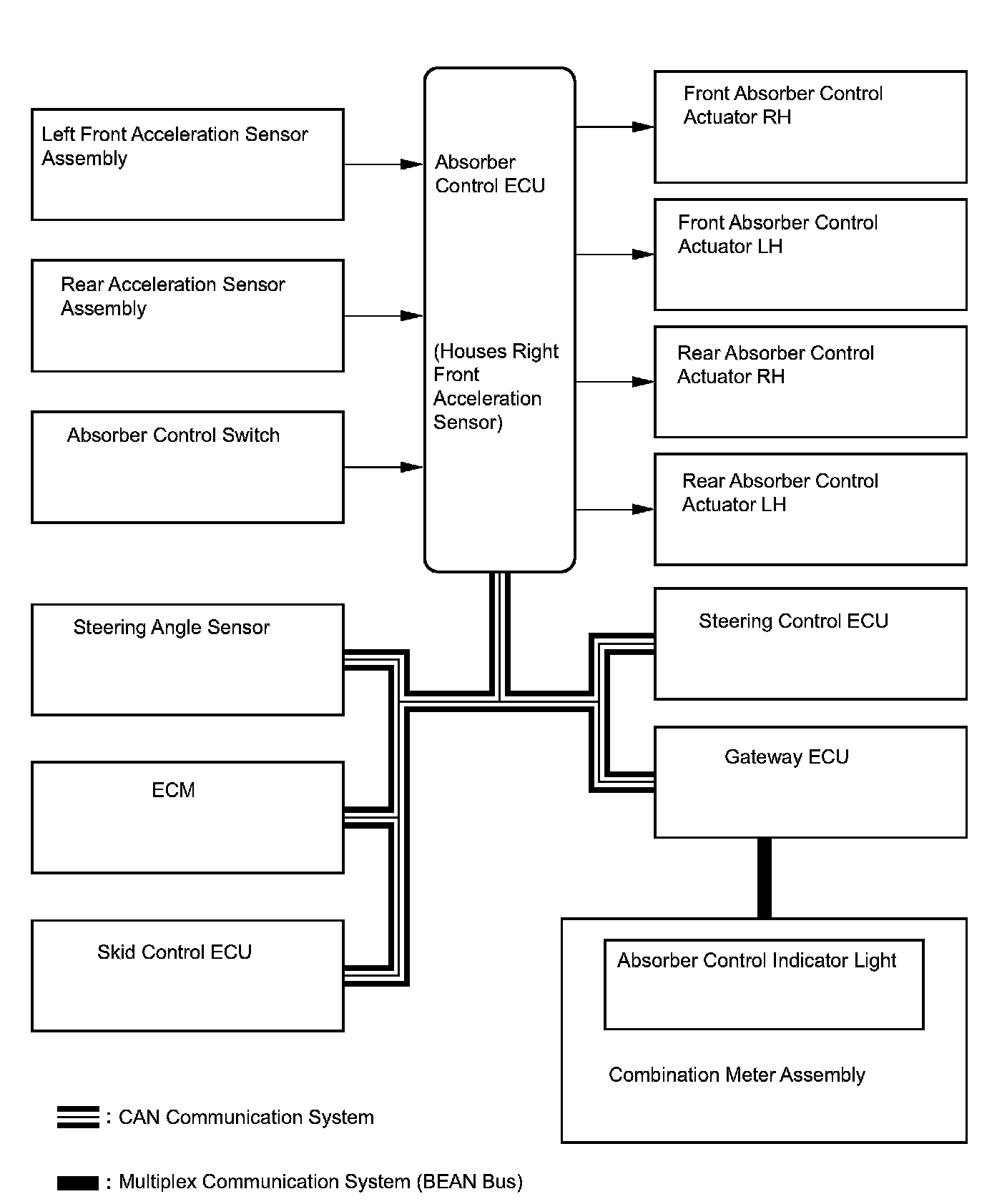

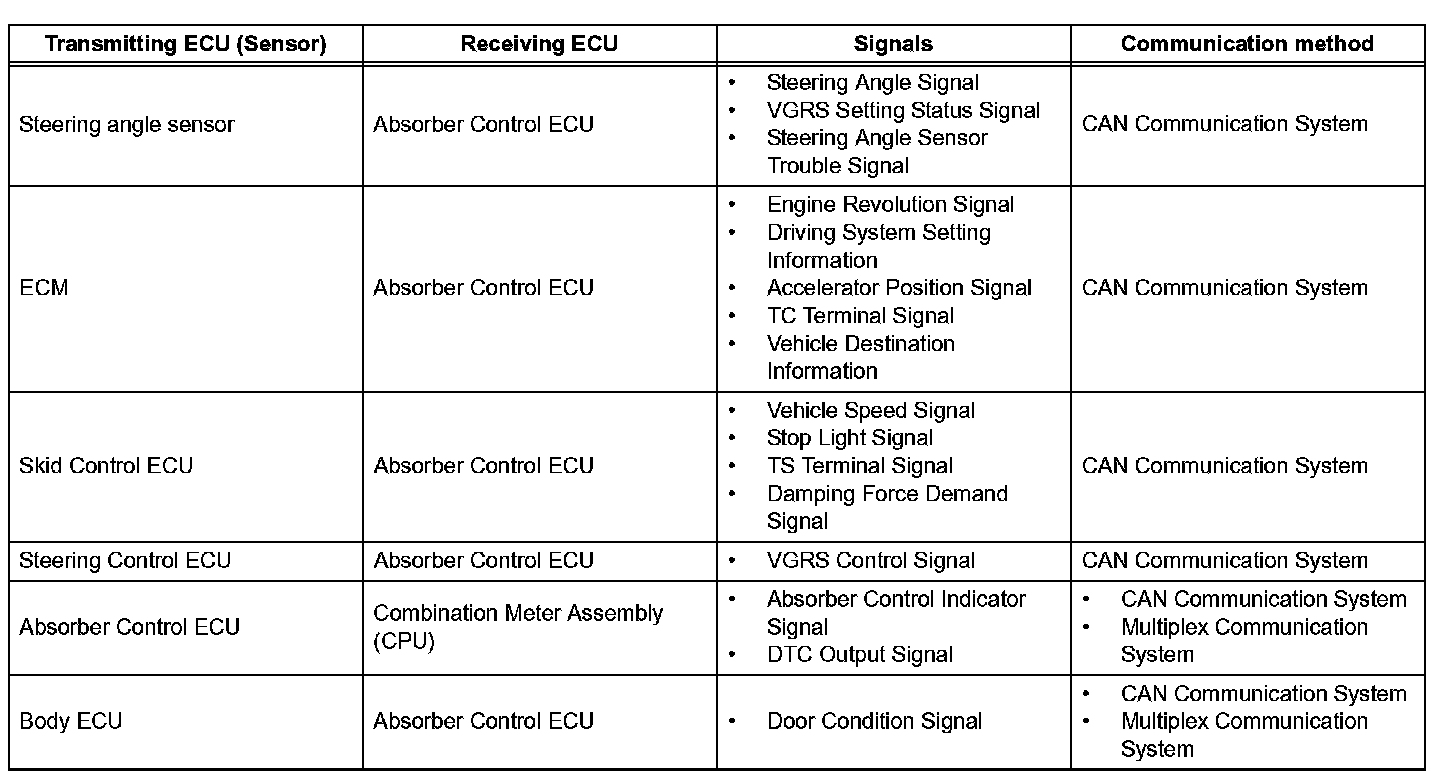

SYSTEM DIAGRAM:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
