Electronic Power Steering System

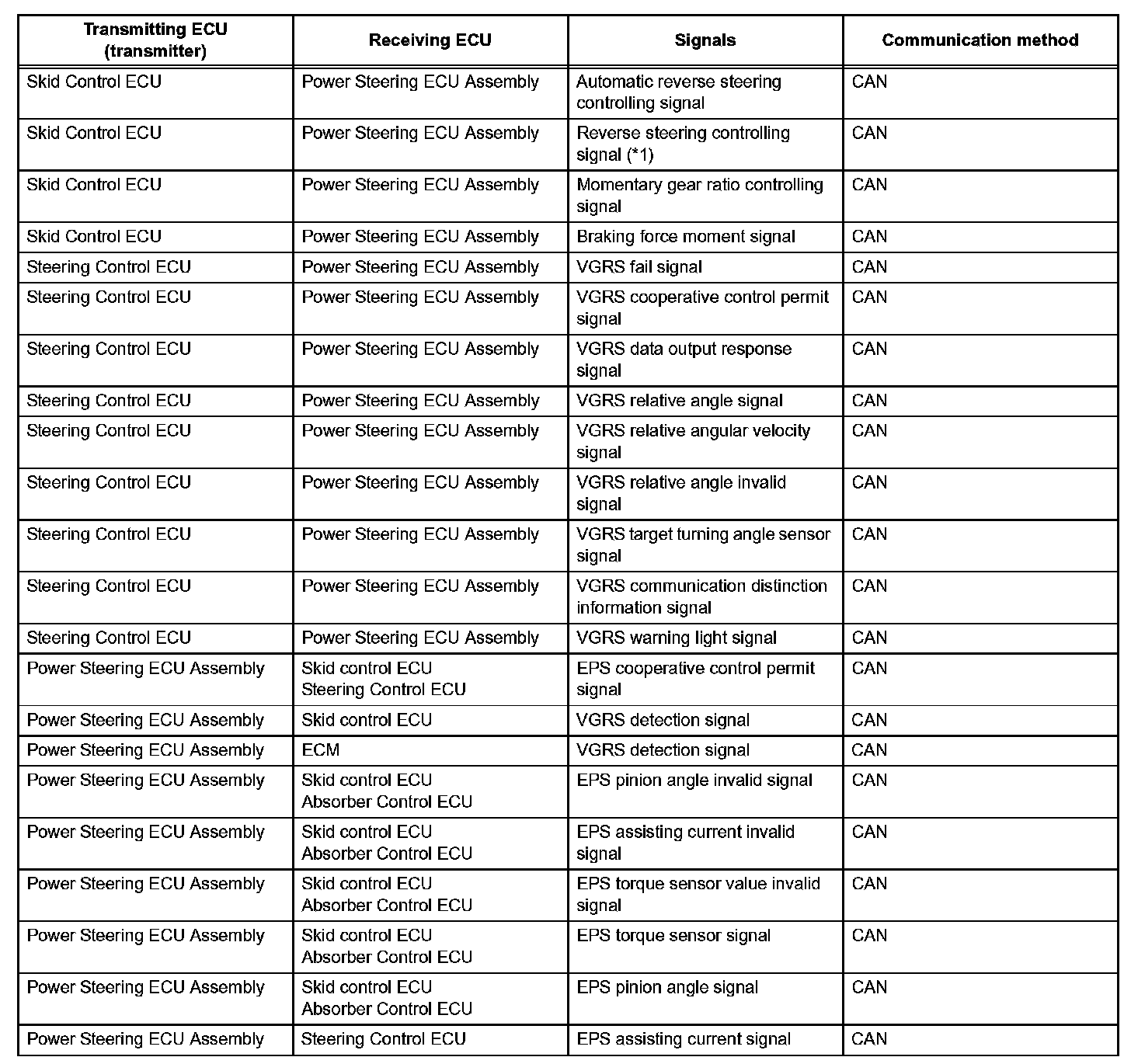

SYSTEM DIAGRAM:

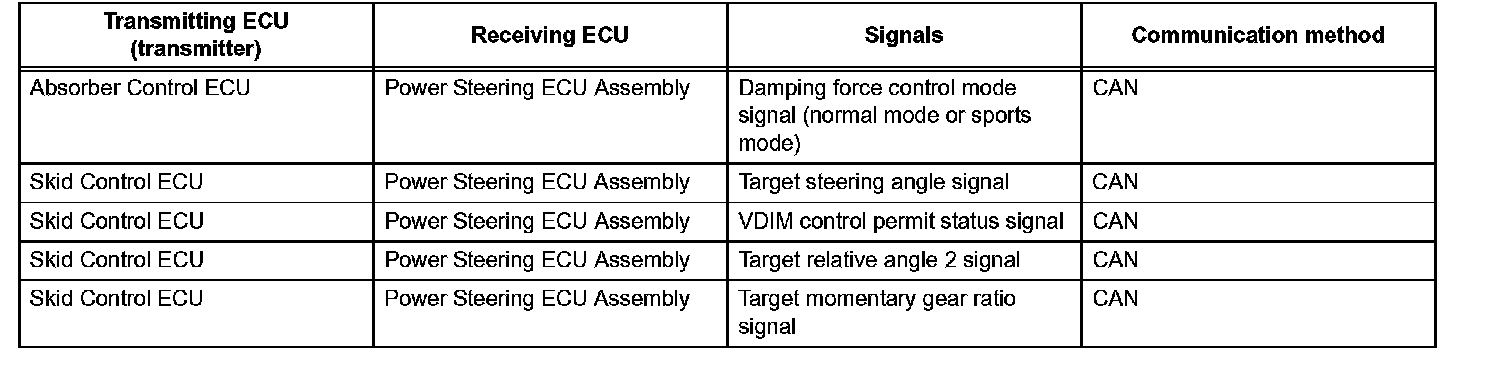

SYSTEM DIAGRAM:

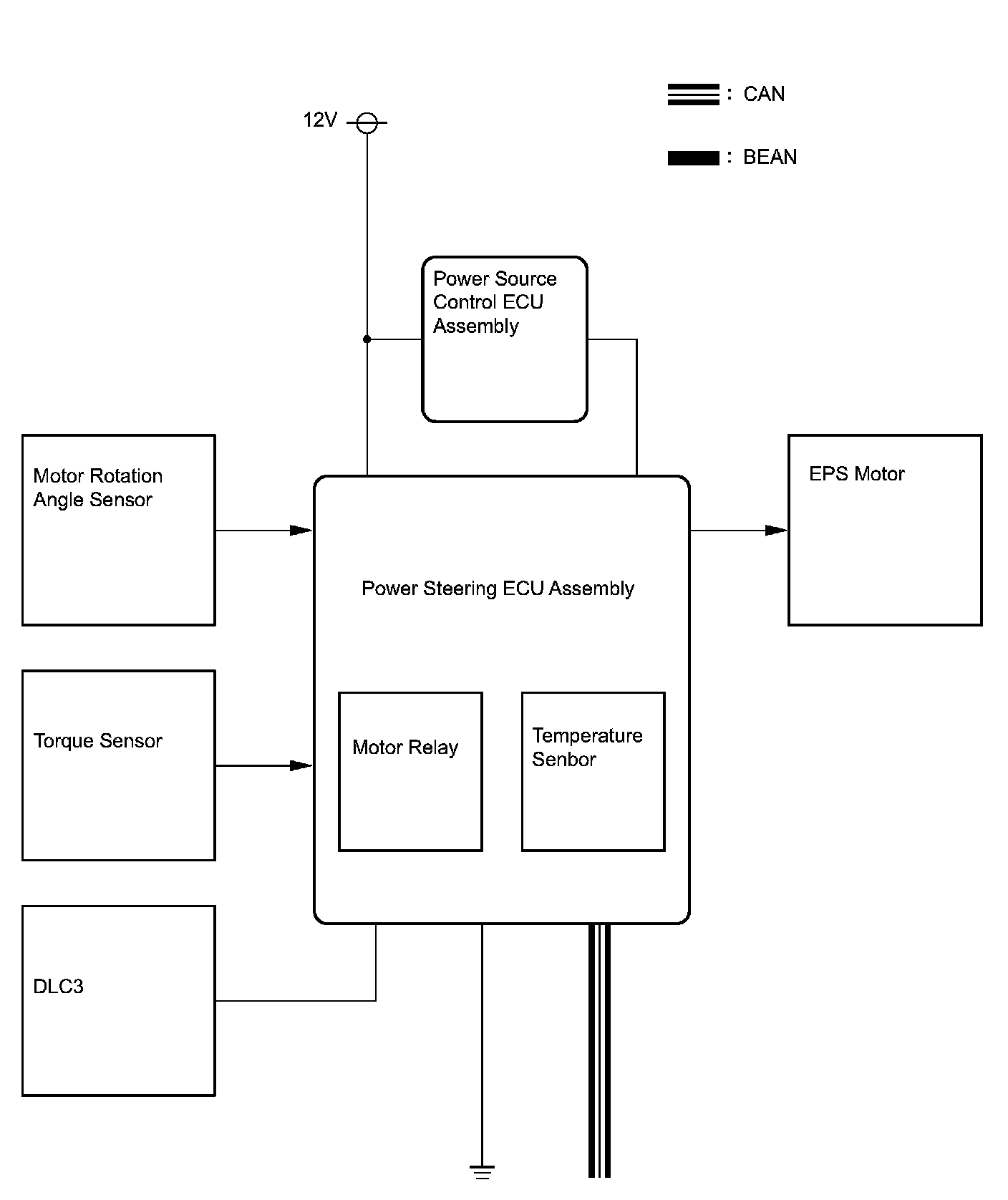

SYSTEM DIAGRAM:

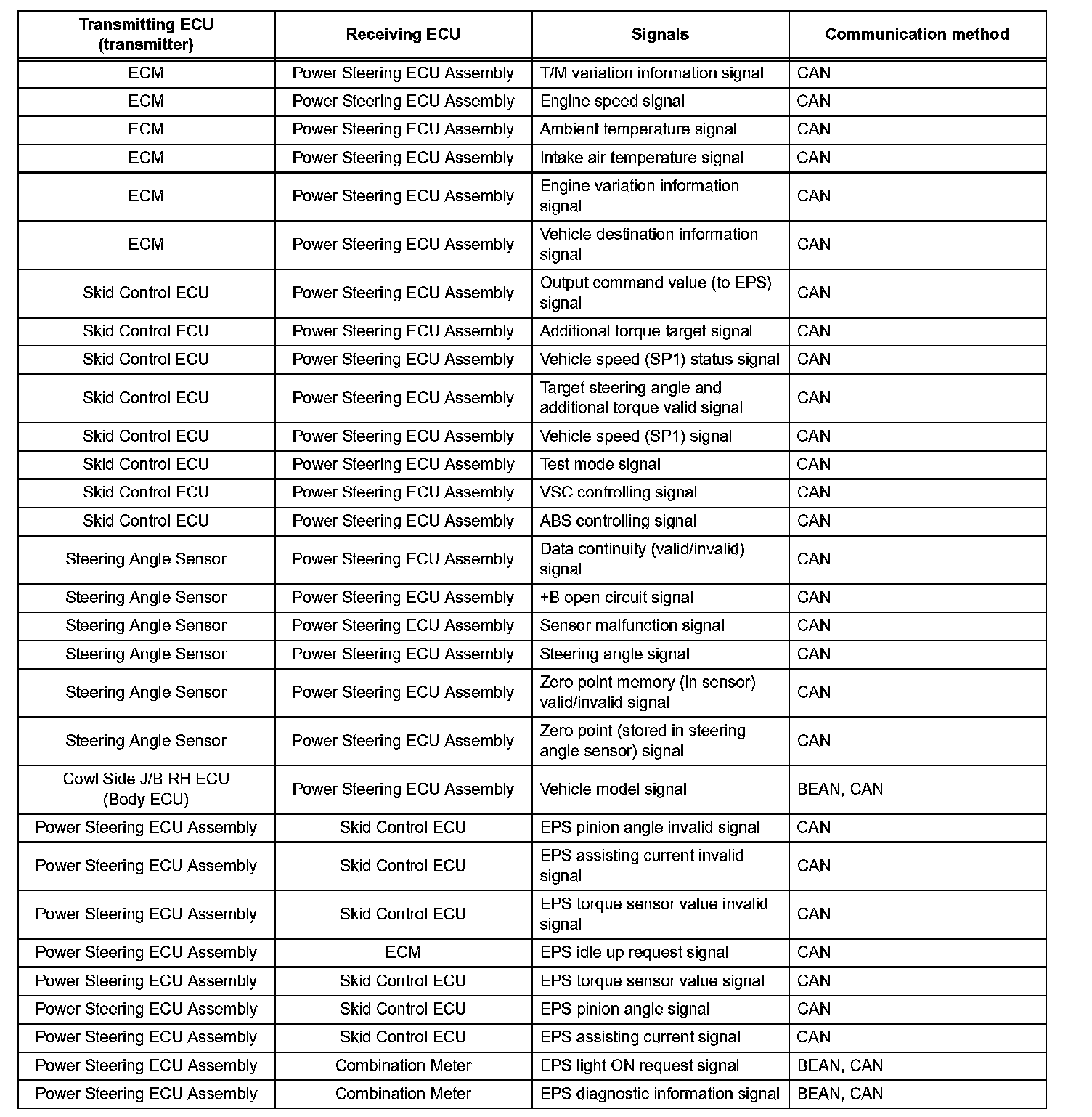

3UZ-FE SYSTEM DIAGRAM:




SYSTEM DIAGRAM:





*1: Transmitted when the vehicle detects different levels of friction between the tires and road surface due to road conditions.
