Steering Column Lock

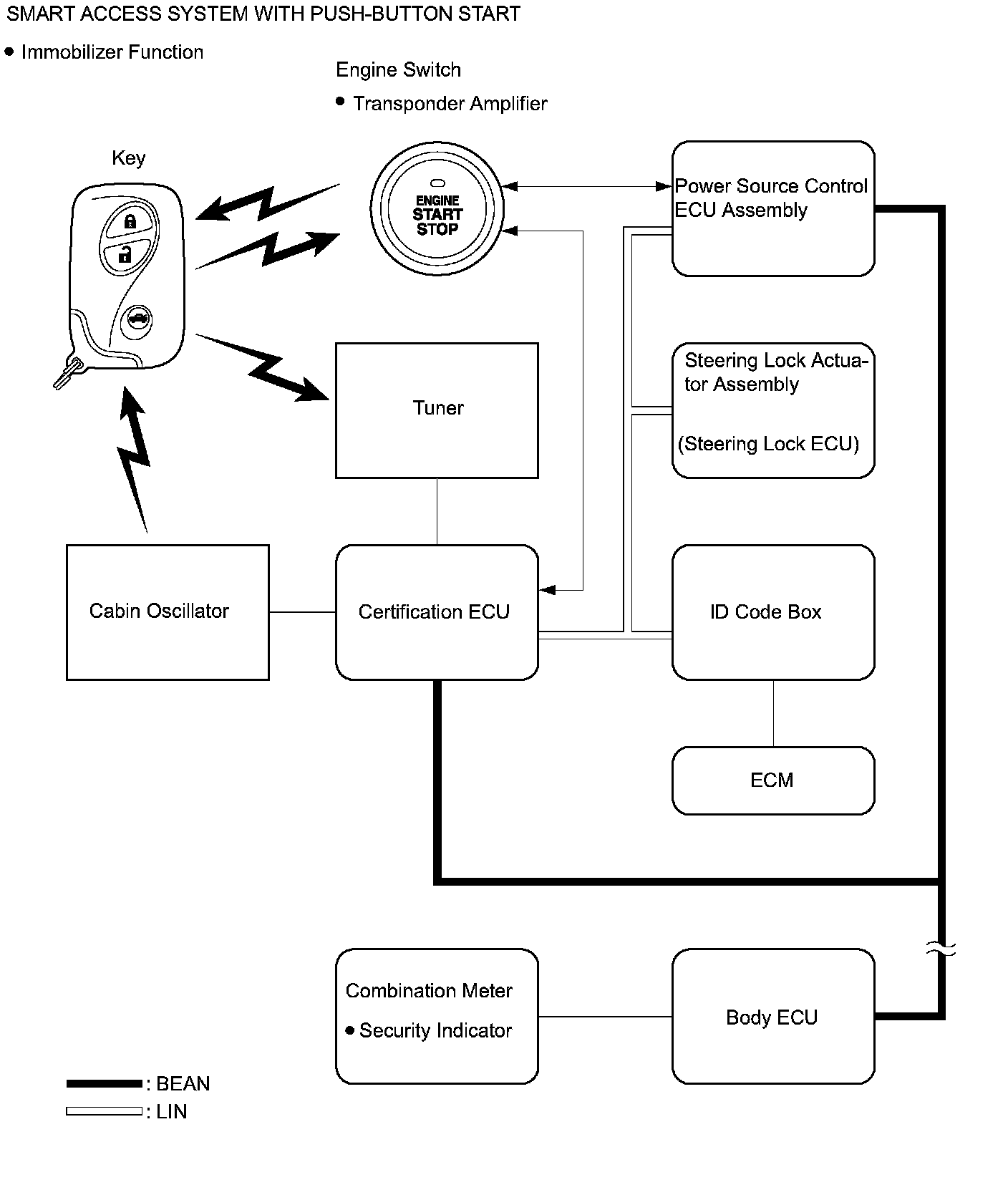

SYSTEM DIAGRAM:

Input and Output Signals of Each ECU:

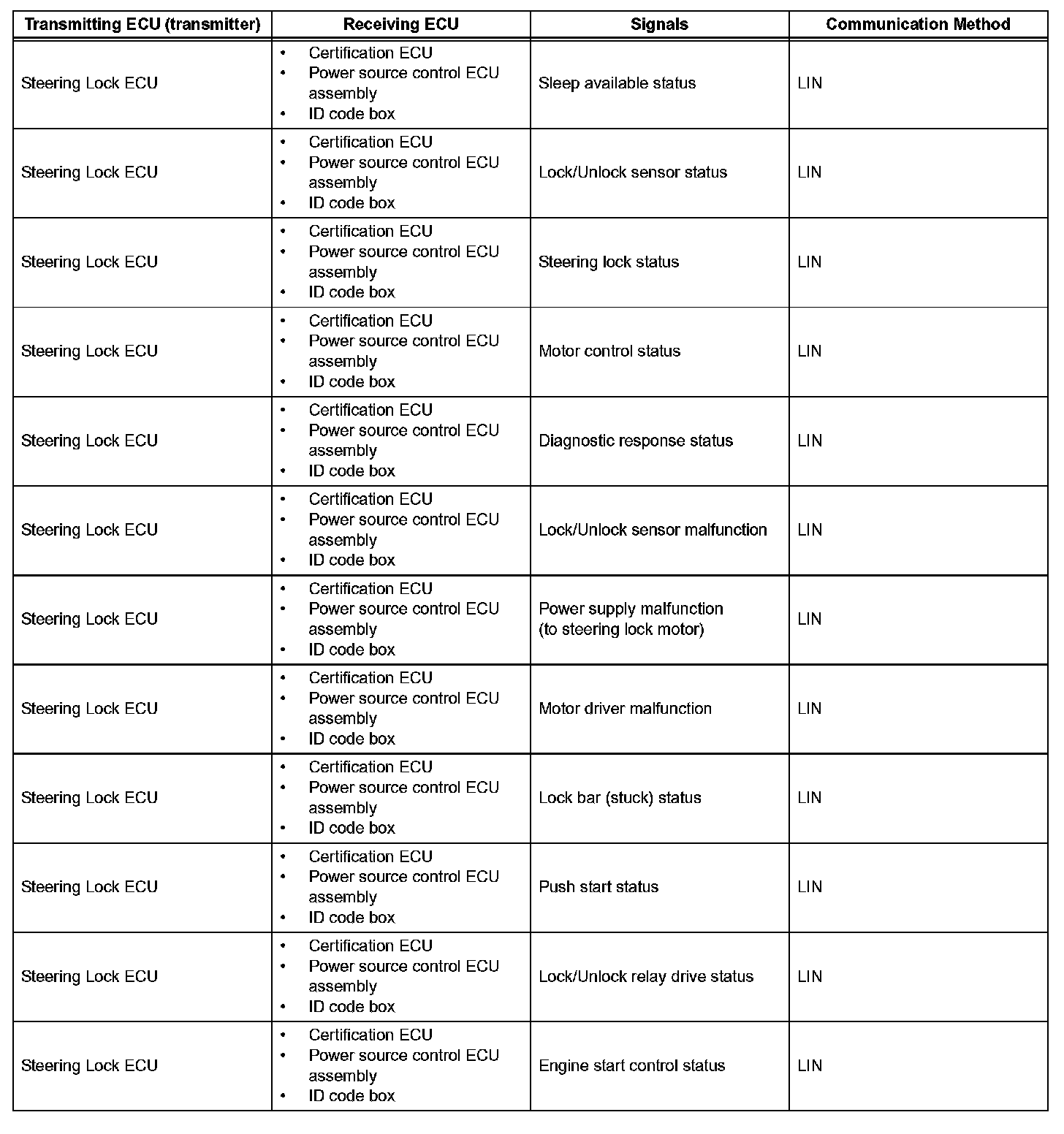

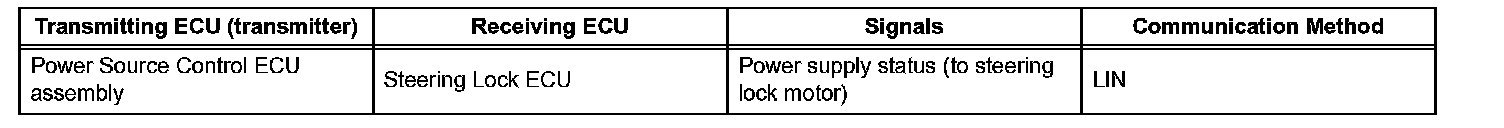

Input and Output Signals of Each ECU:
