Multiplex Communication System

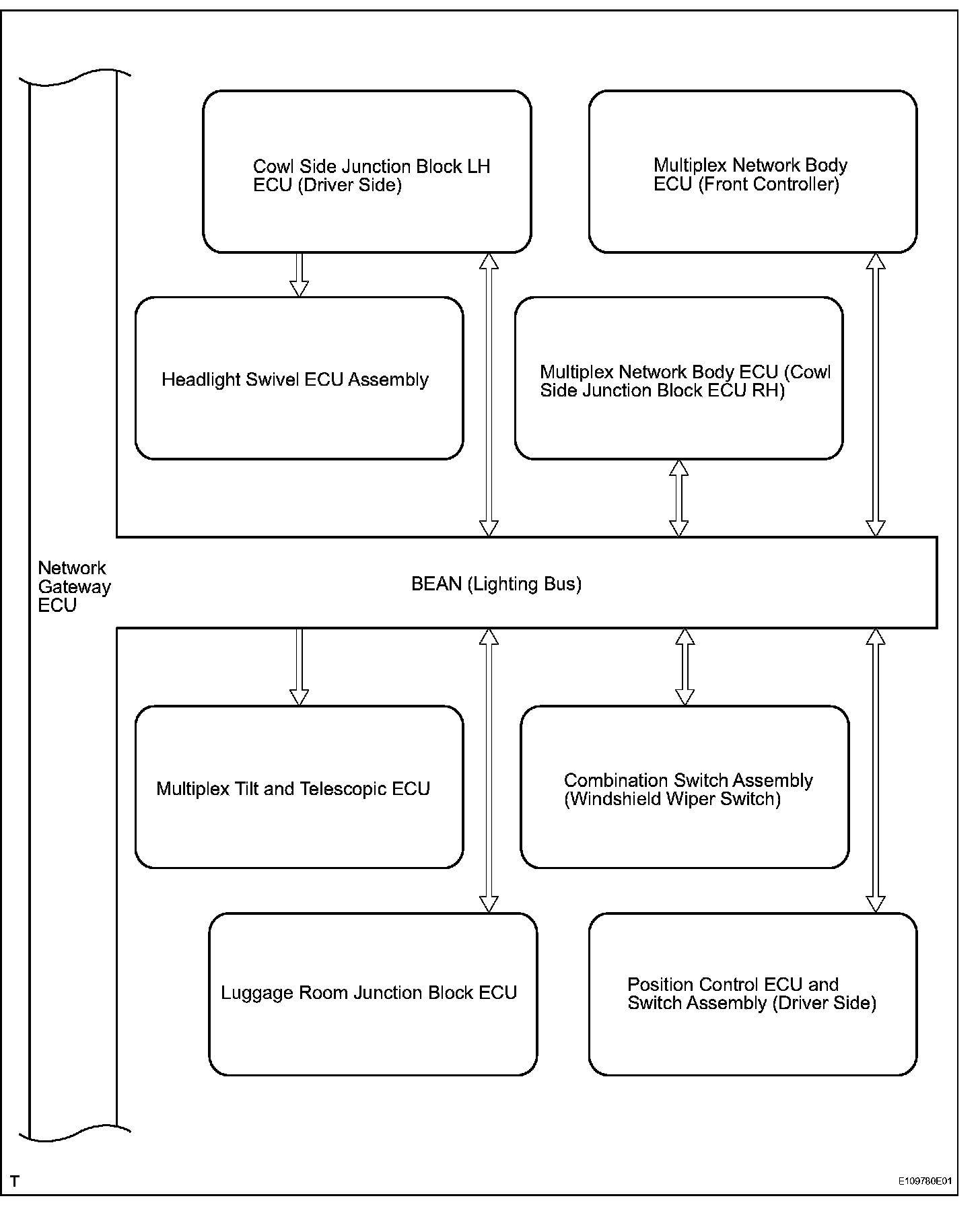

System Diagram (Part 1):

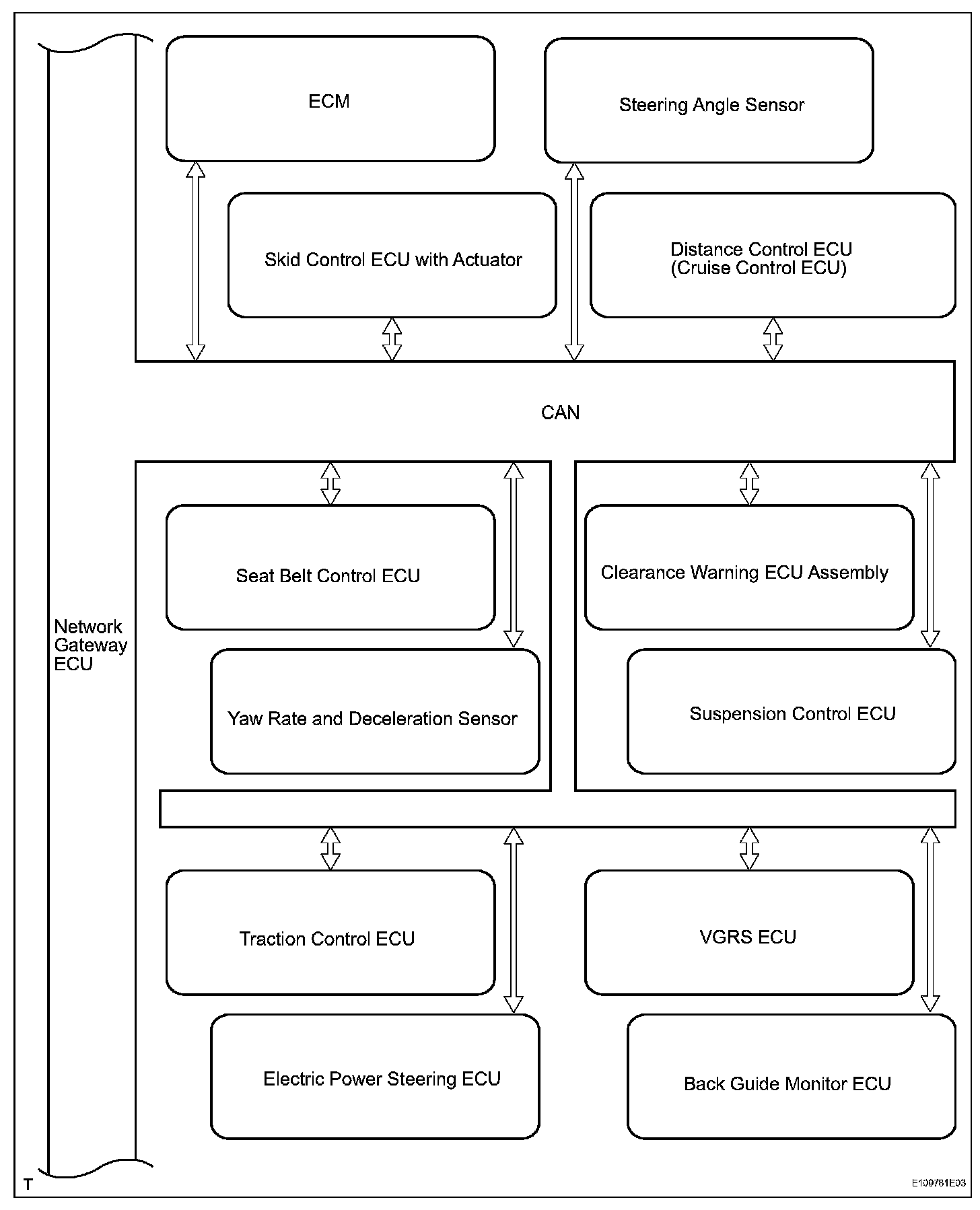

System Diagram (Part 2):

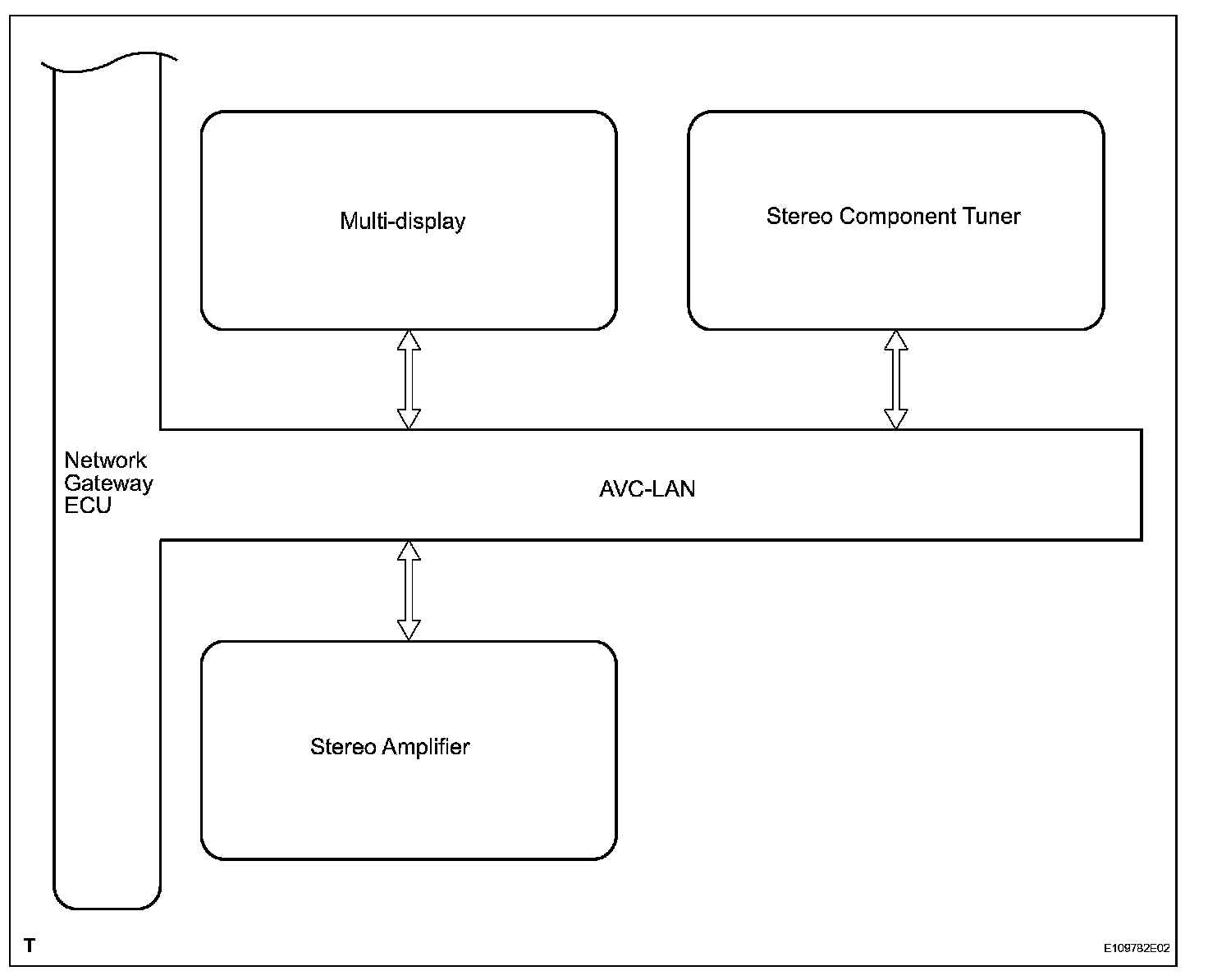

System Diagram (Part 3):

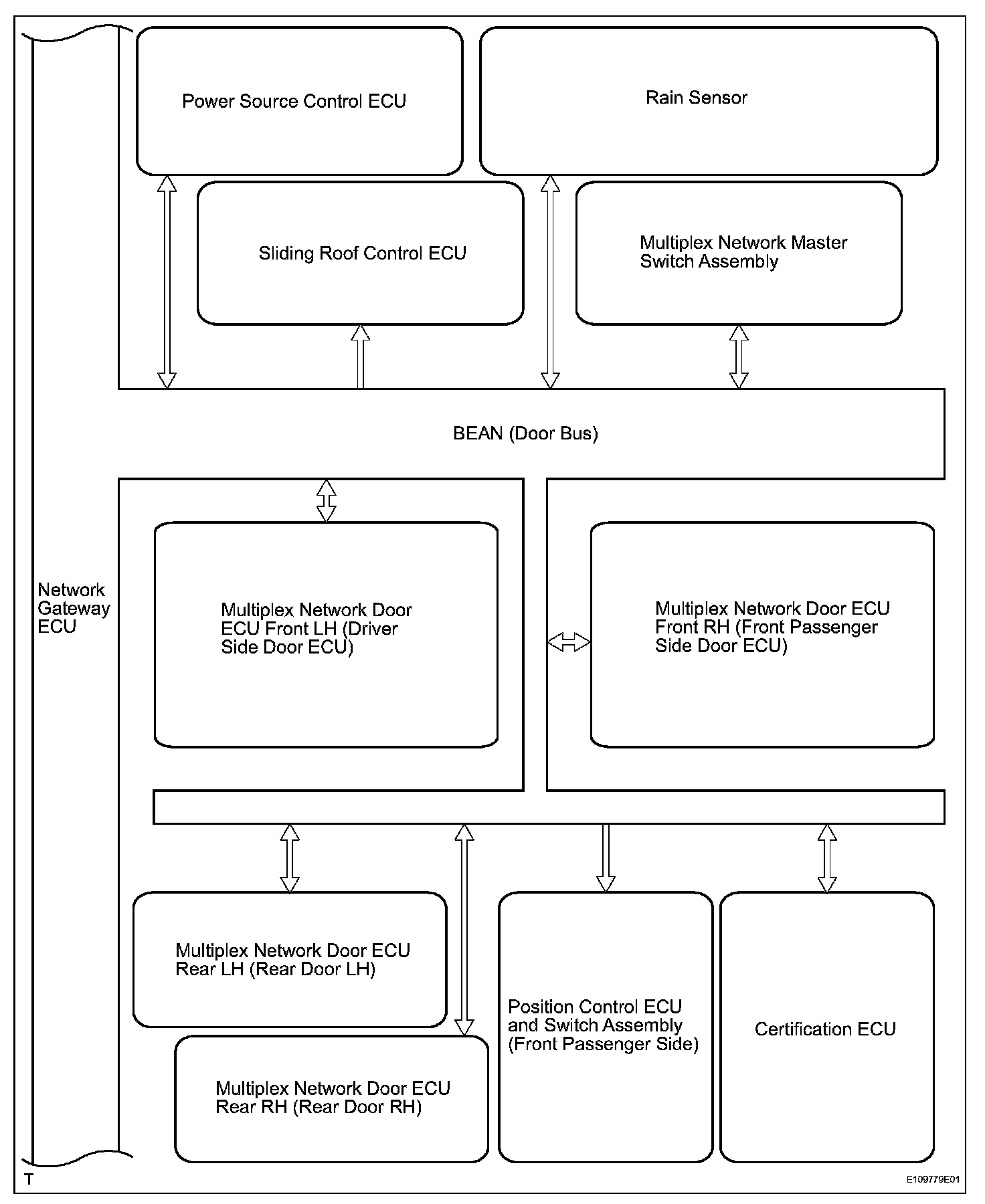

System Diagram (Part 4):



System Diagram (Part 5):



System Diagram (Part 6):
