Courtesy Lamp

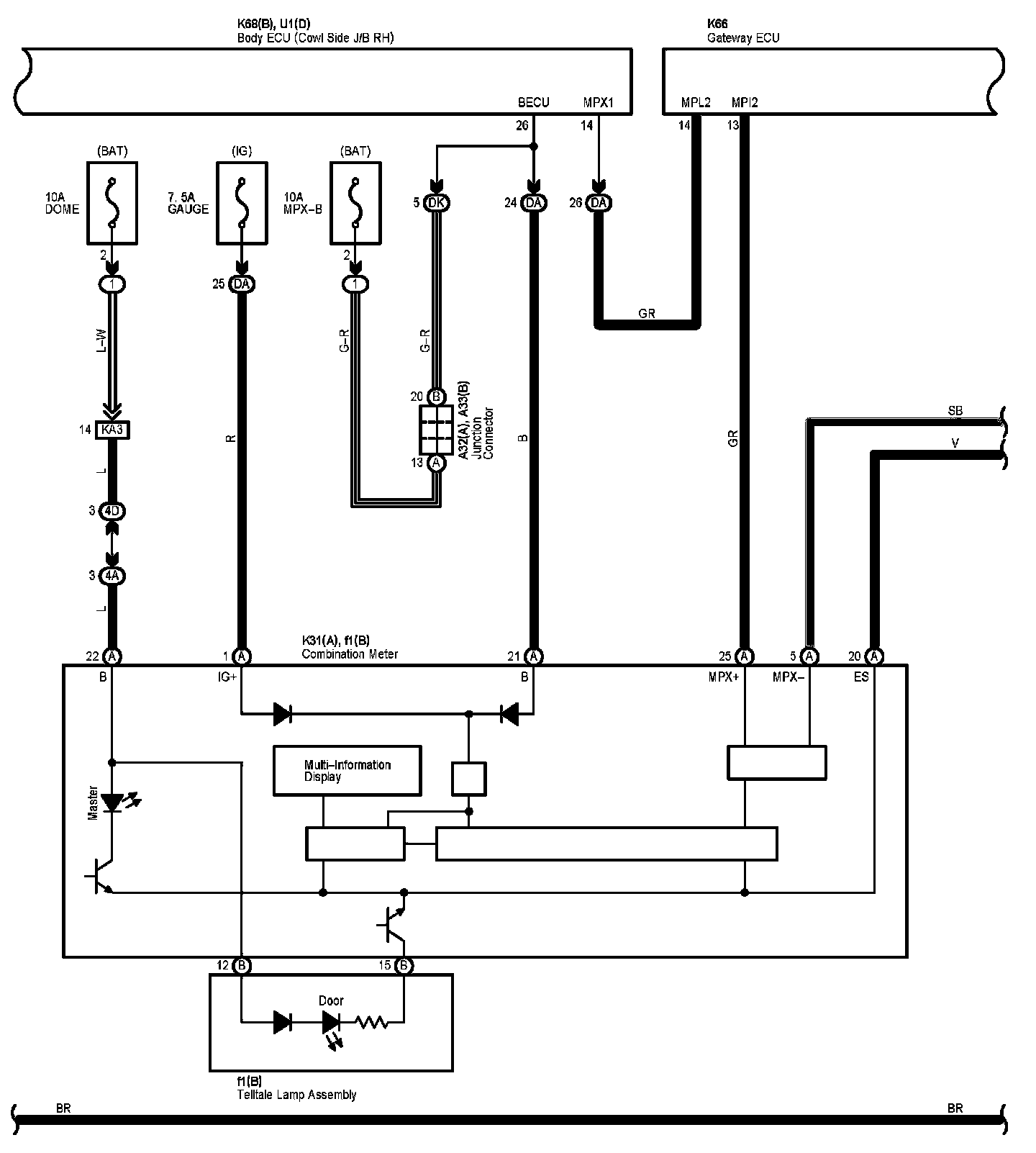

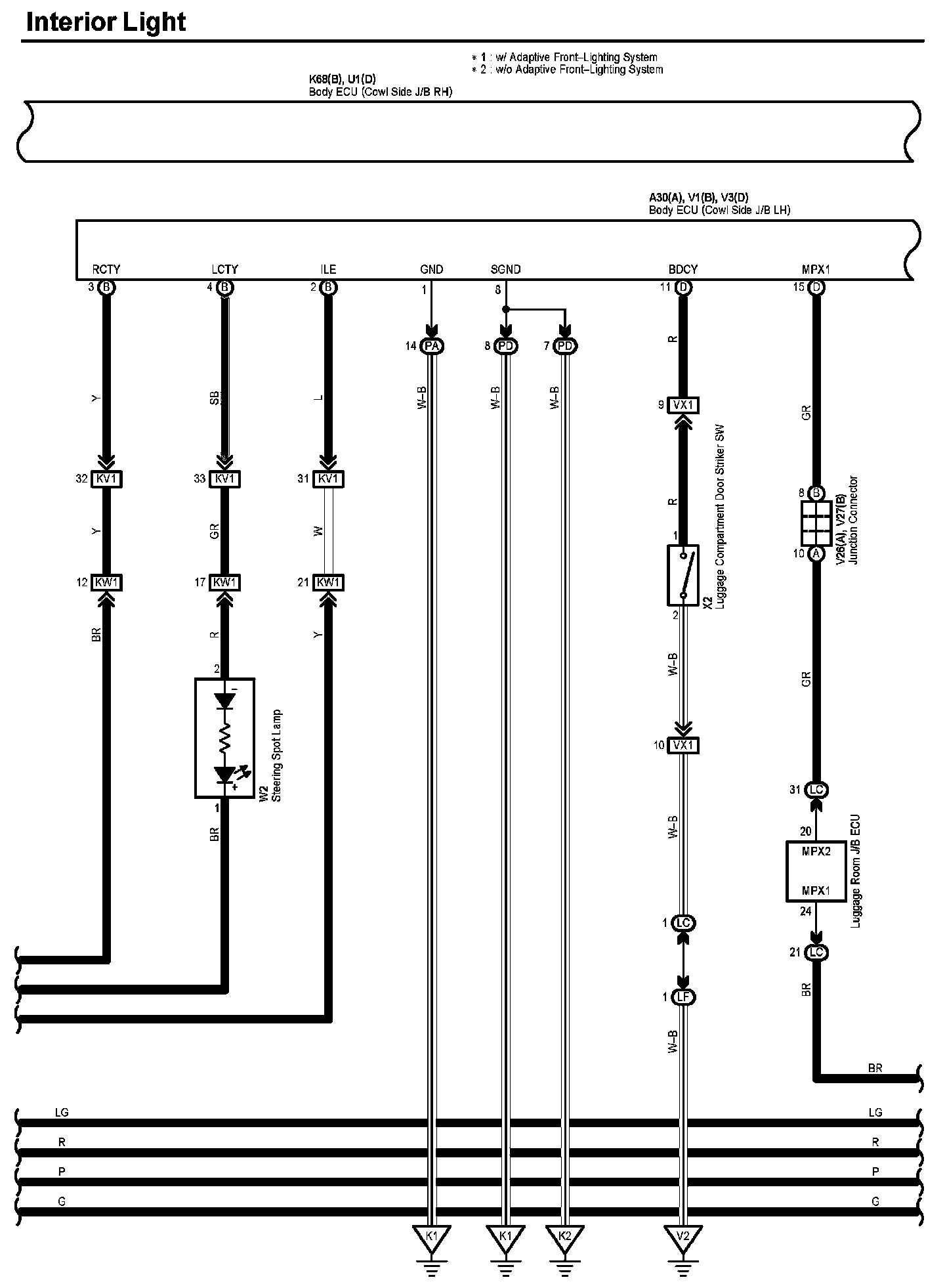

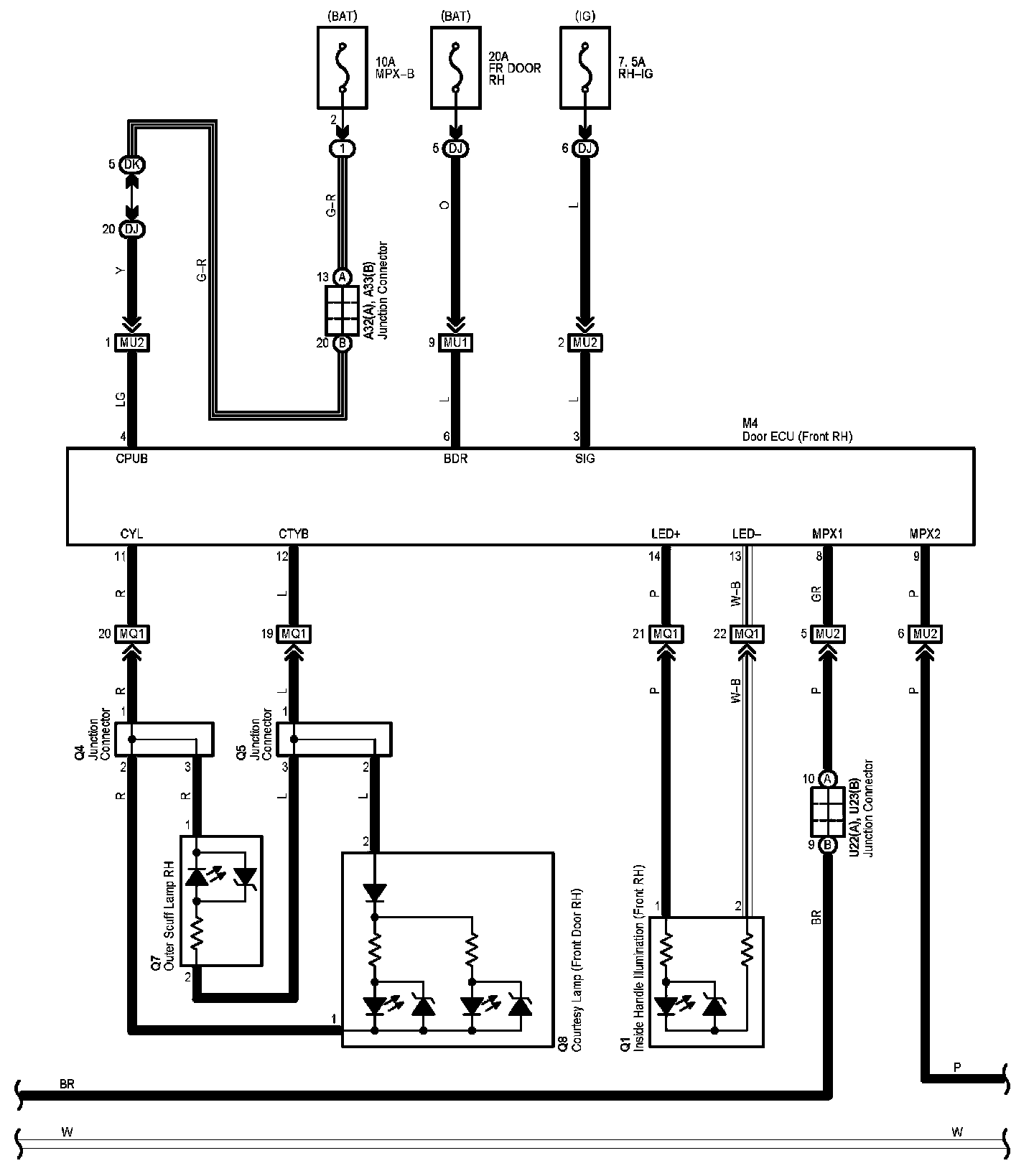

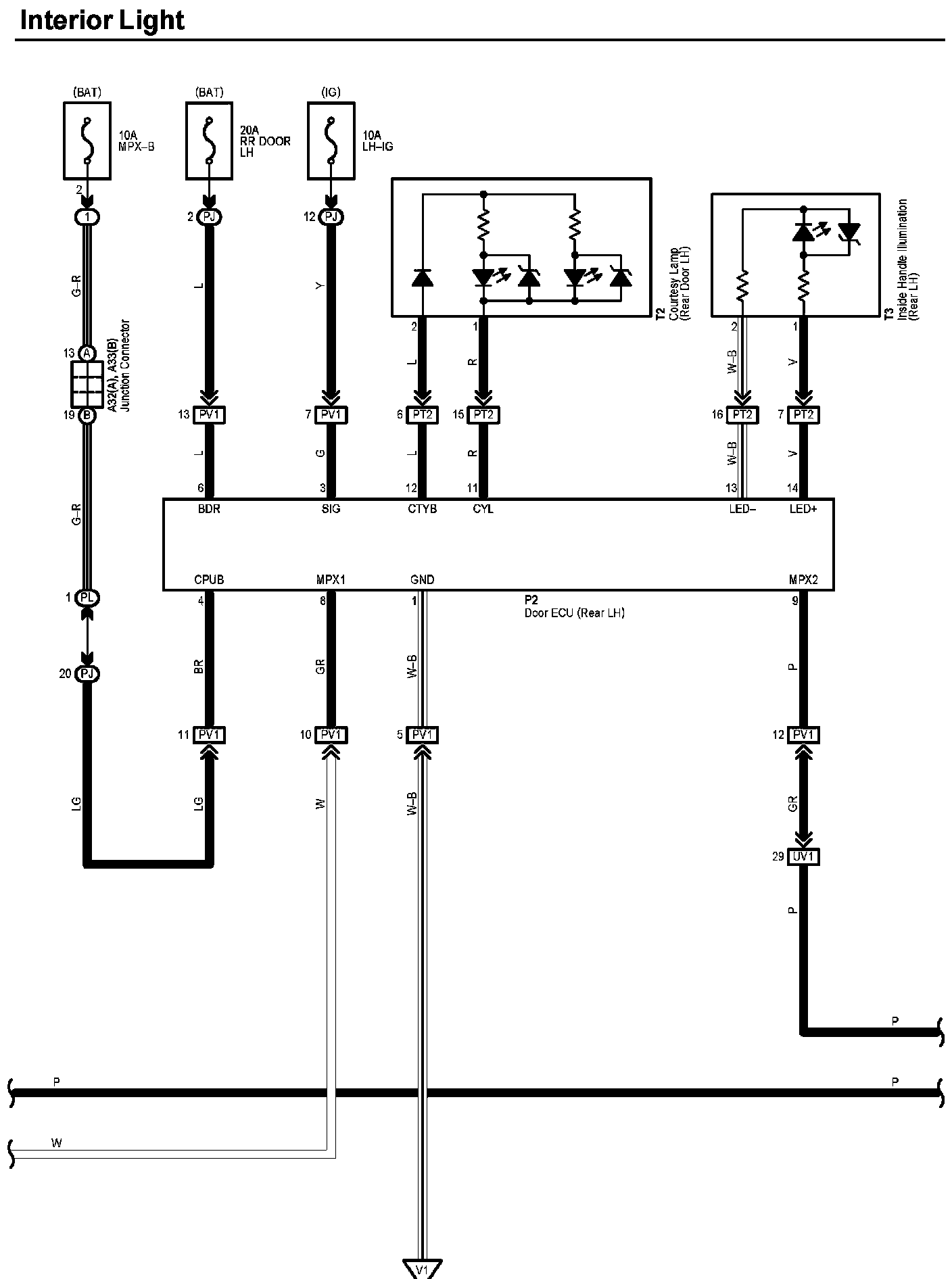

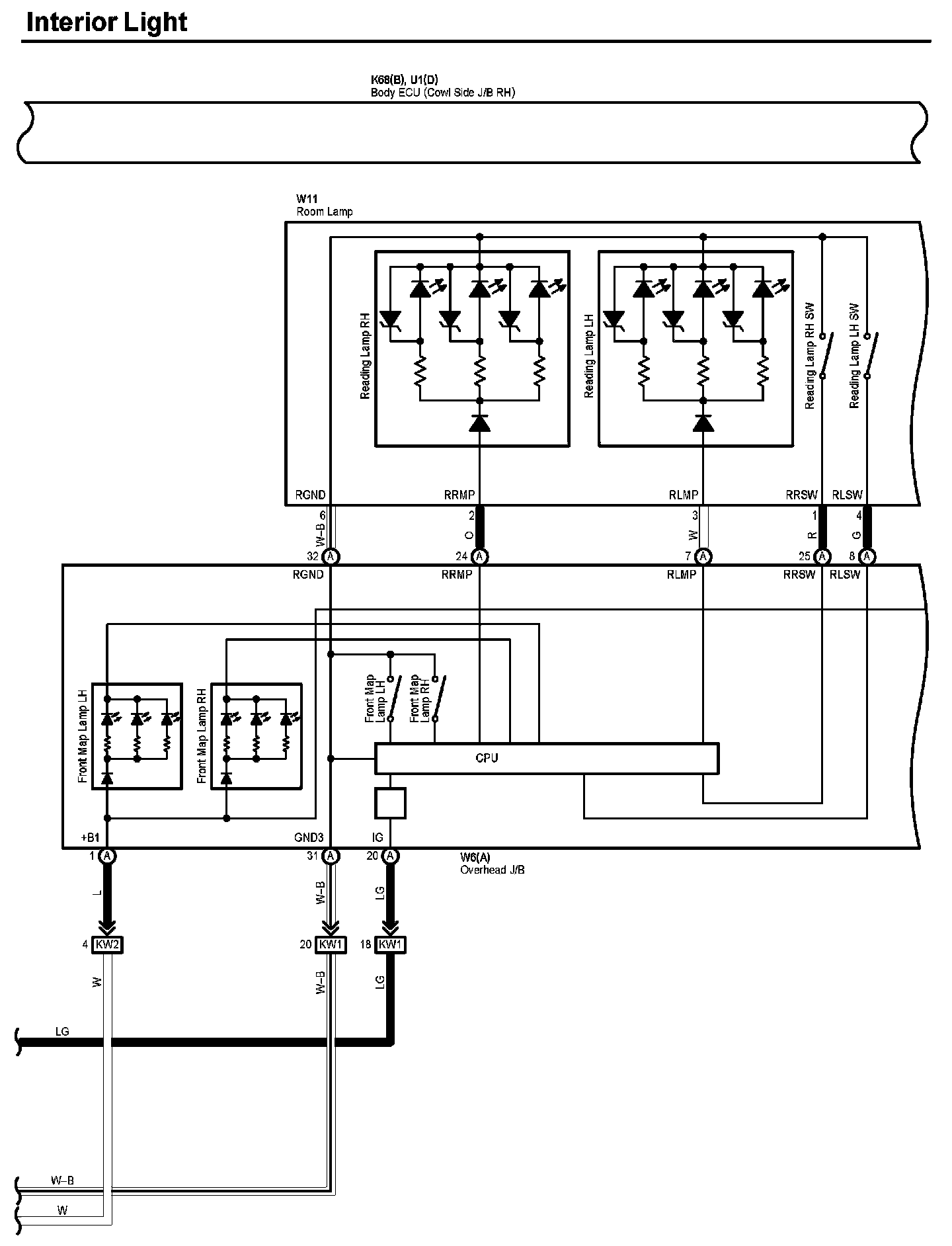

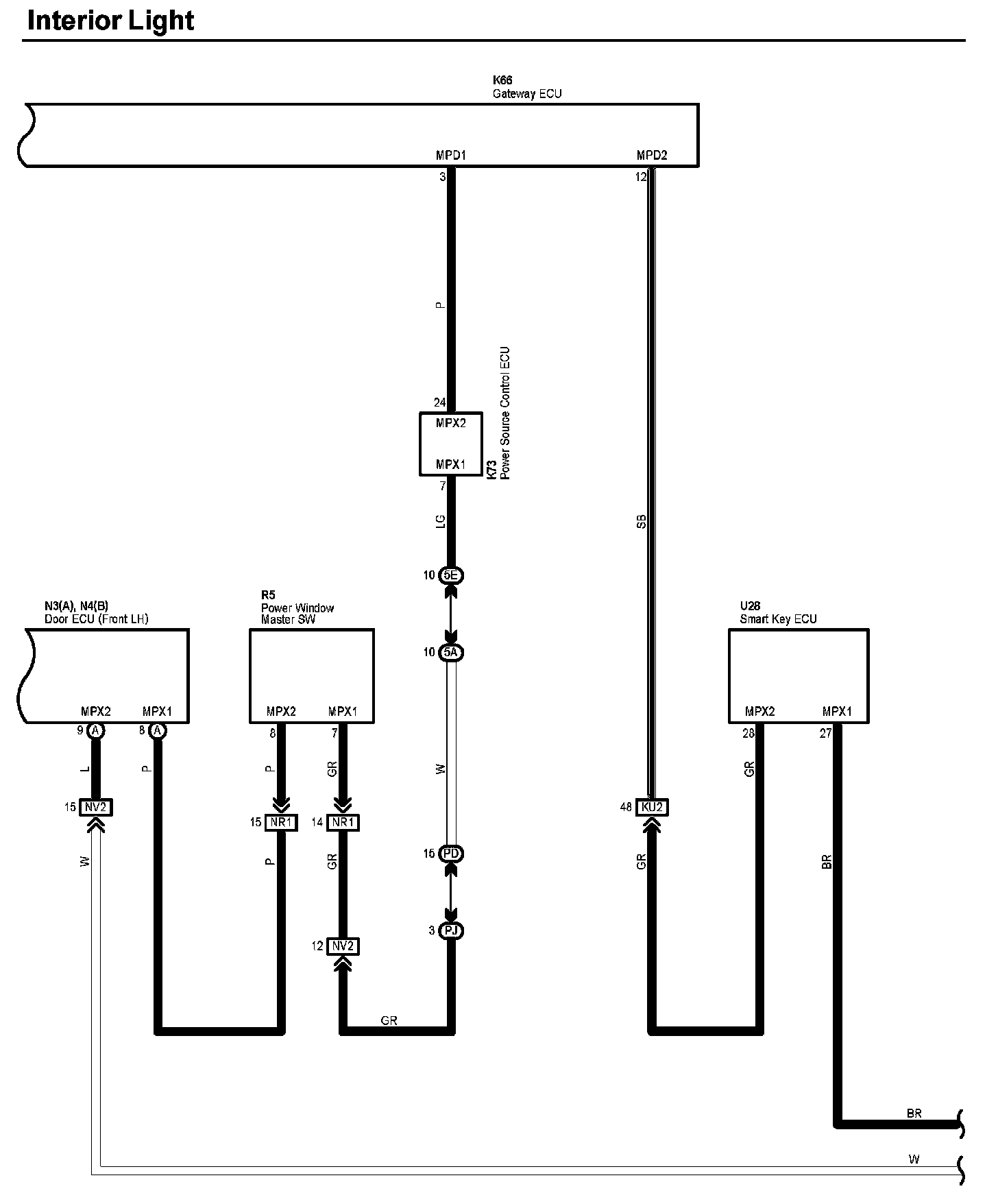

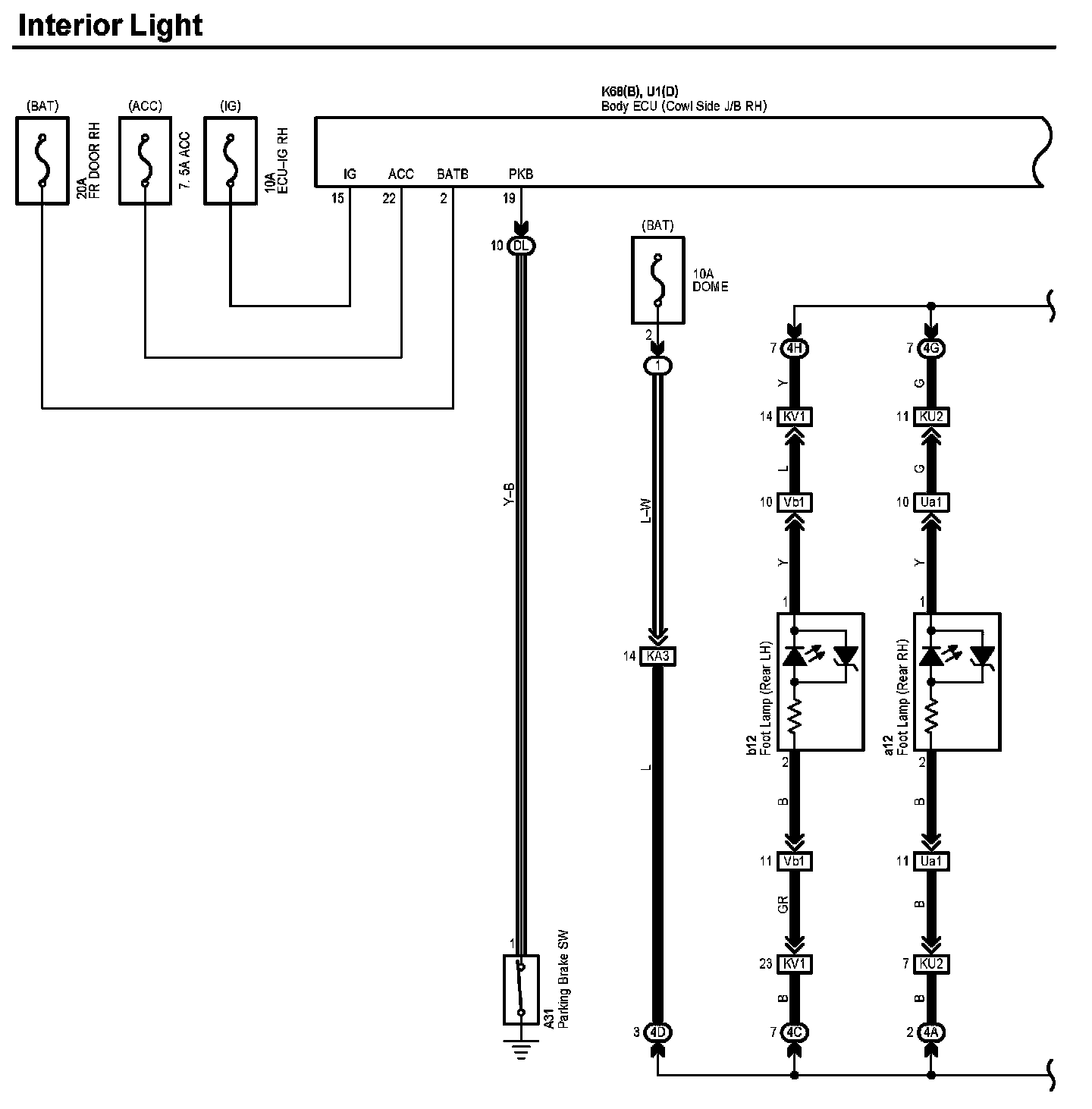

Interior Light (Part 1):

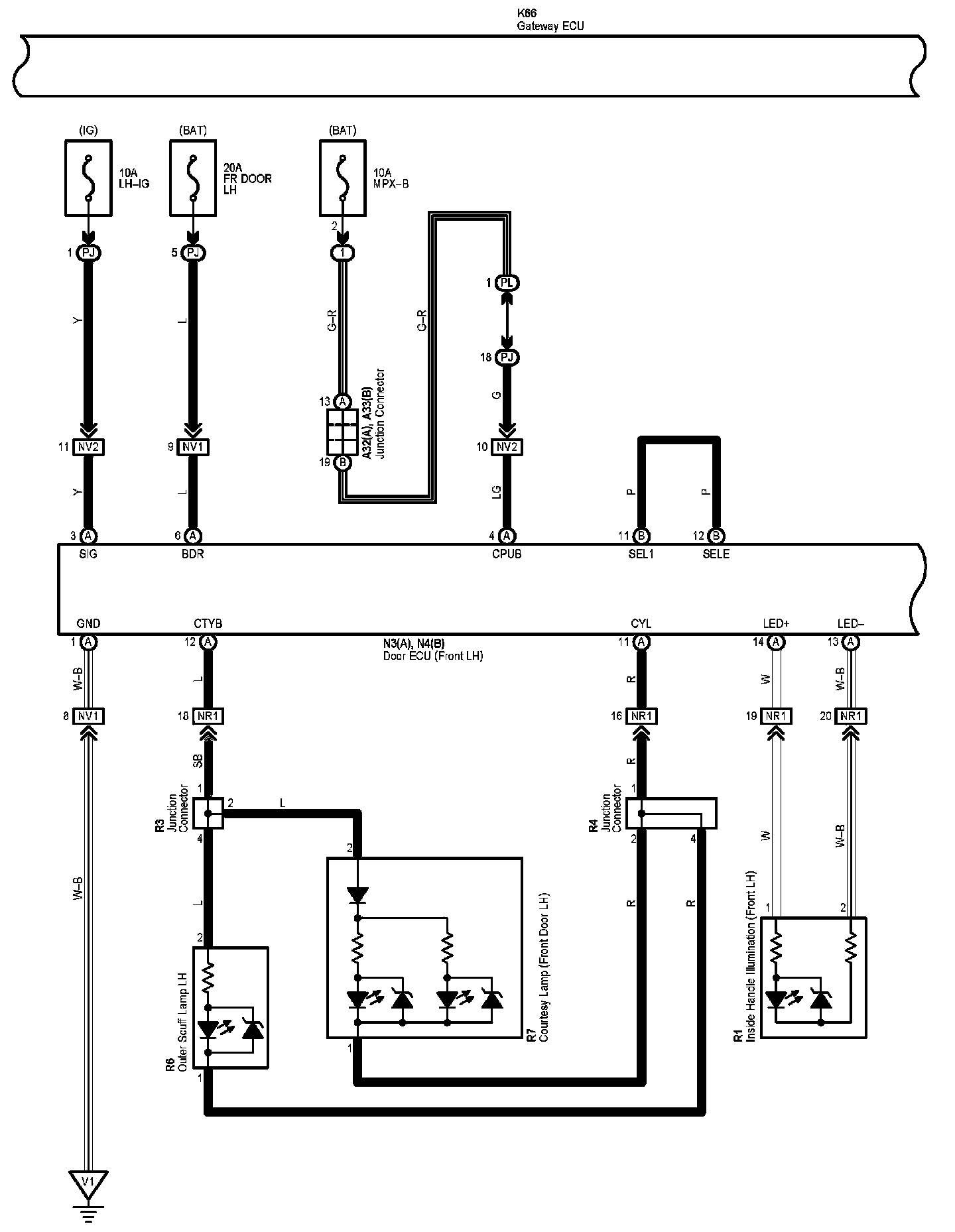

Interior Light (Part 2):

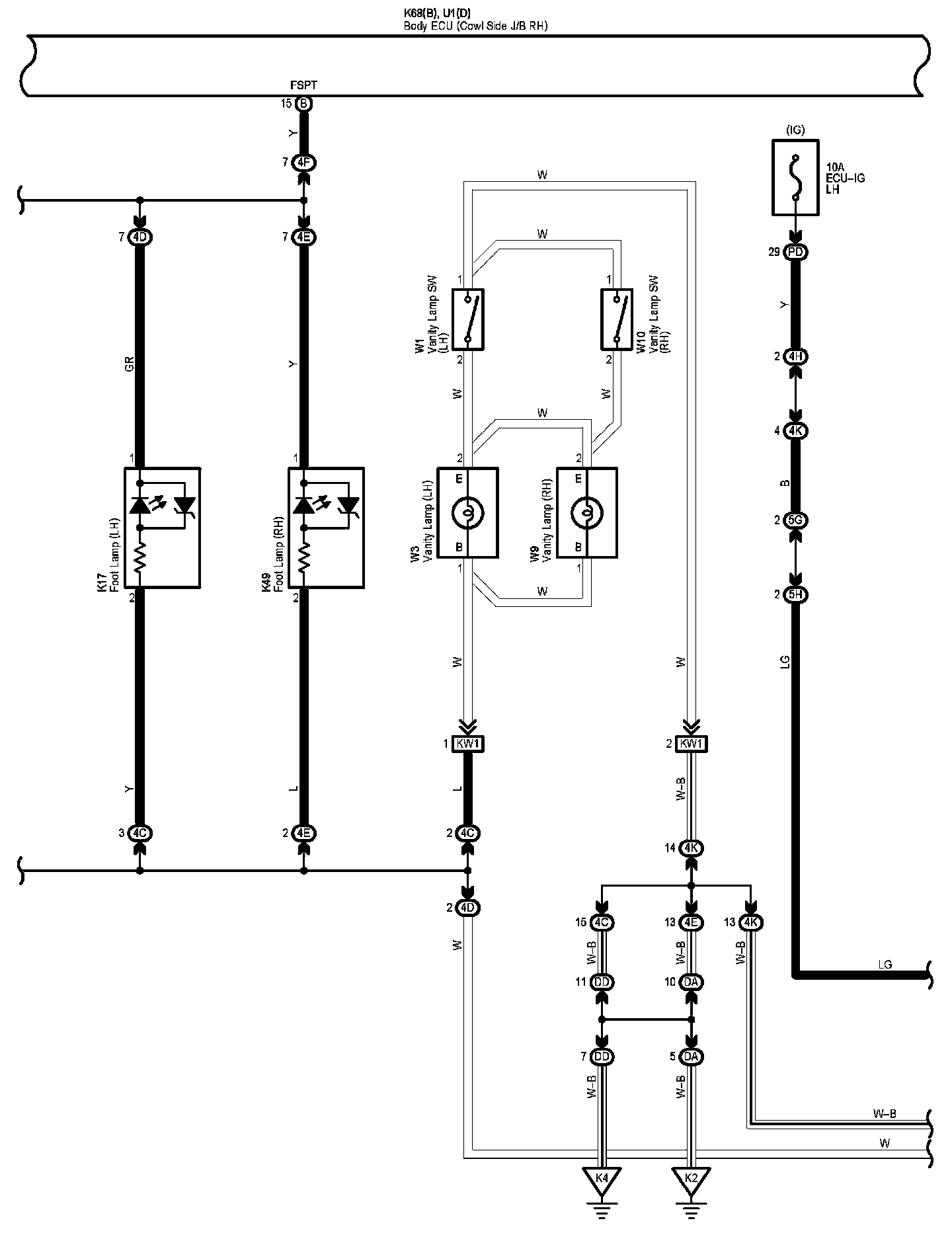

Interior Light (Part 3):

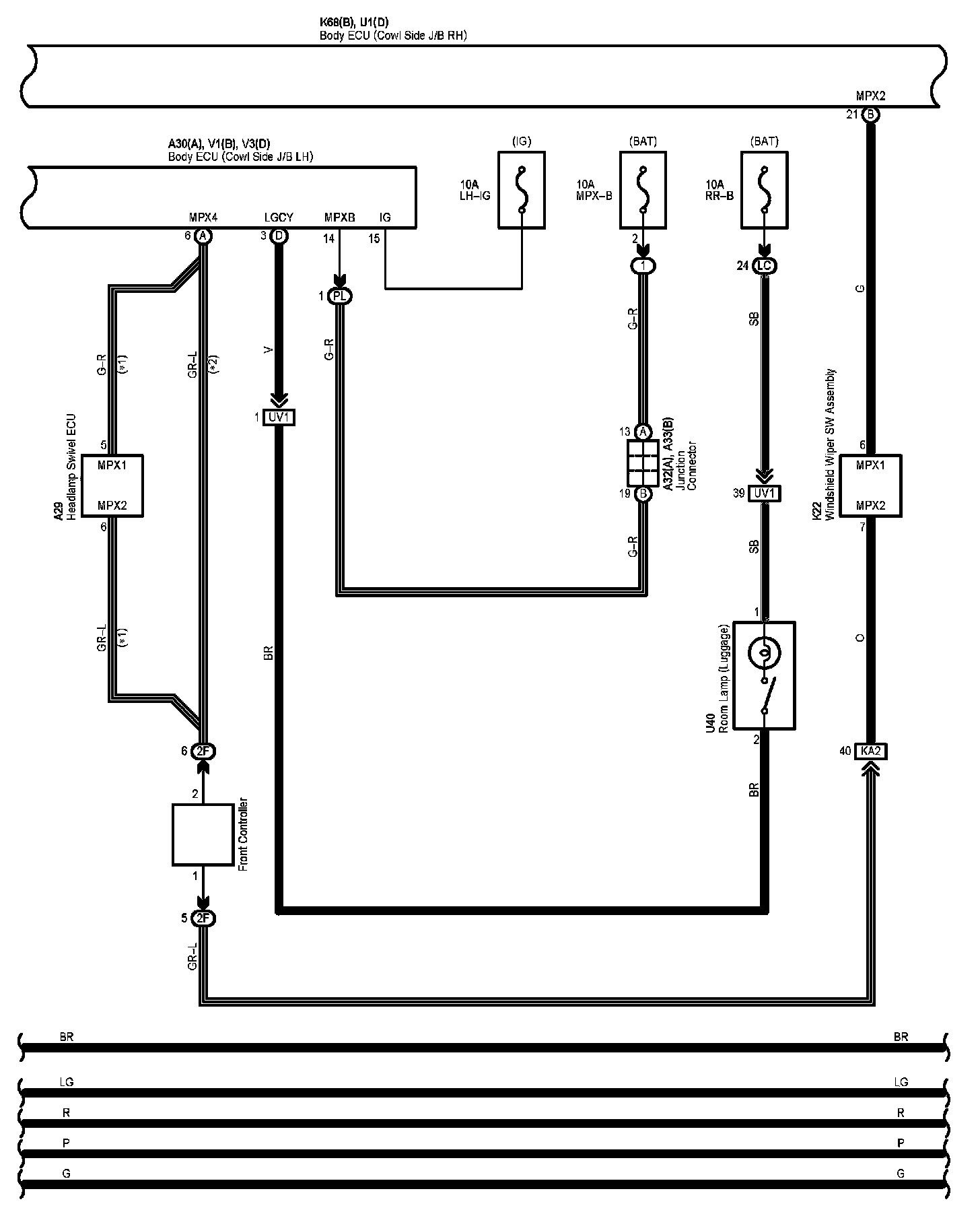

Interior Light (Part 4):

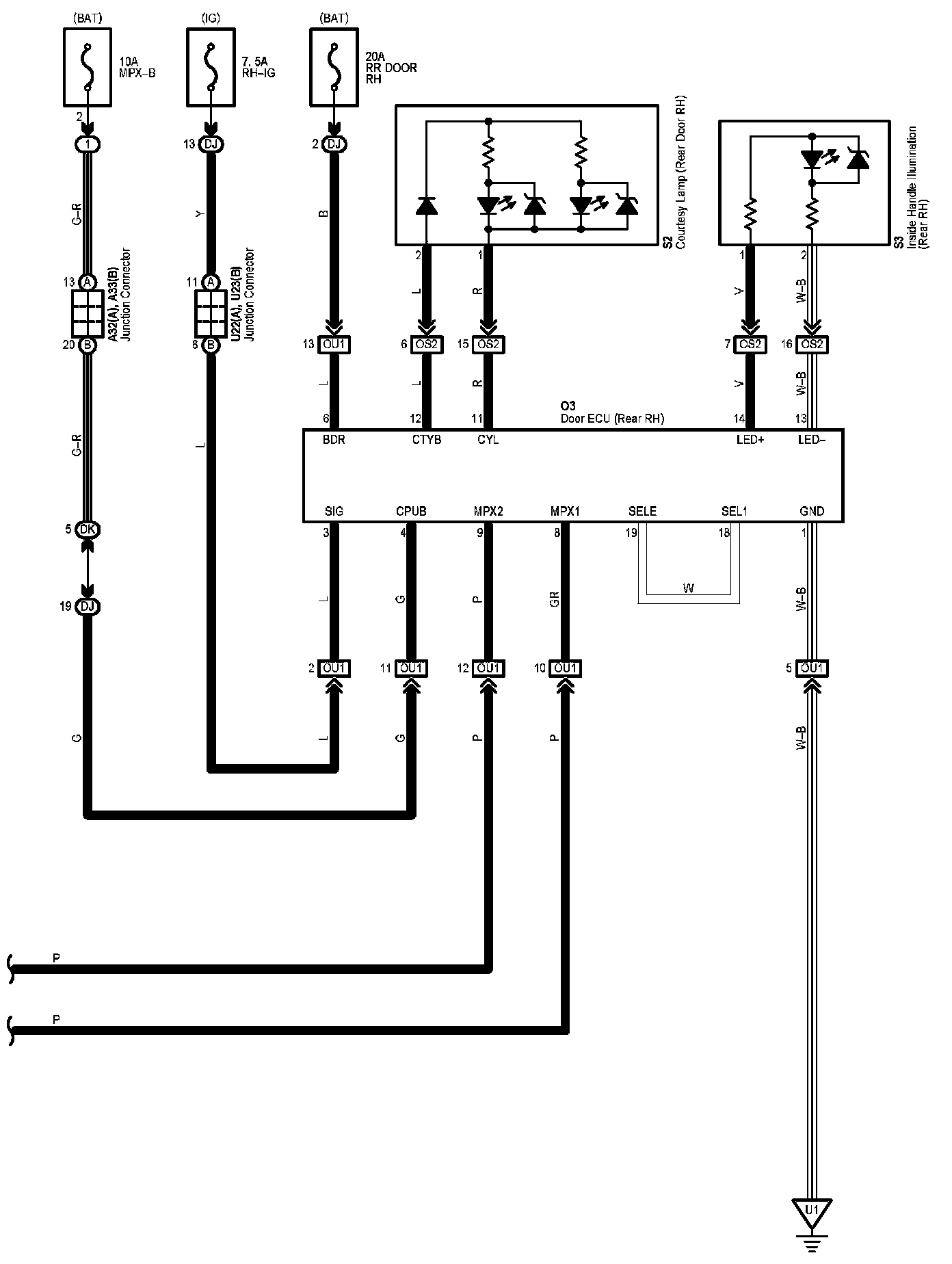

Interior Light (Part 5):

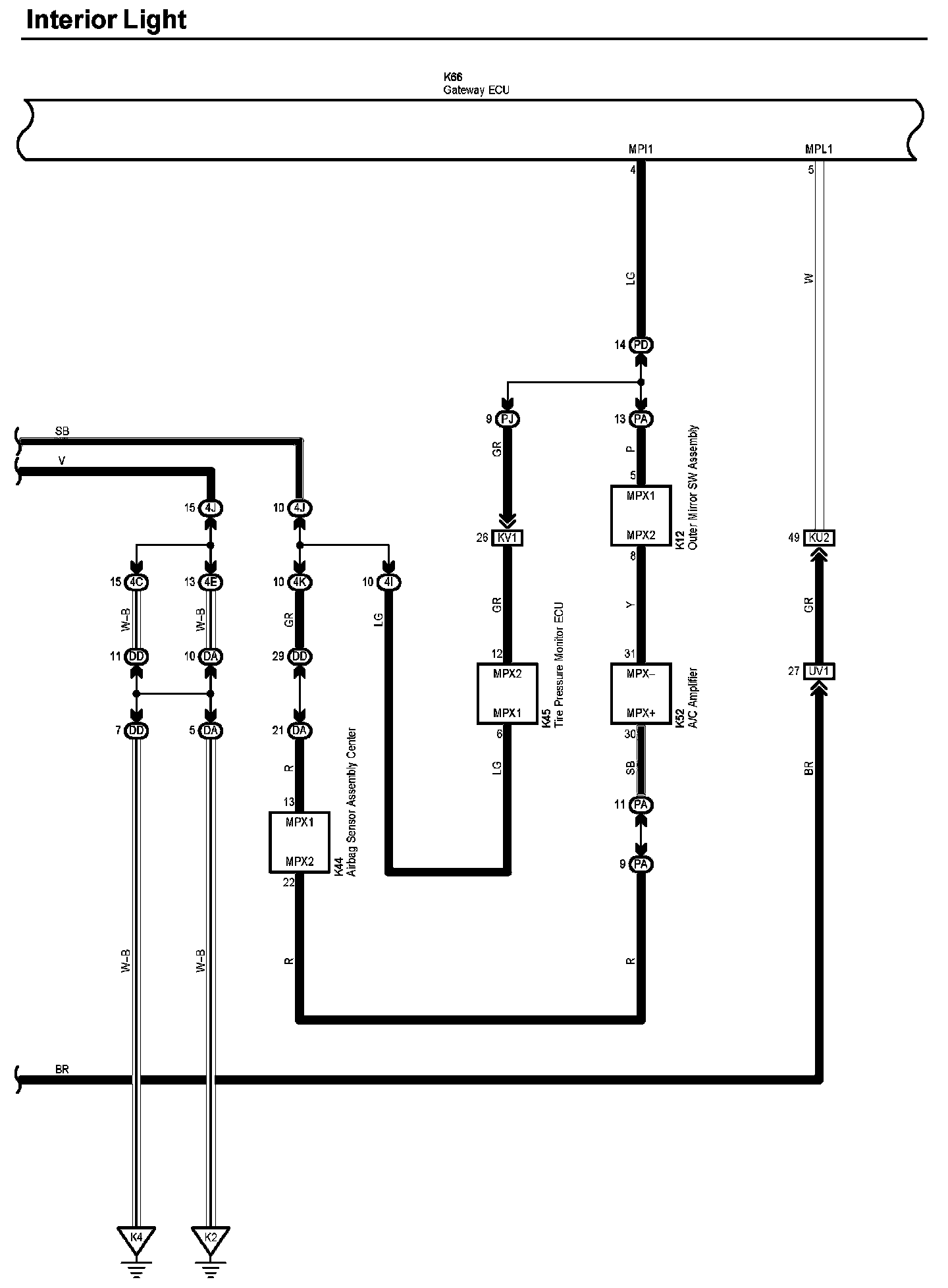

Interior Light (Part 6):

Interior Light (Part 7):

Interior Light (Part 8):

Interior Light (Part 9):

Interior Light (Part 10):

Interior Light (Part 11):

Interior Light (Part 12):

Interior Light (Part 13):

Interior Light (Part 14):

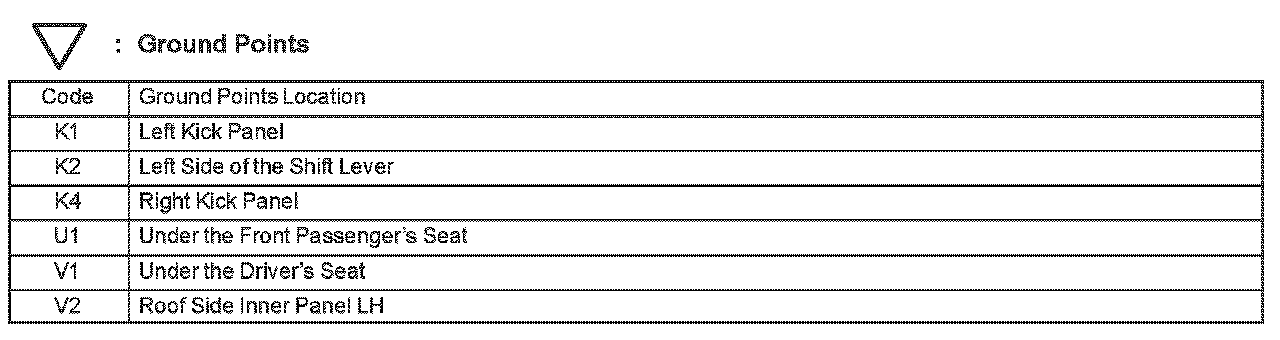

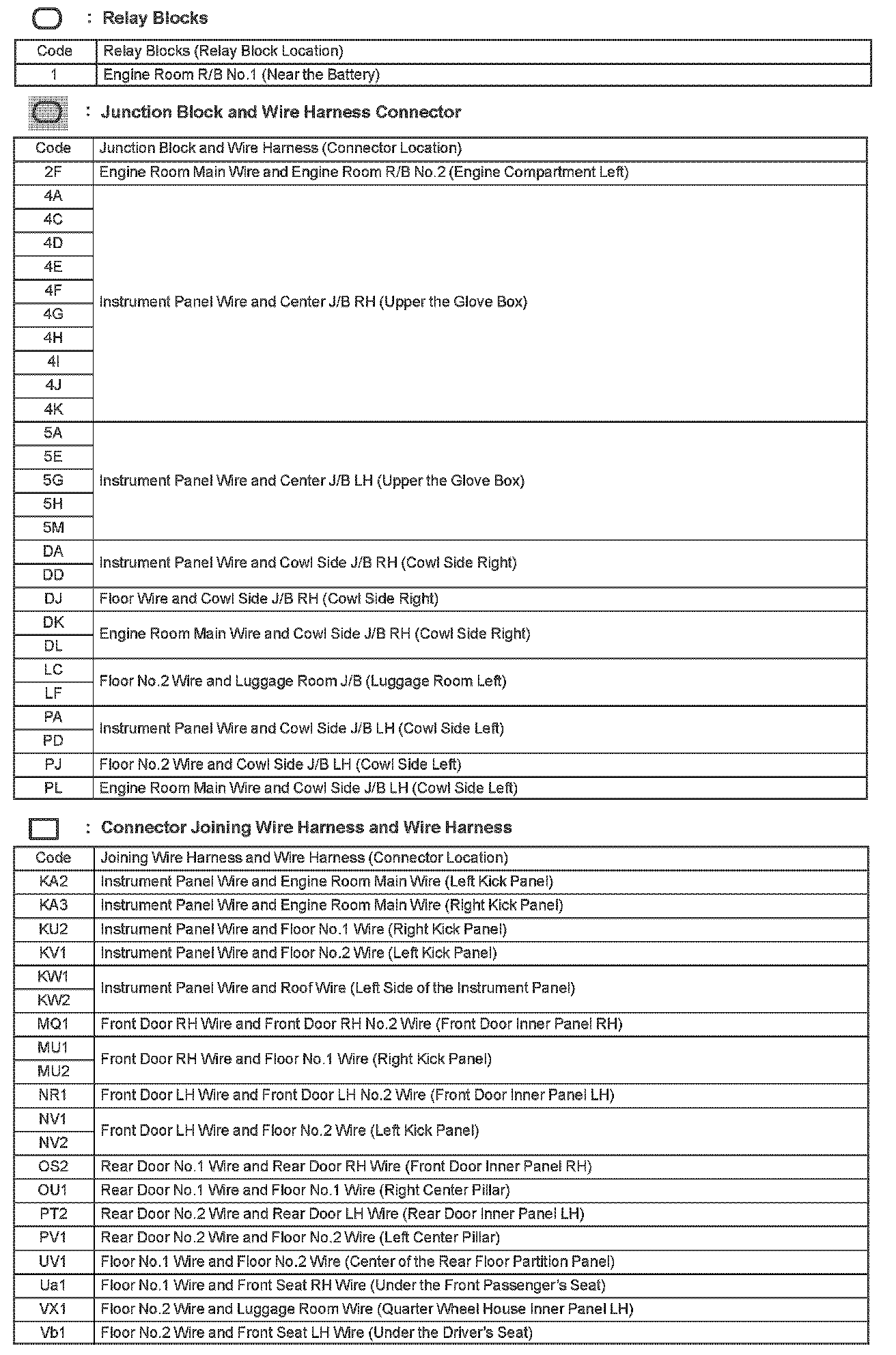

Diagram Legend (Part 1):

Diagram Legend (Part 2):

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
