System Diagrams

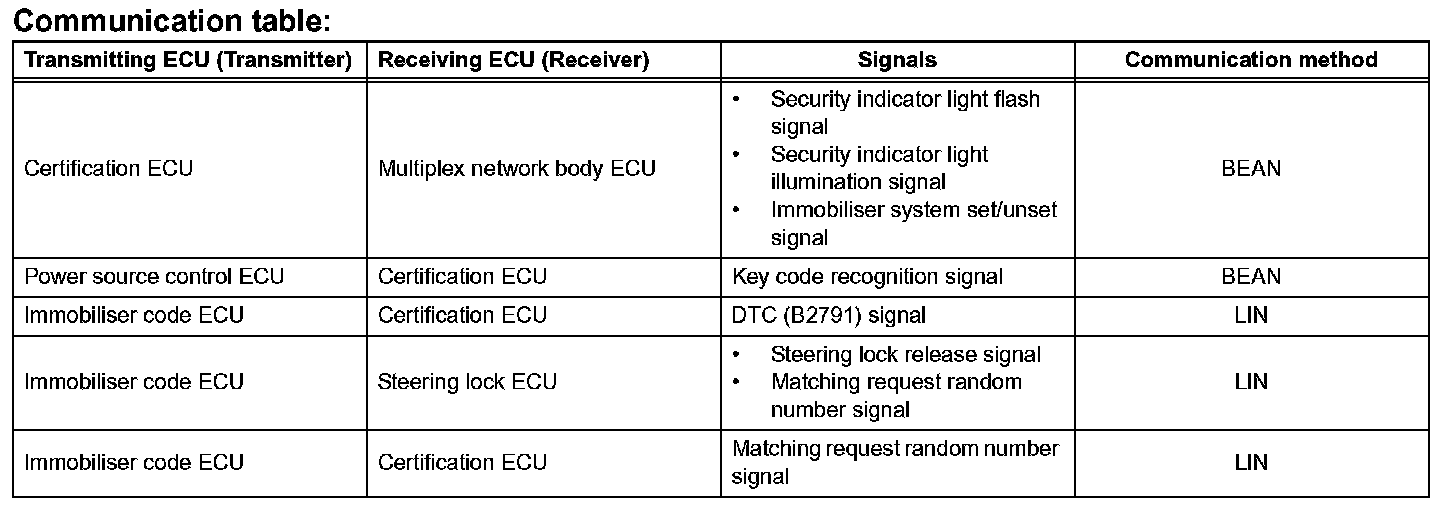

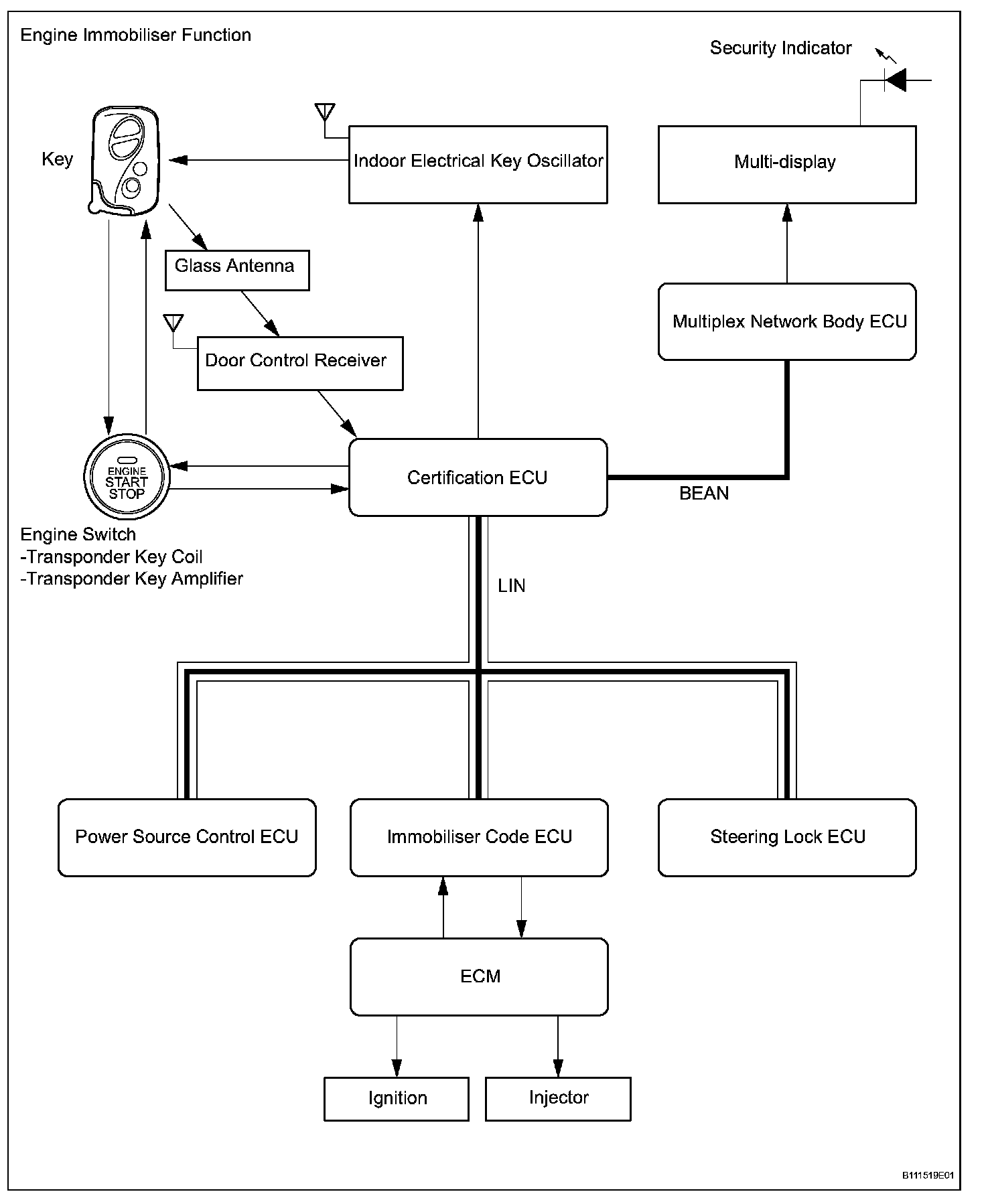

Engine Immobilizer (Part 1):



Engine Immobilizer (Part 2):

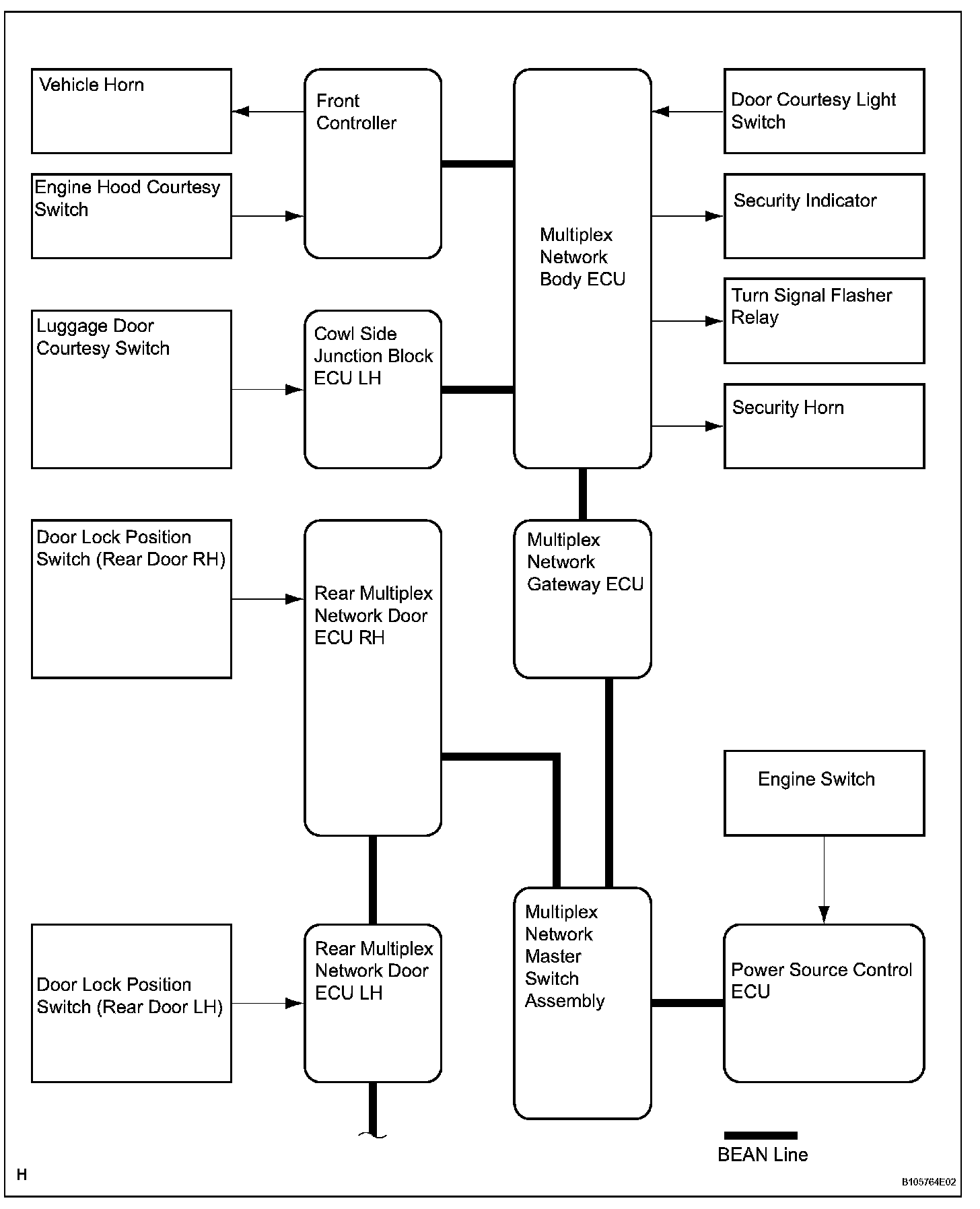

Theft Deterrent (Part 1):

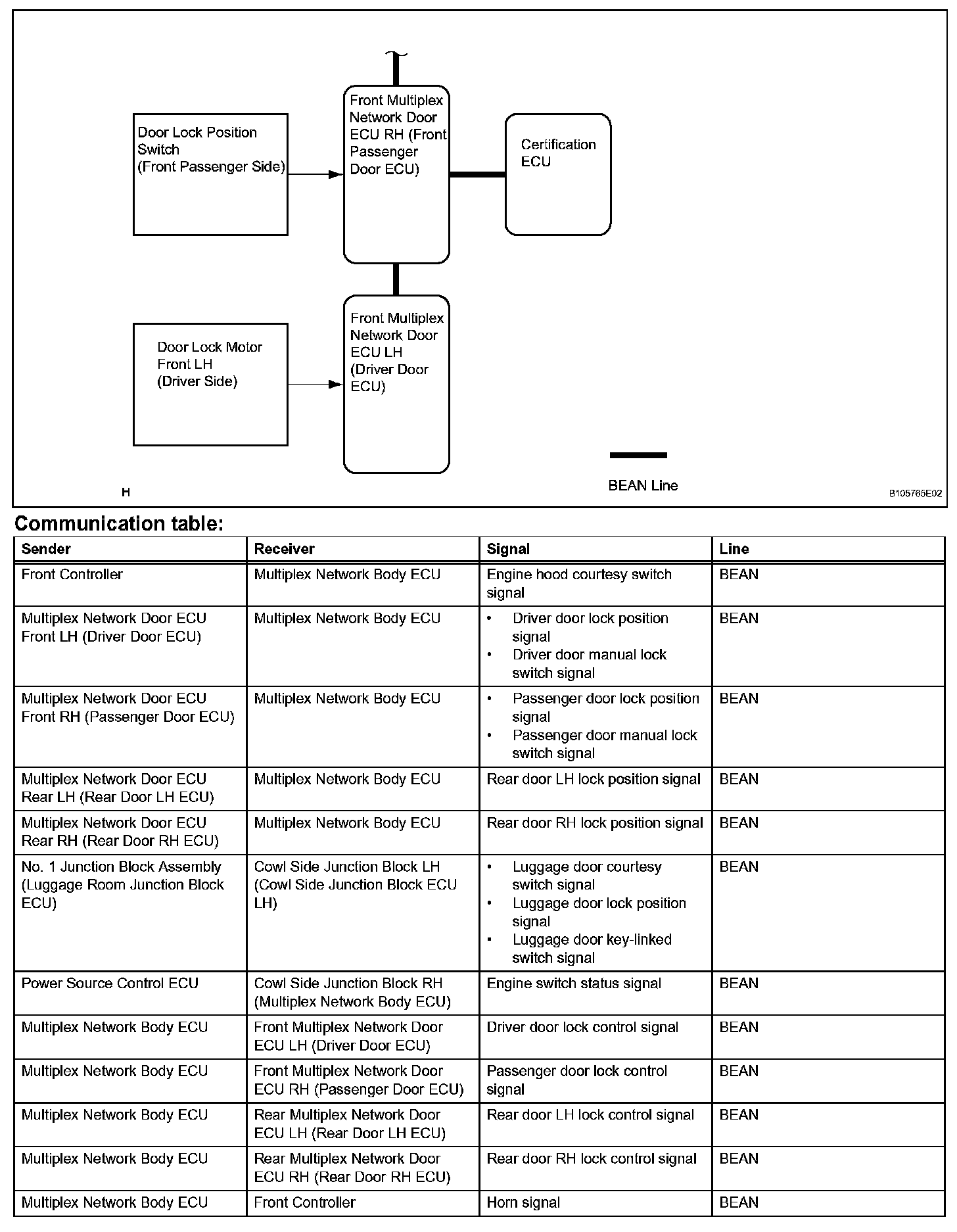

Theft Deterrent (Part 2):
