Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> U2 - U24

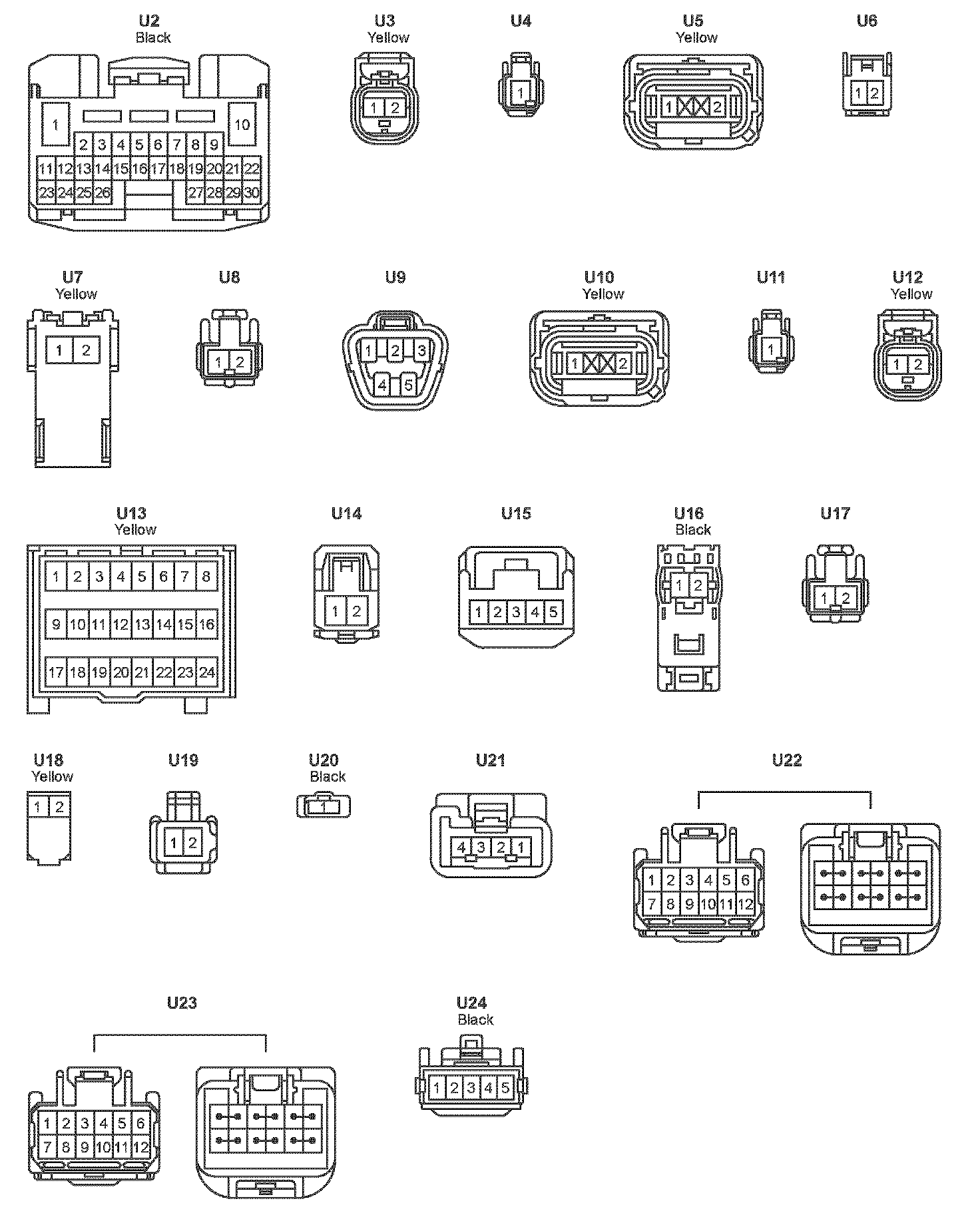

U2 - U24

U2-U24:
