Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> E71 - K9

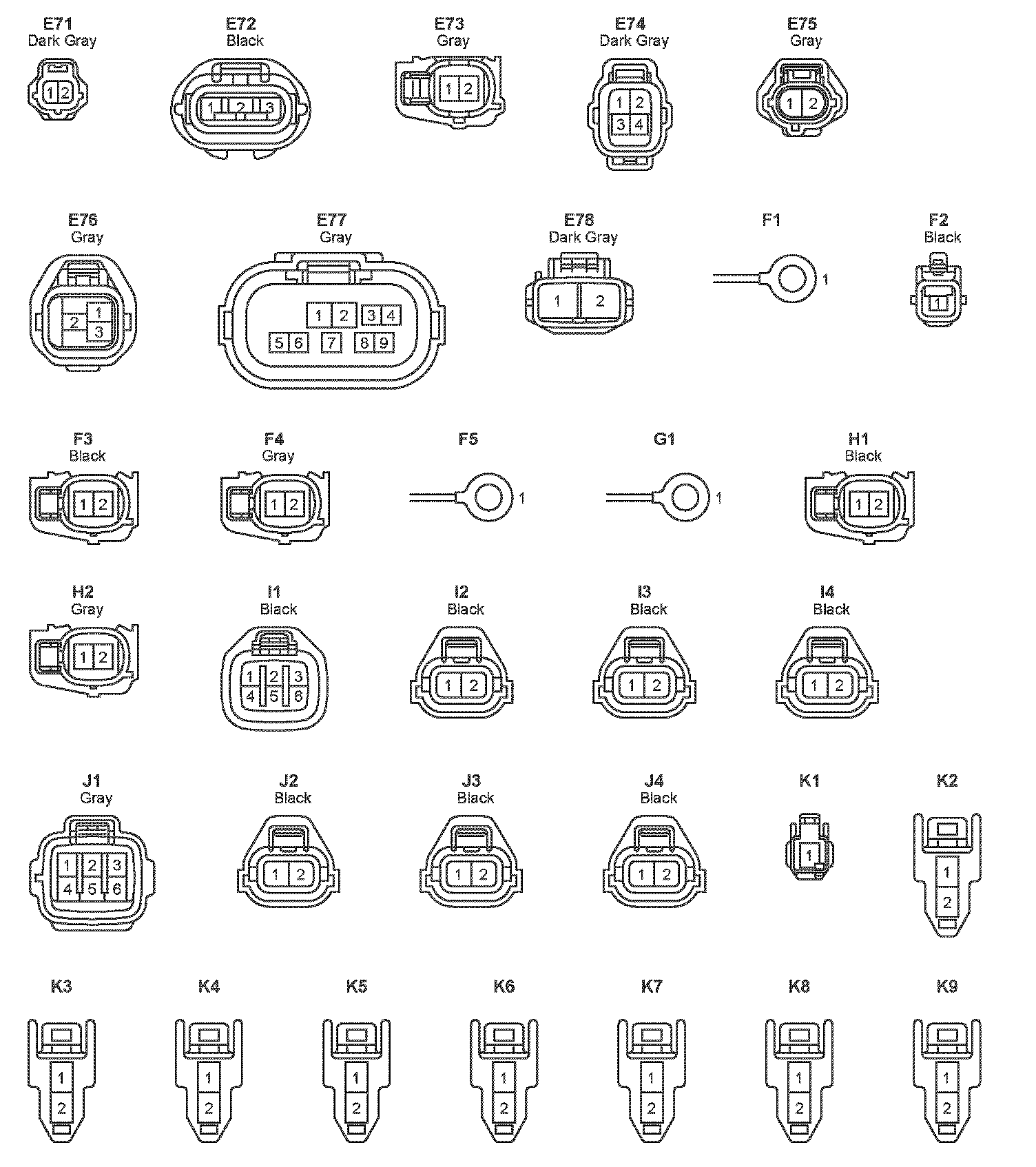

E71 - K9

E71-K9:
