Lexus
>>
2006
>>
GS 300 RWD V6-3.0L (3GR-FSE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Cruise Control System
Cruise Control System

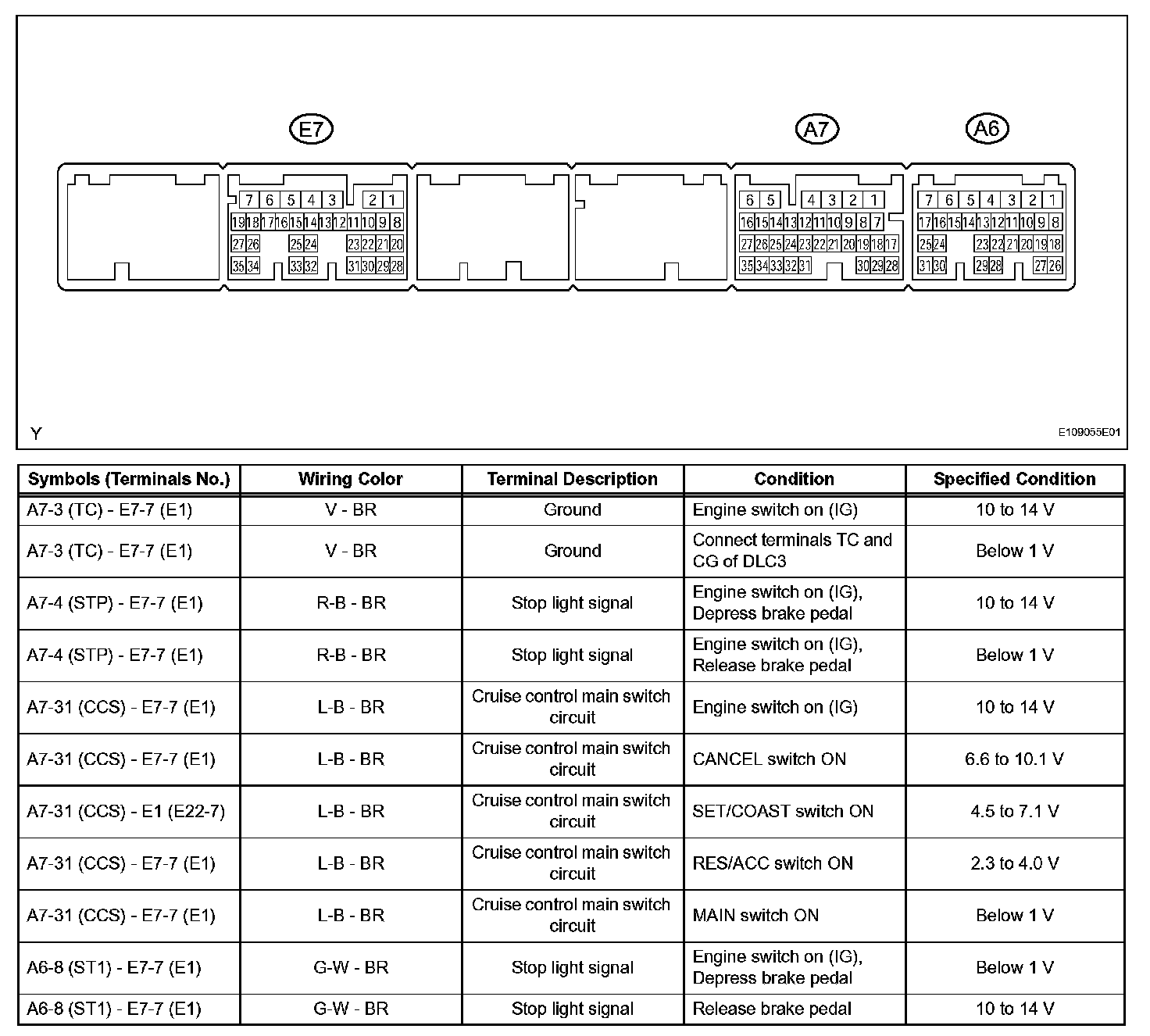

Terminals Of Control Module/Pinouts - Check ECM:
