Parking Brake Cable: Service and Repair

PARKING BRAKE CABLE

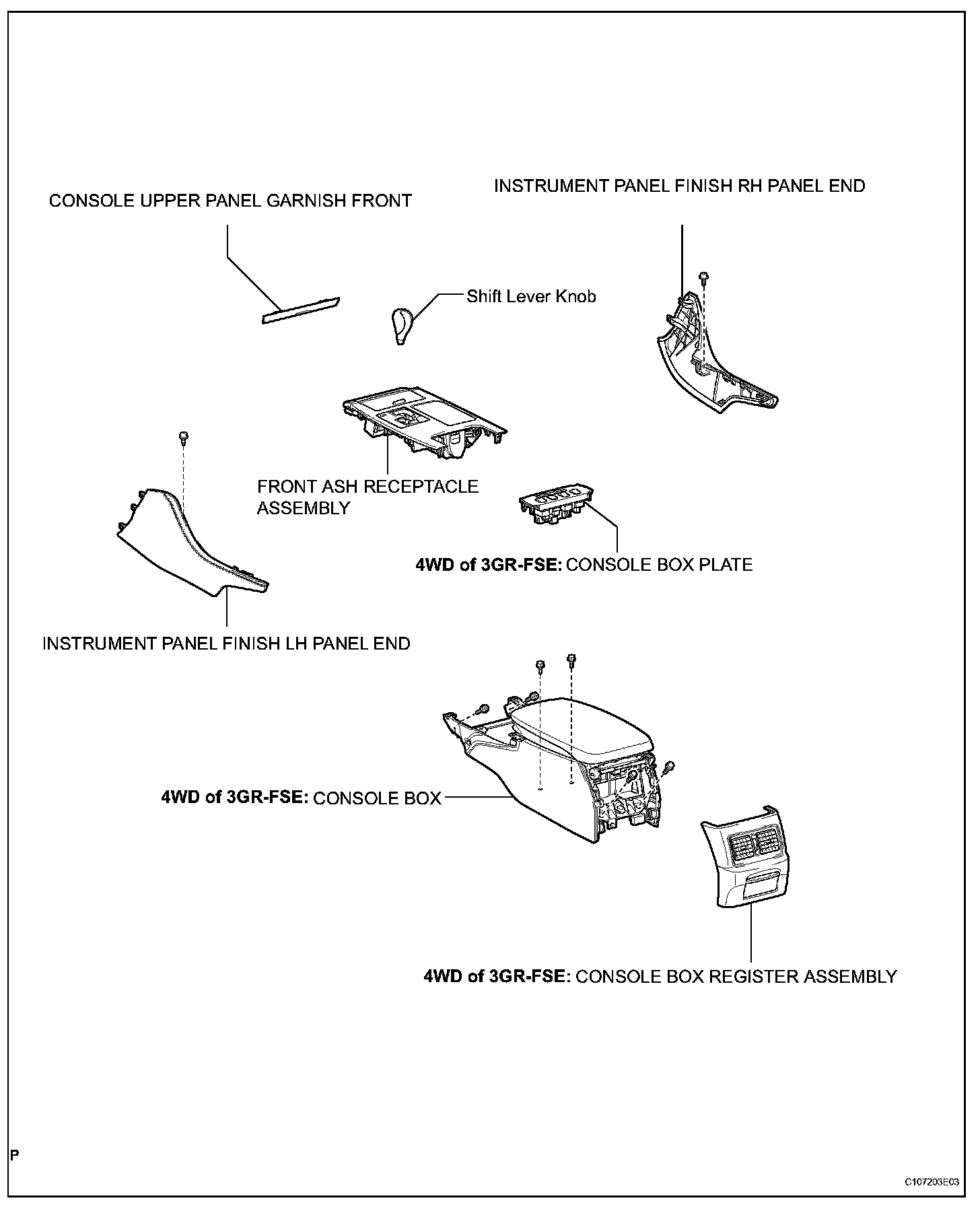

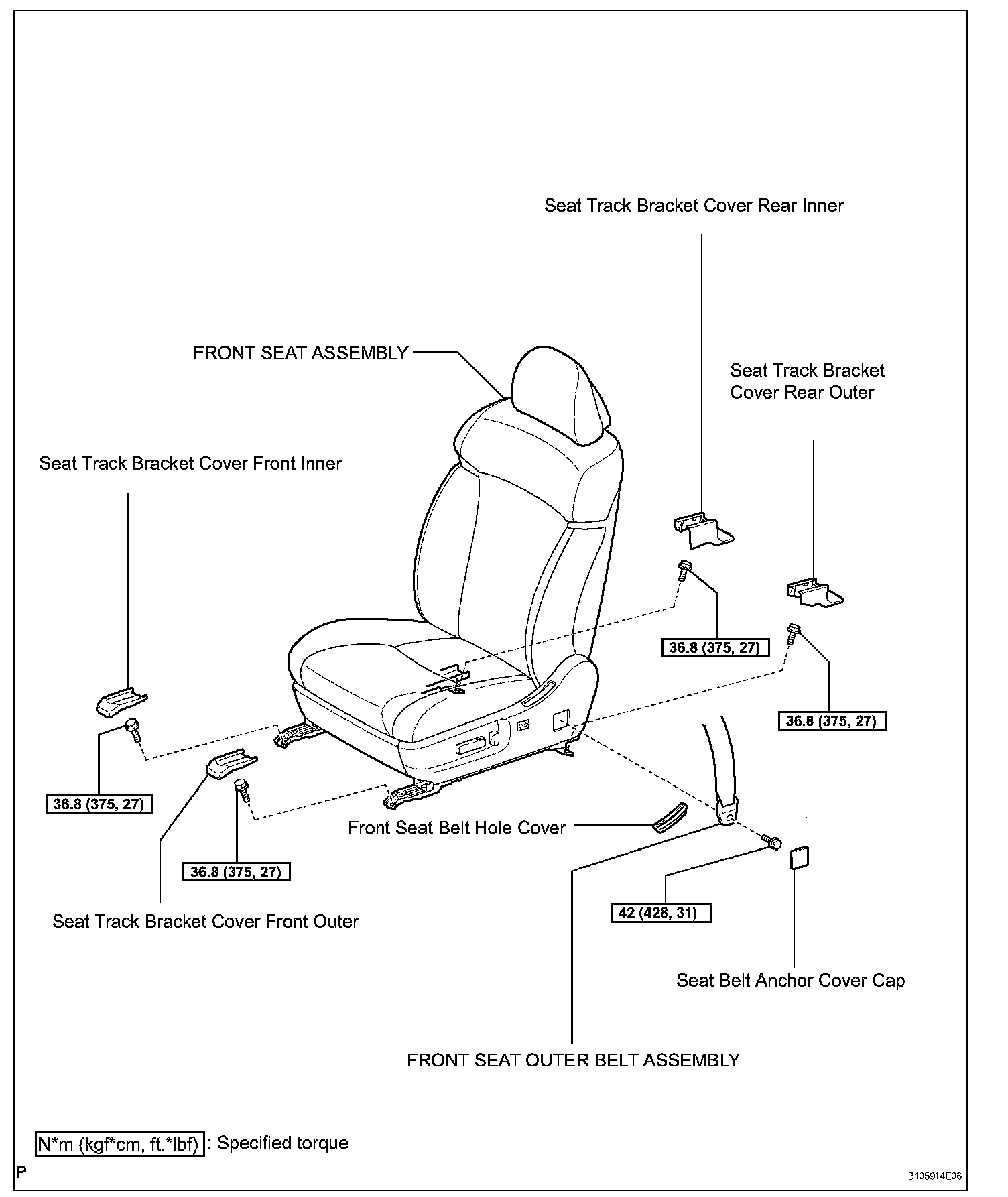

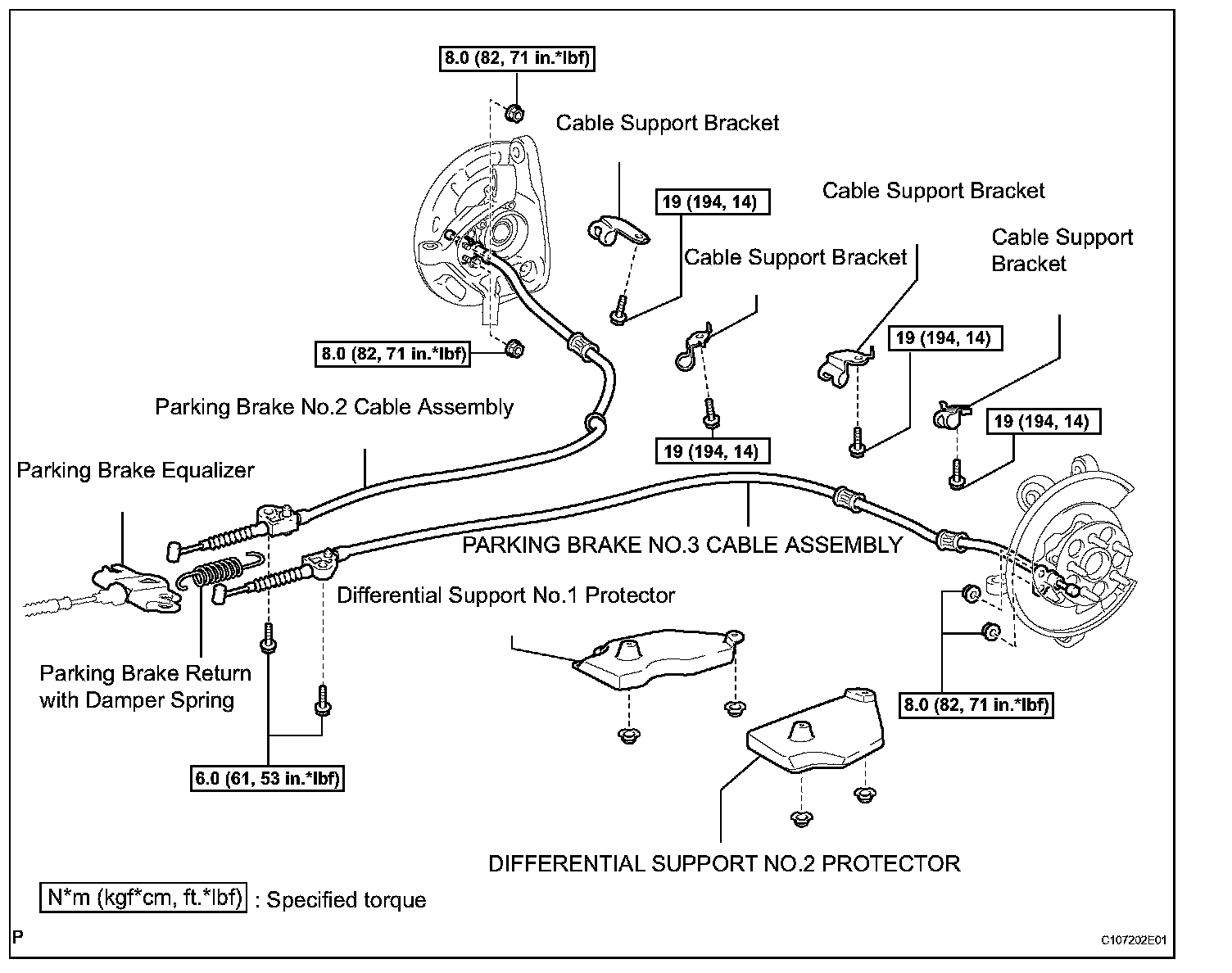

Components:

Components 3GR-FSE:

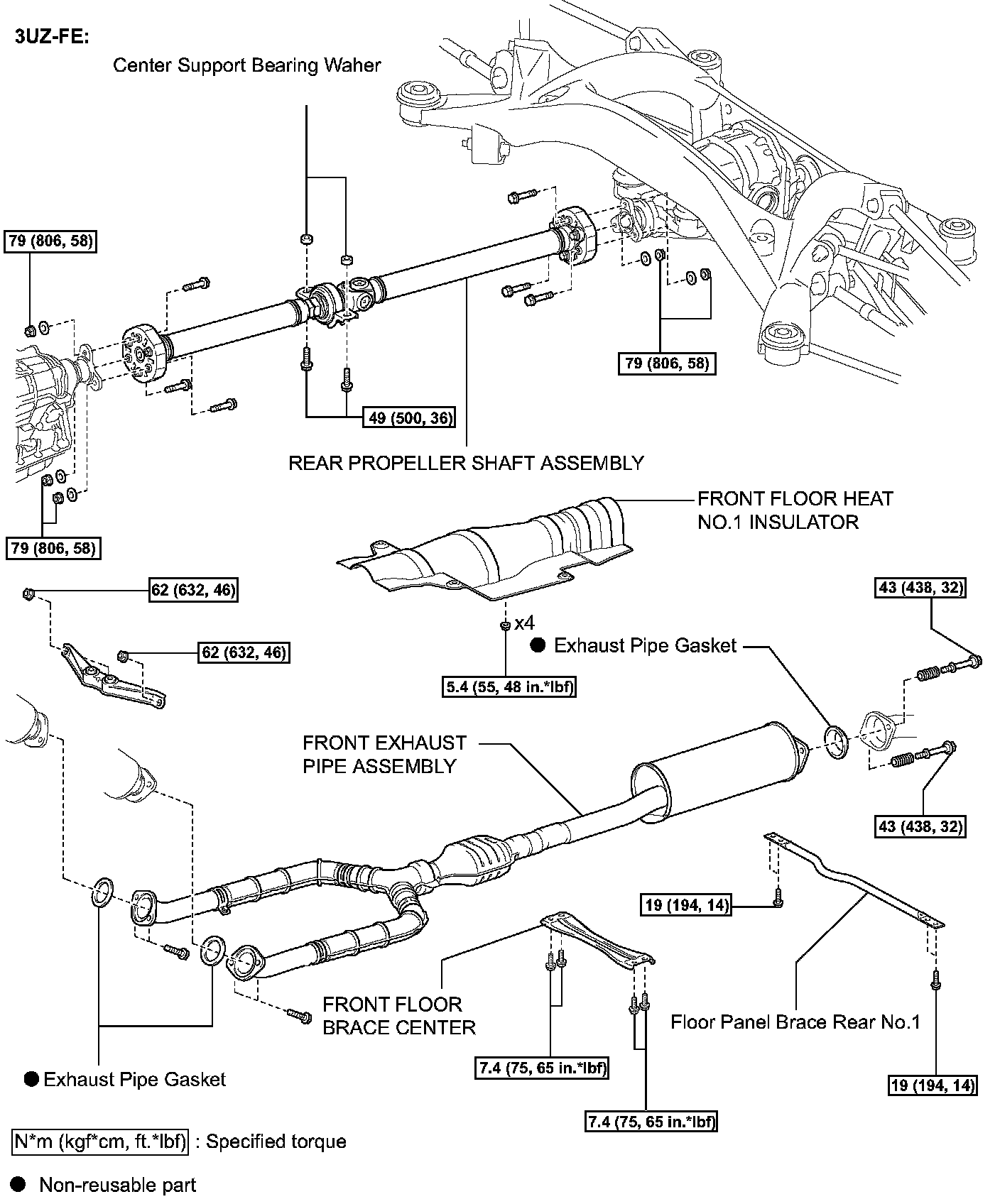

Components 3UZ-FE:

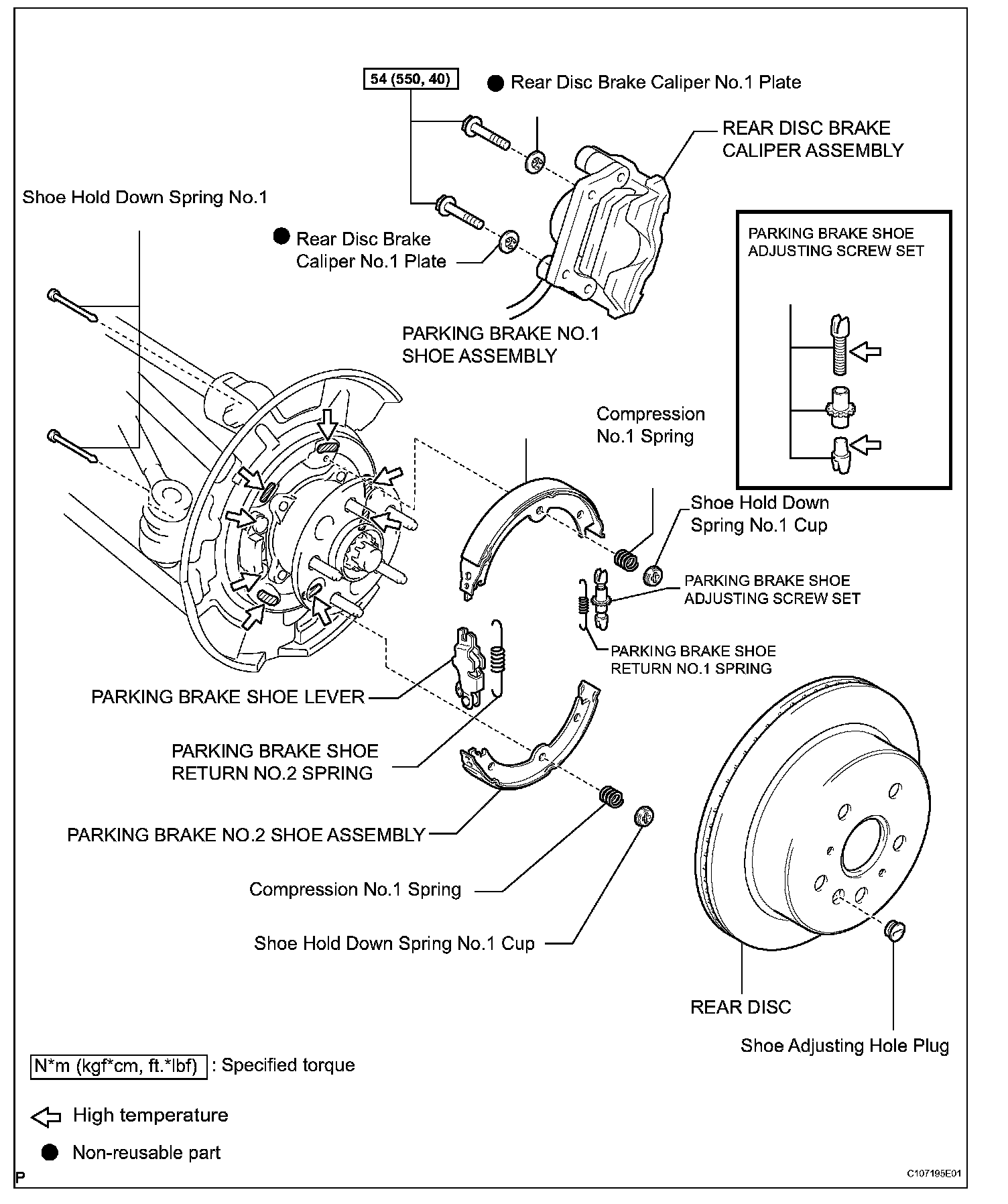

Components:

REMOVAL
1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY
3. REMOVE FRONT SEAT ASSEMBLY
4. REMOVE CONSOLE UPPER PANEL GARNISH FRONT
5. REMOVE FRONT ASH RECEPTACLE ASSEMBLY
6. REMOVE INSTRUMENT PANEL FINISH LH PANEL END
7. REMOVE INSTRUMENT PANEL FINISH RH PANEL END
8. REMOVE CONSOLE BOX PLATE (for 4WD of 3GR-FSE)
9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (for 4WD of 3GR-FSE)
10. REMOVE CONSOLE BOX (for 4WD of 3GR-FSE)
11. REMOVE FRONT FLOOR BRACE CENTER (for 3GR-FSE)
12. DISCONNECT HEATED OXYGEN SENSOR (for 3GR-FSE)
13. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 3GR-FSE)
14. REMOVE FRONT FLOOR HEAT NO.1 INSULATOR (for 3GR-FSE)
15. REMOVE REAR PROPELLER SHAFT ASSEMBLY (for 3GR-FSE)
16. REMOVE FRONT FLOOR BRACE CENTER (for 3UZ-FE)
17. REMOVE REAR NO.1 FLOOR PANEL BRACE (for 3UZ-FE)
18. REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 3UZ-FE)
19. REMOVE FRONT FLOOR HEAT NO.1 INSULATOR (for 3UZ-FE)
20. REMOVE REAR PROPELLER SHAFT ASSEMBLY (for 3UZ-FE)
21. REMOVE DIFFERENTIAL SUPPORT NO.2 PROTECTOR
22. REMOVE REAR WHEEL
23. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY
24. REMOVE REAR DISC
25. REMOVE PARKING BRAKE SHOE RETURN NO.2 SPRING
26. REMOVE PARKING BRAKE SHOE RETURN NO.1 SPRING
27. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET
28. REMOVE PARKING BRAKE NO.1 SHOE ASSEMBLY
29. REMOVE PARKING BRAKE NO.2 SHOE ASSEMBLY
30. REMOVE PARKING BRAKE SHOE LEVER
31. REMOVE PARKING BRAKE NO.3 CABLE ASSEMBLY

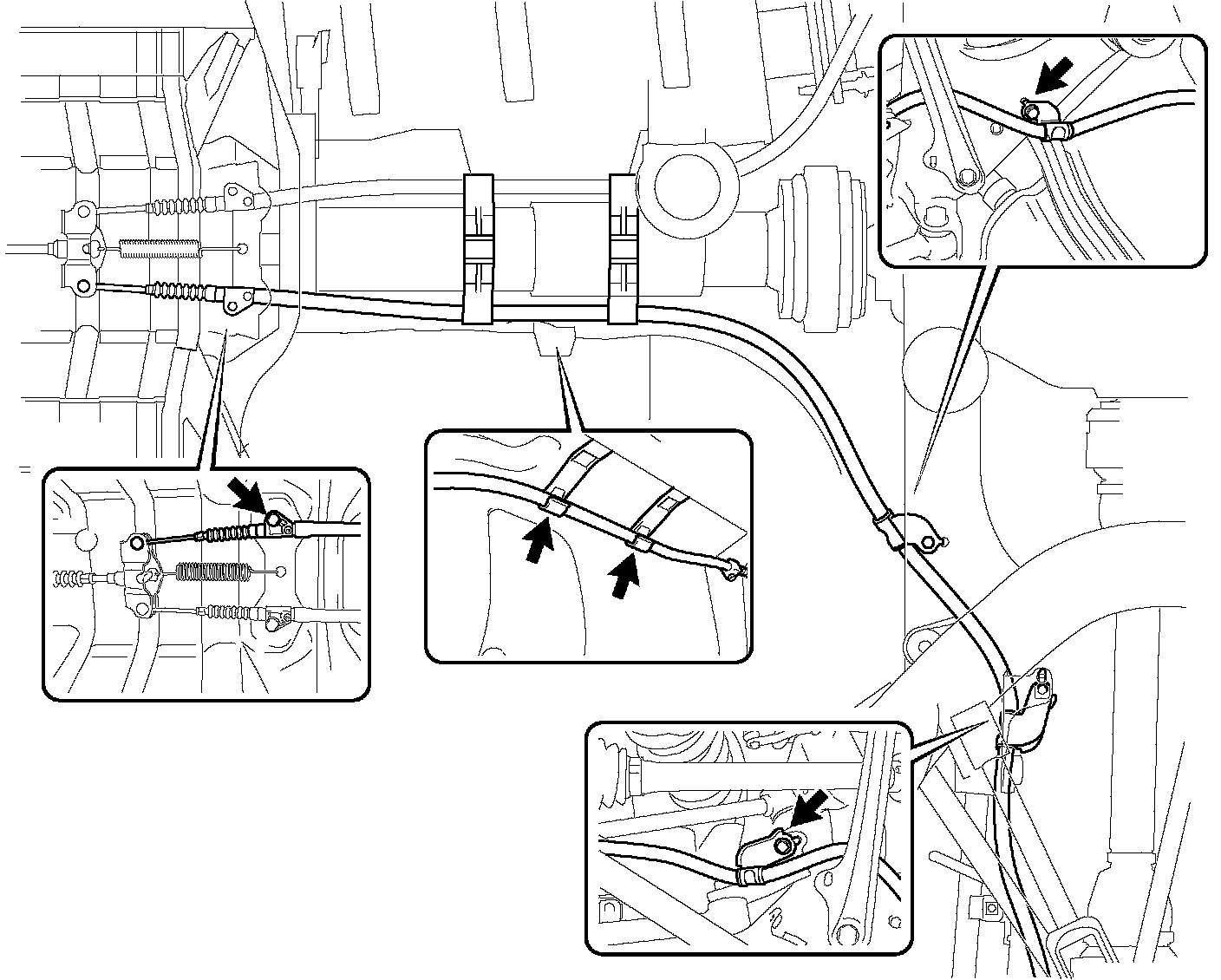

a. Remove the 3 bolts and disengage the 2 clamps and parking brake No.3 cable assembly.

b. Separate the parking brake No.3 cable assembly from the parking brake equalizer.

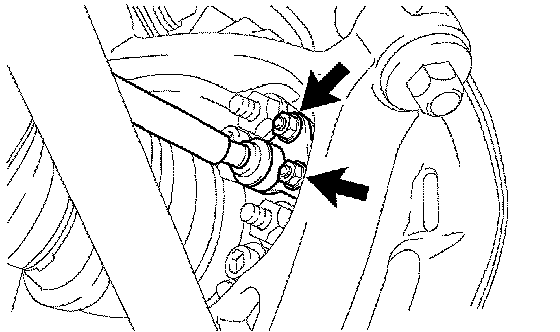

c. Remove the 2 nuts and parking brake No.3 cable assembly.

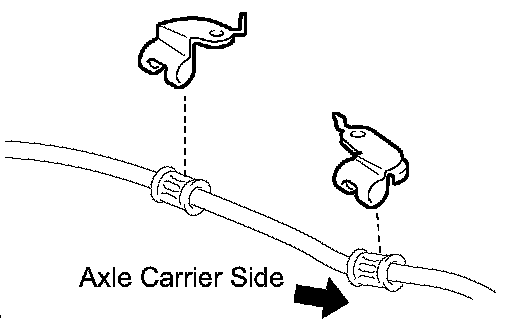

d. Remove the 2 cable support brackets from the parking brake No.3 cable assembly.

INSTALLATION

1. INSTALL PARKING BRAKE NO.3 CABLE ASSEMBLY

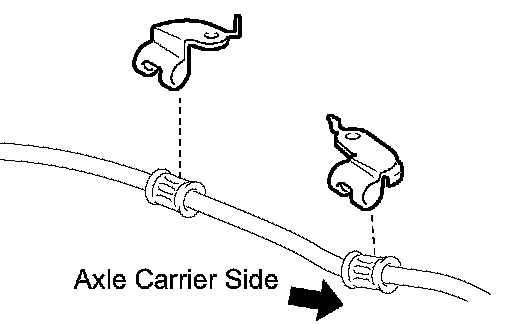

a. Install the 2 cable support brackets to the parking brake No.3 cable assembly.

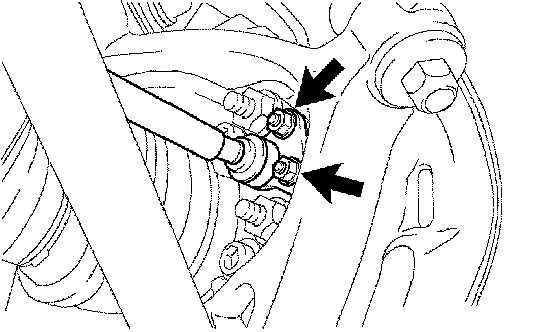

b. Install the parking brake No.3 cable assembly to the parking brake plate with the 2 nuts.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
c. Connect the parking brake No.3 cable assembly to the parking brake equalizer.

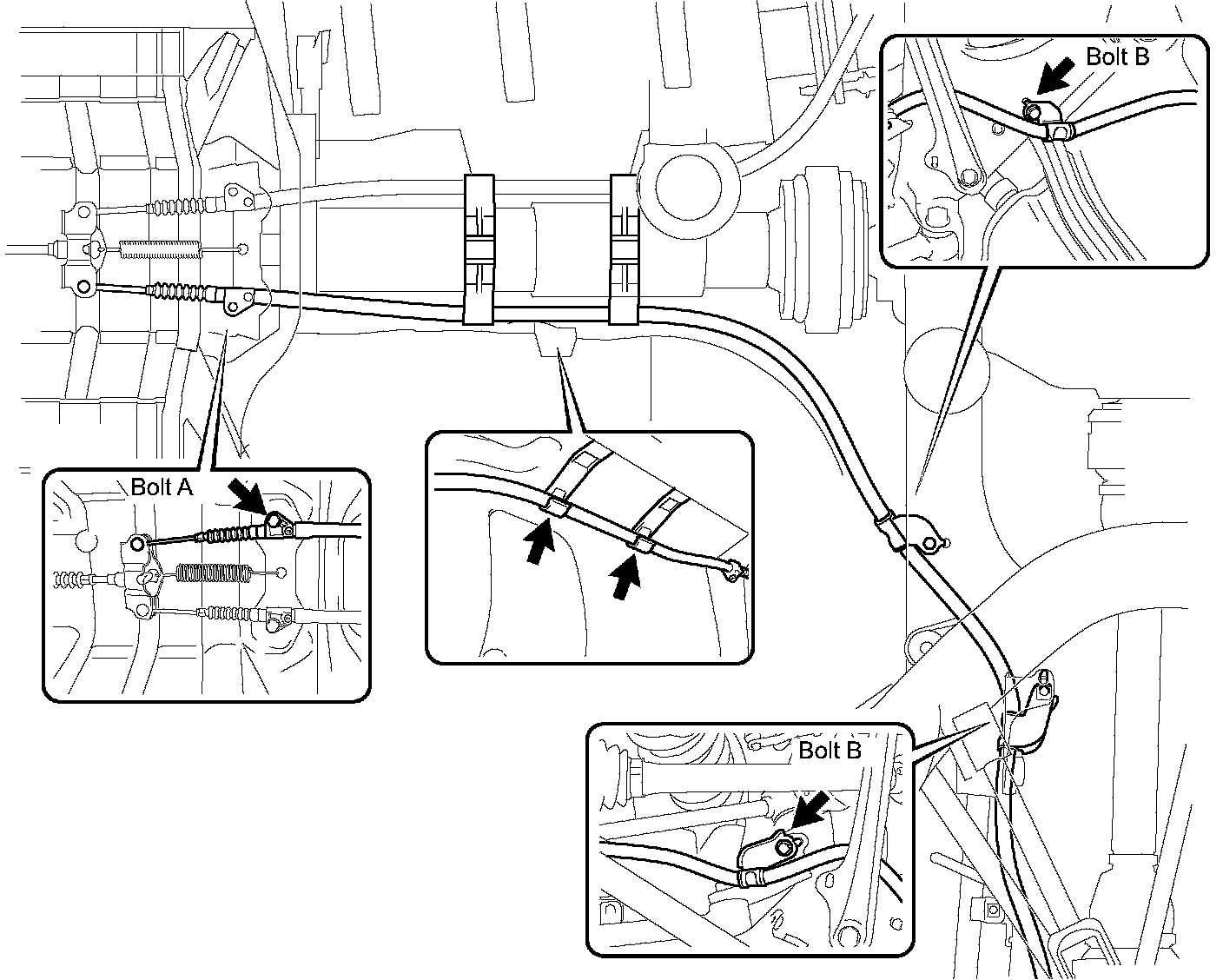

d. Install the parking brake No.3 cable assembly to the body with the 3 bolts and 2 clamps.
Torque:
Bolt A 6.0 Nm (61 kgf-cm, 53 inch lbs.)
Bolt B 19 Nm (194 kgf-cm, 14 ft. lbs.)
2. APPLY HIGH TEMPERATURE GREASE
3. INSTALL PARKING BRAKE SHOE LEVER
4. INSTALL PARKING BRAKE NO.2 SHOE ASSEMBLY
5. INSTALL PARKING BRAKE NO.1 SHOE ASSEMBLY
6. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET
7. INSTALL PARKING BRAKE SHOE RETURN NO.1 SPRING
8. INSTALL PARKING BRAKE SHOE RETURN NO.2 SPRING
9. CHECK PARKING BRAKE INSTALLATION
10. INSTALL REAR DISC
11. ADJUST PARKING BRAKE SHOE CLEARANCE
12. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
13. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
14. INSTALL DIFFERENTIAL SUPPORT NO.2 PROTECTOR
15. INSTALL REAR PROPELLER SHAFT ASSEMBLY (for 3GR-FSE)
16. INSPECT AND ADJUST NO.2 AND NO.3 JOINT ANGLE (for 3GR-FSE)
17. INSTALL FRONT FLOOR HEAT NO.1 INSULATOR (for 3GR-FSE)
18. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 3GR-FSE)
19. INSTALL HEATED OXYGEN SENSOR (for 3GR-FSE)
20. INSTALL FRONT FLOOR BRACE CENTER (for 3GR-FSE)
21. INSTALL REAR PROPELLER SHAFT ASSEMBLY (for 3UZ-FE)
22. FULLY TIGHTEN CENTER SUPPORT BEARING ASSY NO.1 (for 3UZ-FE)
23. INSPECT AND ADJUST NO.2 AND NO.3 JOINT ANGLE (for 3UZ-FE)
24. INSTALL FRONT FLOOR HEAT NO.1 INSULATOR (for 3UZ-FE)
25. INSTALL FRONT EXHAUST PIPE ASSEMBLY (for 3UZ-FE)
26. INSTALL REAR NO.1 FLOOR PANEL BRACE (for 3UZ-FE)
27. INSTALL FRONT FLOOR BRACE CENTER (for 3UZ-FE)
28. INSTALL CONSOLE BOX (for 4WD of 3GR-FSE)
29. INSTALL CONSOLE BOX REGISTER ASSEMBLY (for 4WD of 3GR-FSE)
30. INSTALL CONSOLE BOX PLATE (for 4WD of 3GR-FSE)
31. INSTALL INSTRUMENT PANEL FINISH LH PANEL END
32. INSTALL INSTRUMENT PANEL FINISH RH PANEL END
33. INSTALL FRONT ASH RECEPTACLE ASSEMBLY
34. INSTALL CONSOLE UPPER PANEL GARNISH FRONT
35. INSTALL FRONT SEAT ASSEMBLY
36. INSTALL FRONT SEAT OUTER BELT ASSEMBLY
37. CONNECT BATTERY NEGATIVE TERMINAL
38. INSPECT PARKING BRAKE PEDAL TRAVEL
39. ADJUST PARKING BRAKE PEDAL TRAVEL
40. PERFORM INITIALIZATION
41. INSPECT SRS WARNING LIGHT
42. INSPECT FRONT SEAT ASSEMBLY
43. CHECK FOR EXHAUST GAS LEAKS
