VSC Warning Light Remains ON

VSC Warning Light Remains ON

DESCRIPTION
If the ECU stores DTC, the VSC warning light comes on in the combination meter. The skid control ECU is connected to the combination meter via CAN and multiplex communications.

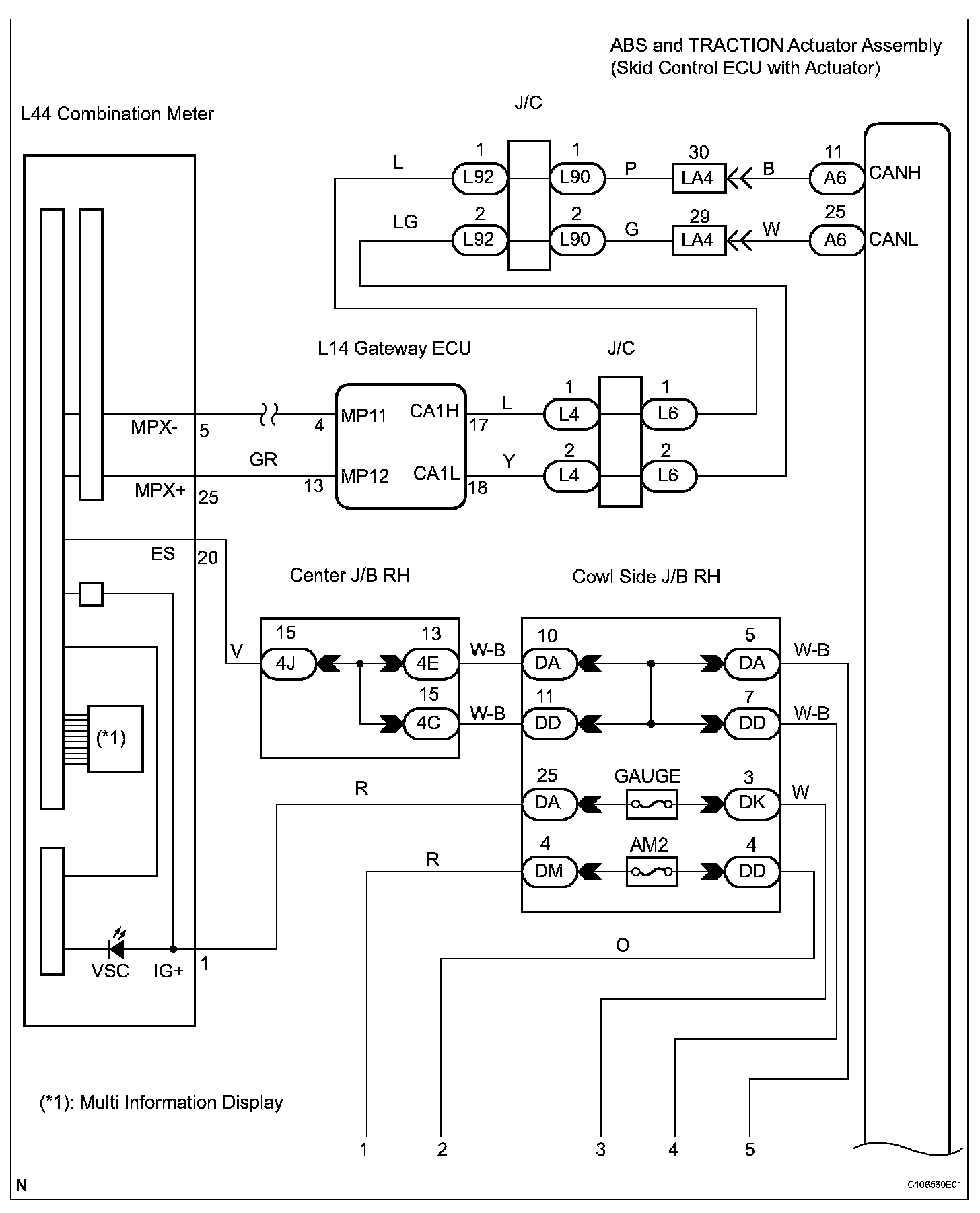

Wiring Diagram (part 1):

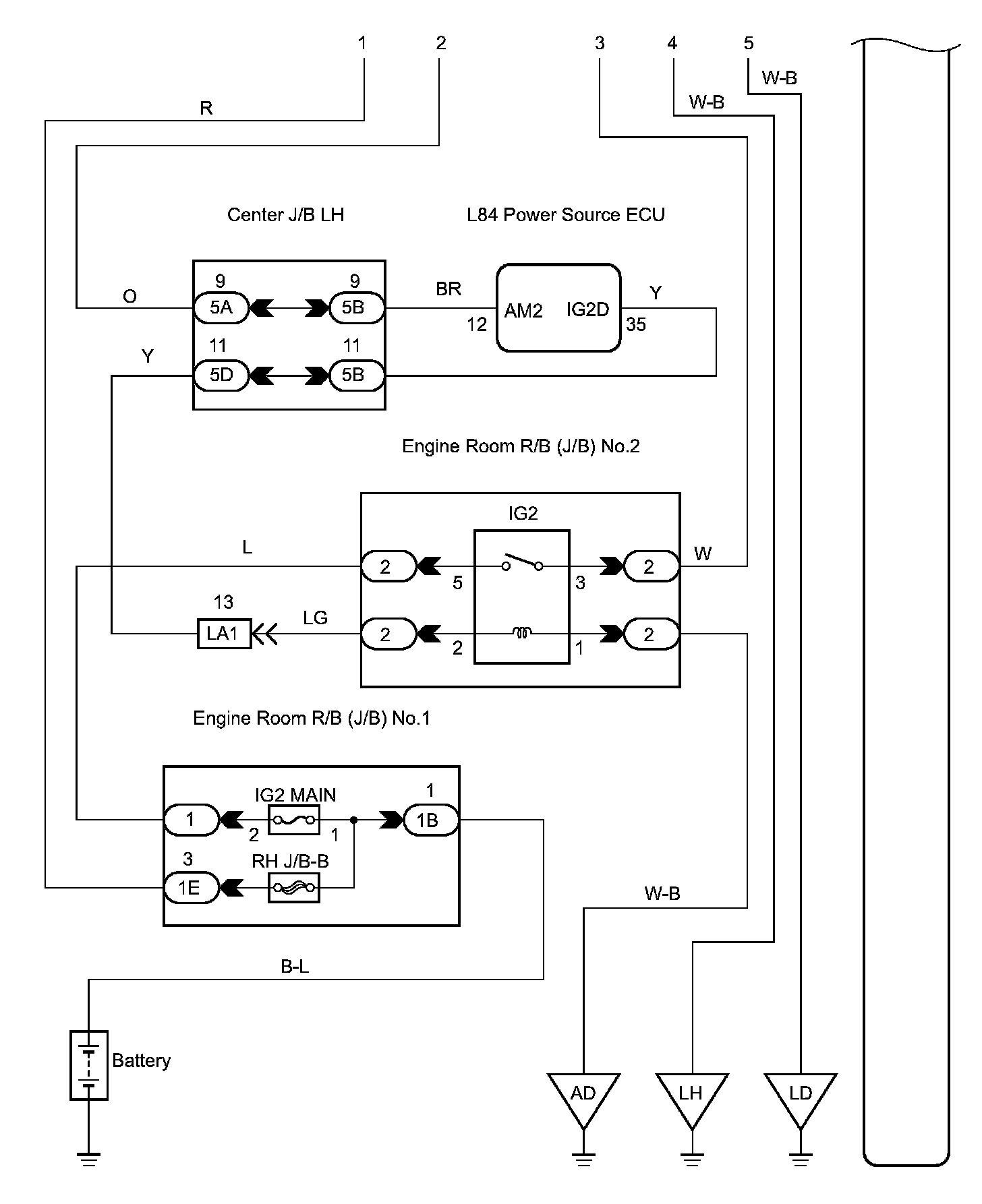

Wiring Diagram (part 2):

NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration.

INSPECTION PROCEDURE

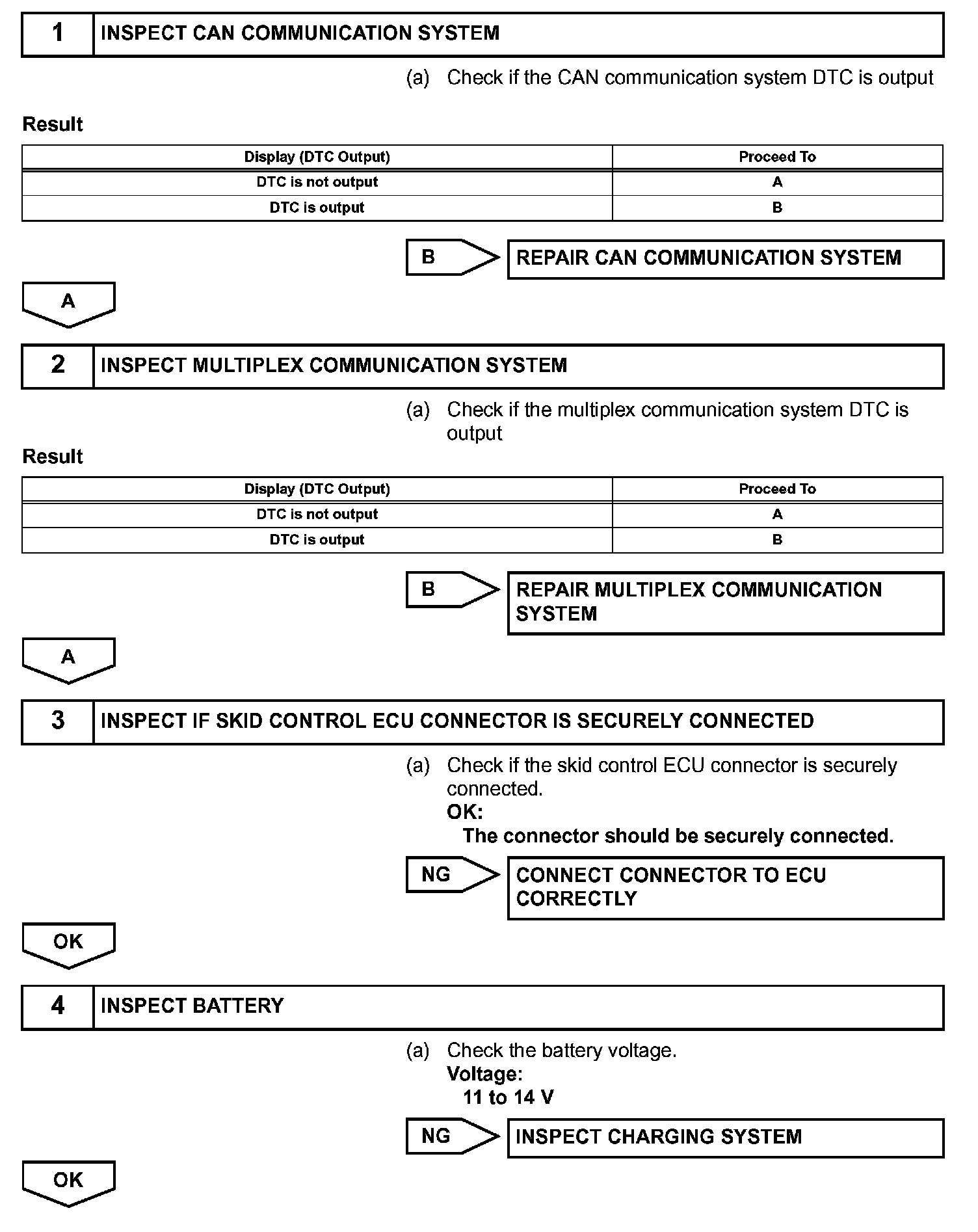

Steps 1-4:

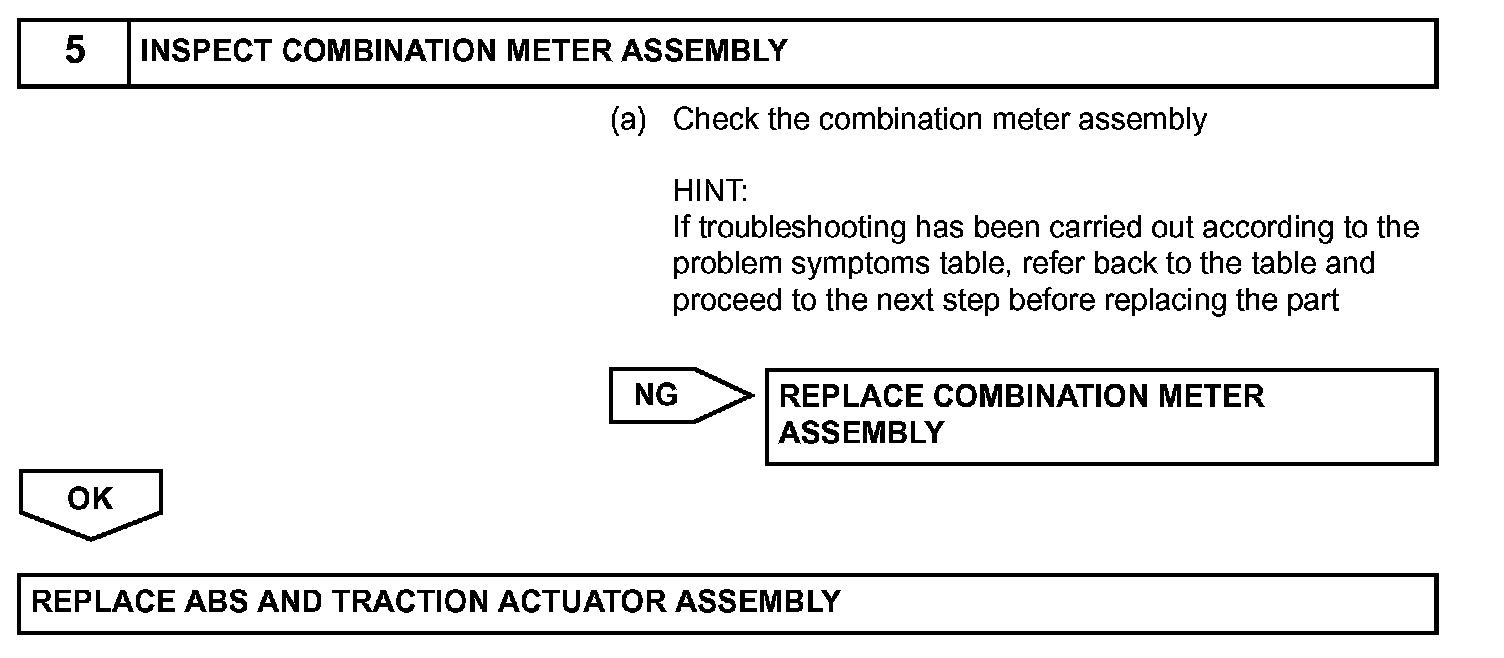

Step 5:
