VSC Warning Light Does Not Come ON
VSC Warning Light does not Come ONDESCRIPTION
If any of the following is detected, the ABS warning light remains on.
^ The skid control ECU connectors are disconnected from the skid control ECU.
^ There is a malfunction in the skid control ECU internal circuit.
^ There is an open in the harness between the combination meter and the skid control ECU.
NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration.
INSPECTION PROCEDURE

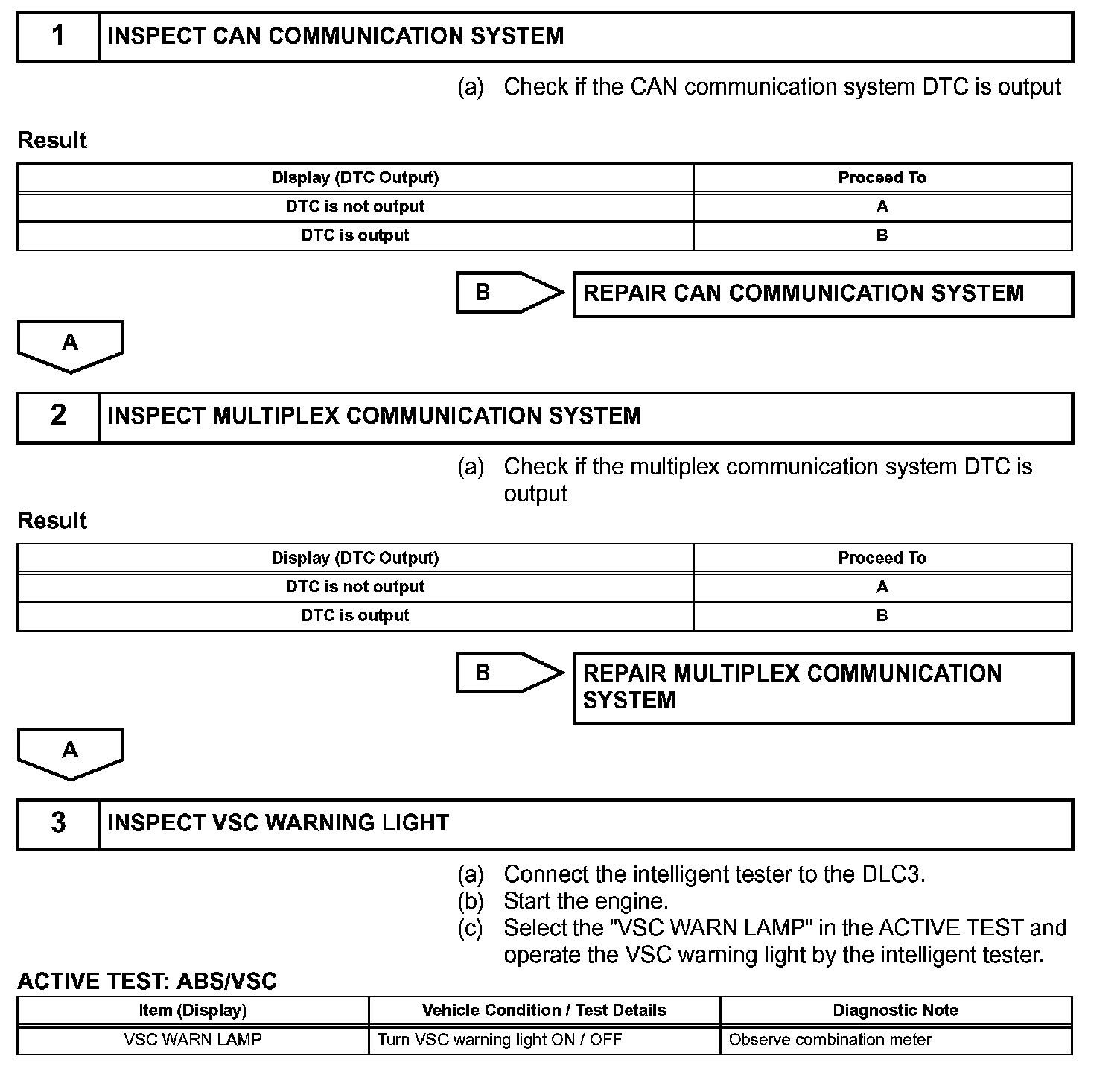

Steps 1-3:

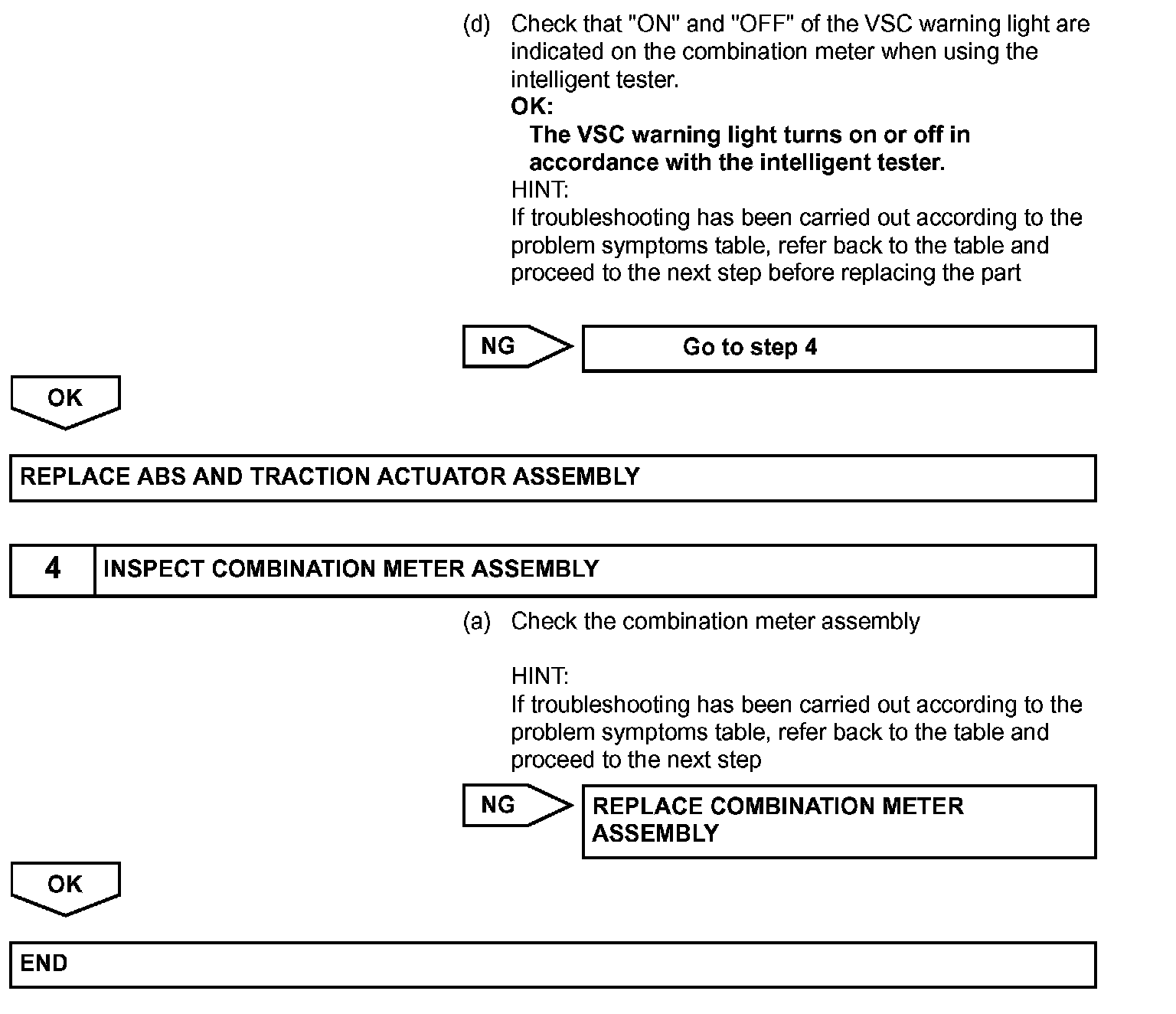

Steps 3-4:
