Home >> Lexus >> 2006 >> GS 300 RWD V6-3.0L (3GR-FSE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Vehicle Stability Control System >> Slip Indicator Light Does Not Come ON

Slip Indicator Light Does Not Come ON

Slip Indicator Light does not Come ON

NOTICE: When replacing the ABS and TRACTION actuator assembly, perform zero point calibration.

INSPECTION PROCEDURE

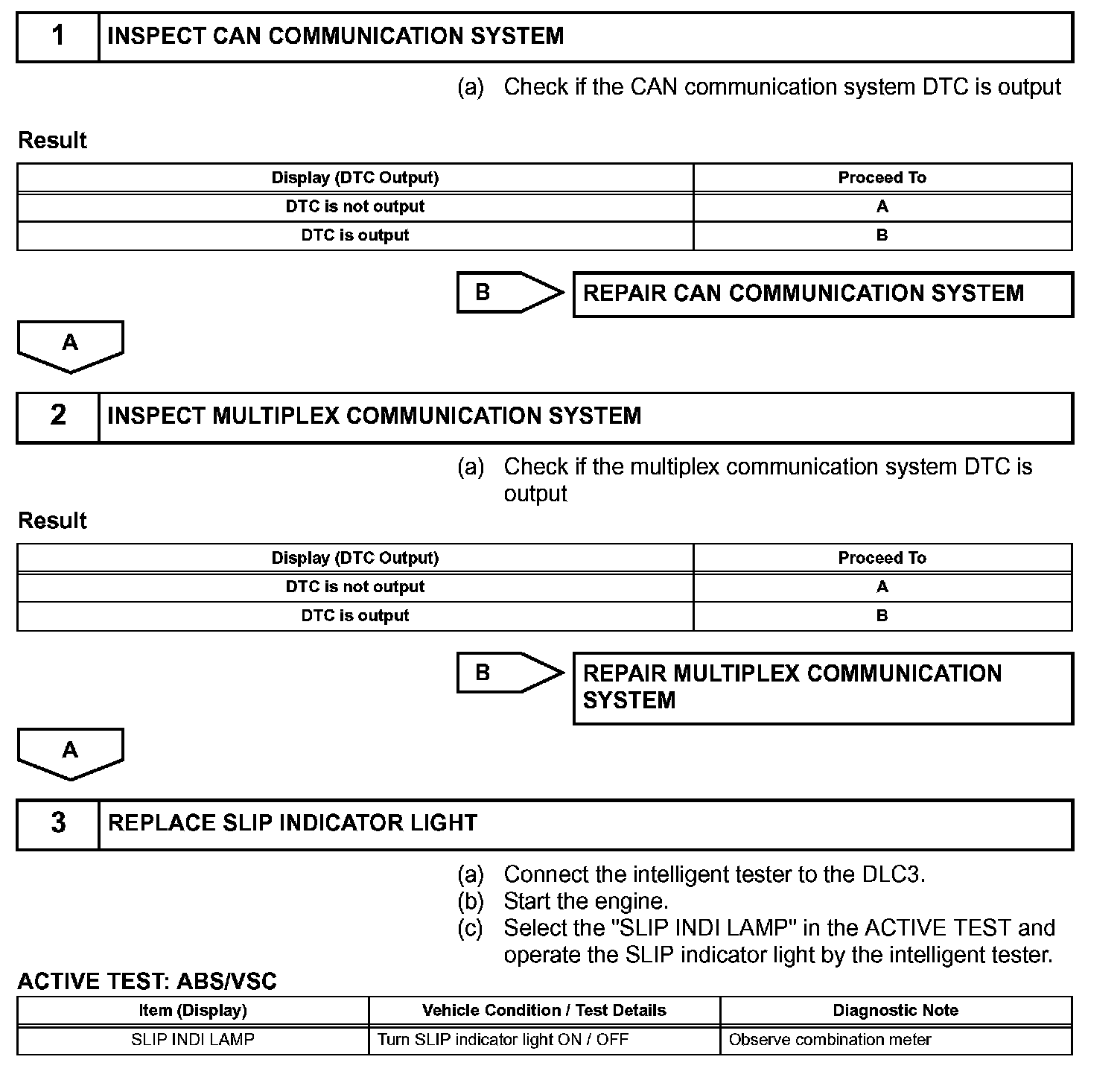

Steps 1-3:

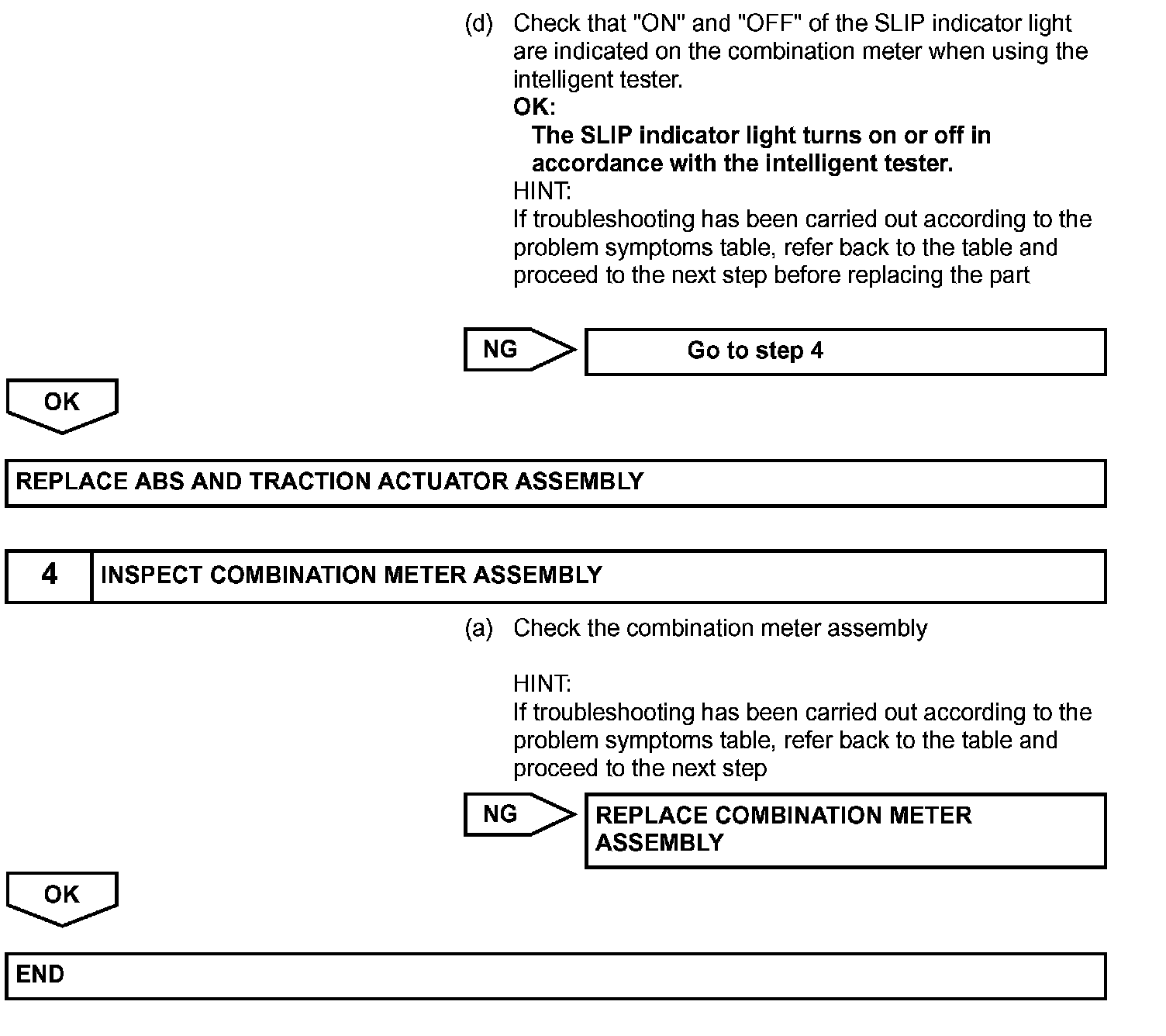

Steps 3-4:
